Corona production data

These tables look best if the browser is made as wide as possible.
Jump down to Corona 1st generation production data
10 16
Jump down to Corona 2nd generation production data
20 26 30 36
Jump down to Corona 1964-1970 4th generation production data
40 41 43 46 47 50 51 52 53 54 55 56
Jump down to Corona Mark II 1964-1970 1st generation production data
6#
Jump down to Corona 1970-1973 5th generation production data
80 81 82 83 84 85 86 87 89 90 91 93 94 95
Jump down to Corona 1973-1979 6th generation production data
100 102 103 104 105 110 112 114 115 116 117 118 119
Jump down to Corona 1978-198x 7th generation production data
120 121 122 123 130 131 132 133 134 135 137 138
Jump down to Corona 198x-198x 8th generation production data
140 141 142 147 150
Jump down to Sources

Corona 1# 1st generation

In 1956 Toyota had 2 intermediate size cars (the Crown and the Master) but no compact suitable for a taxi.
The Corona was to fill that gap.

The design was done in a hurry, so parts were used from other vehicles.
The drivetrain was copied from the Crown and the body panels were cut down versions of those used on the Master.
A separate chassis would be too heavy so Toyota were forced to use unibody construction.
Their lack of experience in unibodies showed by water leaks during rain.

The engine was originally 995cc but Tokyo regulations for small sized taxis limited engine size to 910cc.
Dealers sleeved the engine down but this restricted power even further.
The car gained a reputation as underpowered and it didn't sell well in the taxi market.

10 series
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
PT10 4DS 5.714 45/5000 7/3200 7.5 1190 1180 985


16 series Van
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
PT16V Van
ST16V Van

Corona 2# 2nd generation

20 series 1000,1500 Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
63xx- RT20-B R 4DS Man 3H 4.375 Std 62/4500 11.2/3000 8.0 1230 1230 980
63xx- RT20-BH R 4DS Man 3H Std 62/4500 11.2/3000 8.0 1230 1230 990
64xx- RT20-CB R 4DS Auto 2HC Std 62/4500 11.2/3000 8.0 1230 1230 995
63xx- RT20-D R 4DS Man 3H 4.375 DLX 62/4500 11.2/3000 8.0 1230 1230 1000
63xx- RT20-DH R 4DS Man 4H DLX 62/4500 11.2/3000 8.0 1230 1230 1010
64xx- RT20-CD R 4DS Auto 2HC DLX 62/4500 11.2/3000 8.0 1230 1230 1015
PT20 45
63xx-65xx RT20 R 4DS Man
4DS 75/4500 83.6/3000 2200lb

26 series 1000,1500 Commercials
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
6009- PT26 P Pickup
6105 PT26-P P Crewcab Pickup
6007- PT26-V P 2DV
RT26G R 2DW Man 3H 4.375 65/4500 11.6/3000 8.0 1230 1230 1070
RT26LG R 2DW Man 3H 4.375 65/4500 11.6/3000 8.0 1230 1230 1070
PT26 P Pickup
PT26-V P 2DV
RT26G R 2DW Man

30 series 1900 Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RT30L 3R 4DS Man 3H 3.900 85/4600 15.2/2600 7.7 1230 1230 1025


36 series 1200 Commercials
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
PT36 2P Pickup 55/5000 8.8/2800 7.8 1230 1230 1000
PT36-P 2P Crewcab Pickup 55/5000 8.8/2800 7.8 1230 1230 1040
PT36-V 2P 2DV 55/5000 8.8/2800 7.8 1230 1230 1040
Note: PT36-P is a pickup with 2 bench seats for 5 people but only 2 doors.

Corona 4#, 5# 4th generation

This generation was completely redesigned with the latest European influences.
Because of its streamlined shape, it was known in Japan as the Arrowline.
Most western markets nicknamed it the "shovel nose" because of its sloping front.
The 4# generation was designed well, made well and sold well.

The 4# Corona began to be sent to many countries in CKD form (Complete Knock Down = unassembled kits).
These were assembled by a local company and then sold to the public.
Australia was the first country to do this in 1964 with some local components (continuing from the RT20).
Steelbros in New Zealand started this in Feb 1967.

40 series 1200,1500 Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
6409- PT40 2P 4DS Man 3H 4.111 Std
6409-7001 RT40 2R 4DS Man 3H 4.111 Std 74/5000 11.8/2600 8.0 1270 1270 920
6409-7001 RT40-C 2R 4DS Auto 2HC A20 4.111 Std 74/5000 11.8/2600 8.0
6409-7001 RT40-D 2R 4DS Man 3H 4.111 DLX 74/5000 11.8/2600 8.0 1270 1270 920
6409-7001 RT40-DC 2R 4DS Auto 2HC A20 4.111 DLX 74/5000 11.8/2600 8.0
6409-7001 RT40-DK 2R 4DS Man 4F 4.111 DLX 74/5000 11.8/2600 8.0
6409-7001 RT40-T 2R 4DS Man 3H 4.111 Taxi 74/5000 11.8/2600 8.0
6409-7001 RT40-TP 2R (LPG) 4DS Man 3H Taxi 74/5000 11.8/2600 8.0
6409-7001 RT40 2R 4DS Man 3H Std
6409-7001 RT40-C 2R 4DS Auto 2HC A20 Std
6409-7001 RT40-K 2R 4DS Man 4F Std
6409-7001 RT40-D 2R 4DS Man 3H DLX
6409-7001 RT40L 2R 4DS Man 3H Std
6409-7001 RT40L-C 2R 4DS Auto 2HC A20 Std
6409-7001 RT40L-K 2R 4DS Man 4F Std
6409-7001 RT40L-D 2R 4DS Man 3H DLX
64xx-700x RT40 2R 4DS Man 4
64xx-700x RT40 2R 4DS Auto 3
RT40 2R 4DS

41 series 1300,1600 Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
PT41 3P
RT41-D 7R 4DS Man 3HC DLX 85/5500 12.5/3800 8.5 1270 1270 960
RT41-DC 7R 4DS Auto ?HC DLX 85/5500 12.5/3800 8.5 1270 1270 960
RT41-DK 7R 4DS Man 4F DLX 85/5500 12.5/3800 8.5 1270 1270 965
RT41-S 7R-B 4DS Man 4F S 100/6200 13.6/4200 9.5 1290 1290 975

43 series 1900 Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
67xx-7001 RT43-KA 3R 4DS Man 4F 3.700 90/4600 110ftlb/2600 8.0 1270 1270 2139lbs
67xx-7001 RT43-CA 3R 4DS Auto 2HC A20 3.700
67xx-7001 RT43-*A 3R 4DS Auto 2FC A20 3.700

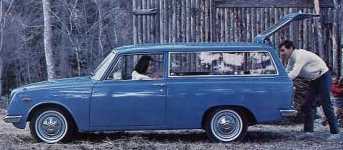

46 series Commercials
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
PT46 2P 4DS Std
PT46-P 2P 4DS Std
6409- PT46V 2P 2DW 5.286 Std
6701- PT46V-F 2P 4DW
RT46V-D 2R 2DW DLX
6705-7001 RT46V-FD 2R 4DW DLX
63xx RT46-J Pickup
RT46-** 2R Pickup Man 4F 74/5000 980
6502- RT46-B 2R Pickup

47 series Commercials
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
6705-7001 PT47V 3P 2DW Std
6705-7001 PT47V-F 3P 4DW Std

50 series 1500 Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RT50 2R HT Man 70/5000 11.5/2600 8.0 1270 1270 960
RT50-K 2R HT Man 4F 70/5000 11.5/2600 8.0 1270 1270 965
RT50-C 2R HT Auto 70/5000 11.5/2600 8.0 1270 1270 975

51 series 1600S Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
6606- RT51 4R HT Man 2H S 90/5800 12.8/4200 9.2 1270 1270 980
RT51L-K 4R HT Man 4F
66xx- RT51 4R HT
20 RT51's went to Finland but Toyota's official data says that only the RT40 went to Europe.
These were LHD RT51L's, so they were not just the Japanese RHD RT51.
Probably the dealer network did them as a special run using American spec RT52L bodies with 4R engines.
Not sure where the LHD sports dash came from because none of the LHD markets had the sports dash.
Belgium and Luxemburg got some as well but I am not sure if they were the same batch of 20.

52 series 1900 Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
67xx-7001 RT52L-KA 3R HT Man 4F 3.700
67xx-7001 RT52L-CA 3R HT Auto 2HC A20 3.700
67xx-7001 RT52L-*A 3R HT Auto 2FC A20 3.700

53 series
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RT53 7R HT Man 3 85/5500 12.5/3800 8.5 1270 1270 975
RT53-K 7R HT Man 4F 85/5500 12.5/3800 8.5 1270 1270 980
RT53-C 7R HT Auto 85/5500 12.5/3800 8.5 1270 1270 975

54 series 1600S
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RT54 7R-B HT Man 4 100/6200 13.6/4200 9.5 1290 1270 995

55 series 1600 GT Hardtop twincam
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
6xxx-6xxx RT55 9R HT Man 5 4.111
3.900
4.375		 GT 110/6200 14.0/5000 9.0 1290 1270 1030

56 series 1900 Van, Pickup, 5 door Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RT56 2R 5D Man 70/5000 11.5/2600 8.0 1270 1270 990
RT56-C 2R 5D Auto 70/5000 11.5/2600 8.0 1270 1270 990
65xx- RT56

Corona Mark II 6#

The 1964-1970 Corona Mark II was sold at the same time as the 1964-70 Corona.
The Corona Mark II is bigger than the Corona.
Both cars shared the T platform code with the Corona Mark II using the 6# code.
The next generation Corona Mark II's were given the X platform code.
Later the name was changed to Cressida.

Corona 8#, 9# 5th generation

80 series 1500 Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RT80
7002-7101 RT80 2R 4DS Man 3H T 4.111 Std
7002-7101 RT80-C 2R 4DS Auto 2HC A20 T 4.111 Std
7002-7101 RT80-K 2R 4DS Man 4F T 4.111 Std
7002-7101 RT80-D 2R 4DS Man 3H T 4.111 DLX
7002-7101 RT80-DC 2R 4DS Auto 2HC A20 T 4.111 DLX
7002-7101 RT80-DK 2R 4DS Man 4F T 4.111 DLX
7002-7101 RT80L 2R 4DS Man 3H T 4.111 Std
7002-7101 RT80L-C 2R 4DS Auto 2HC A20 T 4.111 Std
7002-7101 RT80L-K 2R 4DS Man 4F T 4.111 Std
7002-7101 RT80L-D 2R 4DS Man 3H T 4.111 DLX
7002-7101 RT80L-DC 2R 4DS Auto 2HC A20 T 4.111 DLX
7002-7101 RT80L-DK 2R 4DS Man 4F T 4.111 DLX

81 series 1600 Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7102-7307 RT81 12R 4DS Man 3H 6.38" 4.100 Std
7102-7307 RT81-C 12R 4DS Auto 2HC A20 6.38" 4.100 Std
7102-7307 RT81-K 12R 4DS Man 4F C
6.38" 		3.700
3.727		 Std
7102-7307 RT81-D 12R 4DS Man 3H 6.38" 4.100 DLX
7102-7307 RT81-DC 12R 4DS Auto 2HC A20 6.38" 4.100 DLX
7102-7307 RT81-DK 12R 4DS Man 4F C
6.38" 		3.700
3.727		 DLX
7102-7307 RT81L 12R 4DS Man 3H 6.38" 4.100 Std
7102-7307 RT81L-C 12R 4DS Auto 2HC A20 6.38" 4.100 Std
7102-7307 RT81L-K 12R 4DS Man 4F C
6.38" 		3.700
3.727		 Std
7102-7307 RT81L-D 12R 4DS Man 3H 6.38" 4.100 DLX
7102-7307 RT81L-DC 12R 4DS Auto 2HC A20 6.38" 4.100 DLX
7102-7307 RT81L-DK 12R 4DS Man 4F C
6.38" 		3.700
3.727		 DLX

82 series 1600 Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RT82-S S
7002-7101 RT82-K 7R 4DS Man 4F Std

83 series 1900 Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7102-7204 RT83-BK 8R 4DS Man 4F T 4.111 Std
7001-71xx RT83L-KA 8R 4DS Man 4F T 3.700 Std
7001-71xx RT83L-HA 8R 4DS Auto 3FC A30 T 3.700 Std

84 series 1700 Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7102-7307 RT84-K 6R 4DS Man 4F D 4.111 Std
7102-7207 RT84-KX 6R 4DS Man 4F D 4.111 Std
7102-7307 RT84-DN 6R 4DS Auto 3HC A30 D 4.111 DLX
7102-7307 RT84-DK 6R 4DS Man 4F D 4.111 DLX
7102-7307 RT84L-K 6R 4DS Man 4F D 4.111 Std
7102-7207 RT84L-KX 6R 4DS Man 4F D 4.111 Std
7102-7307 RT84L-DN 6R 4DS Auto 3HC A30 D 4.111 DLX
7102-7307 RT84L-DK 6R 4DS Man 4F D 4.111 DLX
7102-7307 RT84L-BK 6R 4DS Man 4F D 3.900 Std

85 series 2000 Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7205-7307 RT85-BK 18R 4DS Man 4F D 3.700 Std
7205-7307 RT85-BN 18R 4DS Auto 3HC A30 D 3.700 Std
71xx-73xx RT85L-KA 18R 4DS Man 4F D 3.700 Std
71xx-72xx RT85L-HA 18R 4DS Auto 3FC A30 D 3.700 Std
72xx-73xx RT85L-HA 18R 4DS Auto 3FC A30 D 3.900 Std
71xx-72xx RT85L-NA 18R 4DS Auto 3HC A30 D 3.700 Std
72xx-73xx RT85L-NA 18R 4DS Auto 3HC A30 D 3.900 Std

86 series 1500 Wagon
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7002-7101 RT86V 2R 4DW Auto 3H Std
7002-7101 RT86V-K 2R 4DW Man 4F Std
7002-7101 RT86LV 2R 4DW Auto 3H Std
7002-7101 RT86LV-K 2R 4DW Man 4F Std

87 series 1600 Wagon
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7102-7307 RT86V 12R 4DW Auto 3H Std
7102-7307 RT86V-K 12R 4DW Man 4F Std
7102-7307 RT86LV 12R 4DW Auto 3H Std
7102-7307 RT86LV-K 12R 4DW Man 4F Std

89 series
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
72xx-73xx RT89L-**A

90 series 1500 Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7009-7101 RT90 2R HT Man 3H 4.111 77/5200 11.7/2800 8.3 1290 1280 935
7009-7101 RT90-K 2R HT Man 4F 4.111 77/5200 11.7/2800 8.3 1290 1280 940

91 series 1600 Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7102- RT91 12R HT Man 3H
7102- RT91-K 12R HT Man 4F

93 series 1900 Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7102- RT93-K 8R-D HT Man 4F
7102- RT93-H 8R-D HT Auto 3FC
7102- RT93-S 8R-B HT Man 4F SL
7102- RT93-SH 8R-B HT Auto 3FC SL
7109- RT93-SG 8R-B HT Auto 3FC EAT(G) SL
70xx-71xx RT93L-**A

94 series 1700 Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7009-7108 RT94 6R HT Man 3H 95/5500 14.0/3800 8.5 1290 1280
7009- RT94-K 6R HT Man 4F 95/5500 14.0/3800 8.5 1290 1280
7009- RT94-H 6R HT Auto 3FC 95/5500 14.0/3800 8.5 1290 1280
7009-7108 RT94-E 6R HT Auto 3FC EAT 95/5500 14.0/3800 8.5 1290 1280
7009- RT94-G 6R HT Auto 3FC EAT(G) 95/5500 14.0/3800 8.5 1290 1280
7009-7108 RT94-X 6R HT Man 3H XL 95/5500 14.0/3800 8.5 1290 1280
7009- RT94-KX 6R HT Man 4F 4.111 XL 95/5500 14.0/3800 8.5 1290 1280 955
7009- RT94-HX 6R HT Auto 3FC 4.111 XL 95/5500 14.0/3800 8.5 1290 1280 970
7109- RT94-GX 6R HT Auto 3FC EAT(G) XL 95/5500 14.0/3800 8.5 1290 1280
7009- RT94-S 6R-B HT Man 4F 3.900 S 105/6000 14.5/4000 9.5 1300 1280 970
7009- RT94-SH 6R-B HT Auto 3FC 3.900 S 105/6000 14.5/4000 9.5 1300 1280 985
7009-7307 RT94-K 6R HT Man 4F Std
7009-7307 RT94-H 6R HT Auto 3FC Std
7009-7307 RT94L-K 6R HT Man 4F Std
7009-7307 RT94L-H 6R HT Auto 3FC Std

95 series 2000 Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7205-7307 RT95-K 18R HT Man 4F Std
7205-7307 RT95-H 18R HT Auto 3FC Std
71xx-73xx RT95L-**A

Corona 10#,11# 6th generation

Changed to MacPherson strut front suspension.
Australian assembled vehicles (build plate says "Australian Motor Industries" and has XXB in the code) have Borg Warner gearboxes and Borg Warner unitised diffs.

100 series 1600 Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
73xx,75xx TT100-YRF 2T 4DS Man 3H N30 4.100 Std 100/6000 13.7/3800 8.5 1345 1320 960
73xx,75xx TT100-KRF 2T 4DS Man 4F T40 4.100 Std 100/6000 13.7/3800 8.5 1345 1320 965
73xx,75xx TT100-YDF 2T 4DS Man 3H N30 4.100 DLX 100/6000 13.7/3800 8.5 1345 1320 975
73xx,75xx TT100-KDF 2T 4DS Man 4F T40 4.100 DLX 100/6000 13.7/3800 8.5 1345 1320 980
73xx,75xx TT100-MDF 2T 4DS Man 5F T40 4.100 DLX 100/6000 13.7/3800 8.5 1345 1320 985
73xx,75xx TT100-RDF 2T 4DS Auto 2HC 4.100 DLX 100/6000 13.7/3800 8.5 1345 1320 975
73xx,75xx TT100-YNF 2T 4DS Man 3H N30 4.100 GL 100/6000 13.7/3800 8.5 1345 1320 980
73xx,75xx TT100-KNF 2T 4DS Man 4F T40 4.100 GL 100/6000 13.7/3800 8.5 1345 1320 985
73xx,75xx TT100-MNF 2T 4DS Man 4F T50 4.100 GL 100/6000 13.7/3800 8.5 1345 1320 990
73xx,75xx TT100-HNF 2T 4DS Auto 3FC A40 4.100 GL 100/6000 13.7/3800 8.5 1345 1320 990
73xx,75xx TT100-KR 2T 2DS Man 4F T40 4.100 Std 100/6000 13.7/3800 8.5 1345 1320 950
73xx,75xx TT100-KD 2T 2DS Man 4F T40 4.100 DLX 100/6000 13.7/3800 8.5 1345 1320 965
73xx,75xx TT100-KN 2T 2DS Man 4F T40 4.100 GL 100/6000 13.7/3800 8.5 1345 1320 970
76xx A-TT100-YRFU 2T-U 4DS Man 3H N30 Std 90/6000 13.0/3800 9.0 1345 1320 1010
76xx A-TT100-YDFU 2T-U 4DS Man 3H N30 DX 90/6000 13.0/3800 9.0 1345 1320 1015
76xx A-TT100-KDFU 2T-U 4DS Man 4F T40 DX 90/6000 13.0/3800 9.0 1345 1320 1020
76xx A-TT100-MDFU 2T-U 4DS Man 5F T50 DX 90/6000 13.0/3800 9.0 1345 1320 1025
76xx A-TT100-HDFU 2T-U 4DS Auto 4FC A40 DX 90/6000 13.0/3800 9.0 1345 1320 1020
76xx A-TT100-KNFU 2T-U 4DS Man 4F T40 GL 90/6000 13.0/3800 9.0 1345 1320 1025
76xx A-TT100-MNFU 2T-U 4DS Man 5F T50 GL 90/6000 13.0/3800 9.0 1345 1320 1030
76xx A-TT100-HNFU 2T-U 4DS Auto 3FC A40 GL 90/6000 13.0/3800 9.0 1345 1320 1025
76xx A-TT100-MSFU 2T-U 4DS Man 5F T50 SL 90/6000 13.0/3800 9.0 1345 1320 1060
76xx A-TT100-KDU 2T-U 2DS Man 4F T40 DX 90/6000 13.0/3800 9.0 1345 1320 1010
76xx A-TT100-KNU 2T-U 2DS Man 4F T40 GL 90/6000 13.0/3800 9.0 1345 1320 1015
RT100-YTF 12R 4DS Man 3H 4.100 Std
RT100-YTFP 12R-LPG 4DS Man 3H 4.100 Std LPG
7308-7808 RT100-YRF 12R 4DS Man 3H N30 Std
7308-7808 RT100-KRF 12R 4DS Man 4F W40 Std
7308-7808 RT100-YDF 12R 4DS Man 3H N30 T 3.727
4.100		 DLX
7308-7808 RT100-KDF 12R 4DS Man 4F W40 T 3.727
4.100		 DLX
7308-7808 RT100L-YRF 12R 4DS Man 3H N30 T 3.727
4.100		 Std
7308-7808 RT100L-KRF 12R 4DS Man 4F W40 T 3.727
4.100		 Std
7308-7808 RT100L-YDF 12R 4DS Man 3H N30 T 3.727
4.100		 DLX
7308-7808 RT100L-KDF 12R 4DS Man 4F W40 T 3.727
4.100		 DLX
7511-7808 RT100L-KRFM 12R-M 4DS Man 4F W40 T 3.727
4.100		 Std
7511-7701 RT100L-KDFM 12R-M 4DS Man 4F W40 T 3.727
4.100		 DLX

102 series 1800 Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
73xx,75xx RT102-YDF 16R 4DS Man 3H N30 T 4.100 DLX 105/5600 15.0/3800 8.5 1345 1320 1015
73xx,75xx RT102-KDF 16R 4DS Man 4F W40 T 4.100 DLX 105/5600 15.0/3800 8.5 1345 1320 1020
75xx RT102-MDF 16R 4DS Man 5F W40 T 4.100 DLX 105/5600 15.0/3800 8.5 1345 1320 1025
73xx,75xx RT102-HDF 16R 4DS Auto 3FC A40 T 4.100 DLX 105/5600 15.0/3800 8.5 1345 1320 1025
73xx,75xx RT102-YNF 16R 4DS Man 3H N30 T 4.100 GL 105/5600 15.0/3800 8.5 1345 1320 1025
73xx,75xx RT102-KNF 16R 4DS Man 4F W40 T 4.100 GL 105/5600 15.0/3800 8.5 1345 1320 1030
75xx RT102-MNF 16R 4DS Man 4F W40 T 4.100 GL 105/5600 15.0/3800 8.5 1345 1320 1035
73xx,75xx RT102-HNF 16R 4DS Auto 3FC A40 T 4.100 GL 105/5600 15.0/3800 8.5 1345 1320 1035
73xx,75xx RT102-GNF 16R 4DS Auto 3FC EAT T 4.100 GL 105/5600 15.0/3800 8.5 1345 1320 1035
73xx,75xx RT102-KSFB 16R-B 4DS Man 4F W40 T 4.100 SL 110/6000 15.3/3400 8.5 1360 1335 1030
73xx,75xx RT102-MSFB 16R-B 4DS Man 5F W50 T 4.100 SL 110/6000 15.3/3400 8.5 1360 1335 1035
73xx,75xx RT102-HSFB 16R-B 4DS Auto 3FC A40 4.100 SL 110/6000 15.3/3400 8.5 1360 1335 1035
73xx,75xx RT102-MXB 16R-B 4DS Man 5F 4.100 SR
7308-7509 RT102-KRF 16R 4DS Man 4F W40 T 3.909 Std
7308-7509 RT102-KDF 16R 4DS Man 4F W40 T 3.909 DLX
7308-7509 RT102-HDF 16R 4DS Auto 3FC A40 T 3.909 DLX
7308-7509 RT102L-KRF 16R 4DS Man 4F W40 T 3.909 Std
7308-7509 RT102L-KDF 16R 4DS Man 4F W40 T 3.909 DLX
7308-7509 RT102L-HDF 16R 4DS Auto 3FC A40 T 3.909 DLX
7308-7905 RT102-KRFN 16R 4DS Man 4F W40 T 3.909 Std
7311-7509 RT102-KRFW 16R 4DS Man 4F W40 T 3.909 Std
7311-7509 RT102-KDFW 16R 4DS Man 4F W40 T 3.909 DLX
7311-7509 RT102-HDFW 16R 4DS Auto 3FC A40 T 3.909 DLX
7311-7509 RT102-MDFW 16R 4DS Man 5F W50 T 3.909 DLX
7311-7509 RT102L-KRFW 16R 4DS Man 4F W40 T 3.909 Std
7311-7509 RT102L-KDFW 16R 4DS Man 4F W40 T 3.909 DLX
7311-7509 RT102L-HDFW 16R 4DS Auto 3FC A40 T 3.909 DLX
7311-7509 RT102L-MDFW 16R 4DS Man 5F W50 T 3.909 DLX

103 series 2000 Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7412- RT103-KDF 19R 4DS Man 4F DLX
7412- RT103-MDF 19R 4DS Man 5F W50 DLX

104 series 2000 Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
73xx,75xx RT104-KSFE 18R-E 4DS Man 4F W40 3.727 SL EFI 13/5600 17.5/4400 9.1 1360 1335 1060
73xx,75xx RT104-MSFE 18R-E 4DS Man 5F W50 3.727 SL EFI 13/5600 17.5/4400 9.1 1360 1335 1065
73xx,75xx RT104-HSFE 18R-E 4DS Auto 3FC A40 3.909 SL EFI 13/5600 17.5/4400 9.1 1360 1335 1065
73xx RT104-MQFG 18R-G 4DS Man 5F P51 F 4.111 GT
73xx,75xx RT104-MQFGR 18R-GR 4DS Man 5F P51 4.111 GT 140/6400 17.2/4800 8.5 1345 1320 1090
75xx RT104-MXE 18R-E 2DS Man 5F W50 T 3.727
3.727 LSD		 SR 13/5600 17.5/4400 9.1 1360 1335 1050
7509-7808 RT104-KRF 18R 4DS Man 4F W40 T 3.909
4.100		 Std
7509-7808 RT104-HRF 18R 4DS Auto 3FC A40 T 3.909
4.100		 Std
7509-7808 RT104-KDF 18R 4DS Man 4F W40 T 3.909
4.100		 DLX
7509-7808 RT104-HDF 18R 4DS Auto 3FC A40 T 3.909
4.100		 DLX
7509-7808 RT104L-KRF 18R 4DS Man 4F W40 T 3.909
4.100		 Std
7509-7808 RT104L-HRF 18R 4DS Auto 3FC A40 T 3.909
4.100		 Std
7509-7808 RT104L-KDF 18R 4DS Man 4F W40 T 3.909
4.100		 DLX
7509-7808 RT104L-HDF 18R 4DS Auto 3FC A40 T 3.909
4.100		 DLX
7308-7411 RT104-KRQ 18R 2DS Man 4F W40 T 3.909
4.100		 Std
7308-7411 RT104-HRQ 18R 2DS Auto 3FC A40 T 3.909
4.100		 Std
7308-7905 RT104-KRFQ 18R 4DS Man 4F W40 T 3.909
4.100		 Std
7308-7905 RT104-HRFQ 18R 4DS Auto 3FC A40 T 3.909
4.100		 Std
RT104-KXXB 18R-C 4DS Man 4F W40 AM70 3.909
7308-7905 RT104-KDFN 18R 4DS Man 4F W40 T 3.909
4.100		 DLX
7308-7905 RT104-HDFN 18R 4DS Auto 3FC A40 T 3.909
4.100		 DLX
7509-7808 RT104-KRFW 18R 4DS Man 4F W40 T 3.909
4.100		 Std
7509-7808 RT104-KDFW 18R 4DS Man 4F W40 T 3.909
4.100		 DLX
7509-7808 RT104-HDFW 18R 4DS Auto 3FC A40 T 3.909
4.100		 DLX
7509-7808 RT104-MDFW 18R 4DS Man 5F W50 T 3.909
4.100		 DLX
7509-7808 RT104L-KRFW 18R 4DS Man 4F W40 T 3.909
4.100		 Std
7509-7808 RT104L-KDFW 18R 4DS Man 4F W40 T 3.909
4.100		 DLX
7509-7808 RT104L-HDFW 18R 4DS Auto 3FC A40 T 3.909
4.100		 DLX
7509-7808 RT104L-MDFW 18R 4DS Man 5F W50 T 3.909
4.100		 DLX
7409-7509 RT104L-KDFW 18R 4DS Man 4F W40 T 3.909
4.100		 DLX
7409-7509 RT104L-HDFW 18R 4DS Auto 3FC A40 T 3.909
4.100		 DLX
7509-7606 RT104L-KDFC 18R-C 4DS Man 4F W40 T 3.909
4.100		 DLX
7509-7808 RT104L-HDFC 18R-C 4DS Auto 3FC A40 T 3.909
4.100		 DLX
7606-7808 RT104L-MDFC 18R-C 4DS Man 5F W50 T 3.909
4.100		 DLX
73xx-74xx RT104L-**A 18R-C 2DS Man 4F W40 3.99
73xx-74xx RT104L-**A 18R-C 2DS Auto 3FC A40 4.10
73xx-74xx RT104L-**A 18R-C 4DS Man 4F W40 3.99
73xx-74xx RT104L-HDFA 18R-C 4DS Auto 3FC A40 4.100

105 series 2200 Sedan
Country Dates Code Engine Body Gearbox Diff Grade
74xx-78xx RT105L-KRA 20R 2DS Man 4F Std
74xx-78xx RT105L-HRA 20R 2DS Auto 3FC Std
74xx-78xx RT105L-KDFA 20R 4DS Man 4F DLX
74xx-78xx RT105L-MDFA 20R 4DS Man 5F DLX
74xx-78xx RT105L-NDFA 20R 4DS Auto 3HC DLX

106 series 1600 Van
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
TT106V-YDF 2T 4DV Man 3H DX
TT106V-KDF 2T 4DV Man 3F DX
RT106V-YRF 12R 4DV Man 3H Std
TT106V

108 series 1800 Van
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RT108V-KDF 16R 4DV Man 4F DX
RT108V-HDF 16R 4DV Auto 3FC DX

110 series 1600 Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
75xx TT110-KD 2T HT Man 4F 4.100 DX 100/6000 13.7/3800 8.5 1345 1320 985
75xx TT110-HD 2T HT Auto 3FC 4.100 DX 100/6000 13.7/3800 8.5 1345 1320 990
75xx TT110-KN 2T HT Man 4F 4.100 GL 100/6000 13.7/3800 8.5 1345 1320 985
75xx TT110-HN 2T HT Auto 3FC 4.100 GL 100/6000 13.7/3800 8.5 1345 1320 990
76xx A-TT110-KDU 2T-U HT Man 4F T40 DX 90/6000 13.0/3800 9.0 1345 1320 1030
76xx A-TT110-MDU 2T-U HT Man 5F T50 DX 90/6000 13.0/3800 9.0 1345 1320 1035
76xx A-TT110-HDU 2T-U HT Auto 4FC A40 DX 90/6000 13.0/3800 9.0 1345 1320 1030
76xx A-TT110-KNU 2T-U HT Man 4F T40 GL 90/6000 13.0/3800 9.0 1345 1320 1030
76xx A-TT110-MNU 2T-U HT Man 5F T50 GL 90/6000 13.0/3800 9.0 1345 1320 1040
76xx A-TT110-HNU 2T-U HT Auto 3FC A40 GL 90/6000 13.0/3800 9.0 1345 1320 1035
76xx A-TT110-MSU 2T-U HT Man 5F T50 SL 90/6000 13.0/3800 9.0 1345 1320 1070
7407-7511 RT110L-KD 12R HT Man 4F W40 DLX
7511-7701 RT110L-KDM 12R-M HT Man 4F W40 DLX

112 series 1800 Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
73xx,75xx RT112-KD 16R HT Man 4F 4.100 DLX 105/5600 15.0/3800 8.5 1345 1320 1025
73xx,75xx RT112-HD 16R HT Auto 3FC 4.100 DLX 105/5600 15.0/3800 8.5 1345 1320 1030
73xx,75xx RT112-KN 16R HT Man 4F 4.100 GL 105/5600 15.0/3800 8.5 1345 1320 1035
73xx,75xx RT112-HN 16R HT Auto 3FC 4.100 GL 105/5600 15.0/3800 8.5 1345 1320 1040
73xx,75xx RT112-GN 16R HT Auto 3FC EAT 4.100 GL 105/5600 15.0/3800 8.5 1345 1320 1040
73xx,75xx RT112-KSB 16R-B HT Man 4F 4.100 SL 110/6000 15.3/4000 8.5 1360 1335 1035
73xx,75xx RT112-MSB 16R-B HT Man 5F 4.100 SL 110/6000 15.3/4000 8.5 1360 1335 1040
73xx,75xx RT112-HSB 16R-B HT Auto 3FC 4.100 SL 110/6000 15.3/4000 8.5 1360 1335 1040
7308-7509 RT112-KD 16R HT Man 4F W40 T 3.909 DLX
7308-7509 RT112-HD 16R HT Auto 3FC A40 T 3.909 DLX
7308-7509 RT112L-KD 16R HT Man 4F W40 T 3.909 DLX
7308-7509 RT112L-HD 16R HT Auto 3FC A40 T 3.909 DLX

114 series 2000 Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RT114-KSE 18R-E HT Man 4F 3.727 SL 130/5600 17.5/4400 9.1 1360 1335 1065
RT114-MSE 18R-E HT Man 5F 3.727 SL 130/5600 17.5/4400 9.1 1360 1335 1070
RT114-HSE 18R-E HT Auto 3FC 3.909 SL 130/5600 17.5/4400 9.1 1360 1335 1070
RT114-GSE 18R-E HT Auto 3FC EAT 3.909 SL 130/5600 17.5/4400 9.1 1360 1335 1070
RT114-MXE 18R-E HT Man 5F 3.727 SR 130/5600 17.5/4400 9.1 1360 1335 1075
RT114-MQG 18R-G HT Man 5F 4.111 GT
RT114-MQGR 18R-GR HT Man 5F GT 140/6400 17.2/4800 8.5 1345 1320 1095
7509-7808 RT114-KD 18R HT Man 4F W40 T 3.909
4.100		 DLX
7509-7808 RT114-HD 18R HT Auto 3FC A40 T 3.909
4.100		 DLX
7509-7808 RT114L-KD 18R HT Man 4F W40 T 3.909
4.100		 DLX
7509-7808 RT114L-HD 18R HT Auto 3FC A40 T 3.909
4.100		 DLX
7308-7808 RT114-KDN 18R HT Man 4F W40 T 3.909
4.100		 DLX
7308-7808 RT114-HDN 18R HT Auto 3FC A40 T 3.909
4.100		 DLX
73xx-74xx RT114L-**A 18R-C HT Man 4F W40 3.99
73xx-74xx RT114L-**A 18R-C HT Man 5F W50 3.99
73xx-74xx RT114L-**A 18R-C HT Auto 3FC A40 4.10

115 series 2200 Hardtop
Country Dates Code Engine Body Gearbox Diff Grade
74xx-78xx RT115L-KRA 20R 2DS Man 4F DLX
74xx-77xx RT115L-HDA 20R 4DW Auto 3HC DLX

116 series 1600 Wagon
Country Dates Code Engine Body Gearbox Diff Grade
7308-7808 RT116-YRF 12R 4DW Man 3H N31 F 4.300 Std
7308-7808 RT116-KRF 12R 4DW Man 4F W40 F 4.300 Std
7308-7808 RT116L-YRF 12R 4DW Man 3H N31 F 4.300 Std
7308-7808 RT116L-KRF 12R 4DW Man 4F W40 F 4.300 Std
7511-7808 RT116L-KRFM 12R-M 4DW Man 4F W40 F 4.300 Std

117 series 1800 Wagon
Country Dates Code Engine Body Gearbox Diff Grade
7308-7509 RT117-KRF 16R 4DW Man 4F W40 Std
7308-7509 RT117L-KRF 16R 4DW Man 4F W40 Std
7311-7509 RT102-KRFW 16R 4DW Man 4F W40 Std
7311-7509 RT102L-KRFW 16R 4DW Man 4F W40 Std

118 series 2000 Wagon
Country Dates Code Engine Body Gearbox Diff Grade
7509-7808 RT118-KRF 18R 4DW Man 4F W40 F 3.909
4.100		 Std
7509-7808 RT118L-KRF 18R 4DW Man 4F W40 F 3.909
4.100		 Std
7509-7905 RT118-KRFQ 18R-C 4DW Man 4F W40 E 3.909 Std
7509-7905 RT118-HRFQ 18R-C 4DW Auto 3FC A40 Std
RT118-KXXB 18R-C 4DW Man 4F W40
RT118-HXXB 18R-C 4DW Auto 3FC AM35 AM70 3.909
7509-7808 RT118-KRFW 18R 4DW Man 4F W40 F 3.909
4.100		 Std
7409-7808 RT118L-KRFW 18R 4DW Man 4F W40 F 3.909
4.100		 Std
7409-7509 RT118L-KRFW 18R 4DW Man 4F W40 F 3.909
4.100		 Std
7509-7808 RT118L-KRFC 18R-C 4DW Man 4F W40 F 3.909
4.100		 Std
73xx-74xx RT118L-**A 18R-C 4DW Man 4FC W40 3.99
73xx-74xx RT118L-**A 18R-C 4DW Auto 3FC A40 4.10

119 series 2200 Wagon
Country Dates Code Engine Body Gearbox Diff Grade
74xx-78xx RT119L-KDFA 20R 4DW Man 4F DLX
74xx-78xx RT119L-MDFA 20R 4DW Man 5F DLX
74xx-78xx RT119L-NDFA 20R 4DW Auto 3HC DLX

Corona 12#,13# 7th generation

Changed to MacPherson strut front suspension.
Australian assembled vehicles (build plate says "Australian Motor Industries" and has XXB in the code) have Borg Warner gearboxes, Borg Warner unitised diffs, Girling sliding single piston callipers and the 1X engine (actually the GM-Holden Starfire engine).

120 series 1600cc
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
78xx B-TT120-EYR 12T-U 4DS Man 3H N30 3.909 Std 88/5600 13.3/3400 9.0 1345 1320 1000
78xx B-TT120-EYD 12T-U 4DS Man 3H N30 3.909 DX 88/5600 13.3/3400 9.0 1345 1320 1000
78xx B-TT120-EKD 2T-U 4DS Man 4F 3.909 DX 90/6000 13.0/3800 9.0 1345 1320 1005
78xx B-TT120-EMD 2T-U 4DS Man 5F 3.909 DX 90/6000 13.0/3800 9.0 1345 1320 1005
78xx B-TT120-EHD 2T-U 4DS Auto 3FC 3.909 DX 90/6000 13.0/3800 9.0 1345 1320 1005
78xx B-TT120-EKN 2T-U 4DS Man 4F 3.909 GL 90/6000 13.0/3800 9.0 1345 1320 1005
78xx B-TT120-EMN 2T-U 4DS Man 5F 3.909 GL 90/6000 13.0/3800 9.0 1345 1320 1005
78xx B-TT120-EHN 2T-U 4DS Auto 3FC 3.909 GL 90/6000 13.0/3800 9.0 1345 1320 1010
78xx B-TT120-EKN(L) 2T-U 4DS Man 4F 3.909 GL extra 90/6000 13.0/3800 9.0 1345 1320 1005
78xx B-TT120-EMN(L) 2T-U 4DS Man 5F 3.909 GL extra 90/6000 13.0/3800 9.0 1345 1320 1005
78xx B-TT120-EHN(L) 2T-U 4DS Auto 3FC 3.909 GL extra 90/6000 13.0/3800 9.0 1345 1320 1010
78xx C-TT120-EMS 2T-U 4DS Man 5F 4.300 SL 90/6000 13.0/3800 9.0 1345 1320 1045
78xx B-TT120-SKD 2T-U HT Man 4F 3.909 DX 90/6000 13.0/3800 9.0 1345 1320 1005
78xx B-TT120-SMD 2T-U HT Man 5F 3.909 DX 90/6000 13.0/3800 9.0 1345 1320 1005
78xx B-TT120-SHD 2T-U HT Auto 3FC 3.909 DX 90/6000 13.0/3800 9.0 1345 1320 1005
78xx B-TT120-SKN 2T-U HT Man 4F 3.909 GL 90/6000 13.0/3800 9.0 1345 1320 1005
78xx B-TT120-SMN 2T-U HT Man 5F 3.909 GL 90/6000 13.0/3800 9.0 1345 1320 1005
78xx B-TT120-SHN 2T-U HT Auto 3FC 3.909 GL 90/6000 13.0/3800 9.0 1345 1320 1010
78xx B-TT120-SKN(L) 2T-U HT Man 4F 3.909 GL extra 90/6000 13.0/3800 9.0 1345 1320 1005
78xx B-TT120-SMN(L) 2T-U HT Man 5F 3.909 GL extra 90/6000 13.0/3800 9.0 1345 1320 1005
78xx B-TT120-SHN(L) 2T-U HT Auto 3FC 3.909 GL extra 90/6000 13.0/3800 9.0 1345 1320 1010
78xx C-TT120-SMS 2T-U HT Man 5F 4.300 SL 90/6000 13.0/3800 9.0 1345 1320 1045

121 series 1800cc
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
78xx B-TT121-EKD 13T-U 4DS Man 4F 3.727 DX 95/5400 15.0/3600 8.5 1345 1320 1010
78xx B-TT121-EMD 13T-U 4DS Man 5F 3.727 DX 95/5400 15.0/3600 8.5 1345 1320 1010
78xx B-TT121-EHD 3T-U 4DS Auto 3FC 3.909 DX 98/5700 15.2/3400 9.0 1345 1320 1010
78xx B-TT121-EKN 13T-U 4DS Man 4F 3.727 GL 95/5400 15.0/3600 8.5 1345 1320 1015
78xx B-TT121-EMN 13T-U 4DS Man 5F 3.727 GL 95/5400 15.0/3600 8.5 1345 1320 1015
78xx B-TT121-EHN 3T-U 4DS Auto 3FC 3.909 GL 98/5700 15.2/3400 9.0 1345 1320 1015
78xx B-TT121-EKN(L) 13T-U 4DS Man 4F 3.727 GL extra 95/5400 15.0/3600 8.5 1345 1320 1015
78xx B-TT121-EMN(L) 13T-U 4DS Man 5F 3.727 GL extra 95/5400 15.0/3600 8.5 1345 1320 1015
78xx B-TT121-EHN(L) 3T-U 4DS Auto 3FC 3.909 GL extra 98/5700 15.2/3400 9.0 1345 1320 1015
78xx B-TT121-EMS 13T-U 4DS Man 5F 4.100 SL 95/5400 15.0/3600 8.5 1345 1320 1070
78xx C-TT121-EHS 3T-U 4DS Auto 3FC 4.100 SL 98/5700 15.2/3400 9.0 1345 1320 1070
78xx B-TT121-SKD 13T-U HT Man 4F 3.727 DX 95/5400 15.0/3600 8.5 1345 1320 1010
78xx B-TT121-SMD 13T-U HT Man 5F 3.727 DX 95/5400 15.0/3600 8.5 1345 1320 1010
78xx B-TT121-SHD 3T-U HT Auto 3FC 3.909 DX 98/5700 15.2/3400 9.0 1345 1320 1010
78xx B-TT121-SKN 13T-U HT Man 4F 3.727 GL 95/5400 15.0/3600 8.5 1345 1320 1015
78xx B-TT121-SMN 13T-U HT Man 5F 3.727 GL 95/5400 15.0/3600 8.5 1345 1320 1015
78xx C-TT121-SHN 3T-U HT Auto 3FC 3.909 GL 98/5700 15.2/3400 9.0 1345 1320 1015
78xx B-TT121-SKN(L) 13T-U HT Man 4F 3.727 GL extra 95/5400 15.0/3600 8.5 1345 1320 1015
78xx B-TT121-SMN(L) 13T-U HT Man 5F 3.727 GL extra 95/5400 15.0/3600 8.5 1345 1320 1015
78xx C-TT121-SHN(L) 3T-U HT Auto 3FC 3.909 GL extra 98/5700 15.2/3400 9.0 1345 1320 1015
78xx B-TT121-SMS 13T-U HT Man 5F 4.100 SL 95/5400 15.0/3600 8.5 1345 1320 1070
78xx C-TT121-SHS 3T-U HT Auto 3FC 4.100 SL 98/5700 15.2/3400 9.0 1345 1320 1070

122 series 2000cc
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7606-7808 C-RT122-EKD 18R-U 4DS Man 4F 3.727 DX
7606-7808 C-RT122-EMD 18R-U 4DS Man 5F 3.727 DX
7606-7808 C-RT122-EHD 18R-U 4DS Auto 3FC 3.727 DX
7606-7808 C-RT122-EKN 18R-U 4DS Man 4F 3.727 GL
7606-7808 C-RT122-EMN 18R-U 4DS Man 5F 3.727 GL
7606-7808 C-RT122-EHN 18R-U 4DS Auto 3FC 3.727 GL
7606-7808 C-RT122-EKN(L) 18R-U 4DS Man 4F 3.727 GL extra
7606-7808 C-RT122-EMN(L) 18R-U 4DS Man 5F 3.727 GL extra
7606-7808 C-RT122-EHN(L) 18R-U 4DS Auto 3FC 3.727 GL extra
7606-7808 C-RT122-EMS 18R-U 4DS Man 5F 4.100 SL
7606-7808 C-RT122-EGS 18R-U 4DS Auto 4FC 4.100 SL
7701-7808 C-RT122-EMQG 18R-GU 4DS Man 5F 4.100 GT
7606-7808 C-RT122-SKD 18R-U HT Man 4F 3.727 DX
7606-7808 C-RT122-SMD 18R-U HT Man 5F 3.727 DX
7606-7808 C-RT122-SHD 18R-U HT Auto 3FC 3.727 DX
7606-7808 C-RT122-SKN 18R-U HT Man 4F 3.727 GL
7606-7808 C-RT122-SMN 18R-U HT Man 5F 3.727 GL
7606-7808 C-RT122-SHN 18R-U HT Auto 3FC 3.727 GL
7606-7808 C-RT122-SKN(L) 18R-U HT Man 4F 3.727 GL extra
7606-7808 C-RT122-SMN(L) 18R-U HT Man 5F 3.727 GL extra
7606-7808 C-RT122-SHN(L) 18R-U HT Auto 3FC 3.727 GL extra
7606-7808 C-RT122-SMS 18R-U HT Man 5F 4.100 SL
7606-7808 C-RT122-SGS 18R-U HT Auto 4FC 4.100 SL
7701-7808 C-RT122-SMQG 18R-GU HT Man 5F 4.100 GT

123 series
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg

130 series
Country Dates Code Engine Body Gearbox Diff Grade
7809-8008 E-TT130-TEYRS 12T-U 4DS Man 3H T 3.909 Std
7809-8008 E-TT130-TEYDS 12T-U 4DS Man 3H 3.909 DX
8008-8112 E-TT130-TEKRS 12T-U 4DS Man 4F T 3.909 Std
7809-8112 E-TT130-TEKDS 12T-U 4DS Man 4F 3.909 DX
7809-8112 E-TT130-TEHDS 12T-U 4DS Auto 3FC 3.909 DX
7809-8112 E-TT130-TEKNS 12T-U 4DS Man 4F 3.909 GL
7809-8008 E-TT130-TEMNS 12T-U 4DS Man 5F 3.909 GL
7809-8112 E-TT130-TEHNS 12T-U 4DS Auto 3FC 3.909 GL
7809-8112 E-TT130-TEMSS 12T-U 4DS Man 5F 4.100 SL
7902-8208 E-RT130-TEYRP 12R-U(LPG) 4DS Man 3H T 4.300 Std LPG
8008-8208 E-RT130-TEBRP 12R-U(LPG) 4DS Man 4H T 4.300 Std LPG
7902-8208 E-RT130-TEBDP 12R-U(LPG) 4DS Man 4H T 4.300 DLX LPG
7809-8112 E-TT130-TSKDS 12T-U HT Man 4F 3.909 DX
7809-8008 E-TT130-TSHDS 12T-U HT Auto 3FC 3.909 DX
7809-8112 E-TT130-TSKNS 12T-U HT Man 4F 3.909 GL
7809-8008 E-TT130-TSMNS 12T-U HT Man 5F 3.909 GL
7809-8112 E-TT130-TSHNS 12T-U HT Auto 3FC 3.909 GL
7809-8112 E-TT130-TSMSS 12T-U HT Man 5F 4.100 SL
7809-8112 E-TT130-TLKDS 12T-U LB Man 4F DX
7809-8008 E-TT130-TLHDS 12T-U LB Auto 3FC DX
7809-8112 E-TT130-TLKNS 12T-U LB Man 4F GL
7809-8008 E-TT130-TLMNS 12T-U LB Man 5F GL
7809-8112 E-TT130-TLMSS 12T-U LB Man 5F SL
7809- RT130R-TEKRSY 12R 4DS Man 4F Std
7809- RT130R-TEKRS 12R 4DS Man 4F Std
7809- RT130R-TEKDSY 12R 4DS Man 4F DLX
7809- RT130L-TEKRSY 12R 4DS Man 4F Std
7809- RT130L-TEKDSY 12R 4DS Man 4F DLX
7809- RT130L-TEKDS 12R 4DS Man 4F DLX
7809- RT130LG-TWKRS 12R SW Man 4F Std
7809- RT130RG-TWKRS 12R SW Man 4F Std
7809- RT130L-TEKRSM 12R-M 4DS Man 4F Std - 4 link
7809- RT130L-TEKRSMY 12R-M 4DS Man 4F Std - Leaf spring
7809- RT130LG-TWKRSM 12R-M SW Man 4F Std
7908-8301 XT130R-TEKRSQ 1X 4DS Man 4F Std
8111-8301 XT130R-TEMRSQ 1X 4DS Man 5F Std
7903-8301 XT130R-TEHRSQ 1X 4DS Auto 3FC Std
7908-8304 XT130RG-TWKRSQ 1X SW Man 4F Std
8111-8304 XT130RG-TWMRSQ 1X SW Man 4F Std
7908-8304 XT130RG-TWHRSQ 1X SW Auto 3FC Std

131 series
Country Dates Code Engine Body Gearbox Diff Grade
7809-8112 E-TT131-TEKDS 13T-U 4DS Man 4F 3.909 DX
7809-8112 E-TT131-TEHDS 13T-U 4DS Auto 3FC 3.909 DX
7809-8112 E-TT131-TEKNS 13T-U 4DS Man 4F T40 T 3.909 GL
7809-8112 E-TT131-TEMNS 13T-U 4DS Man 5F 3.909 GL
7809-8112 E-TT131-TEHNS 13T-U 4DS Auto 3FC 3.909 GL
8008-8112 E-TT131-TENNS 13T-U 4DS Auto 3HC GL
8008-8112 E-TT131-TEMES 13T-U 4DS Man 5F CX Saloon
8008-8112 E-TT131-TEHES 13T-U 4DS Auto 3FC CX Saloon
7809-8112 E-TT131-TEMSS 13T-U 4DS Man 5F 4.100 SL
7908-8112 E-TT131-TEHSS 13T-U 4DS Auto 3FC SL
7809-8208 E-RT131-TEYRP 5R-U(LPG) 4DS Man 3H F 3.909 Std
8008-8208 E-RT131-TEBRP 5R-U(LPG) 4DS Man 4H F 3.909 Std LPG
8008-8208 E-RT131-TEHRP 5R-U(LPG) 4DS Auto 3FC F 3.909 Std
7809-8208 E-RT131-TEBDP 5R-U(LPG) 4DS Man 4H F 3.909 DLX
8008-8208 E-RT131-TEHDP 5R-U(LPG) 4DS Auto 3FC F 3.909 DLX
7809-8112 E-TT131-TSKDS 13T-U HT Man 4F 3.909 DX
7809-8008 E-TT131-TSHDS 13T-U HT Auto 3FC 3.909 DX
7809-8112 E-TT131-TSKNS 13T-U HT Man 4F 3.909 GL
7809-8112 E-TT131-TSMNS 13T-U HT Man 5F 3.909 GL
7809-8112 E-TT131-TSHNS 13T-U HT Auto 3FC 3.909 GL
8008-8112 E-TT131-TSMES 13T-U HT Man 5F CX Saloon
8008-8112 E-TT131-TSHES 13T-U HT Auto 3FC CX Saloon
7809-8112 E-TT131-TSMSS 13T-U HT Man 5F 4.100 SL
7908-8112 E-TT131-TSHSS 13T-U HT Auto 3FC SL
7809-8008 E-TT131-TLKDS 13T-U LB Man 4F DLX
7809-8008 E-TT131-TLHDS 13T-U LB Auto 3FC DLX
7809-8112 E-TT131-TLKNS 13T-U LB Man 4F GL
7809-8112 E-TT131-TLMNS 13T-U LB Man 5F GL
7908-8112 E-TT131-TLHNS 13T-U LB Auto 3FC GL
8008-8112 E-TT131-TLMES 13T-U LB Man 5F CX Saloon
8008-8112 E-TT131-TLHES 13T-U LB Auto 3FC CX Saloon
7809-8112 E-TT131-TLMSS 13T-U LB Man 5F SL
7908-8112 E-TT131-TLHSS 13T-U LB Man 5F SL

132 series
Country Dates Code Engine Body Gearbox Diff Grade
7809-8008 E-TT132-TEMSE 3T-EU 4DS Man 5F 4.100 SL Touring
8008-8112 E-TT132-TEMSE 3T-EU 4DS Man 5F 4.100 SL EFI
8008-8112 E-TT132-TEHSE 3T-EU 4DS Auto 4FC SL EFI
8008-8112 E-TT132-TEMXE 3T-EU 4DS Man 5F 4.100 SX
8008-8112 E-TT132-TEHXE 3T-EU 4DS Auto 4FC SX
7809-8112 E-RT132-TEMQF 18R-GEU 4DS Man 5F F 4.100
4.100 LSD		 GT
8008-8112 E-RT132-TEMZF 18R-GEU 4DS Man 5F F 4.100
4.100 LSD		 GT II
7809-8008 E-TT132-TSMSE 3T-EU HT Man 5F 4.100 SL Touring
8008-8112 E-TT132-TSMSE 3T-EU HT Man 5F 4.100 SL EFI
8008-8112 E-TT132-TSHSE 3T-EU HT Auto 4FC SL EFI
8008-8112 E-TT132-TSMXE 3T-EU HT Man 5F SX
8008-8112 E-TT132-TSHXE 3T-EU HT Auto 4FC SX
7809-8112 E-RT132-TSMQF 18R-GEU HT Man 5F F 4.100
4.100 LSD		 GT
8008-8112 E-RT132-TSMZF 18R-GEU HT Man 5F F 4.100
4.100 LSD		 GT II
7809-8008 E-TT132-TLMSE 3T-EU LB Man 5F SL Touring
8008-8112 E-TT132-TLMSE 3T-EU LB Man 5F SL EFI
8008-8112 E-TT132-TLHSE 3T-EU LB Auto 4FC SL EFI
8008-8112 E-TT132-TLMXE 3T-EU LB Man 5F SX
8008-8112 E-TT132-TLHXE 3T-EU LB Auto 4FC SX
7809-8112 E-RT132-TLMQF 18R-GEU LB Man 5F F 4.100
4.100 LSD		 GT
8008-8112 E-RT132-TLMZF 18R-GEU LB Man 5F F 4.100
4.100 LSD		 GT II
7809- TT132R-TEKRS 3T 4DS Man 4F Std
7809- TT132R-TEHRS 3T 4DS Auto 3FC Std
7809- TT132R-TEKDS 3T 4DS Man 4F DLX
7809- TT132R-TEMDS 3T 4DS Man 5F DLX
7809- TT132R-TEHDS 3T 4DS Auto 3FC DLX
7809- RT132R-TEKDS 18R 4DS Man 4F DLX
7809- TT132L-TEKRS 3T 4DS Man 4F Std
7809- TT132L-TEHRS 3T 4DS Auto 3FC Std
7809- TT132L-TEKDS 3T 4DS Man 4F DLX
7809- TT132L-TEMDS 3T 4DS Man 5F DLX
7809- TT132L-TEHDS 3T 4DS Auto 3FC DLX
7809- RT132L-TEKRSY 18R 4DS Man 4F Std
7809- RT132L-TEKDS 18R 4DS Man 4F DLX
7809- RT132L-TSKDS 18R HT Man 4F DLX
7809- TT132R-TLKDS 3T 5D Man 4F DLX
7809- TT132R-TLMDS 3T 5D Man 5F DLX
7809- RT132R-TLKDS 18R 5D Man 4F DLX
7809- TT132L-TLKDS 3T 5D Man 4F DLX
7809- TT132L-TLMDS 3T 5D Man 5F DLX
7809- RT132L-TLKDS 18R 5D Man 4F DLX
7809- TT132RG-TWKRS 3T SW Man 4F Std
7809- TT132RG-TWKDS 3T SW Man 4F DLX
7809- TT132RG-TWHDS 3T SW Auto 3FC DLX
7809- TT132LG-TWKRS 3T SW Man 4F Std
7809- TT132LG-TWKDS 3T SW Man 4F DLX
7809- RT132LG-TWKRS 18R SW Auto 3FC Std
7809- TT132L-TEKDSW 3T 4DS Man 4F DLX
7809- TT132L-TEMDSW 3T 4DS Man 5F DLX
7809- TT132L-TEHDSW 3T 4DS Auto 3FC DLX
7809- TT132L-TEKNSW 3T 4DS Man 4F GL
7809- TT132L-TEMNSW 3T 4DS Man 5F GL
7809- TT132L-TEHNSW 3T 4DS Auto 3FC GL
7809- TT132R-TLKDSW 3T 5D Man 4F DLX
7809- TT132R-TLMDSW 3T 5D Man 5F DLX
7809- TT132R-TLHDSW 3T 5D Auto 3FC DLX
7809- TT132R-TLKNSW 3T 5D Man 4F GL
7809- TT132R-TLMNSW 3T 5D Man 5F GL
7809- TT132R-TLHNSW 3T 5D Auto 3FC GL
7809- TT132L-TLKDSW 3T 5D Man 4F DLX
7809- TT132L-TLMDSW 3T 5D Man 5F DLX
7809- TT132L-TLHDSW 3T 5D Auto 3FC DLX
7809- TT132L-TLKNSW 3T 5D Man 4F GL
7809- TT132L-TLMNSW 3T 5D Man 5F GL
7809- TT132L-TLHNSW 3T 5D Auto 3FC GL
7908-8108 RT132R-TLMNSQ 18R-C 5D Man 5F W50 T 3.909 GL
8003-8108 RT132R-TLHNSQ 18R-C 5D Auto 3FC A40 T 4.100 GL

133 series
Country Dates Code Engine Body Gearbox Diff Grade
7809-8008 E-RT133-TEMNS 21R-U 4DS Man 5F T 3.909 GL
7809-8008 E-RT133-TEHNS 21R-U 4DS Auto 3FC T 4.100 GL
7809-8008 E-RT133-TEMES 21R-U 4DS Man 5F T 3.909 CX
8008-8112 E-RT133-TEMES 21R-U 4DS Man 5F T 3.909 CX Saloon
7809-8008 E-RT133-TEHES 21R-U 4DS Auto 4FC T 4.100 CX
8008-8112 E-RT133-TEHES 21R-U 4DS Auto 4FC T 4.100 CX Saloon
7809-8008 E-RT133-TEMSS 21R-U 4DS Man 5F T 3.909 SL
7809-8008 E-RT133-TEHSS 21R-U 4DS Auto 3FC T 4.100 SL
7809-8008 E-RT133-TSMNS 21R-U HT Man 5F T 3.909 GL
7809-8008 E-RT133-TSHNS 21R-U HT Auto 3FC T 4.100 GL
7809-8008 E-RT133-TSMES 21R-U HT Man 5F T 3.909 CX
8008-8112 E-RT133-TSMES 21R-U HT Man 5F T 3.909 CX Saloon
7809-8008 E-RT133-TSHES 21R-U HT Auto 4FC T 4.100 CX
8008-8112 E-RT133-TSHES 21R-U HT Auto 4FC T 4.100 CX Saloon
7809-8008 E-RT133-TSMSS 21R-U HT Man 5F T 3.909 SL
7809-8008 E-RT133-TSHSS 21R-U HT Auto 3FC T 4.100 SL
7809-8008 E-RT133-TLKNS 21R-U LB Man 4F T 3.909 GL
7809-8008 E-RT133-TLMNS 21R-U LB Man 5F T 3.909 GL
7809-8008 E-RT133-TLHNS 21R-U LB Auto 3FC T 4.100 GL
7809-8008 E-RT133-TLMES 21R-U LB Man 5F T 3.909 CX
8008-8112 E-RT133-TLMES 21R-U LB Man 5F T 3.909 CX Saloon
7809-8008 E-RT133-TLHES 21R-U LB Auto 4FC T 4.100 CX
8008-8112 E-RT133-TLHES 21R-U LB Auto 4FC T 4.100 CX Saloon
7809-8008 E-RT133-TLMSS 21R-U LB Man 5F T 3.909 SL
7809-8008 E-RT133-TLHSS 21R-U LB Auto 4FC T 4.100 SL
RT133-MGFB 21R-C 4DS Man 5F
8111-8301 RT133-TEMRCQ 21R-C 4DS Man 5F Std
8108-8112 RT133-TLMNCQ 21R-C 5DS Man 5F GL
8108-8112 RT133-TLHNCQ 21R-C 5DS Auto 4FC GL

134 series 2200
Country Dates Code Engine Body Gearbox Diff Grade
78xx-8008 RT134L-TEMDSK 20R 4DS Man 5F W50 T 3.583 DLX
78xx-8008 RT134L-TENDSK 20R 4DS Auto 3HC A40 T 3.727 DLX
78xx-8008 RT134L-TLMDSK 20R 5D Man 5F W50 T 3.583 DLX
78xx-8008 RT134L-TLNDSK 20R 5D Auto 3HC A40 T 3.727 DLX
78xx-8008 RT134LG-TWMDSK 20R 4DW Man 5F W50 T 3.583 DLX
78xx-8008 RT134LG-TWNDSK 20R 4DW Auto 3HC A40 T 3.727 DLX
78xx-8008 RT134L-TEKDSA 20R 4DS Man 4F W40 T 3.583 DLX
78xx-8008 RT134L-TEMDSA 20R 4DS Man 5F W50 T 3.583 DLX
78xx-8008 RT134L-TENDSA 20R 4DS Auto 3HC A40 T 3.727 DLX
78xx-8008 RT134L-TEMESA 20R 4DS Man 5F W50 T 3.583 LE
78xx-8008 RT134L-TEHESA 20R 4DS Auto 3FC A40 T 3.727 LE
78xx-8008 RT134L-TLKDSA 20R 5D Man 4F W40 T 3.583 DLX
78xx-8008 RT134L-TLMDSA 20R 5D Man 5F W50 T 3.583 DLX
78xx-8008 RT134L-TLNDSA 20R 5D Auto 3HC A40 T 3.727 DLX
78xx-8008 RT134L-TLMESA 20R 5D Man 5F W50 T 3.583 LE
78xx-8008 RT134L-TLHESA 20R 5D Auto 3FC A40 T 3.727 LE
78xx-8008 RT134LG-TWMDSA 20R 4DW Man 5F W50 T 3.583 DLX
78xx-8008 RT134LG-TWNDSA 20R 4DW Auto 3HC A40 T 3.727 DLX
78xx-8008 RT134LG-TWMESA 20R 4DW Man 5F W50 T 3.583 LE
78xx-8008 RT134LG-TWHESA 20R 4DW Auto 3FC A40 T 3.727 LE

135 series 2400cc
Country Dates Code Engine Body Gearbox Diff Grade
8008- RT135L-TEMDSK 22R 4DS Man 5F W55 T 3.308 DLX
8008- RT135L-TEHDSK 22R 4DS Auto 4FC A40D T 3.583 DLX
8008- RT135L-TLMESK 22R 5D Man 5F W55 T 3.308 LE
8008- RT135L-TLHESK 22R 5D Auto 4FC A40D T 3.583 LE
8008- RT135LG-TWMDSK 22R 4DW Man 5F W55 T 3.308 DLX
8008- RT135LG-TWHDSK 22R 4DW Auto 4FC A40D T 3.583 DLX
8008- RT135L-TEMDSA 22R 4DS Man 5F W55 T 3.308 DLX
8008- RT135L-TEHDSA 22R 4DS Auto 4FC A40D T 3.583 DLX
8008- RT135L-TEMESA 22R 4DS Man 5F W55 T 3.308 LE
8008- RT135L-TEHESA 22R 4DS Auto 4FC A40D T 3.583 LE
8008- RT135L-TLMESA 22R 5D Man 5F W55 T 3.308 LE
8008- RT135L-TLHESA 22R 5D Auto 4FC A40D T 3.583 LE
8008- RT135LG-TWMDSA 22R 4DW Man 5F W55 T 3.308 DLX
8008- RT135LG-TWHDSA 22R 4DW Auto 4FC A40D T 3.583 DLX

137 series
Country Dates Code Engine Body Gearbox Diff Grade
7809-7912 H-TT137V-TXYRS 2T-J Van Man 3H Std
7809-7912 H-TT137V-TXYDS 2T-J Van Man 3H DLX
7809-7912 H-TT137V-TXKDS 2T-J Van Man 4F DLX
7809-7912 H-TT137V-TXHDS 2T-J Van Auto 3FC DLX
7809-7912 H-TT137V-TXKNS 2T-J Van Man 4F GL
7809-7912 H-TT137V-TXMNS 2T-J Van Man 5F GL
7809-7912 H-TT137V-TXHNS 2T-J Van Auto 3FC GL
7809-7912 H-RT137V-TXKDS 16R-J Van Man 4F DLX
7809-7912 H-RT137V-TXHDS 16R-J Van Auto 3FC DLX
7809-7912 H-RT137V-TXKNS 16R-J Van Man 4F GL
7809-7912 H-RT137V-TXMNS 16R-J Van Man 5F GL
7809-7912 H-RT137V-TXHNS 16R-J Van Auto 3FC GL

138 series
Country Dates Code Engine Body Gearbox Diff Grade
7912-8112 J-TT138V-TXKRSW 12T-J Van Man 4F Std
7912-8112 J-TT138V-TXKDSW 12T-J Van Man 4F DLX
7912-8112 J-TT138V-TXKNSW 12T-J Van Man 4F GL
7912-8112 J-TT138V-TXMNSW 12T-J Van Man 5F GL

Corona 14#, 15# 8th generation

The 4th generation Carina merged with the 14#,15# Corona.

140 series
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
8201-8712 E-AT140-TEKRS 3A-U 4DS Man 4F 3.909 Std
8201-8712 E-AT140-TEKDS 3A-U 4DS Man 4F 3.909 DX
8201-8712 E-AT140-TEKNS 3A-U 4DS Man 4F 3.909 GX
8201-8310 E-AT140-TEMNS 3A-U 4DS Man 5F 3.909 GX
8201-8712 E-AT140-TEHNS 3A-U 4DS Auto 3FC 4.100 GX
8201-8310 E-ST140-TEKNS 1S-U 4DS Man 4F 3.583 GX
8201-8712 E-ST140-TEMNS 1S-U 4DS Man 5F 3.583 GX
8201-8712 E-ST140-TEPNS 1S-U 4DS Auto 4FC 3.909 GX
8201-8310 E-ST140-TEMMS 1S-U 4DS Man 5F 3.583 GX-AD
8201-8310 E-ST140-TEPMS 1S-U 4DS Auto 4FC 3.909 GX-AD
8201-8310 E-ST140-TEMES 1S-U 4DS Man 5F 3.727 EX-Saloon
8201-8310 E-ST140-TEPES 1S-U 4DS Auto 4FC 3.909 EX-Saloon
8201-8310 E-ST140-TEPGS 1S-U 4DS Auto 4FC 3.727 EX-Saloon-AD
8201-8612 N-CT140-TEMRS 1C 4DS Man 5F Std
8201-8310 N-CT140-TEMNS 1C 4DS Man 5F 3.909 GX
8201-8310 N-CT140-TEPNS 1C 4DS Auto 4FC 4.100 GX
8201-8310 N-CT140-TEMES 1C 4DS Man 5F 3.909 EX-Saloon
8201-8310 N-CT140-TEPES 1C 4DS Auto 4FC 4.100 EX-Saloon
8209-9804 E-YT140-TEBRP 2Y-PU 4DS Man 4H 3.583 Std LPG Taxi 70/4600 13.5/2200 9.3 1410 1350 1080
8209-9804 E-YT140-TEMRP 2Y-PU 4DS Man 5F 3.583 Std LPG Taxi 70/4600 13.5/2200 9.3 1410 1350
8310-9804 E-YT140-TEBDP 2Y-PU 4DS Man 4H 3.583 DX LPG Taxi 70/4600 13.5/2200 9.3 1410 1350
8209-9804 E-YT140-TEMDP 2Y-PU 4DS Man 5F 3.583 DX LPG Taxi 70/4600 13.5/2200 9.3 1410 1350
8209-9804 E-YT140-TEHDP 2Y-PU 4DS Auto 3FC 3.727 DX LPG Taxi 70/4600 13.5/2200 9.3 1410 1350
8201- E-ST140-TSKNS 1S-U HT Man 4F 3.727 GX
8201-8508 E-ST140-TSMNS 1S-U HT Man 5F 3.727 GX
8201-8508 E-ST140-TSPNS 1S-U HT Auto 4FC 3.909 GX
8201-8508 E-ST140-TSMES 1S-U HT Man 5F 3.727 EX
8201-8508 E-ST140-TSPES 1S-U HT Auto 4FC 3.909 EX
8201-8310 E-ST140-TSPGS 1S-U HT Auto 4FC 3.909 EX-AD

141 series
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
8201-8210 E-RT141-TEMQF 18R-GEU 4DS Man 5F GT
8612-9111 Q-CT141-TEMRS 2C-II 4DS Man 5F 3.727 Std Diesel Taxi
8201-8210 E-RT141-TSMQF 18R-GEU HT Man 5F GT
8201-8210 E-AT141-TSMQF 4A-GEU HT Man 5F GT
ST141-MHDFB 2S-C 4DS Auto
ST141-EHSFB 2S-C 4DS Auto
8304- ST141R-TEKRCQ 2S-C 4DS Man 4F Std
8304- ST141R-TEHRCQ 2S-C 4DS Auto 3FC Std
8304- ST141R-TEKDCQ 2S-C 4DS Man 4F DLX
8304- ST141R-TEMDCQ 2S-C 4DS Man 5F DLX
8304- ST141R-TEHDCQ 2S-C 4DS Auto 3FC DLX
8304- ST141R-TEMNCQ 2S-C 4DS Man 5F GL
8304- ST141R-TEPNCQ 2S-C 4DS Auto 4FC GL
8304- ST141RG-TWKRCQ 2S-C 4DW Man 4F Std
8304- ST141RG-TWHRCQ 2S-C 4DW Auto 3FC Std
8304- ST141RG-TWKDCQ 2S-C 4DW Man 4F DLX
8304- ST141RG-TWMDCQ 2S-C 4DW Man 5F DLX
8304- ST141RG-TWHDCQ 2S-C 4DW Auto 3FC DLX

142 series
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
8201-8310 E-TT142-TEMSE 3T-EU 4DS Man 5F 4.100 SX
8201-8310 E-TT142-TEPSE 3T-EU 4DS Auto 4FC 4.100 SX
8210-8508 E-TT142-TEMQZ 3T-GTEU 4DS Man 5F F 4.100 LSD GT-T
8210-8508 E-TT142-TEPQZ 3T-GTEU 4DS Auto 4FC F 4.100 LSD GT-T
8210-8508 E-TT142-TEMQZ 3T-GTEU 4DS Man 5F F 4.100 LSD GT-TR
8210-8508 E-TT142-TEPQZ 3T-GTEU 4DS Auto 4FC F 4.100 LSD GT-TR
8201-8310 E-TT142-TSMSE 3T-EU HT Man 5F 4.100 SX
8201-8310 E-TT142-TSPSE 3T-EU HT Auto 4FC 4.100 SX
8210-8508 E-TT142-TSMQZ 3T-GTEU HT Man 5F F 4.100 LSD GT-T
8210-8508 E-TT142-TSPQZ 3T-GTEU HT Auto 4FC F 4.100 LSD GT-T
8210-8508 E-TT142-TSMQZ 3T-GTEU HT Man 5F F 4.100 LSD GT-TR
8210-8508 E-TT142-TSPQZ 3T-GTEU HT Auto 4FC F 4.100 LSD GT-TR
RT142-EMSFA 22R-E 4DS Man 5F 87kW/4800 198Nm/2800 9.3 1375 1350 1135
86xx RT142-EMGFB PS 22R-E 4DS Man 5F 87kW/4800 198Nm/2800 9.3 1375 1350 1135
RT142-EPGFA PS 4DS Auto 87kW/4800 198Nm/2800 9.3 1375 1350 1135

147 series Van
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
8201-8310 E-TT147V-TXKRS 12T-J 4DW Man 4F Std
8201-8310 E-TT147V-TXKDS 12T-J 4DW Man 4F DLX
8201-8310 E-TT147V-TXKNS 12T-J 4DW Man 4F GX
8201-8310 E-TT147V-TXHNS 12T-J 4DW Auto 3FC GX
8310-8712 E-KT147V-TXKRS 5K-J 4DW Man 4F Std
8310-8712 E-KT147V-TXKDS 5K-J 4DW Man 4F DLX
8310-8712 E-KT147V-TXKNS 5K-J 4DW Man 4F GX
8310-8712 E-KT147V-TXHNS 5K-J 4DW Auto 3FC GX
8201-8712 N-CT147V-TXMDS 1C 4DW Man 5F DLX
8201-8310 E-TT147V-TUKDS 12T-J 4DW * Man 4F DLX
8310-8508 E-KT147V-TUKDS 5K-J 4DW * Man 4F DLX
* 4 door wagon with no rear seats.

150 series FWD
Country Dates Code Engine Body Gearbox Diff Grade
E-ST150-TEMNL(L) 1S-iLU 4DS Man 5F S50 3.550 GX
E-ST150-TEPNL(L) 1S-iLU 4DS Auto 4FC GX
E-AT150-TEKNS(L) 3A-LU 4DS Man 4F GX
E-AT150-TEMNS(L) 3A-LU 4DS Man 5F GX
E-AT150-TEHNS(L) 3A-LU 4DS Auto 3FC GX
E-AT150-TEPNS(L) 3A-LU 4DS Auto 4FC GX
N-CT150-TEMNS(L) 2C-L 4DS Man 5F GX
N-CT150-TEPNS(L) 2C-L 4DS Auto 4FC GX
N-CT150-TEMES 2C-L 4DS Man 5F EX Extra
N-CT150-TEPES 2C-L 4DS Auto 4FC EX Extra

Corona 16#, 17# 9th generation

The 4th generation Celica merged with the 16#,17# Corona/Carina.

The Corona, Carina and Celica all became front wheel drive using a transversely (east-west) mounted engine.
Advertising specified this as FF - Front engine connected to Front wheels. The old layout became known as FR - Front engine connected to Rear wheels.

In most markets the Corona and Carina were replaced by the FWD SV1# Camry but the Corona and Carina continued to be sold in Asia.
The RWD YT140 Corona LPG Taxi was sold in Japan until 1998.
The Celica continued to be sold in most markets using the new Corona FWD floorplan and mechanicals.
The Carina was identical to the Corona except for trim and options.
The Corona/Carin coupe was almost idential to the Celica coupe.

Sources

Last updated 24 Dec 2009
