Carina and Celica Camry production data

1970-1981 Japanese data is from Toyota JDM parts manuals.
1978 Japanese data is from a Sept 1978 Japanese brochure.
Other Japanese data is derived from various websites- it is incomplete.
1970-1981 American data is based on the Hollander Interchange Manual and some brochures - it is not complete.
1970-1983 international data is from the "Toyota Vehicle Identification" book (thanks to Kari and Mitch).
1977-1979 international data is from Toyota TA4# international microfiche sheets.

Carina is a European name meaning pretty or cute.
Japanese say Ka-Lee-Na.
Australians say Ka-Reen-Na.

Note that the Carina shared codes with the Celica, Celica XX, Celica Supra, Supra and the Celica Camry.
These tables look best if the browser is made as wide as possible.
Jump down to Carina 1^st generation production data

10 11 12 13 14 15 16 17 18 19 30 31 32

Jump down to Carina 2^nd generation production data

Carina 40 41 42 45 46 47 49

Celica Camry 41 46 55 56 57

Jump down to Carina 3^rd generation production data

60 61 62 63 67

Carina 1#,3# 1^st generation

On 28th September 1970, Toyota unveiled their new Celica and Carina compact cars at the 17th Tokyo Motor Show.
It was first sold on 1st December 1970.
You had a choice of 2 or 4 door sedans and the engine choices were 1400cc (T) or 1600cc (2T) OHV engines.
The 1600cc ST had the twin carb 2T-B engine and the uncommon option (for the time) of a 5 speed gearbox.
The 1600cc GT was added in April 1971.

The Carina and the Celica were made on the same production line and shared floorpans, engines, driveline, suspension and much trim.
The Celica is effectively a 2 door Carina.

Minor change in August 1972.
Safety, anti-pollution measures and vertical tail lights were added.
The engine hood was extended by 20mm.

In October 1975, the wheelbase was extended between the front wheels and the A pillar.
This is commonly called the "long nose" version.
Earlier versions are commonly called the "short nose" version.
Due to the shared floorpans, the Celica went through the same change.

Until May 1976, the Carina use A1# model codes and the Celica used A2# model codes.
From May 1976 to July 1977, the Carina used A30/31/32 while the Celica used A35.

10 series 1400cc Sedan

TA10 2 door sedan

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7012-7207 TA10-Y T 2DS Man 3H N30 Std

7012-7509 TA10-K T 2DS Man 4F T40 Std

7012-7207 TA10-YD T 2DS Man 3H N30 DLX

7012-7509 TA10-KD T 2DS Man 4F T40 DLX

7208-7509 TA10-MD T 2DS Man 5F T50 DLX

7012-7509 TA10-CD T 2DS Auto 2FC A20 DLX

7401-7509 TA10-KN T 2DS Man 4F T40 SDX

7401-7509 TA10-MN T 2DS Man 5F T50 SDX

7401-7509 TA10-CN T 2DS Auto 2FC A20 SDX

7012-7207 TA10-YF T 4DS Man 3H N30 Std

7012-7509 TA10-KF T 4DS Man 4F T40 Std

7012-7207 TA10-YDF T 4DS Man 3H N30 DLX

7012-7509 TA10-KDF T 4DS Man 4F T40 DLX

7208-7509 TA10-MDF T 4DS Man 5F T50 DLX

7012-7509 TA10-CDF T 4DS Auto 2FC A20 DLX

7401-7509 TA10-KNF T 4DS Man 4F T40 SDX

7401-7509 TA10-MNF T 4DS Man 5F T50 SDX

7401-7509 TA10-CNF T 4DS Auto 2FC A20 SDX

7510-7702 A-RA10-KDFU 16R-U 4DS Man 4F W40 DLX

7510-7702 A-RA10-MDFU 16R-U 4DS Man 5F W50 DLX

7510-7702 A-RA10-HDFU 16R-U 4DS Auto 3FC A40 DLX

7510-7702 A-RA10-KNFU 16R-U 4DS Man 4F W40 SDX

7510-7702 A-RA10-MNFU 16R-U 4DS Man 5F W50 SDX

7510-7702 A-RA10-HNFU 16R-U 4DS Auto 3FC A40 SDX

7510-7702 A-RA10-MSFU 16R-U 4DS Man 5F W50 ST

General 7012-7207 TA10-K T 2DS Man 4F T40 4.111 Std

General 7012-7207 TA10-KF T 4DS Man 4F T40 4.111 Std

General 7012-7207 TA10L-K T 2DS Man 4F T40 4.111 Std

General 7012-7207 TA10L-KF T 4DS Man 4F T40 4.111 Std

General 7208-7509 TA10L-KDF T 4DS Man 4F T40 4.111 DLX

11 series

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7401-7509 RA11-KS 18R 2DS Man 4F T40 --

7401-7509 RA11-MS 18R 2DS Man 5F T50 --

7401-7509 RA11-MSE 18R-E 2DS Man 5F T50 EFI

7401-7509 RA11-HS 18R 2DS Auto 3FC A40 --

7401-7509 RA11-KSF 18R 4DS Man 4F T40 --

7401-7509 RA11-MSF 18R 4DS Man 5F T50 --

7401-7509 RA11-MSFE 18R-E 4DS Man 5F T50 EFI

7401-7509 RA11-HSF 18R 4DS Auto 3FC A40 --

The RA11 has the model code for an ST but does not have the ST badges.
Instead it has either "2000" or "EFI" badges.

11 series
Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7401-7509	RA11-KS	18R	2DS	Man	4F	T40			--
	7401-7509	RA11-MS	18R	2DS	Man	5F	T50			--
	7401-7509	RA11-MSE	18R-E	2DS	Man	5F	T50			EFI
	7401-7509	RA11-HS	18R	2DS	Auto	3FC	A40			--
	7401-7509	RA11-KSF	18R	4DS	Man	4F	T40			--
	7401-7509	RA11-MSF	18R	4DS	Man	5F	T50			--
	7401-7509	RA11-MSFE	18R-E	4DS	Man	5F	T50			EFI
	7401-7509	RA11-HSF	18R	4DS	Auto	3FC	A40			--

12 series 1600cc Sedan

TA12 2 door sedan TA12 4 door sedan

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7012-7207 TA12-YD 2T 2DS Man 3H N30 DLX

7012-7509 TA12-KD 2T 2DS Man 4F T40 DLX

7012-7509 TA12-MD 2T 2DS Man 5F T50 DLX

7012-7509 TA12-HD 2T 2DS Auto 3FC A40 DLX

7012-7509 TA12-KN 2T 2DS Man 4F T40 SDX

7012-7509 TA12-MN 2T 2DS Man 5F T50 SDX

7012-7509 TA12-HN 2T 2DS Auto 3FC A40 SDX

7012-7501 TA12-MS 2T-B 2DS Man 5F T50 ST

7208-7509 TA12-MSR 2T-BR 2DS Man 5F T50 ST

7104-7501 TA12-MQ 2T-G 2DS Man 5F T50 4.100 GT 115/6000 14.5/5200 975

7104-7509 TA12-MQR 2T-GR 2DS Man 5F T50 4.100 GT 110/6000 14.0/4800 975

7012-7207 TA12-YDF 2T 4DS Man 3H N30 DLX

7012-7509 TA12-KDF 2T 4DS Man 4F T40 DLX

7012-7509 TA12-MDF 2T 4DS Man 5F T50 DLX

7012-7509 TA12-HDF 2T 4DS Auto 3FC A40 DLX

7012-7509 TA12-KNF 2T 4DS Man 4F T40 SDX

7012-7509 TA12-MNF 2T 4DS Man 5F T50 SDX

7012-7509 TA12-HNF 2T 4DS Auto 3FC A40 SDX

7012-7501 TA12-MSF 2T-B 4DS Man 5F T50 ST

7208-7509 TA12-MSFR 2T-BR 4DS Man 5F T50 ST

7212-7501 TA12-MQF 2T-G 4DS Man 5F T50 4.100 GT 115/6000 14.5/5200 960

7212-7509 TA12-MQFR 2T-GR 4DS Man 5F T50 4.100
4.111 GT 110/6000 14.0/4800 995

General 7012-7509 TA12-KF 2T 4DS Man 4F T40 4.111 Std

General 7012-7509 TA12-HF 2T 4DS Auto 3FC A30 4.111 Std

General 7012-7509 TA12-KDF 2T 4DS Man 4F T40 4.111 DLX

General 7012-7509 TA12-HDF 2T 4DS Auto 3FC A30 4.111 DLX

General 7012-7509 TA12L-KF 2T 4DS Man 4F T40 3.909 Std 102/6000 14.0/3800 8.5 1280 1285 890

General 7012-7509 TA12L-HF 2T 4DS Auto 3FC A30 4.111 Std 102/6000 14.0/3800 8.5 1280 1285

General 7012-7509 TA12L-KDF 2T 4DS Man 4F T40 3.909 DLX 102/6000 14.0/3800 8.5 1280 1285 910

General 7012-7509 TA12L-HDF 2T 4DS Auto 3FC A30 4.111 DLX 102/6000 14.0/3800 8.5 1280 1285

General 7012-7509 TA12-K 2T 2DS Man 4F T40 4.111 Std

General 7012-7509 TA12-H 2T 2DS Auto 3FC A30 4.111 Std

General 7012-7509 TA12-KD 2T 2DS Man 4F T40 4.111 DLX

General 7012-7509 TA12-HD 2T 2DS Auto 3FC A30 4.111 DLX

General 7012-7509 TA12L-K 2T 2DS Man 4F T40 3.909 Std 102/6000 14.0/3800 8.5 1280 1285 870

General 7012-7509 TA12L-H 2T 2DS Auto 3FC A30 4.111 Std 102/6000 14.0/3800 8.5 1280 1285

General 7012-7509 TA12L-KD 2T 2DS Man 4F T40 3.909 DLX 102/6000 14.0/3800 8.5 1280 1285 890

General 7012-7509 TA12L-HD 2T 2DS Auto 3FC A30 4.111 DLX 102/6000 14.0/3800 8.5 1280 1285

General 7208-7509 TA12L-MS 2T-B 2DS Man 5F T50 3.900 ST 86/5600 12/4200 9.4 1280 1285 1350

7109-7308 TA12L-KA 2T-C 2DS Man 4F T40 T 4.111 88/6000 12.6/3800 8.5 868

7109-7308 TA12L-HA 2T-C 2DS Auto 3FC A30 T 4.300 88/6000 12.6/3800 8.5 888

European 2T has 79 DIN PS and 2T-B has 86 DIN PS.
Therefore, estimate 2T-B to have 110HP by the Japanese measurement system.

12 series	1600cc Sedan

Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7012-7207	TA12-YD	2T	2DS	Man	3H	N30			DLX
	7012-7509	TA12-KD	2T	2DS	Man	4F	T40			DLX
	7012-7509	TA12-MD	2T	2DS	Man	5F	T50			DLX
	7012-7509	TA12-HD	2T	2DS	Auto	3FC	A40			DLX
	7012-7509	TA12-KN	2T	2DS	Man	4F	T40			SDX
	7012-7509	TA12-MN	2T	2DS	Man	5F	T50			SDX
	7012-7509	TA12-HN	2T	2DS	Auto	3FC	A40			SDX
	7012-7501	TA12-MS	2T-B	2DS	Man	5F	T50			ST
	7208-7509	TA12-MSR	2T-BR	2DS	Man	5F	T50			ST
	7104-7501	TA12-MQ	2T-G	2DS	Man	5F	T50		4.100	GT	115/6000	14.5/5200				975
	7104-7509	TA12-MQR	2T-GR	2DS	Man	5F	T50		4.100	GT	110/6000	14.0/4800				975
	7012-7207	TA12-YDF	2T	4DS	Man	3H	N30			DLX
	7012-7509	TA12-KDF	2T	4DS	Man	4F	T40			DLX
	7012-7509	TA12-MDF	2T	4DS	Man	5F	T50			DLX
	7012-7509	TA12-HDF	2T	4DS	Auto	3FC	A40			DLX
	7012-7509	TA12-KNF	2T	4DS	Man	4F	T40			SDX
	7012-7509	TA12-MNF	2T	4DS	Man	5F	T50			SDX
	7012-7509	TA12-HNF	2T	4DS	Auto	3FC	A40			SDX
	7012-7501	TA12-MSF	2T-B	4DS	Man	5F	T50			ST
	7208-7509	TA12-MSFR	2T-BR	4DS	Man	5F	T50			ST
	7212-7501	TA12-MQF	2T-G	4DS	Man	5F	T50		4.100	GT	115/6000	14.5/5200				960
	7212-7509	TA12-MQFR	2T-GR	4DS	Man	5F	T50		4.100 4.111	GT	110/6000	14.0/4800				995
	7012-7509	TA12-KF	2T	4DS	Man	4F	T40		4.111	Std
	7012-7509	TA12-HF	2T	4DS	Auto	3FC	A30		4.111	Std
	7012-7509	TA12-KDF	2T	4DS	Man	4F	T40		4.111	DLX
	7012-7509	TA12-HDF	2T	4DS	Auto	3FC	A30		4.111	DLX
	7012-7509	TA12L-KF	2T	4DS	Man	4F	T40		3.909	Std	102/6000	14.0/3800	8.5	1280	1285	890
	7012-7509	TA12L-HF	2T	4DS	Auto	3FC	A30		4.111	Std	102/6000	14.0/3800	8.5	1280	1285
	7012-7509	TA12L-KDF	2T	4DS	Man	4F	T40		3.909	DLX	102/6000	14.0/3800	8.5	1280	1285	910
	7012-7509	TA12L-HDF	2T	4DS	Auto	3FC	A30		4.111	DLX	102/6000	14.0/3800	8.5	1280	1285
	7012-7509	TA12-K	2T	2DS	Man	4F	T40		4.111	Std
	7012-7509	TA12-H	2T	2DS	Auto	3FC	A30		4.111	Std
	7012-7509	TA12-KD	2T	2DS	Man	4F	T40		4.111	DLX
	7012-7509	TA12-HD	2T	2DS	Auto	3FC	A30		4.111	DLX
	7012-7509	TA12L-K	2T	2DS	Man	4F	T40		3.909	Std	102/6000	14.0/3800	8.5	1280	1285	870
	7012-7509	TA12L-H	2T	2DS	Auto	3FC	A30		4.111	Std	102/6000	14.0/3800	8.5	1280	1285
	7012-7509	TA12L-KD	2T	2DS	Man	4F	T40		3.909	DLX	102/6000	14.0/3800	8.5	1280	1285	890
	7012-7509	TA12L-HD	2T	2DS	Auto	3FC	A30		4.111	DLX	102/6000	14.0/3800	8.5	1280	1285
	7208-7509	TA12L-MS	2T-B	2DS	Man	5F	T50		3.900	ST	86/5600	12/4200	9.4	1280	1285	1350
	7109-7308	TA12L-KA	2T-C	2DS	Man	4F	T40	T	4.111		88/6000	12.6/3800	8.5			868
	7109-7308	TA12L-HA	2T-C	2DS	Auto	3FC	A30	T	4.300		88/6000	12.6/3800	8.5			888

13 series

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7412-7509 A-RA13-MNF 19R 4DS Man 5F W50 SDX

13 series
Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7412-7509	A-RA13-MNF	19R	4DS	Man	5F	W50			SDX

14 series Sedan

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7510-7604 A-TA14-KRU 2T-U 2DS Man 4F T40 Std

7510-7604 A-TA14-KDU 2T-U 2DS Man 4F T40 DLX

7510-7604 A-TA14-MDU 2T-U 2DS Man 5F T50 DLX

7510-7604 A-TA14-HDU 2T-U 2DS Auto 3FC A40 DLX

7510-7604 A-TA14-KNU 2T-U 2DS Man 4F T40 SDX

7510-7604 A-TA14-MNU 2T-U 2DS Man 5F T50 SDX

7510-7604 A-TA14-HNU 2T-U 2DS Auto 3FC A40 SDX

7510-7604 A-TA14-MSU 2T-U 2DS Man 5F T50 ST

7510-7604 A-TA14-KRFU 2T-U 4DS Man 4F T40 Std

7510-7604 A-TA14-KDFU 2T-U 4DS Man 4F T40 DLX

7510-7604 A-TA14-MDFU 2T-U 4DS Man 5F T50 DLX

7510-7604 A-TA14-HDFU 2T-U 4DS Auto 3FC A40 DLX

7510-7604 A-TA14-KNFU 2T-U 4DS Man 4F T40 SDX

7510-7604 A-TA14-MNFU 2T-U 4DS Man 5F T50 SDX

7510-7604 A-TA14-HNFU 2T-U 4DS Auto 3FC A40 SDX

7510-7604 A-TA14-MSFU 2T-U 4DS Man 5F T50 ST

7510-7602 A-RA14-KNF 19R 4DS Man 4F W40 SDX

7510-7602 A-RA14-MNF 19R 4DS Man 5F W50 SDX

General 7510-7707 TA14R-KR 2T 2DS Man 4F T40 Std

General 7510-7707 TA14R-KD 2T 2DS Man 4F T40 DLX

General 7510-7707 TA14R-HD 2T 2DS Auto 3FC A40 DLX

General 7510-7707 TA14R-MSB 2T-B 2DS Man 5F T50 Std

General 7510-7707 TA14L-KR 2T 2DS Man 4F T40 Std

General 7510-7707 TA14L-KD 2T 2DS Man 4F T40 DLX

General 7510-7707 TA14L-HD 2T 2DS Auto 3FC A40 DLX

General 7510-7707 TA14L-MSB 2T-B 2DS Man 5F T50 Std

General 7510-7707 TA14R-KRF 2T 4DS Man 4F T40 Std

General 7510-7707 TA14R-KDF 2T 4DS Man 4F T40 DLX

General 7510-7707 TA14R-HDF 2T 4DS Auto 3FC A40 DLX

General 7510-7707 TA14R-MSFB 2T-B 4DS Man 5F T50 Std

General 7510-7707 TA14L-KRF 2T 4DS Man 4F T40 Std

General 7510-7707 TA14L-KDF 2T 4DS Man 4F T40 DLX

General 7510-7707 TA14L-HDF 2T 4DS Auto 3FC A40 DLX

General 7510-7707 TA14L-MSFB 2T-B 4DS Man 5F T50 Std

15 series 2 Door Hardtop

RA15 hardtop

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7212-7509 TA15-KD T HT Man 4F T40 DLX 1280 1285 930

7212-7509 TA15-MD T HT Man 5F T50 DLX 1280 1285 930

7401-7509 RA15-KS 18R HT Man 4F W40 ST

7401-7509 RA15-MS 18R HT Man 5F W50 ST

7401-7509 RA15-MSE 18R-E HT Man 5F W50 ST

7401-7509 RA15-HS 18R-E HT Auto 3FC A40 ST

7401-7501 RA15-MQ 18R-G HT Man 5F P51 GT

7401-7509 RA15-MQR 18R-GR HT Man 5F P51 3.909 GT 140/6400 17.2/4800 1050

15 series	2 Door Hardtop

Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7212-7509	TA15-KD	T	HT	Man	4F	T40			DLX				1280	1285	930
	7212-7509	TA15-MD	T	HT	Man	5F	T50			DLX				1280	1285	930
	7401-7509	RA15-KS	18R	HT	Man	4F	W40			ST
	7401-7509	RA15-MS	18R	HT	Man	5F	W50			ST
	7401-7509	RA15-MSE	18R-E	HT	Man	5F	W50			ST
	7401-7509	RA15-HS	18R-E	HT	Auto	3FC	A40			ST
	7401-7501	RA15-MQ	18R-G	HT	Man	5F	P51			GT
	7401-7509	RA15-MQR	18R-GR	HT	Man	5F	P51		3.909	GT	140/6400	17.2/4800				1050

16 series Van, Hardtop

TA16 van 1975-1977 TA16 van 1977-1979

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7512-7707 H-TA16V-KRFJ T-J 4DV Man 4F T40 T 4.300 Std 80/6000 11.3/3800 8.5 1335 1320 1000

7512-7707 H-TA16V-KDFJ T-J 4DV Man 4F T40 T 4.300 DLX 80/6000 11.3/3800 8.5 1335 1320 1010

7808-7908 H-TA16V-AXKRS T-J 4DV Man 4F Std

7808-7908 H-TA16V-AXKDS T-J 4DV Man 4F DLX

7808-7908 H-TA16V-AXMDS T-J 4DV Man 5F DLX

7510-7702 A-RA16-KDU 16R-U HT Man 4F W40 DLX

7510-7702 A-RA16-MDU 16R-U HT Man 5F W50 DLX

7510-7702 A-RA16-HDU 16R-U HT Auto 3FC A40 DLX

7510-7702 A-RA16-KNU 16R-U HT Man 4F W40 SDX

7510-7702 A-RA16-MNU 16R-U HT Man 5F W50 SDX

7510-7702 A-RA16-HNU 16R-U HT Auto 3FC A40 SDX

7510-7702 A-RA16-MSU 16R-U HT Man 5F W50 ST

There are actually 2 different Japanese market models that share the TA16V code.
The pre 1977 TA16V is similar to the pre 1977 TA15 and the post 1977 Japanese TA16V is similar to the general market post 1977 TA40RG wagon.
At the same time as the 1979 facelift, the TA16V (T-J) was replaced by the TA49V (12T-J).

16 series	Van, Hardtop

Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7512-7707	H-TA16V-KRFJ	T-J	4DV	Man	4F	T40	T	4.300	Std	80/6000	11.3/3800	8.5	1335	1320	1000
	7512-7707	H-TA16V-KDFJ	T-J	4DV	Man	4F	T40	T	4.300	DLX	80/6000	11.3/3800	8.5	1335	1320	1010
	7808-7908	H-TA16V-AXKRS	T-J	4DV	Man	4F				Std
	7808-7908	H-TA16V-AXKDS	T-J	4DV	Man	4F				DLX
	7808-7908	H-TA16V-AXMDS	T-J	4DV	Man	5F				DLX
	7510-7702	A-RA16-KDU	16R-U	HT	Man	4F	W40			DLX
	7510-7702	A-RA16-MDU	16R-U	HT	Man	5F	W50			DLX
	7510-7702	A-RA16-HDU	16R-U	HT	Auto	3FC	A40			DLX
	7510-7702	A-RA16-KNU	16R-U	HT	Man	4F	W40			SDX
	7510-7702	A-RA16-MNU	16R-U	HT	Man	5F	W50			SDX
	7510-7702	A-RA16-HNU	16R-U	HT	Auto	3FC	A40			SDX
	7510-7702	A-RA16-MSU	16R-U	HT	Man	5F	W50			ST

17 series 2 door hardtop

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7xxx-7509 TA17 2T-B HT 1280 1285

TA17-KD 2T HT Man 4F T40 DX 1280 1285 930

TA17-MD 2T HT Man 5F T50 DX 1280 1285 930

TA17-HD 2T HT Auto 3FC A40 DX 1280 1285 950

TA17-KN 2T HT Man 4F T40 SDX 1280 1285 940

TA17-MN 2T HT Man 5F T50 SDX 1280 1285 940

TA17-HN 2T HT Auto 3FC A40 SDX 1280 1285 960

TA17-MS 2T-B HT Man 5F T50 ST 105/6000 14.0/4200 9.4 1280 1285 950

TA17-MSR 2T-BR HT Man 5F T50 ST 100/6000 13.9/4200 8.5 1280 1285 950

TA17-MX 2T-B HT Man 5F T50 4.111 SR 105/6000 14.0/4200 9.4 1280 1285 945

TA17-MXR 2T-BR HT Man 5F T50 4.111 SR 100/6000 13.9/4200 8.5 1280 1285 945

7xxx-7309 TA17-MQ 2T-G HT Man 5F T40 4.111 GT 115/6400 14.5/5200 9.8 1280
1300 1285
1305 985

7xxx-7309 TA17-MQR 2T-GR HT Man 5F T50 4.111 GT 110/6000 14.0/4800 8.8 1280
1300 1285
1305 985

7510-7701 A-RA17-MQGU 18R-GU HT Man 5F P51 GT

In December 1972, the rear quarter fin and the wide tail of the hardtop led to explosive sales.
Sales of the hardtop were as big as the 1600 GT sedan.

17 series	2 door hardtop

Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7xxx-7509	TA17	2T-B	HT										1280	1285
		TA17-KD	2T	HT	Man	4F	T40			DX				1280	1285	930
		TA17-MD	2T	HT	Man	5F	T50			DX				1280	1285	930
		TA17-HD	2T	HT	Auto	3FC	A40			DX				1280	1285	950
		TA17-KN	2T	HT	Man	4F	T40			SDX				1280	1285	940
		TA17-MN	2T	HT	Man	5F	T50			SDX				1280	1285	940
		TA17-HN	2T	HT	Auto	3FC	A40			SDX				1280	1285	960
		TA17-MS	2T-B	HT	Man	5F	T50			ST	105/6000	14.0/4200	9.4	1280	1285	950
		TA17-MSR	2T-BR	HT	Man	5F	T50			ST	100/6000	13.9/4200	8.5	1280	1285	950
		TA17-MX	2T-B	HT	Man	5F	T50		4.111	SR	105/6000	14.0/4200	9.4	1280	1285	945
		TA17-MXR	2T-BR	HT	Man	5F	T50		4.111	SR	100/6000	13.9/4200	8.5	1280	1285	945
	7xxx-7309	TA17-MQ	2T-G	HT	Man	5F	T40		4.111	GT	115/6400	14.5/5200	9.8	1280 1300	1285 1305	985
	7xxx-7309	TA17-MQR	2T-GR	HT	Man	5F	T50		4.111	GT	110/6000	14.0/4800	8.8	1280 1300	1285 1305	985
	7510-7701	A-RA17-MQGU	18R-GU	HT	Man	5F	P51			GT

18 series Hardtop

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7510-7604 A-TA18-KDU 2T-U HT Man 4F T40 DLX

7510-7604 A-TA18-MDU 2T-U HT Man 5F T50 DLX

7510-7604 A-TA18-HDU 2T-U HT Auto 3FC A40 DLX

7510-7604 A-TA18-KNU 2T-U HT Man 4F T40 SDX

7510-7604 A-TA18-MNU 2T-U HT Man 5F T50 SDX

7510-7604 A-TA18-HNU 2T-U HT Auto 3FC A40 SDX

7510-7604 A-TA18-MSU 2T-U HT Man 5F T50 ST

7510-7707 A-TA18-MXU 2T-U HT Man 5F T50 4.100 SR 90/6000 13.0/3800 9.0 995

18 series	Hardtop
Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7510-7604	A-TA18-KDU	2T-U	HT	Man	4F	T40			DLX
	7510-7604	A-TA18-MDU	2T-U	HT	Man	5F	T50			DLX
	7510-7604	A-TA18-HDU	2T-U	HT	Auto	3FC	A40			DLX
	7510-7604	A-TA18-KNU	2T-U	HT	Man	4F	T40			SDX
	7510-7604	A-TA18-MNU	2T-U	HT	Man	5F	T50			SDX
	7510-7604	A-TA18-HNU	2T-U	HT	Auto	3FC	A40			SDX
	7510-7604	A-TA18-MSU	2T-U	HT	Man	5F	T50			ST
	7510-7707	A-TA18-MXU	2T-U	HT	Man	5F	T50		4.100	SR	90/6000	13.0/3800	9.0	995

19 series Van

TA19 van 1975-1977 TA19 van 1977-1979

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7512-7707 H-TA19V-KDFJ 2T-J 4DV Man 4F T40 DLX 93/6000 13.1/3800 8.5 1335 1320 1020

7512-7707 H-TA19V-MDFJ 2T-J 4DV Man 5F T50 DLX 93/6000 13.1/3800 8.5 1335 1320 1020

7512-7707 H-TA19V-KNFJ 2T-J 4DV Man 4F T40 Super Deluxe 93/6000 13.1/3800 8.5 1335 1320 1020

7512-7707 H-TA19V-MNFJ 2T-J 4DV Man 5F T50 Super Deluxe 93/6000 13.1/3800 8.5 1335 1320 1020

7708-7908 H-TA19V-AXKDS 2T-J 4DV Man 4F DLX

7708-7908 H-TA19V-AXMDS 2T-J 4DV Man 5F DLX

7708-7908 H-TA19V-AXKFS 2T-J 4DV Man 4F SDX

7708-7908 H-TA19V-AXMFS 2T-J 4DV Man 5F SDX

There are actually 2 different Japanese market models that share the TA19V code.
The early (before 1977) TA19V is similar to the TA14.
The late (after 1977) Japanese TA19V is similar to the general market TA40RG wagon.
In 1979, the TA19V (2T-J) was replaced by the similar TA49V (12T-J).
The TA49V was almost the same as the late TA19V except for a minor facelift.

19 series	Van

Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7512-7707	H-TA19V-KDFJ	2T-J	4DV	Man	4F	T40			DLX	93/6000	13.1/3800	8.5	1335	1320	1020
	7512-7707	H-TA19V-MDFJ	2T-J	4DV	Man	5F	T50			DLX	93/6000	13.1/3800	8.5	1335	1320	1020
	7512-7707	H-TA19V-KNFJ	2T-J	4DV	Man	4F	T40			Super Deluxe	93/6000	13.1/3800	8.5	1335	1320	1020
	7512-7707	H-TA19V-MNFJ	2T-J	4DV	Man	5F	T50			Super Deluxe	93/6000	13.1/3800	8.5	1335	1320	1020
	7708-7908	H-TA19V-AXKDS	2T-J	4DV	Man	4F				DLX
	7708-7908	H-TA19V-AXMDS	2T-J	4DV	Man	5F				DLX
	7708-7908	H-TA19V-AXKFS	2T-J	4DV	Man	4F				SDX
	7708-7908	H-TA19V-AXMFS	2T-J	4DV	Man	5F				SDX

30 series

C-RA30 hardtop B-TA30 SR hardtop

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7605-7707 B-TA30-DKR 2T-U 2DS Man 4F T40 Std

7605-7707 B-TA30-DKD 2T-U 2DS Man 4F T40 DLX

7605-7707 B-TA30-DMD 2T-U 2DS Man 5F T50 DLX

7605-7707 B-TA30-DHD 2T-U 2DS Auto 3FC A40 DLX

7605-7707 B-TA30-DKF 2T-U 2DS Man 4F T40 SDX

7605-7707 B-TA30-DMF 2T-U 2DS Man 5F T50 SDX

7605-7707 B-TA30-DHF 2T-U 2DS Auto 3FC A40 SDX

7605-7707 B-TA30-DMS 2T-U 2DS Man 5F T50 ST

7605-7707 B-TA30-EKR 2T-U 4DS Man 4F T40 Std

7605-7707 B-TA30-EKD 2T-U 4DS Man 4F T40 DLX

7605-7707 B-TA30-EMD 2T-U 4DS Man 5F T50 DLX

7605-7707 B-TA30-EHD 2T-U 4DS Auto 3FC A40 DLX

7605-7707 B-TA30-EKF 2T-U 4DS Man 4F T40 SDX

7605-7707 B-TA30-EMF 2T-U 4DS Man 5F T50 SDX

7605-7707 B-TA30-EHF 2T-U 4DS Auto 3FC A40 SDX

7605-7707 B-TA30-EMS 2T-U 4DS Man 5F T50 ST

7605-7707 B-TA30-SKD 2T-U HT Man 4F T40 DLX

7605-7707 B-TA30-SMD 2T-U HT Man 5F T50 DLX

7605-7707 B-TA30-SHD 2T-U HT Auto 3FC A40 DLX

7605-7707 B-TA30-SKF 2T-U HT Man 4F T40 SDX

7605-7707 B-TA30-SMF 2T-U HT Man 5F T50 SDX

7605-7707 B-TA30-SHF 2T-U HT Auto 3FC A40 SDX

7605-7707 B-TA30-SMS 2T-U HT Man 5F T50 ST

7605-7707 B-TA30-SMX 2T-U HT Man 5F T50 4.100 SR 90/6000 13.0/3800 9.0 995

7701-7707 C-RA30-SMQG 18R-GU HT Man 5F P51 GT

31 series

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7603-7707 B-TA31-DKR 12T 2DS Man 4F T40 Std

7603-7707 B-TA31-DKD 12T 2DS Man 4F T40 DLX

7603-7707 B-TA31-DMD 12T 2DS Man 5F T50 DLX

7603-7707 B-TA31-DKF 12T 2DS Man 4F T40 SDX

7603-7707 B-TA31-DMF 12T 2DS Man 5F T50 SDX

7603-7707 B-TA31-DMS 12T 2DS Man 5F T50 ST

7603-7707 B-TA31-EKR 12T 4DS Man 4F T40 Std

7603-7707 B-TA31-EKD 12T 4DS Man 4F T40 DLX

7603-7707 B-TA31-EMD 12T 4DS Man 5F T50 DLX

7603-7707 B-TA31-EKF 12T 4DS Man 4F T40 SDX

7603-7707 B-TA31-EMF 12T 4DS Man 5F T50 SDX

7603-7707 B-TA31-EMS 12T 4DS Man 5F T50 ST

7603-7707 B-TA31-SKD 12T HT Man 4F T40 DLX

7603-7707 B-TA31-SMD 12T HT Man 5F T50 DLX

7603-7707 B-TA31-SKF 12T HT Man 4F T40 SDX

7603-7707 B-TA31-SMF 12T HT Man 5F T50 SDX

7603-7707 B-TA31-SMS 12T HT Man 5F T50 ST

7603-7707 B-TA31-SMX 12T HT Man 5F T50 4.100 SR 90/6000 13.0/3800 9.0 995

7603-7707 C-RA31-EKD 19R 4DS Man 4F T40 DLX

7603-7707 C-RA31-EMD 19R 4DS Man 5F T50 DLX

7603-7707 C-RA31-EKF 19R 4DS Man 4F T40 SDX

7603-7707 C-RA31-EMF 19R 4DS Man 5F T50 SDX

7603-7707 C-RA31-SKF 19R HT Man 4F W40 SDX

7603-7707 C-RA31-SMF 19R HT Man 5F W50 SDX

31 series
Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7603-7707	B-TA31-DKR	12T	2DS	Man	4F	T40			Std
	7603-7707	B-TA31-DKD	12T	2DS	Man	4F	T40			DLX
	7603-7707	B-TA31-DMD	12T	2DS	Man	5F	T50			DLX
	7603-7707	B-TA31-DKF	12T	2DS	Man	4F	T40			SDX
	7603-7707	B-TA31-DMF	12T	2DS	Man	5F	T50			SDX
	7603-7707	B-TA31-DMS	12T	2DS	Man	5F	T50			ST
	7603-7707	B-TA31-EKR	12T	4DS	Man	4F	T40			Std
	7603-7707	B-TA31-EKD	12T	4DS	Man	4F	T40			DLX
	7603-7707	B-TA31-EMD	12T	4DS	Man	5F	T50			DLX
	7603-7707	B-TA31-EKF	12T	4DS	Man	4F	T40			SDX
	7603-7707	B-TA31-EMF	12T	4DS	Man	5F	T50			SDX
	7603-7707	B-TA31-EMS	12T	4DS	Man	5F	T50			ST
	7603-7707	B-TA31-SKD	12T	HT	Man	4F	T40			DLX
	7603-7707	B-TA31-SMD	12T	HT	Man	5F	T50			DLX
	7603-7707	B-TA31-SKF	12T	HT	Man	4F	T40			SDX
	7603-7707	B-TA31-SMF	12T	HT	Man	5F	T50			SDX
	7603-7707	B-TA31-SMS	12T	HT	Man	5F	T50			ST
	7603-7707	B-TA31-SMX	12T	HT	Man	5F	T50		4.100	SR	90/6000	13.0/3800	9.0	995
	7603-7707	C-RA31-EKD	19R	4DS	Man	4F	T40			DLX
	7603-7707	C-RA31-EMD	19R	4DS	Man	5F	T50			DLX
	7603-7707	C-RA31-EKF	19R	4DS	Man	4F	T40			SDX
	7603-7707	C-RA31-EMF	19R	4DS	Man	5F	T50			SDX
	7603-7707	C-RA31-SKF	19R	HT	Man	4F	W40			SDX
	7603-7707	C-RA31-SMF	19R	HT	Man	5F	W50			SDX

32 series

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7703-7707 B-TA32-EKD 3T-U 4DS Man 4F T40 DLX

7703-7707 B-TA32-EMD 3T-U 4DS Man 5F T50 DLX

7703-7707 B-TA32-EHD 3T-U 4DS Auto 3FC A40 DLX

7703-7707 B-TA32-EKF 3T-U 4DS Man 4F T40 SDX

7703-7707 B-TA32-EMF 3T-U 4DS Man 5F T50 SDX

7703-7707 B-TA32-EHF 3T-U 4DS Auto 3FC A40 SDX

7703-7707 B-TA32-EMS 3T-U 4DS Man 5F T50 ST

7703-7707 B-TA32-SKD 3T-U HT Man 4F T40 DLX

7703-7707 B-TA32-SMD 3T-U HT Man 5F T50 DLX

7703-7707 B-TA32-SHD 3T-U HT Auto 3FC A40 DLX

7703-7707 B-TA32-SKF 3T-U HT Man 4F T40 SDX

7703-7707 B-TA32-SMF 3T-U HT Man 5F T50 SDX

7703-7707 B-TA32-SHF 3T-U HT Auto 3FC A40 SDX

7703-7707 B-TA32-SMS 3T-U HT Man 5F T50 ST

32 series
Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7703-7707	B-TA32-EKD	3T-U	4DS	Man	4F	T40			DLX
	7703-7707	B-TA32-EMD	3T-U	4DS	Man	5F	T50			DLX
	7703-7707	B-TA32-EHD	3T-U	4DS	Auto	3FC	A40			DLX
	7703-7707	B-TA32-EKF	3T-U	4DS	Man	4F	T40			SDX
	7703-7707	B-TA32-EMF	3T-U	4DS	Man	5F	T50			SDX
	7703-7707	B-TA32-EHF	3T-U	4DS	Auto	3FC	A40			SDX
	7703-7707	B-TA32-EMS	3T-U	4DS	Man	5F	T50			ST
	7703-7707	B-TA32-SKD	3T-U	HT	Man	4F	T40			DLX
	7703-7707	B-TA32-SMD	3T-U	HT	Man	5F	T50			DLX
	7703-7707	B-TA32-SHD	3T-U	HT	Auto	3FC	A40			DLX
	7703-7707	B-TA32-SKF	3T-U	HT	Man	4F	T40			SDX
	7703-7707	B-TA32-SMF	3T-U	HT	Man	5F	T50			SDX
	7703-7707	B-TA32-SHF	3T-U	HT	Auto	3FC	A40			SDX
	7703-7707	B-TA32-SMS	3T-U	HT	Man	5F	T50			ST

Carina 4#,5# 2^nd generation

The 1977 Carina had a totally new body.
Most mechanical parts were still interchangeable with the Celica.
The front was replaced with square headlights and triangular indicators in late 1979.

The front suspension is interchangeable with the previsou generation of Carinas and Celicas.
The rear suspension is interchangeable with the next generation (RA6#/TA6#).

The RWD Celica Camry had the same body as the Carina but with IRS and slightly different options.
It was always a 4 door sedan.
The Celica Camry has a -C in the code instead of -A for Carina or -B for Celica.
The Celica Camry has a grill like the Celica Supra, which was based on the MF10 2000GT grill.
The next generation Camry was made into a separate model with the totally new FWD SV1# Camry.

4# models always have solid rear axles.
5# models always have IRS.

40 series 1600cc Carina

RA40 4 door sedan

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

Japan 7708-7805 B-TA40-AEMQF 2T-GEU 4DS Man 5F GT

Japan 7708-7808 B-RA40-AEKFS 18R-U 4DS Man 4F SDX

Japan 7708-7808 B-RA40-AEMFS 18R-U 4DS Man 5F SDX

Japan 7708-7808 B-RA40-AEHFS 18R-U 4DS Auto 3FC SDX

Japan 7708-7808 B-RA40-AEMSS 18R-U 4DS Man 5F ST

Japan 7708-7808 B-RA40-AEHSS 18R-U 4DS Auto 3FC ST

Japan 7708-7808 B-RA40-AEKES 18R-U 4DS Man 4F SE

Japan 7708-7808 B-RA40-AEMES 18R-U 4DS Man 5F SE

Japan 7708-7808 B-RA40-AEHES 18R-U 4DS Auto 3FC SE

Japan 7708-7808 C-RA40-AEMQG 18R-GU 4DS Man 5F 3.909 GT 130/5800 17.0/4400 1030

Japan 7708-7805 B-TA40-ASMQF 2T-GEU HT Man 5F GT

Japan 7708-7808 B-RA40-ASKFS 18R-U HT Man 4F SDX

Japan 7708-7808 B-RA40-ASMFS 18R-U HT Man 5F SDX

Japan 7708-7808 B-RA40-ASHFS 18R-U HT Auto 3FC SDX

Japan 7708-7808 B-RA40-ASMSS 18R-U HT Man 5F ST

Japan 7708-7808 B-RA40-ASHSS 18R-U HT Auto 3FC ST

Japan 7708-7808 B-RA40-ASKES 18R-U HT Man 4F SE

Japan 7708-7808 B-RA40-ASMES 18R-U HT Man 5F SE

Japan 7708-7808 B-RA40-ASHES 18R-U HT Auto 3FC SE

Japan 7708-7808 C-RA40-ASMQG 18R-GU HT Man 5F 3.909 GT 130/5800 17.0/4400 1030

General 7708-8008 TA40R-ADKRS 2T 2DS Man 4F T40 T 4.100
3.909 Std

General 7708-8008 TA40R-ADKDS 2T 2DS Man 4F T40 T 4.100
3.909 DLX

General 7708-8008 TA40R-ADHDS 2T 2DS Auto 3FC A40 T 4.100
4.300 DLX

General 7708-8008 TA40R-ADMSB 2T-B 2DS Man 5F T50 T 4.100 ST

General 7708-8008 TA40L-ADKRS 2T 2DS Man 4F T40 T 4.100
3.909 Std 73/5200 11.8/3800 9.0 1335 1350 930

General 7708-8008 TA40L-ADKDS 2T 2DS Man 4F T40 T 4.100
3.909 DLX 73/5200 11.8/3800 9.0 1335 1350 930

General 7708-8008 TA40L-ADHDS 2T 2DS Auto 3FC A40 T 4.100
4.300 DLX 73/5200 11.8/3800 9.0 1335 1350

General 7708-8008 TA40L-ADMSB 2T-B 2DS Man 5F T50 T 4.100 ST 83/5600 11.8/4000 9.4 1350 1365 950

General 7708-8008 TA40R-AEKRS 2T 4DS Man 4F T40 T 4.100
3.909 Std

General 7708-8107 TA40R-AEKDS 2T 4DS Man 4F T40 T 4.100
3.909 DLX

General 7708-8107 TA40R-AEHDS 2T 4DS Auto 3FC A40 T 4.100
4.300 DLX

General 7708-8107 TA40R-AEKNS 2T 4DS Man 4F T40 T 4.100
3.909 GL

General 7708-8107 TA40R-AEMNS 2T 4DS Man 5F T50 T 4.100 GL

General 7708-8008 TA40R-AEHNS 2T 4DS Auto 3FC A40 T 4.100
4.300 GL

General 7708-8008 TA40R-AEMSB 2T-B 4DS Man 5F T50 T 4.100 ST

General 7708-8107 TA40L-AEKRS 2T 4DS Man 4F T40 T 4.100
3.909 Std 73/5200 11.8/3800 9.0 1335 1350 945

General 7708-8107 TA40L-AEKDS 2T 4DS Man 4F T40 T 4.100
3.909 DLX 73/5200 11.8/3800 9.0 1335 1350 945

General 7708-8107 TA40L-AEHDS 2T 4DS Auto 3FC A40 T 4.100
4.300 DLX 73/5200 11.8/3800 9.0 1335 1350

General 7708-8107 TA40L-AEKNS 2T 4DS Man 4F T40 T 4.100
3.909 GL 73/5200 11.8/3800 9.0 1350 1365 960

General 7708-8107 TA40L-AEMNS 2T 4DS Man 5F T50 T 4.100 GL 73/5200 11.8/3800 9.0 1350 1365

General 7708-8107 TA40L-AEHNS 2T 4DS Auto 3FC A40 T 4.100
4.300 GL 73/5200 11.8/3800 9.0 1350 1365

General 7708-8008 TA40L-AEMSB 2T-B 4DS Man 5F T50 T 4.100 ST 83/5600 11.8/4000 9.4 1350 1365

General 7708-8107 TA40RG-AWKRS 2T 4DW Man 4F T40 T 4.100
3.909 Std

General 7708-8107 TA40RG-AWKDS 2T 4DW Man 4F T40 T 4.100
3.909 DLX

General 7708-8008 TA40RG-AWHDS 2T 4DW Auto 3FC A40 T 4.100
4.300 DLX

General 7708-8107 TA40LG-AWKRS 2T 4DW Man 4F T40 T 4.100
3.909 Std 73/5200 11.8/3800 9.0 1335 1350 970

General 7708-8107 TA40LG-AWKDS 2T 4DW Man 4F T40 T 4.100
3.909 DLX 73/5200 11.8/3800 9.0 1335 1350 975

General 7708-8107 TA40LG-AWHDS 2T 4DW Auto 3FC A40 T 4.100
4.300 DLX 73/5200 11.8/3800 9.0 1335 1350

Europe 7708-7903 TA40L-ADKRSW 2T 2DS Man 4F T40 T 3.909
4.100 Std

Europe 7903-8107 TA40L-ADKRSW 2T 2DS Man 4F T40 T 3.909 Std

Europe 7708-8107 TA40L-ADKDSW 2T 2DS Man 4F T40 T 3.909 DLX

Europe 7708-8107 TA40L-ADHDSW 2T 2DS Auto 3FC A40 T 4.300 DLX

Europe 7708-8107 TA40L-ADMSBW 2T-B 2DS Man 5F T50 T 4.100 ST

Europe 7708-8107 TA40R-AEKDSW 2T 4DS Man 4F T40 T 3.909 DLX

Europe 7708-8107 TA40R-AEMDSW 2T 4DS Man 5F T50 T 4.100 DLX

Europe 7708-7903 TA40R-AEHDSW 2T 4DS Auto 3FC A40 T 4.100
4.300 DLX

Europe 7903-8107 TA40R-AEHDSW 2T 4DS Auto 3FC A40 T 4.100 DLX

Europe 7708-7908 TA40R-AEKNSW 2T 4DS Man 4F T40 T 3.909 GL

Europe 7708-7908 TA40R-AEHNSW 2T 4DS Auto 3FC A40 T 4.300 GL

Europe 7708-7903 TA40L-AEKRSW 2T 4DS Man 4F T40 T 3.909
4.100 Std

Europe 7903-8107 TA40L-AEKRSW 2T 4DS Man 4F T40 T 3.909 Std

Europe 7708-8107 TA40L-AEKDSW 2T 4DS Man 4F T40 T 4.100 DLX

Europe 8003-8107 TA40L-AEMDSW 2T 4DS Man 5F T50 T 4.100 DLX

Europe 7708-8107 TA40L-AEHDSW 2T 4DS Auto 3FC A40 T 4.300 DLX

Europe 7708-8008 TA40L-AEKNSW 2T 4DS Man 4F T40 T 3.909 GL

Europe 7708-8107 TA40L-AEMNSW 2T 4DS Man 5F T50 T 4.100 GL

Europe 7708-8107 TA40L-AEHNSW 2T 4DS Auto 3FC A40 T 4.300 GL

Europe 7708-8107 TA40L-AEMSBW 2T-B 4DS Man 5F T50 T 4.100 ST

Europe 7708-8107 TA40RG-AWKDSW 2T 4DW Man 4F T40 T 3.909
4.100 DLX

Europe 7708-8107 TA40LG-AWKRSW 2T 4DW Man 4F T40 T 3.909
4.100 Std

Europe 7708-8107 TA40LG-AWKDSW 2T 4DW Man 4F T40 T 3.909
4.100 DLX

Europe 7708-8107 TA40LG-AWHDSW 2T 4DW Auto 3FC A40 T 4.100
4.300 DLX

Sweden 7801-7903 TA40L-AEKDCC 2T-C 4DS Man 4F T40 T 3.909 DLX

Sweden 7903-7908 TA40L-AEKDCC 2T-C 4DS Man 4F T40 T 3.909
4.100 DLX

Sweden 7801-7903 TA40L-AEHDCC 2T-C 4DS Auto 3FC A40 T 4.100
4.300 DLX

Sweden 7903-7908 TA40L-AEHDCC 2T-C 4DS Auto 3FC A40 T 4.100 DLX

Sweden 7801-7908 TA40LG-AWKDCC 2T-C 4DW Man 4F T40 T 3.909
4.100 DLX

Sweden 7801-7903 TA40LG-AWHDCC 2T-C 4DW Auto 3FC A40 T 4.100
4.300 DLX

Sweden 7903-7908 TA40LG-AWHDCC 2T-C 4DW Auto 3FC A40 T 4.100 DLX

40 series	1600cc Carina

Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7708-7805	B-TA40-AEMQF	2T-GEU	4DS	Man	5F				GT
	7708-7808	B-RA40-AEKFS	18R-U	4DS	Man	4F				SDX
	7708-7808	B-RA40-AEMFS	18R-U	4DS	Man	5F				SDX
	7708-7808	B-RA40-AEHFS	18R-U	4DS	Auto	3FC				SDX
	7708-7808	B-RA40-AEMSS	18R-U	4DS	Man	5F				ST
	7708-7808	B-RA40-AEHSS	18R-U	4DS	Auto	3FC				ST
	7708-7808	B-RA40-AEKES	18R-U	4DS	Man	4F				SE
	7708-7808	B-RA40-AEMES	18R-U	4DS	Man	5F				SE
	7708-7808	B-RA40-AEHES	18R-U	4DS	Auto	3FC				SE
	7708-7808	C-RA40-AEMQG	18R-GU	4DS	Man	5F			3.909	GT	130/5800	17.0/4400				1030
	7708-7805	B-TA40-ASMQF	2T-GEU	HT	Man	5F				GT
	7708-7808	B-RA40-ASKFS	18R-U	HT	Man	4F				SDX
	7708-7808	B-RA40-ASMFS	18R-U	HT	Man	5F				SDX
	7708-7808	B-RA40-ASHFS	18R-U	HT	Auto	3FC				SDX
	7708-7808	B-RA40-ASMSS	18R-U	HT	Man	5F				ST
	7708-7808	B-RA40-ASHSS	18R-U	HT	Auto	3FC				ST
	7708-7808	B-RA40-ASKES	18R-U	HT	Man	4F				SE
	7708-7808	B-RA40-ASMES	18R-U	HT	Man	5F				SE
	7708-7808	B-RA40-ASHES	18R-U	HT	Auto	3FC				SE
	7708-7808	C-RA40-ASMQG	18R-GU	HT	Man	5F			3.909	GT	130/5800	17.0/4400				1030
	7708-8008	TA40R-ADKRS	2T	2DS	Man	4F	T40	T	4.100 3.909	Std
	7708-8008	TA40R-ADKDS	2T	2DS	Man	4F	T40	T	4.100 3.909	DLX
	7708-8008	TA40R-ADHDS	2T	2DS	Auto	3FC	A40	T	4.100 4.300	DLX
	7708-8008	TA40R-ADMSB	2T-B	2DS	Man	5F	T50	T	4.100	ST
	7708-8008	TA40L-ADKRS	2T	2DS	Man	4F	T40	T	4.100 3.909	Std	73/5200	11.8/3800	9.0	1335	1350	930
	7708-8008	TA40L-ADKDS	2T	2DS	Man	4F	T40	T	4.100 3.909	DLX	73/5200	11.8/3800	9.0	1335	1350	930
	7708-8008	TA40L-ADHDS	2T	2DS	Auto	3FC	A40	T	4.100 4.300	DLX	73/5200	11.8/3800	9.0	1335	1350
	7708-8008	TA40L-ADMSB	2T-B	2DS	Man	5F	T50	T	4.100	ST	83/5600	11.8/4000	9.4	1350	1365	950
	7708-8008	TA40R-AEKRS	2T	4DS	Man	4F	T40	T	4.100 3.909	Std
	7708-8107	TA40R-AEKDS	2T	4DS	Man	4F	T40	T	4.100 3.909	DLX
	7708-8107	TA40R-AEHDS	2T	4DS	Auto	3FC	A40	T	4.100 4.300	DLX
	7708-8107	TA40R-AEKNS	2T	4DS	Man	4F	T40	T	4.100 3.909	GL
	7708-8107	TA40R-AEMNS	2T	4DS	Man	5F	T50	T	4.100	GL
	7708-8008	TA40R-AEHNS	2T	4DS	Auto	3FC	A40	T	4.100 4.300	GL
	7708-8008	TA40R-AEMSB	2T-B	4DS	Man	5F	T50	T	4.100	ST
	7708-8107	TA40L-AEKRS	2T	4DS	Man	4F	T40	T	4.100 3.909	Std	73/5200	11.8/3800	9.0	1335	1350	945
	7708-8107	TA40L-AEKDS	2T	4DS	Man	4F	T40	T	4.100 3.909	DLX	73/5200	11.8/3800	9.0	1335	1350	945
	7708-8107	TA40L-AEHDS	2T	4DS	Auto	3FC	A40	T	4.100 4.300	DLX	73/5200	11.8/3800	9.0	1335	1350
	7708-8107	TA40L-AEKNS	2T	4DS	Man	4F	T40	T	4.100 3.909	GL	73/5200	11.8/3800	9.0	1350	1365	960
	7708-8107	TA40L-AEMNS	2T	4DS	Man	5F	T50	T	4.100	GL	73/5200	11.8/3800	9.0	1350	1365
	7708-8107	TA40L-AEHNS	2T	4DS	Auto	3FC	A40	T	4.100 4.300	GL	73/5200	11.8/3800	9.0	1350	1365
	7708-8008	TA40L-AEMSB	2T-B	4DS	Man	5F	T50	T	4.100	ST	83/5600	11.8/4000	9.4	1350	1365
	7708-8107	TA40RG-AWKRS	2T	4DW	Man	4F	T40	T	4.100 3.909	Std
	7708-8107	TA40RG-AWKDS	2T	4DW	Man	4F	T40	T	4.100 3.909	DLX
	7708-8008	TA40RG-AWHDS	2T	4DW	Auto	3FC	A40	T	4.100 4.300	DLX
	7708-8107	TA40LG-AWKRS	2T	4DW	Man	4F	T40	T	4.100 3.909	Std	73/5200	11.8/3800	9.0	1335	1350	970
	7708-8107	TA40LG-AWKDS	2T	4DW	Man	4F	T40	T	4.100 3.909	DLX	73/5200	11.8/3800	9.0	1335	1350	975
	7708-8107	TA40LG-AWHDS	2T	4DW	Auto	3FC	A40	T	4.100 4.300	DLX	73/5200	11.8/3800	9.0	1335	1350
	7708-7903	TA40L-ADKRSW	2T	2DS	Man	4F	T40	T	3.909 4.100	Std
	7903-8107	TA40L-ADKRSW	2T	2DS	Man	4F	T40	T	3.909	Std
	7708-8107	TA40L-ADKDSW	2T	2DS	Man	4F	T40	T	3.909	DLX
	7708-8107	TA40L-ADHDSW	2T	2DS	Auto	3FC	A40	T	4.300	DLX
	7708-8107	TA40L-ADMSBW	2T-B	2DS	Man	5F	T50	T	4.100	ST
	7708-8107	TA40R-AEKDSW	2T	4DS	Man	4F	T40	T	3.909	DLX
	7708-8107	TA40R-AEMDSW	2T	4DS	Man	5F	T50	T	4.100	DLX
	7708-7903	TA40R-AEHDSW	2T	4DS	Auto	3FC	A40	T	4.100 4.300	DLX
	7903-8107	TA40R-AEHDSW	2T	4DS	Auto	3FC	A40	T	4.100	DLX
	7708-7908	TA40R-AEKNSW	2T	4DS	Man	4F	T40	T	3.909	GL
	7708-7908	TA40R-AEHNSW	2T	4DS	Auto	3FC	A40	T	4.300	GL
	7708-7903	TA40L-AEKRSW	2T	4DS	Man	4F	T40	T	3.909 4.100	Std
	7903-8107	TA40L-AEKRSW	2T	4DS	Man	4F	T40	T	3.909	Std
	7708-8107	TA40L-AEKDSW	2T	4DS	Man	4F	T40	T	4.100	DLX
	8003-8107	TA40L-AEMDSW	2T	4DS	Man	5F	T50	T	4.100	DLX
	7708-8107	TA40L-AEHDSW	2T	4DS	Auto	3FC	A40	T	4.300	DLX
	7708-8008	TA40L-AEKNSW	2T	4DS	Man	4F	T40	T	3.909	GL
	7708-8107	TA40L-AEMNSW	2T	4DS	Man	5F	T50	T	4.100	GL
	7708-8107	TA40L-AEHNSW	2T	4DS	Auto	3FC	A40	T	4.300	GL
	7708-8107	TA40L-AEMSBW	2T-B	4DS	Man	5F	T50	T	4.100	ST
	7708-8107	TA40RG-AWKDSW	2T	4DW	Man	4F	T40	T	3.909 4.100	DLX
	7708-8107	TA40LG-AWKRSW	2T	4DW	Man	4F	T40	T	3.909 4.100	Std
	7708-8107	TA40LG-AWKDSW	2T	4DW	Man	4F	T40	T	3.909 4.100	DLX
	7708-8107	TA40LG-AWHDSW	2T	4DW	Auto	3FC	A40	T	4.100 4.300	DLX
	7801-7903	TA40L-AEKDCC	2T-C	4DS	Man	4F	T40	T	3.909	DLX
	7903-7908	TA40L-AEKDCC	2T-C	4DS	Man	4F	T40	T	3.909 4.100	DLX
	7801-7903	TA40L-AEHDCC	2T-C	4DS	Auto	3FC	A40	T	4.100 4.300	DLX
	7903-7908	TA40L-AEHDCC	2T-C	4DS	Auto	3FC	A40	T	4.100	DLX
	7801-7908	TA40LG-AWKDCC	2T-C	4DW	Man	4F	T40	T	3.909 4.100	DLX
	7801-7903	TA40LG-AWHDCC	2T-C	4DW	Auto	3FC	A40	T	4.100 4.300	DLX
	7903-7908	TA40LG-AWHDCC	2T-C	4DW	Auto	3FC	A40	T	4.100	DLX

41 series 1600cc Celica Camry

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

8001-8202 E-TA41-CEKDS 12T-U 4DS Man 5F T 3.909 LT 88/5600 13.3/3400 9.3 1335 1350 985

8001-8202 E-TA41-CEHDS 12T-U 4DS Auto 4FC T 3.909 LT 88/5600 13.3/3400 9.3 1335 1350 985

8001-8202 E-TA41-CEKMS 12T-U 4DS Man 4F T 3.909 XT 88/5600 13.3/3400 9.3 1335 1350 1000

8001-8202 E-TA41-CEMMS 12T-U 4DS Man 5F T 3.909 XT 88/5600 13.3/3400 9.3 1335 1350 990

8001-8202 E-TA41-CEHMS 12T-U 4DS Auto 4FC T 3.909 XT 88/5600 13.3/3400 9.3 1335 1350 995

41 series	1600cc Celica Camry
Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	8001-8202	E-TA41-CEKDS	12T-U	4DS	Man	5F		T	3.909	LT	88/5600	13.3/3400	9.3	1335	1350	985
	8001-8202	E-TA41-CEHDS	12T-U	4DS	Auto	4FC		T	3.909	LT	88/5600	13.3/3400	9.3	1335	1350	985
	8001-8202	E-TA41-CEKMS	12T-U	4DS	Man	4F		T	3.909	XT	88/5600	13.3/3400	9.3	1335	1350	1000
	8001-8202	E-TA41-CEMMS	12T-U	4DS	Man	5F		T	3.909	XT	88/5600	13.3/3400	9.3	1335	1350	990
	8001-8202	E-TA41-CEHMS	12T-U	4DS	Auto	4FC		T	3.909	XT	88/5600	13.3/3400	9.3	1335	1350	995

41 series 1600cc Carina

TA41 2 door sedan TA41 4 door sedan TA41 ST hardtop TA41 SR hardtop

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7708-8108 E-TA41-ADKRS 12T-U 2DS Man 4F 4.100 Std 88/5600 13.3/3400 9.0 1335 1350 935

7708-8108 E-TA41-ADKDS 12T-U 2DS Man 4F 4.100 DX 88/5600 13.3/3400 9.0 1335 1350 940

7708-7908 E-TA41-ADKFS 12T-U 2DS Man 4F SDX

7708-8108 E-TA41-AEKRS 12T-U 4DS Man 4F 4.100 Std 88/5600 13.3/3400 9.0 1335 1350 945

7708-8108 E-TA41-AEKDS 12T-U 4DS Man 4F 4.100 DX 88/5600 13.3/3400 9.0 1335 1350 950

7708-8108 E-TA41-AEKMS 12T-U 4DS Man 5F DX

7805-8108 E-TA41-AEHDS 12T-U 4DS Auto 3FC 4.100 DX 88/5600 13.3/3400 9.0 1335 1350 965

7708-8108 E-TA41-AEKFS 12T-U 4DS Man 4F 4.100 S-DX 88/5600 13.3/3400 9.0 1335 1350 955

7708-8108 E-TA41-AEMFS 12T-U 4DS Man 5F 4.100 S-DX 88/5600 13.3/3400 9.0 1335 1350 955

7805-8108 E-TA41-AEHFS 12T-U 4DS Auto 3FC 4.100 S-DX 88/5600 13.3/3400 9.0 1335 1350 970

7708-8108 E-TA41-AEMSS 12T-U 4DS Man 5F 4.100 ST 88/5600 13.3/3400 9.0 1335 1350 955

7805-8108 E-TA41-AEHSS 12T-U 4DS Auto 3FC 4.100 ST 88/5600 13.3/3400 9.0 1335 1350 970

7708-8108 E-TA41-ASKDS 12T-U HT Man 4F 4.100 DX 88/5600 13.3/3400 9.0 1335 1350 955

7708-8108 E-TA41-ASMDS 12T-U HT Man 5F DX

7805-8108 E-TA41-ASHDS 12T-U HT Auto 3FC 4.100 DX 88/5600 13.3/3400 9.0 1335 1350 970

7708-8108 E-TA41-ASKFS 12T-U HT Man 4F 4.100 S-DX 88/5600 13.3/3400 9.0 1335 1350 960

7708-8108 E-TA41-ASMFS 12T-U HT Man 5F 4.100 S-DX 88/5600 13.3/3400 9.0 1335 1350 960

7805-8108 E-TA41-ASHFS 12T-U HT Auto 3FC 4.100 S-DX 88/5600 13.3/3400 9.0 1335 1350 975

7708-8108 E-TA41-ASMSS 12T-U HT Man 5F 4.100 ST 88/5600 13.3/3400 9.0 1335 1350 960

7805-8108 E-TA41-ASHSS 12T-U HT Auto 3FC 4.100 ST 88/5600 13.3/3400 9.0 1335 1350 975

7708-8108 E-TA41-ASMXS 12T-U HT Man 5F 4.100 SR 88/5600 13.3/3400 9.0 1335 1350 980

41 series	1600cc Carina

Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7708-8108	E-TA41-ADKRS	12T-U	2DS	Man	4F			4.100	Std	88/5600	13.3/3400	9.0	1335	1350	935
	7708-8108	E-TA41-ADKDS	12T-U	2DS	Man	4F			4.100	DX	88/5600	13.3/3400	9.0	1335	1350	940
	7708-7908	E-TA41-ADKFS	12T-U	2DS	Man	4F				SDX
	7708-8108	E-TA41-AEKRS	12T-U	4DS	Man	4F			4.100	Std	88/5600	13.3/3400	9.0	1335	1350	945
	7708-8108	E-TA41-AEKDS	12T-U	4DS	Man	4F			4.100	DX	88/5600	13.3/3400	9.0	1335	1350	950
	7708-8108	E-TA41-AEKMS	12T-U	4DS	Man	5F				DX
	7805-8108	E-TA41-AEHDS	12T-U	4DS	Auto	3FC			4.100	DX	88/5600	13.3/3400	9.0	1335	1350	965
	7708-8108	E-TA41-AEKFS	12T-U	4DS	Man	4F			4.100	S-DX	88/5600	13.3/3400	9.0	1335	1350	955
	7708-8108	E-TA41-AEMFS	12T-U	4DS	Man	5F			4.100	S-DX	88/5600	13.3/3400	9.0	1335	1350	955
	7805-8108	E-TA41-AEHFS	12T-U	4DS	Auto	3FC			4.100	S-DX	88/5600	13.3/3400	9.0	1335	1350	970
	7708-8108	E-TA41-AEMSS	12T-U	4DS	Man	5F			4.100	ST	88/5600	13.3/3400	9.0	1335	1350	955
	7805-8108	E-TA41-AEHSS	12T-U	4DS	Auto	3FC			4.100	ST	88/5600	13.3/3400	9.0	1335	1350	970
	7708-8108	E-TA41-ASKDS	12T-U	HT	Man	4F			4.100	DX	88/5600	13.3/3400	9.0	1335	1350	955
	7708-8108	E-TA41-ASMDS	12T-U	HT	Man	5F				DX
	7805-8108	E-TA41-ASHDS	12T-U	HT	Auto	3FC			4.100	DX	88/5600	13.3/3400	9.0	1335	1350	970
	7708-8108	E-TA41-ASKFS	12T-U	HT	Man	4F			4.100	S-DX	88/5600	13.3/3400	9.0	1335	1350	960
	7708-8108	E-TA41-ASMFS	12T-U	HT	Man	5F			4.100	S-DX	88/5600	13.3/3400	9.0	1335	1350	960
	7805-8108	E-TA41-ASHFS	12T-U	HT	Auto	3FC			4.100	S-DX	88/5600	13.3/3400	9.0	1335	1350	975
	7708-8108	E-TA41-ASMSS	12T-U	HT	Man	5F			4.100	ST	88/5600	13.3/3400	9.0	1335	1350	960
	7805-8108	E-TA41-ASHSS	12T-U	HT	Auto	3FC			4.100	ST	88/5600	13.3/3400	9.0	1335	1350	975
	7708-8108	E-TA41-ASMXS	12T-U	HT	Man	5F			4.100	SR	88/5600	13.3/3400	9.0	1335	1350	980

42 series 1800cc Carina

TA42 SR hardtop until 1980

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7708-7711 B-TA42-AEKDS 3T-U 4DS Man 4F DX

7708-7711 B-TA42-AEMDS 3T-U 4DS Man 5F DX

7708-7805 B-TA42-AEHDS 3T-U 4DS Auto 3FC DX

7708-7711 B-TA42-AEKFS 3T-U 4DS Man 4F SDX

7708-7711 B-TA42-AEMFS 3T-U 4DS Man 5F SDX

7708-7805 B-TA42-AEHFS 3T-U 4DS Auto 3FC SDX

7708-7711 B-TA42-AEMSS 3T-U 4DS Man 5F ST

7708-7805 B-TA42-AEHSS 3T-U 4DS Auto 3FC ST

7708-7711 B-TA42-AEKES 3T-U 4DS Man 4F SE

7708-7711 B-TA42-AEMES 3T-U 4DS Man 5F SE

7708-7805 B-TA42-AEHES 3T-U 4DS Auto 3FC SE

7708-7711 B-TA42-ASKDS 3T-U HT Man 4F DX

7708-7711 B-TA42-ASMDS 3T-U HT Man 5F DX

7708-7805 B-TA42-ASHDS 3T-U HT Auto 3FC DX

7708-7711 B-TA42-ASKFS 3T-U HT Man 4F SDX

7708-7711 B-TA42-ASMFS 3T-U HT Man 5F SDX

7708-7805 B-TA42-ASHFS 3T-U HT Auto 3FC SDX

7708-7711 B-TA42-ASMSS 3T-U HT Man 5F ST

7708-7805 B-TA42-ASHSS 3T-U HT Auto 3FC ST

7708-7711 B-TA42-ASKES 3T-U HT Man 4F SE

7708-7711 B-TA42-ASMES 3T-U HT Man 5F SE

7708-7805 B-TA42-ASHES 3T-U HT Auto 3FC SE

7708-7711 E-TA42-ASMXS 3T-U HT Man 5F T50 3.909
3.909 LSD SR 98/5700 15.2/3400 9.0 960

The TA46 (13T-U) replaced the TA42 (3T-U).

42 series	1800cc Carina

Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7708-7711	B-TA42-AEKDS	3T-U	4DS	Man	4F					DX
	7708-7711	B-TA42-AEMDS	3T-U	4DS	Man	5F					DX
	7708-7805	B-TA42-AEHDS	3T-U	4DS	Auto	3FC					DX
	7708-7711	B-TA42-AEKFS	3T-U	4DS	Man	4F					SDX
	7708-7711	B-TA42-AEMFS	3T-U	4DS	Man	5F					SDX
	7708-7805	B-TA42-AEHFS	3T-U	4DS	Auto	3FC					SDX
	7708-7711	B-TA42-AEMSS	3T-U	4DS	Man	5F					ST
	7708-7805	B-TA42-AEHSS	3T-U	4DS	Auto	3FC					ST
	7708-7711	B-TA42-AEKES	3T-U	4DS	Man	4F					SE
	7708-7711	B-TA42-AEMES	3T-U	4DS	Man	5F					SE
	7708-7805	B-TA42-AEHES	3T-U	4DS	Auto	3FC					SE
	7708-7711	B-TA42-ASKDS	3T-U	HT	Man	4F					DX
	7708-7711	B-TA42-ASMDS	3T-U	HT	Man	5F					DX
	7708-7805	B-TA42-ASHDS	3T-U	HT	Auto	3FC					DX
	7708-7711	B-TA42-ASKFS	3T-U	HT	Man	4F					SDX
	7708-7711	B-TA42-ASMFS	3T-U	HT	Man	5F					SDX
	7708-7805	B-TA42-ASHFS	3T-U	HT	Auto	3FC					SDX
	7708-7711	B-TA42-ASMSS	3T-U	HT	Man	5F					ST
	7708-7805	B-TA42-ASHSS	3T-U	HT	Auto	3FC					ST
	7708-7711	B-TA42-ASKES	3T-U	HT	Man	4F					SE
	7708-7711	B-TA42-ASMES	3T-U	HT	Man	5F					SE
	7708-7805	B-TA42-ASHES	3T-U	HT	Auto	3FC					SE
	7708-7711	E-TA42-ASMXS	3T-U	HT	Man	5F	T50		3.909 3.909 LSD	SR	98/5700	15.2/3400		9.0	960

43 series

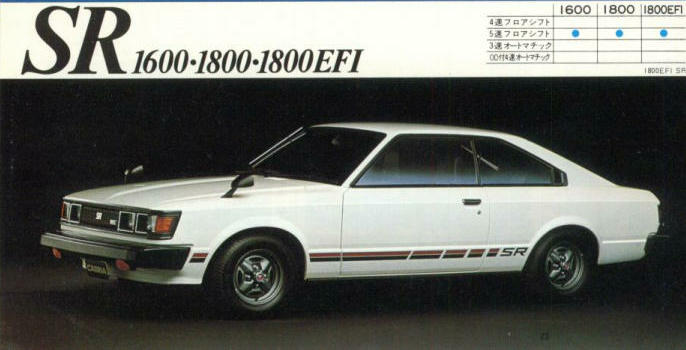

TA43 SR hardtop

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

43 series

Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg

45 series 1600cc, 2000cc Carina GT with EFI

TA45 4 door sedan after 1980

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7808-8108 E-RA45-AEMQF 18R-GEU 4DS Man 5F 3.909 GT 135/5800 17.5/4400 8.3 1350 1365 1055

7805-8108 E-TA45-AEMQF 2T-GEU 4DS Man 5F 4.100 GT 115/6000 15.0/4800 8.4 1350 1365 990

7808-8108 E-RA45-ASMQF 18R-GEU HT Man 5F 3.909 GT 135/5800 17.5/4400 8.3 1350 1365 1060

7805-8108 E-TA45-ASMQF 2T-GEU HT Man 5F 4.100 GT 115/6000 15.0/4800 8.4 1350 1365 995

45 series	1600cc, 2000cc Carina GT with EFI

Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7808-8108	E-RA45-AEMQF	18R-GEU	4DS	Man	5F			3.909	GT	135/5800	17.5/4400	8.3	1350	1365	1055
	7805-8108	E-TA45-AEMQF	2T-GEU	4DS	Man	5F			4.100	GT	115/6000	15.0/4800	8.4	1350	1365	990
	7808-8108	E-RA45-ASMQF	18R-GEU	HT	Man	5F			3.909	GT	135/5800	17.5/4400	8.3	1350	1365	1060
	7805-8108	E-TA45-ASMQF	2T-GEU	HT	Man	5F			4.100	GT	115/6000	15.0/4800	8.4	1350	1365	995

46 series 1800cc Celica Camry

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

8001-8202 E-TA46-CEKDS 13T-U 4DS Man 5F T 3.909 LT 95/5400 15.0/3400 8.6 1335 1350 990

8001-8202 E-TA46-CEHDS 13T-U 4DS Auto 4FC T 3.909 LT 95/5400 15.0/3400 8.6 1335 1350 1005

8001-8202 E-TA46-CEKMS 13T-U 4DS Man 4F T 3.909 XT 95/5400 15.0/3400 8.6 1335 1350 1010

8001-8202 E-TA46-CEMMS 13T-U 4DS Man 5F T 3.909 XT 95/5400 15.0/3400 8.6 1335 1350 1010

8001-8202 E-TA46-CEHMS 13T-U 4DS Auto 4FC T 3.909 XT 95/5400 15.0/3400 8.6 1335 1350 1025

46 series	1800cc Celica Camry
Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	8001-8202	E-TA46-CEKDS	13T-U	4DS	Man	5F		T	3.909	LT	95/5400	15.0/3400	8.6	1335	1350	990
	8001-8202	E-TA46-CEHDS	13T-U	4DS	Auto	4FC		T	3.909	LT	95/5400	15.0/3400	8.6	1335	1350	1005
	8001-8202	E-TA46-CEKMS	13T-U	4DS	Man	4F		T	3.909	XT	95/5400	15.0/3400	8.6	1335	1350	1010
	8001-8202	E-TA46-CEMMS	13T-U	4DS	Man	5F		T	3.909	XT	95/5400	15.0/3400	8.6	1335	1350	1010
	8001-8202	E-TA46-CEHMS	13T-U	4DS	Auto	4FC		T	3.909	XT	95/5400	15.0/3400	8.6	1335	1350	1025

46 series 1800cc Carina

TA46 hardtop

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7711-8108 E-TA46-AEKDS 13T-U 4DS Man 4F 3.909 DX 95/5400 15.0/3400 8.5 1335 1350 960

7711-7908 E-TA46-AEMDS 13T-U 4DS Man 5F DX

7805-8108 E-TA46-AEHDS 13T-U 4DS Auto 3FC 3.909 DX 95/5400 15.0/3400 8.5 1335 1350 975

7711-8108 E-TA46-AEKFS 13T-U 4DS Man 4F 3.909 S-DX 95/5400 15.0/3400 8.5 1335 1350 965

7711-8108 E-TA46-AEMFS 13T-U 4DS Man 5F 3.909 S-DX 95/5400 15.0/3400 8.5 1335 1350 965

7805-8108 E-TA46-AEHFS 13T-U 4DS Auto 3FC 3.909 S-DX 95/5400 15.0/3400 8.5 1335 1350 980

7711-8108 E-TA46-AEMSS 13T-U 4DS Man 5F 3.909 ST 95/5400 15.0/3400 8.5 1335 1350 960

7805-8108 E-TA46-AEHSS 13T-U 4DS Auto 3FC 3.909 ST 95/5400 15.0/3400 8.5 1335 1350 980

7711-8108 E-TA46-AEKES 13T-U 4DS Man 4F 3.909 SE 95/5400 15.0/3400 8.5 1335 1350 970

7711-8108 E-TA46-AEMES 13T-U 4DS Man 5F 3.909 SE 95/5400 15.0/3400 8.5 1335 1350 970

7805-8108 E-TA46-AEHES 13T-U 4DS Auto 3FC 3.909 SE 95/5400 15.0/3400 8.5 1335 1350 985

7711-8008 E-TA46-ASKDS 13T-U HT Man 4F 3.909 DX 95/5400 15.0/3400 8.5 1335 1350 965

7711-7908 E-TA46-ASMDS 13T-U HT Man 5F DX

7805-8008 E-TA46-ASHDS 13T-U HT Auto 3FC 3.909 DX 95/5400 15.0/3400 8.5 1335 1350 980

7711-8108 E-TA46-ASKFS 13T-U HT Man 4F 3.909 S-DX 95/5400 15.0/3400 8.5 1335 1350 970

7711-8108 E-TA46-ASMFS 13T-U HT Man 5F 3.909 S-DX 95/5400 15.0/3400 8.5 1335 1350 970

7805-8108 E-TA46-ASHFS 13T-U HT Auto 3FC 3.909 S-DX 95/5400 15.0/3400 8.5 1335 1350 985

7711-8108 E-TA46-ASMSS 13T-U HT Man 5F 3.909 ST 95/5400 15.0/3400 8.5 1335 1350 970

7805-8108 E-TA46-ASHSS 13T-U HT Auto 3FC 3.909 ST 95/5400 15.0/3400 8.5 1335 1350 985

7711-8108 E-TA46-ASKES 13T-U HT Man 4F 3.909 SE 95/5400 15.0/3400 8.5 1335 1350 975

7711-8108 E-TA46-ASMES 13T-U HT Man 5F 3.909 SE 95/5400 15.0/3400 8.5 1335 1350 975

7805-8108 E-TA46-ASHES 13T-U HT Auto 3FC 3.909 SE 95/5400 15.0/3400 8.5 1335 1350 990

7711-8108 E-TA46-ASMXS 13T-U HT Man 5F 3.909 SR 95/5400 15.0/3400 8.5 1350 1365 995

7808-8108 E-RA46-AEMES 21R-U 4DS Man 5F 3.909 SE 105/5200 16.5/3600 8.5 1335 1350 1030

7808-8008 E-RA46-AEHES 21R-U 4DS Auto 3FC 3.909 SE 105/5200 16.5/3600 8.5 1335 1350 1025

8008-8108 E-RA46-AEHES 21R-U 4DS Auto 4FC SE

7808-8108 E-RA46-ASMES 21R-U HT Man 5F 3.909 SE 105/5200 16.5/3600 8.5 1335 1350 1035

7808-8008 E-RA46-ASHES 21R-U HT Man 3FC 3.909 SE 105/5200 16.5/3600 8.5 1335 1350 1030

8008-8108 E-RA46-ASHES 21R-U HT Auto 4FC SE

The TA46 (13T-U) replaced the TA42 (3T-U).

46 series	1800cc Carina

Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7711-8108	E-TA46-AEKDS	13T-U	4DS	Man	4F			3.909	DX	95/5400	15.0/3400	8.5	1335	1350	960
	7711-7908	E-TA46-AEMDS	13T-U	4DS	Man	5F				DX
	7805-8108	E-TA46-AEHDS	13T-U	4DS	Auto	3FC			3.909	DX	95/5400	15.0/3400	8.5	1335	1350	975
	7711-8108	E-TA46-AEKFS	13T-U	4DS	Man	4F			3.909	S-DX	95/5400	15.0/3400	8.5	1335	1350	965
	7711-8108	E-TA46-AEMFS	13T-U	4DS	Man	5F			3.909	S-DX	95/5400	15.0/3400	8.5	1335	1350	965
	7805-8108	E-TA46-AEHFS	13T-U	4DS	Auto	3FC			3.909	S-DX	95/5400	15.0/3400	8.5	1335	1350	980
	7711-8108	E-TA46-AEMSS	13T-U	4DS	Man	5F			3.909	ST	95/5400	15.0/3400	8.5	1335	1350	960
	7805-8108	E-TA46-AEHSS	13T-U	4DS	Auto	3FC			3.909	ST	95/5400	15.0/3400	8.5	1335	1350	980
	7711-8108	E-TA46-AEKES	13T-U	4DS	Man	4F			3.909	SE	95/5400	15.0/3400	8.5	1335	1350	970
	7711-8108	E-TA46-AEMES	13T-U	4DS	Man	5F			3.909	SE	95/5400	15.0/3400	8.5	1335	1350	970
	7805-8108	E-TA46-AEHES	13T-U	4DS	Auto	3FC			3.909	SE	95/5400	15.0/3400	8.5	1335	1350	985
	7711-8008	E-TA46-ASKDS	13T-U	HT	Man	4F			3.909	DX	95/5400	15.0/3400	8.5	1335	1350	965
	7711-7908	E-TA46-ASMDS	13T-U	HT	Man	5F				DX
	7805-8008	E-TA46-ASHDS	13T-U	HT	Auto	3FC			3.909	DX	95/5400	15.0/3400	8.5	1335	1350	980
	7711-8108	E-TA46-ASKFS	13T-U	HT	Man	4F			3.909	S-DX	95/5400	15.0/3400	8.5	1335	1350	970
	7711-8108	E-TA46-ASMFS	13T-U	HT	Man	5F			3.909	S-DX	95/5400	15.0/3400	8.5	1335	1350	970
	7805-8108	E-TA46-ASHFS	13T-U	HT	Auto	3FC			3.909	S-DX	95/5400	15.0/3400	8.5	1335	1350	985
	7711-8108	E-TA46-ASMSS	13T-U	HT	Man	5F			3.909	ST	95/5400	15.0/3400	8.5	1335	1350	970
	7805-8108	E-TA46-ASHSS	13T-U	HT	Auto	3FC			3.909	ST	95/5400	15.0/3400	8.5	1335	1350	985
	7711-8108	E-TA46-ASKES	13T-U	HT	Man	4F			3.909	SE	95/5400	15.0/3400	8.5	1335	1350	975
	7711-8108	E-TA46-ASMES	13T-U	HT	Man	5F			3.909	SE	95/5400	15.0/3400	8.5	1335	1350	975
	7805-8108	E-TA46-ASHES	13T-U	HT	Auto	3FC			3.909	SE	95/5400	15.0/3400	8.5	1335	1350	990
	7711-8108	E-TA46-ASMXS	13T-U	HT	Man	5F			3.909	SR	95/5400	15.0/3400	8.5	1350	1365	995
	7808-8108	E-RA46-AEMES	21R-U	4DS	Man	5F			3.909	SE	105/5200	16.5/3600	8.5	1335	1350	1030
	7808-8008	E-RA46-AEHES	21R-U	4DS	Auto	3FC			3.909	SE	105/5200	16.5/3600	8.5	1335	1350	1025
	8008-8108	E-RA46-AEHES	21R-U	4DS	Auto	4FC				SE
	7808-8108	E-RA46-ASMES	21R-U	HT	Man	5F			3.909	SE	105/5200	16.5/3600	8.5	1335	1350	1035
	7808-8008	E-RA46-ASHES	21R-U	HT	Man	3FC			3.909	SE	105/5200	16.5/3600	8.5	1335	1350	1030
	8008-8108	E-RA46-ASHES	21R-U	HT	Auto	4FC				SE

47 series 1800cc Carina

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7808-8108 E-TA47-AEMSE 3T-EU 4DS Man 5F T50 3.909 ST 105/5400 16.5/3600 9.0 1335 1350 985

7908-8108 E-TA47-AEHSE 3T-EU 4DS Auto 4FC ST

7808-8108 E-TA47-ASMSE 3T-EU HT Man 5F T50 3.909 ST 105/5400 16.5/3600 9.0 1335 1350 990

7908-8108 E-TA47-ASHSE 3T-EU HT Auto 4FC ST

7808-8108 E-TA47-ASMXE 3T-EU HT Man 5F T50 4.100 SR 105/5400 16.5/3600 9.0 1350 1365 1015

8008-8107 TA47R-AEMNSW 3T 4DS Man 5F T50 T 3.727 GL

8008-8107 TA47R-AEHNSW 3T 4DS Auto 3FC A40 T 3.909 GL

8008-8011 TA47L-AEKNSW 3T 4DS Man 4F T40 T 3.727 GL

8008-8107 TA47L-AEMNSW 3T 4DS Man 5F T50 T 3.727 GL

8008-8107 TA47L-AEHNSW 3T 4DS Auto 3FC A40 T 3.909 GL

Sweden 7908-8107 TA47L-ADKDCC 3T-C 2DS Man 4F T40 T 3.727 DLX

Sweden 8008-8107 TA47L-ADMDCC 3T-C 2DS Man 5F T50 T 3.727 DLX

Sweden 7908-8107 TA47L-ADHDCC 3T-C 2DS Auto 3FC A40 T 3.909 DLX

Sweden 7908-8107 TA47L-AEKDCC 3T-C 4DS Man 4F T40 T 3.727 DLX

Sweden 8008-8107 TA47L-AEMDCC 3T-C 4DS Man 5F T50 T 3.727 DLX

Sweden 7908-8107 TA47L-AEHDCC 3T-C 4DS Auto 3FC A40 T 3.909 DLX

Sweden 7908-8107 TA47LG-AWKDCC 3T-C 4DW Man 4F T40 T 3.727 DLX

47 series	1800cc Carina
Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	7808-8108	E-TA47-AEMSE	3T-EU	4DS	Man	5F	T50		3.909	ST	105/5400	16.5/3600	9.0	1335	1350	985
	7908-8108	E-TA47-AEHSE	3T-EU	4DS	Auto	4FC				ST
	7808-8108	E-TA47-ASMSE	3T-EU	HT	Man	5F	T50		3.909	ST	105/5400	16.5/3600	9.0	1335	1350	990
	7908-8108	E-TA47-ASHSE	3T-EU	HT	Auto	4FC				ST
	7808-8108	E-TA47-ASMXE	3T-EU	HT	Man	5F	T50		4.100	SR	105/5400	16.5/3600	9.0	1350	1365	1015
	8008-8107	TA47R-AEMNSW	3T	4DS	Man	5F	T50	T	3.727	GL
	8008-8107	TA47R-AEHNSW	3T	4DS	Auto	3FC	A40	T	3.909	GL
	8008-8011	TA47L-AEKNSW	3T	4DS	Man	4F	T40	T	3.727	GL
	8008-8107	TA47L-AEMNSW	3T	4DS	Man	5F	T50	T	3.727	GL
	8008-8107	TA47L-AEHNSW	3T	4DS	Auto	3FC	A40	T	3.909	GL
	7908-8107	TA47L-ADKDCC	3T-C	2DS	Man	4F	T40	T	3.727	DLX
	8008-8107	TA47L-ADMDCC	3T-C	2DS	Man	5F	T50	T	3.727	DLX
	7908-8107	TA47L-ADHDCC	3T-C	2DS	Auto	3FC	A40	T	3.909	DLX
	7908-8107	TA47L-AEKDCC	3T-C	4DS	Man	4F	T40	T	3.727	DLX
	8008-8107	TA47L-AEMDCC	3T-C	4DS	Man	5F	T50	T	3.727	DLX
	7908-8107	TA47L-AEHDCC	3T-C	4DS	Auto	3FC	A40	T	3.909	DLX
	7908-8107	TA47LG-AWKDCC	3T-C	4DW	Man	4F	T40	T	3.727	DLX

49 series 1600cc Van

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

7908-8108 J-TA49V-AXKRSW 12T-J 4DV Man 4F Std

7908-8108 J-TA49V-AXKDSW 12T-J 4DV Man 4F DLX

7908-8108 J-TA49V-AXMDSW 12T-J 4DV Man 5F DLX

7908-8108 J-TA49V-AXHDSW 12T-J 4DV Auto 3FC DLX

7908-8108 J-TA49V-AXKFSW 12T-J 4DV Man 4F SDX

7908-8108 J-TA49V-AXMFSW 12T-J 4DV Man 5F SDX

7908-8108 J-TA49V-AXHFSW 12T-J 4DV Auto 3FC SDX

55 series 2000cc Celica Camry GT with IRS

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

8008-8202 E-RA55-CEMQF 18R-GEU 4DS Man 5F F 4.100 GT 135/5800 17.5/4800 8.3 1350 1385 1125

55 series	2000cc Celica Camry GT with IRS
Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	8008-8202	E-RA55-CEMQF	18R-GEU	4DS	Man	5F		F	4.100	GT	135/5800	17.5/4800	8.3	1350	1385	1125

56 series 2000cc Celica Camry with IRS

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

8008-8202 E-RA56-CEMES 21R-U 4DS Man 5F F 3.909 SE 105/5200 16.5/3600 9.0 1350 1385 1125

8008-8202 E-RA56-CEHES 21R-U 4DS Auto 4FC F 4.100 SE 105/5200 16.5/3600 9.0 1350 1385 1130

56 series	2000cc Celica Camry with IRS
Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	8008-8202	E-RA56-CEMES	21R-U	4DS	Man	5F		F	3.909	SE	105/5200	16.5/3600	9.0	1350	1385	1125
	8008-8202	E-RA56-CEHES	21R-U	4DS	Auto	4FC		F	4.100	SE	105/5200	16.5/3600	9.0	1350	1385	1130

57 series 1800cc Celica Camry with IRS

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

8008-8202 E-TA57-CEMZE 3T-EU 4DS Man 5F T 4.100 SX 105/5400 16.5/3600 9.0 1350 1385 1075

8008-8202 E-TA57-CEHZE 3T-EU 4DS Auto 4FC T 4.100 SX 105/5400 16.5/3600 9.0 1350 1385 1080

57 series	1800cc Celica Camry with IRS
Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	8008-8202	E-TA57-CEMZE	3T-EU	4DS	Man	5F		T	4.100	SX	105/5400	16.5/3600	9.0	1350	1385	1075
	8008-8202	E-TA57-CEHZE	3T-EU	4DS	Auto	4FC		T	4.100	SX	105/5400	16.5/3600	9.0	1350	1385	1080

Carina 6# 3^rd generation

60 series 4 link rear suspension

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

82xx E-AA60-AEKRS 3A-II 4DS Man 4F Std 83/5600 1380 1135 940

82xx E-AA60-AEKDS 3A-II 4DS Man 4F DX 83/5600 1380 1135 945

82xx E-AA60-AEHDS 3A-II 4DS Auto 3FC DX 83/5600 1380 1135 955

82xx E-AA60-AEKFS 3A-II 4DS Man 4F SG 83/5600 1380 1135 950

82xx E-AA60-AEMFS 3A-II 4DS Man 5F SG 83/5600 1380 1135 950

82xx E-AA60-AEHFS 3A-II 4DS Auto 3FC SG 83/5600 1380 1135 960

82xx E-AA60-AEMSS 3A-II 4DS Man 5F ST 83/5600 1380 1135 965

82xx E-AA60-AEHSS 3A-II 4DS Auto 3FC ST 83/5600 1380 1135 975

82xx E-AA60-ACMFS 3A-II CP Man 4F SG 83/5600 1380 1135 965

82xx E-AA60-ACMFS 3A-II CP Man 5F SG 83/5600 1380 1135 965

82xx E-AA60-ACHFS 3A-II CP Auto 3FC SG 83/5600 1380 1135 975

82xx E-AA60-ACMSS 3A-II CP Man 5F ST 83/5600 1380 1135 980

82xx E-AA60-ACHSS 3A-II CP Auto 3FC ST 83/5600 1380 1135 990

82xx N-CA60-AEMESY 1C 4DS Man 5F SE 65/4500 1380 1135 1080

82xx N-CA60-AEPESY 1C 4DS Auto 4FC SE 65/4500 1380 1135 1085

82xx N-CA60-AEMFSY 1C 4DS Man 5F SG 65/4500 1380 1135 1045

82xx N-CA60-AEPFSY 1C 4DS Auto 4FC SG 65/4500 1380 1135 1050

General 8108-8208 TA60R-AEKDS 2T 4DS Man 4F T40 DLX

General 8208-8309 TA60R-AEMDS 2T 4DS Man 5F T50 DLX

General 8108-8309 TA60R-AEHDS 2T 4DS Auto 3FC A40 DLX

General 8108-8309 TA60L-AEKDS 2T 4DS Man 4F T40 DLX

General 8108-8309 TA60L-AEHDS 2T 4DS Auto 3FC A40 DLX

General 8108-8309 TA60R-ACMES 2T CP Man 5F T50 XE

General 8108-8309 TA60L-ACMES 2T CP Man 5F T50 XE

General 8108-8309 TA60RG-AWKDS 2T 4DW Man 4F T40 DLX

General 8108-8309 TA60LG-AWKDS 2T 4DW Man 4F T40 DLX

8108-8309 TA60R-AEMDSW 2T 4DS Man 5F T50 DLX

8108-8309 TA60R-AEHDSW 2T 4DS Auto 3FC A40 DLX

8201-8309 TA60R-AEMNSW 2T 4DS Man 5F T50 GL

8201-8309 TA60R-AEHNSW 2T 4DS Auto 3FC A40 GL

8204-8309 CA60R-AEMDSW 1C 4DS Man 5F T50 DLX

8108-8309 TA60L-AEKDSW 2T 4DS Man 4F T40 DLX

8108-8309 TA60L-AEMDSW 2T 4DS Man 5F T50 DLX

8108-8309 TA60L-AEHDSW 2T 4DS Auto 3FC A40 DLX

8201-8309 TA60L-AEMNSW 2T 4DS Man 5F T50 GL

8201-8309 TA60L-AEHNSW 2T 4DS Auto 3FC A40 GL

8204-8309 CA60L-AEMDSW 1C 4DS Man 5F T50 DLX

8108-8309 TA60L-ACKDSW 2T CP Man 4F T40 DLX

8108-8309 TA60L-ACMDSW 2T CP Man 5F T50 DLX

8108-8309 TA60L-ACHDSW 2T CP Auto 3FC A40 DLX

8108-8309 TA60RG-AWMDSW 2T 4DW Man 5F T50 DLX

8108-8309 TA60LG-AWKDSW 2T 4DW Man 4F T40 DLX

8108-8309 TA60LG-AWMDSW 2T 4DW Man 5F T50 DLX

8108-8309 TA60LG-AWHDSW 2T 4DW Auto 3FC A40 DLX

8204-8309 CA60LG-AWMDSW 1C 4DW Man 5F T50 DLX

60 series	4 link rear suspension
Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	82xx	E-AA60-AEKRS	3A-II	4DS	Man	4F					Std		83/5600	1380	1135	940
	82xx	E-AA60-AEKDS	3A-II	4DS	Man	4F					DX		83/5600	1380	1135	945
	82xx	E-AA60-AEHDS	3A-II	4DS	Auto	3FC					DX		83/5600	1380	1135	955
	82xx	E-AA60-AEKFS	3A-II	4DS	Man	4F					SG		83/5600	1380	1135	950
	82xx	E-AA60-AEMFS	3A-II	4DS	Man	5F					SG		83/5600	1380	1135	950
	82xx	E-AA60-AEHFS	3A-II	4DS	Auto	3FC					SG		83/5600	1380	1135	960
	82xx	E-AA60-AEMSS	3A-II	4DS	Man	5F					ST		83/5600	1380	1135	965
	82xx	E-AA60-AEHSS	3A-II	4DS	Auto	3FC					ST		83/5600	1380	1135	975
	82xx	E-AA60-ACMFS	3A-II	CP	Man	4F					SG		83/5600	1380	1135	965
	82xx	E-AA60-ACMFS	3A-II	CP	Man	5F					SG		83/5600	1380	1135	965
	82xx	E-AA60-ACHFS	3A-II	CP	Auto	3FC					SG		83/5600	1380	1135	975
	82xx	E-AA60-ACMSS	3A-II	CP	Man	5F					ST		83/5600	1380	1135	980
	82xx	E-AA60-ACHSS	3A-II	CP	Auto	3FC					ST		83/5600	1380	1135	990
	82xx	N-CA60-AEMESY	1C	4DS	Man	5F					SE		65/4500	1380	1135	1080
	82xx	N-CA60-AEPESY	1C	4DS	Auto	4FC					SE		65/4500	1380	1135	1085
	82xx	N-CA60-AEMFSY	1C	4DS	Man	5F					SG		65/4500	1380	1135	1045
	82xx	N-CA60-AEPFSY	1C	4DS	Auto	4FC					SG		65/4500	1380	1135	1050
	8108-8208	TA60R-AEKDS	2T	4DS	Man	4F	T40				DLX
	8208-8309	TA60R-AEMDS	2T	4DS	Man	5F	T50				DLX
	8108-8309	TA60R-AEHDS	2T	4DS	Auto	3FC	A40				DLX
	8108-8309	TA60L-AEKDS	2T	4DS	Man	4F	T40				DLX
	8108-8309	TA60L-AEHDS	2T	4DS	Auto	3FC	A40				DLX
	8108-8309	TA60R-ACMES	2T	CP	Man	5F	T50				XE
	8108-8309	TA60L-ACMES	2T	CP	Man	5F	T50				XE
	8108-8309	TA60RG-AWKDS	2T	4DW	Man	4F	T40				DLX
	8108-8309	TA60LG-AWKDS	2T	4DW	Man	4F	T40				DLX
	8108-8309	TA60R-AEMDSW	2T	4DS	Man	5F	T50				DLX
	8108-8309	TA60R-AEHDSW	2T	4DS	Auto	3FC	A40				DLX
	8201-8309	TA60R-AEMNSW	2T	4DS	Man	5F	T50				GL
	8201-8309	TA60R-AEHNSW	2T	4DS	Auto	3FC	A40				GL
	8204-8309	CA60R-AEMDSW	1C	4DS	Man	5F	T50				DLX
	8108-8309	TA60L-AEKDSW	2T	4DS	Man	4F	T40				DLX
	8108-8309	TA60L-AEMDSW	2T	4DS	Man	5F	T50				DLX
	8108-8309	TA60L-AEHDSW	2T	4DS	Auto	3FC	A40				DLX
	8201-8309	TA60L-AEMNSW	2T	4DS	Man	5F	T50				GL
	8201-8309	TA60L-AEHNSW	2T	4DS	Auto	3FC	A40				GL
	8204-8309	CA60L-AEMDSW	1C	4DS	Man	5F	T50				DLX
	8108-8309	TA60L-ACKDSW	2T	CP	Man	4F	T40				DLX
	8108-8309	TA60L-ACMDSW	2T	CP	Man	5F	T50				DLX
	8108-8309	TA60L-ACHDSW	2T	CP	Auto	3FC	A40				DLX
	8108-8309	TA60RG-AWMDSW	2T	4DW	Man	5F	T50				DLX
	8108-8309	TA60LG-AWKDSW	2T	4DW	Man	4F	T40				DLX
	8108-8309	TA60LG-AWMDSW	2T	4DW	Man	5F	T50				DLX
	8108-8309	TA60LG-AWHDSW	2T	4DW	Auto	3FC	A40				DLX
	8204-8309	CA60LG-AWMDSW	1C	4DW	Man	5F	T50				DLX

61 series with IRS

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

61 series	with IRS
Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg

62 series 1800cc

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

8108-8208 TA62R-AEMNSW 3T 4DS Man 5F T50 GL

8108-8208 TA62R-AEHNSW 3T 4DS Auto 3FC A40 GL

8108-8208 TA62L-AEMNSW 3T 4DS Man 5F T50 GL

8108-8208 TA62L-AEHNSW 3T 4DS Auto 3FC A40 GL

8108-8309 TA62R-ACMESW 3T CP Man 5F T50 XE

8108-8208 TA62L-ACMESW 3T CP Man 5F T50 XE

8108-8208 TA62L-ACHESW 3T CP Auto 3FC A40 XE

Sweden 8108-8208 TA62L-AEMDCC 3T-C 4DS Man 5F T50 DLX

Sweden 8108-8208 TA62L-AEHDCC 3T-C 4DS Auto 3FC A40 DLX

Sweden 8208-8309 TA62L-AEMNCC 3T-C 4DS Man 5F T50 GL

Sweden 8208-8309 TA62L-AEHNCC 3T-C 4DS Auto 3FC A40 GL

Sweden 8208-8309 TA62L-ACMECC 3T-C CP Man 5F T50 XE

Sweden 8208-8309 TA62L-ACHECC 3T-C CP Auto 3FC A40 XE

Sweden 8108-8309 TA62LG-AWMDCC 3T-C 4DW Man 5F T50 DLX

62 series	1800cc
Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
	8108-8208	TA62R-AEMNSW	3T	4DS	Man	5F	T50				GL
	8108-8208	TA62R-AEHNSW	3T	4DS	Auto	3FC	A40				GL
	8108-8208	TA62L-AEMNSW	3T	4DS	Man	5F	T50				GL
	8108-8208	TA62L-AEHNSW	3T	4DS	Auto	3FC	A40				GL
	8108-8309	TA62R-ACMESW	3T	CP	Man	5F	T50				XE
	8108-8208	TA62L-ACMESW	3T	CP	Man	5F	T50				XE
	8108-8208	TA62L-ACHESW	3T	CP	Auto	3FC	A40				XE
	8108-8208	TA62L-AEMDCC	3T-C	4DS	Man	5F	T50				DLX
	8108-8208	TA62L-AEHDCC	3T-C	4DS	Auto	3FC	A40				DLX
	8208-8309	TA62L-AEMNCC	3T-C	4DS	Man	5F	T50				GL
	8208-8309	TA62L-AEHNCC	3T-C	4DS	Auto	3FC	A40				GL
	8208-8309	TA62L-ACMECC	3T-C	CP	Man	5F	T50				XE
	8208-8309	TA62L-ACHECC	3T-C	CP	Auto	3FC	A40				XE
	8108-8309	TA62LG-AWMDCC	3T-C	4DW	Man	5F	T50				DLX

63 series with IRS

TA63 4 door sedan

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

E-AA63-AEMQF 4A-GEU 4DS Man 5F GT-R 130/6600 15.2/5200 9.4 1410 1400 1160

E-AA63-AEMQF 4A-GEU 4DS Man 5F GT 130/6600 15.2/5200 9.4 1395 1385 1145

E-AA63-ACMQF 4A-GEU CP Man 5F GT-R 130/6600 15.2/5200 9.4 1410 1400 1110

E-AA63-ACMQF 4A-GEU CP Man 5F GT 130/6600 15.2/5200 9.4 1395 1385 1100

E-TA63-AEMQZ 3T-GTE 4DS Man 5F GT-TR 160/6000 21.0/4800 7.8 1410 1400 1160

E-TA63-AEMQZ 3T-GTE 4DS Man 5F GT-T 160/6000 21.0/4800 7.8 1395 1385 1145

E-TA63-AEPQZ 3T-GTE 4DS Auto 4FC GT-TR 160/6000 21.0/4800 7.8 1410 1400 1180

E-TA63-AEPQZ 3T-GTE 4DS Auto 4FC GT-T 160/6000 21.0/4800 7.8 1395 1385 1165

E-TA63-ACMQZ 3T-GTE CP Man 5F GT-TR 160/6000 21.0/4800 7.8 1410 1400 1175

E-TA63-ACMQZ 3T-GTE CP Man 5F GT-T 160/6000 21.0/4800 7.8 1395 1385 1160

E-TA63-ACPQZ 3T-GTE CP Auto 4FC GT-TR 160/6000 21.0/4800 7.8 1410 1400 1195

E-TA63-ACPQZ 3T-GTE CP Auto 4FC GT-T 160/6000 21.0/4800 7.8 1395 1385 1180

63 series	with IRS

Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
		E-AA63-AEMQF	4A-GEU	4DS	Man	5F					GT-R	130/6600	15.2/5200	9.4	1410	1400	1160
		E-AA63-AEMQF	4A-GEU	4DS	Man	5F					GT	130/6600	15.2/5200	9.4	1395	1385	1145
		E-AA63-ACMQF	4A-GEU	CP	Man	5F					GT-R	130/6600	15.2/5200	9.4	1410	1400	1110
		E-AA63-ACMQF	4A-GEU	CP	Man	5F					GT	130/6600	15.2/5200	9.4	1395	1385	1100
		E-TA63-AEMQZ	3T-GTE	4DS	Man	5F					GT-TR	160/6000	21.0/4800	7.8	1410	1400	1160
		E-TA63-AEMQZ	3T-GTE	4DS	Man	5F					GT-T	160/6000	21.0/4800	7.8	1395	1385	1145
		E-TA63-AEPQZ	3T-GTE	4DS	Auto	4FC					GT-TR	160/6000	21.0/4800	7.8	1410	1400	1180
		E-TA63-AEPQZ	3T-GTE	4DS	Auto	4FC					GT-T	160/6000	21.0/4800	7.8	1395	1385	1165
		E-TA63-ACMQZ	3T-GTE	CP	Man	5F					GT-TR	160/6000	21.0/4800	7.8	1410	1400	1175
		E-TA63-ACMQZ	3T-GTE	CP	Man	5F					GT-T	160/6000	21.0/4800	7.8	1395	1385	1160
		E-TA63-ACPQZ	3T-GTE	CP	Auto	4FC					GT-TR	160/6000	21.0/4800	7.8	1410	1400	1195
		E-TA63-ACPQZ	3T-GTE	CP	Auto	4FC					GT-T	160/6000	21.0/4800	7.8	1395	1385	1180

67 series Wagon with rear leaf springs

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track Rear
track kg

L-KA67V-AXKFSW 5K-J 4DW Man 4F SG 83/5200 13.0/3600 9.3 1375 1350 1005

L-KA67V-AXMFSW 5K-J 4DW Man 5F SG 83/5200 13.0/3600 9.3 1375 1350 1005

L-KA67V-AXHFSW 5K-J 4DW Auto 3FC SG 83/5200 13.0/3600 9.3 1375 1350 1020

L-KA67V-AXKDSW 5K-J 4DW Man 4F DX 83/5200 13.0/3600 9.3 1375 1350 1000

L-KA67V-AXHDSW 5K-J 4DW Auto 3FC DX 83/5200 13.0/3600 9.3 1375 1350 1015

L-KA67V-AUKDSW 5K-J 4DW Man 4F DX xxx 83/5200 13.0/3600 9.3 1375 1350 1000

L-KA67V-AXKRSW 5K-J 4DW Man 4F Std 83/5200 13.0/3600 9.3 1375 1350 995

N-CA67V-AXMFSY 1C-II 4DW Man 5F SG 68/4700 12.4/2600 23.0 1375 1350 1080

N-CA67V-AXMDSY 1C-II 4DW Man 5F DX 68/4700 12.4/2600 23.0 1375 1350 1080

67 series	Wagon with rear leaf springs
Country	Dates	Code	Engine	Body	Gearbox	Diff	Grade	PS/rpm	kgm/rpm	CR	Front track	Rear track	kg
		L-KA67V-AXKFSW	5K-J	4DW	Man	4F				SG	83/5200	13.0/3600	9.3	1375	1350	1005
		L-KA67V-AXMFSW	5K-J	4DW	Man	5F				SG	83/5200	13.0/3600	9.3	1375	1350	1005
		L-KA67V-AXHFSW	5K-J	4DW	Auto	3FC				SG	83/5200	13.0/3600	9.3	1375	1350	1020
		L-KA67V-AXKDSW	5K-J	4DW	Man	4F				DX	83/5200	13.0/3600	9.3	1375	1350	1000
		L-KA67V-AXHDSW	5K-J	4DW	Auto	3FC				DX	83/5200	13.0/3600	9.3	1375	1350	1015
		L-KA67V-AUKDSW	5K-J	4DW	Man	4F				DX xxx	83/5200	13.0/3600	9.3	1375	1350	1000
		L-KA67V-AXKRSW	5K-J	4DW	Man	4F				Std	83/5200	13.0/3600	9.3	1375	1350	995
		N-CA67V-AXMFSY	1C-II	4DW	Man	5F				SG	68/4700	12.4/2600	23.0	1375	1350	1080
		N-CA67V-AXMDSY	1C-II	4DW	Man	5F				DX	68/4700	12.4/2600	23.0	1375	1350	1080

Carina 14#, 15# 4^th generation

The 4^th generation Carina merged with the FWD 14#,15# Corona and took the Corona's T code.
In many countries the Corona was withdrawn at the same time that the 14#, 15# Carina or the SV1# Camry was first introduced in that country, so many people think that the Corona actually stopped production at this time.
The 14#,15# Carina and Corona were the same apart from slightly different options.
