Celica production data

A stylised dragon forms the Celica symbol.
Kiichiro Toyoda was supposed to be a big fan of dragon boat racing.
Celica is also a North European name meaning heavenly (celestrial).
The Carina was also made on the same production line using the same chassis and mechanicals.

Japanese say See-Lee-Ka.
Australians say See-Lee-Ka (also Silly Car).
Americans say Sellee-Ka.

These tables look best if the browser is made as wide as possible.
Jump down to Celica 1970-1975 1st generation production data
20 21 22 25 27
Jump down to Celica 1975-1977 1½ generation production data
23 24 28 29 35
Jump down to Celica 1977-1981 2nd generation production data
40 41 42 43 45 46 47 55 56 Specials
Jump down to Celica 1982-1985 3rd generation production data
60 61 63 64 65
Jump down to Celica 1987-1989 4th generation production data
160 162 163 165
Jump down to Supra 1988-1993 3rd generation production data
70
Jump down to Supra 1993- 4th generation production data
80
Jump down to Sources

Celica 2# 1st generation

20 Series - 1400cc/1900cc Coupe

TA20 JapanTA20 Japan
Country Dates Code Engine Body Gearbox Diff Grade Price PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
7012-7509 TA20-K T HT Man 4F T40 D 4.100 ET LT ST Y49000 86/6000 12.0/3800 8.5 1280 1285 890
7012-7509 TA20-M T HT Man 5F T50 D 4.300 ET LT ST 86/6000 12.0/3800 8.5 1280 1285 890
7012-7108 RA20L-KA 8R HT Man 4F W40 D 3.700 ST 108/5500 16.2/3600 9.0 1027
7102-7108 RA20 8R HT D 3.700

21 Series - 2000cc Coupe

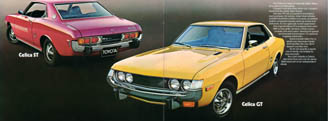

1974 RA21 Japan RA21 USA/Canada
Country Dates Code Engine Body Gearbox Diff Grade Price PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
7304-7509 RA21-K 18R HT Man 4F W40 T 3.700 LT ST 105/5500 16.0/3600 8.5 1280 1285 935
7304-7509 RA21-M 18R HT Man 5F W50 3.900 LT ST Y89000 105/5500 16.0/3600 8.5 1280 1285 975
7304-7308 RA21-H 18R HT Auto 3FC A30 3.900 LT ST 105/5500 16.0/3600 8.5 1280 1285 985
7308-7509 RA21-H 18R HT Auto 3FC A40 LT ST 105/5500 16.0/3600 8.5 1280 1285 985
7401-7509 RA21-ME 18R-E HT Man 5F W50 ST Y85000
7401-7501 RA21-MQ 18R-G HT Man 5F P51 GT Y271000
7401-7509 RA21-MQR 18R-GR HT Man 5F P51 GT
7308-7408 RA21L-KA 18R-C HT Man 4F W40 T 3.727 LT 97/5500 14.7/3600 8.5 1280 1285 1070
7308-7408 RA21L-HA 18R-C HT Auto 3FC A40 T 3.909 LT 97/5500 14.7/3600 8.5 1280 1285 1070
7109-73xx RA21L-KA 18R-C HT Man 4F W40 D 3.700 ST 97/5500 14.7/3600 8.5 1280 1285 1070
73xx-7408 RA21L-KA 18R-C HT Man 4F W40 T 3.727 ST 97/5500 14.7/3600 8.5 1280 1285 1070
7208-7308 RA21L-HA 18R-C HT Auto 3FC A30 D 3.900 ST 97/5500 14.7/3600 8.5 1280 1285 1070
7308-7408 RA21L-HA 18R-C HT Auto 3FC A40 T 3.909 ST 97/5500 14.7/3600 8.5 1280 1285 1070
7308-7408 RA21L-MAX 18R-C HT Man 5F W50 T 3.909 GT 97/5500 14.7/3600 8.5 1300 1305 1090
7308-7408 RA21L-HAX 18R-C HT Auto 3FC A40 T 3.909 GT 97/5500 14.7/3600 8.5 1300 1305 1090
7108-7512 RA21 18R-C HT

22 Series - 1600cc/2200cc Coupe

RA22 USA/Canada1971 TA22 Japan
Country Dates Code Engine Body Gearbox Diff Grade Price PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
7012-7509 TA22-K 2T HT Man 4F T40 3.900 ET LT ST Y930001974 100/6000 13.7/3800 8.5 1280 1285 905, 915, 925
7012-7509 TA22-M 2T HT Man 5F T50 4.111 ET LT ST Y350001974 100/6000 13.7/3800 8.5 1280 1285 895
7012-7308 TA22-H 2T HT Auto 3FC A30 4.111 ET LT ST 100/6000 13.7/3800 8.5 1280 1285 910
7308-7501 TA22-H 2T HT Auto 3FC A40 4.111 ET LT ST 100/6000 13.7/3800 8.5 1280 1285
7012-7501 TA22-KZ 2T-B HT Man 4F T40 3.900 ET LT ST 105/6000 14.0/4200 9.4 1280 1285 900
7208-7509 TA22-KZR 2T-BR HT Man 4F T40 3.900 ET LT ST 100/6000 13.9/4200 8.5 1280 1285 900
7012-7501 TA22-MZ 2T-B HT Man 5F T50 4.111 ET LT ST 105/6000 14.0/4200 9.4 1280 1285 900
7208-7509 TA22-MZR 2T-BR HT Man 5F T50 4.111 ET LT ST 100/6000 13.9/4200 8.5 1280 1285 900
7012-7308 TA22-HZ 2T-B HT Auto 3FC A30 4.111 ET LT ST 105/6000 14.0/4200 9.4 1280 1285 915
7208-7308 TA22-HZR 2T-BR HT Auto 3FC A30 4.111 ET LT ST 100/6000 13.9/4200 8.5 1280 1285 915
7308-7501 TA22-HZ 2T-B HT Auto 3FC A40 4.111 ET LT ST 105/6000 14.0/4200 9.4 1280 1285
7308-7509 TA22-HZR 2T-BR HT Auto 3FC A40 4.111 ET LT ST 100/6000 13.9/4200 8.5 1280 1285
7012-7501 TA22-MQ 2T-G HT Man 5F T50 4.111 GT Y100000 115/6400 14.5/5200 9.8 1280 1285 955
7208-7509 TA22-MQR 2T-GR HT Man 5F T50 4.111 GT 110/6000 14.0/4800 8.8 1280 1285 955
7208-7501 TA22-MQX 2T-G HT Man 5F T50 4.111 GTV Y063000 115/6400 14.5/5200 9.8 1300 1305 965
7208-7509 TA22-MQXR 2T-GR HT Man 5F T50 T 4.111 GTV 110/6000 14.0/4800 8.8 1300 1305 965
7408-7509 RA22L-KA 20R HT Man 4F W40 T 3.727 LT 96/4800 16.6/2800 8.4
7408-7509 RA22L-HA 20R HT Auto 3FC A40 T 3.909 LT 96/4800 16.6/2800 8.4
7408-7509 RA22L-KA 20R HT Man 4F W40 T 3.727 ST 96/4800 16.6/2800 8.4 1285 1285 1125
7408-7509 RA22L-HA 20R HT Auto 3FC A40 T 3.909 ST 96/4800 16.6/2800 8.4 1285 1285
7408-7509 RA22L-MAX 20R HT Man 5F W50 T 3.909 GT 96/4800 16.6/2800 8.4 1305 1305 1140
7408-7509 RA22L-HAX 20R HT Auto 3FC A40 T 3.909 GT 96/4800 16.6/2800 8.4 1305 1305
7108-7109 TA22L-** 2T HT
7101-7512 TA22-** 2T HT
74xx TA22-H** 2T HT Auto 3FC 4.100 LT 102hp/6000 14.0/3800 8.5 1280 1285 980
74xx TA22-K** 2T HT Man 4F 3.909 LT 102hp/6000 14.0/3800 8.5 1280 1285 970
74xx TA22-M** 2T HT Man 5F 4.100 LT 102hp/6000 14.0/3800 8.5 1280 1285 970
74xx TA22-K** 2T-B HT Man 4F 3.909 ST 113hp/6000 15.1/4200 9.4 1280 1285 985
74xx TA22-M** 2T-B HT Man 5F 4.100 ST 113hp/6000 15.1/4200 9.4 1280 1285 985
74xx TA22-M** 2T-G HT Man 5F 4.100 GT 124hp/6400 15.6/5200 9.8 1280 1285 1005
7407-7512 RA22 18R-C HT
7012-75xx TA22-M 2T HT Man 5F T50 4.111 LT
7012-7308 TA22-H 2T HT Auto 3FC A30 4.111 LT
7308-75xx TA22-H 2T HT Auto 3FC A40 4.111 LT
70xx-75xx TA22R-KZ 2T-B HT Man 4F T40 3.900 ST 113hp/6000 15.1/4200 9.4 1280 984
70xx-75xx TA22R-MZ 2T-B HT Man 5F T50 4.111 ST 113hp/6000 15.1/4200 9.4 1280 984
72xx-75xx TA22R-MQ 2T-G HT Man 5F 4.111 GT
73xx TA22 2T HT LT 79hp
73xx TA22 HT ST 86hp
73xx TA22 HT GT
France 71xx TA22 HT ST
France 71xx TA22 HT GT
LT in Canada/USA usually sold without LT badge.
N.American TA22 appears in the American frame number charts but nowhere else.

25 Series - 2000cc Liftback

RA25 JapanRA25 Japan
Country Dates Code Engine Body Gearbox Diff Grade Price PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
7304-7509 RA25-K 18R LB Man 4F W40 3.700 ST 105/5500 16.0/3600 8.5 1280 1285 1000
7304-7509 RA25-M 18R LB Man 5F W50 D 3.900 ST Y580001974 105/5500 16.0/3600 8.5 1280 1285 1005
7304-7308 RA25-H 18R LB Auto 3FC A30 ST 105/5500 16.0/3600 8.5 1280 1285 1015
7308-7509 RA25-H 18R LB Auto 3FC A40 3.900 ST 105/5500 16.0/3600 8.5 1280 1285 1015
7401-7509 RA25-ME 18R-E LB Man 5F W50 ST Y1540001974
7304-7501 RA25-MQ 18R-G LB Man 5F P51 F 3.909 GT Y326000 145/6400 18.0/5200 9.7 1300 1305 1040
7304-7509 RA25-MQR 18R-GR LB Man 5F P51 F 3.909 GT 140/6400 17.2/4800 8.5 1300 1305 1040
LT exterior not available.
ST exterior available with LT and ST interiors.

27 Series - 1600cc Liftback

TA27 JapanTA27 Japan
Country Dates Code Engine Body Gearbox Diff Grade Price PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
7304-7509 TA27-K 2T LB Man 4F T40 3.900 ST Y880001974 100/6000 13.7/3800 8.5 1280 1285 965
7304-7509 TA27-M 2T LB Man 5F T50 4.111 ST 100/6000 13.7/3800 8.5 1280 1285 965
7304-7308 TA27-H 2T LB Auto 3FC A30 ST 100/6000 13.7/3800 8.5 1280 1285 980
7308-7509 TA27-H 2T LB Auto 3FC A40 4.111 ST 100/6000 13.7/3800 8.5 1280 1285 980
7304-7501 TA27-MZ 2T-B LB Man 5F T50 4.111 ST 105/6000 14.0/4200 9.4 1280 1285 970
7304-7509 TA27-MZR 2T-BR LB Man 5F T50 4.111 ST 100/6000 13.9/4200 8.5 1280 1285 970
7304-7501 TA27-MQ 2T-G LB Man 5F T50 4.111 GT Y1660001974 115/6400 14.5/5200 9.8 1280 1285 995
7304-7509 TA27-MQR 2T-GR LB Man 5F T50 4.111 GT 110/600 14.0/4800 8.8 1280 1285 995
7407-7509 TA27R-K 2T LB Man 4F T40 ST 102/6000 14.0/3800 8.5 1285 1285 970
7407-7509 TA27R-MZ 2T-B LB Man 5F T50 ST 113/6000 15.1/4200 9.4 1285 1285 975
7407-7509 TA27R-MQ 2T-G LB Man 5F T50 GT 124/6400 15.6/5200 9.8 1305 1305 1005
LT exterior not available.
ST exterior available with LT and ST interiors in Japan.

Celica 2# 1½ generation

23 Series - 1600cc/2000cc Coupe

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg Price
7510-7604 A-TA23-KU 2T-U HT Man 4F T40 T 3.909
4.100 		ET 90/6000 13.0/3800 9.0
7510-7604 A-TA23-KU 2T-U HT Man 4F T40 T 3.909
4.100 		LT 90/6000 13.0/3800 9.0
7510-7604 A-TA23-KU 2T-U HT Man 4F T40 T 3.909
4.100 		ST 90/6000 13.0/3800 9.0
7510-7604 A-TA23-MU 2T-U HT Man 5F T50 T 4.100 ET 90/6000 13.0/3800 9.0
7510-7604 A-TA23-MU 2T-U HT Man 5F T50 T 4.100 LT 90/6000 13.0/3800 9.0
7510-7604 A-TA23-MU 2T-U HT Man 5F T50 T 4.100 ST 90/6000 13.0/3800 9.0
7510-7604 A-TA23-HU 2T-U HT Auto 3FC A40 T 4.100
4.300 		ET 90/6000 13.0/3800 9.0
7510-7604 A-TA23-HU 2T-U HT Auto 3FC A40 T 4.100
4.300 		LT 90/6000 13.0/3800 9.0
7510-7604 A-TA23-HU 2T-U HT Auto 3FC A40 T 4.100
4.300 		ST 90/6000 13.0/3800 9.0
7510-7605 A-RA23-KU 18R-U HT Man 4F W40 T 3.909 LT 100/5500 15.5/3600 8.5
7510-7605 A-RA23-KU 18R-U HT Man 4F W40 T 3.909 ST 100/5500 15.5/3600 8.5
7510-7605 A-RA23-MU 18R-U HT Man 5F W50 T 4.100 LT 100/5500 15.5/3600 8.5
7510-7605 A-RA23-MU 18R-U HT Man 5F W50 T 4.100 ST 100/5500 15.5/3600 8.5
7510-7605 A-RA23-HU 18R-U HT Auto 3FC A40 T 4.100 LT 100/5500 15.5/3600 8.5
7510-7605 A-RA23-HU 18R-U HT Auto 3FC A40 T 4.100 ST 100/5500 15.5/3600 8.5
7510-7701 A-RA23-MQGU 18R-GU HT Man 5F P51 T 4.100 GT 130/6000 16.5/4800 8.3
7510-7701 A-RA23-MXGU 18R-GU HT Man 5F P51 T 4.100 GTV 130/6000 16.5/4800 8.3
75xx-76xx TA23-M 2T HT Man 5F T50 T 4.100 LT
75xx-76xx TA23-H 2T HT Auto 3FC A40 T 4.100
4.300 		LT
7604-7707 RA23R-MQ 18R-C HT Man 5F W50 T 4.100 LT
7604-7707 RA23R-HQ 18R-C HT Auto 3FC A40 T 4.100 LT
7701-7708 TA23R-MB 2T-B HT Man 5F T50 T 4.100 ST
7510-7708 TA23R-MQG 2T-G HT Man 5F T 4.100
4.100 LSD		 GT
7701-7708 RA23R-H 18R HT Auto 3FC A40 T 4.100 ST
7510-7707 TA23R-K 2T HT Man 4F T40 T 3.909
4.100		 LT
7510-7707 TA23L-K 2T HT Man 4F T40 T 3.909
4.100		 LT
7510-7707 TA23R-M 2T HT Man 5F T50 T 4.100 LT
7510-7707 TA23L-M 2T HT Man 5F T50 T 4.100 LT
7510-7707 TA23R-H 2T HT Auto 3FC A40 T 4.100
4.300		 LT
7510-7707 TA23L-H 2T HT Auto 3FC A40 T 4.100
4.300		 LT
7510-7707 TA23R-KB 2T-B HT Man 4F T40 T 3.909
4.100		 ST
7510-7707 TA23L-KB 2T-B HT Man 4F T40 T 3.909
4.100		 ST
7510-7707 TA23R-MB 2T-B HT Man 5F T50 T 4.100 ST
7510-7707 TA23-MB 2T-B HT Man 5F T50 T 4.100 ST
7510-7707 TA23R-MQG 2T-G HT Man 5F T50 T 4.100
4.100 LSD		 GT
7510-7707 TA23L-MQG 2T-G HT Man 5F T50 T 4.100
4.100 LSD		 GT
7510-7707 RA23R-K 18-R HT Man 4F W40 T 3.909 ST
7510-7707 RA23L-K 18-R HT Man 4F W40 T 3.909 ST
7510-7707 RA23R-M 18-R HT Man 5F W50 T 4.100 ST
7510-7707 RA23L-M 18-R HT Man 5F W50 T 4.100 ST
7510-7707 RA23R-H 18-R HT Auto 3FC A40 T 4.100 ST
7510-7707 RA23L-H 18-R HT Auto 3FC A40 T 4.100 ST
Sweden 7510-7707 RA23L-MC 18R-C HT Man 5F W50 T 4.100 ST
Sweden 7510-7707 RA23L-HC 18R-C HT Auto 3FC A40 T 4.100 ST
France 76xx,77xx TA23 2T-B HT Man 5F ST

24 Series - 2200cc Coupe

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg Price
7510-7608 RA24L-KA 20R HT Man 4F W40 T 3.727 LT 96/4800 16.6/2800 8.4 1350 1310
7608-7707 RA24L-KA 20R HT Man 4F W40 T 3.583 LT 96/4800 16.6/2800 8.4 1350 1310
7510-7608 RA24L-HA 20R HT Auto 3FC A40 T 3.909 LT 96/4800 16.6/2800 8.4 1350 1310
7608-7707 RA24L-HA 20R HT Auto 3FC A40 T 3.727 LT 96/4800 16.6/2800 8.4 1350 1310
7510-7608 RA24L-KA 20R HT Man 4F W40 T 3.727 ST 96/4800 16.6/2800 8.4 1350 1310
7608-7707 RA24L-KA 20R HT Man 4F W40 T 3.583 ST 96/4800 16.6/2800 8.4 1350 1310
7510-7608 RA24L-MA 20R HT Man 5F W50 T 3.727 ST 96/4800 16.6/2800 8.4 1350 1310
7510-7608 RA24L-HA 20R HT Auto 3FC A40 T 3.909 ST 96/4800 16.6/2800 8.4 1350 1310
7608-7707 RA24L-HA 20R HT Auto 3FC A40 T 3.727 ST 96/4800 16.6/2800 8.4 1350 1310
7510-7608 RA24L-MXA 20R HT Man 5F W50 T 3.727 GT 96/4800 16.6/2800 8.4 1350 1310 $4652
7608-7707 RA24L-MXA 20R HT Man 5F W50 T 3.583 GT 96/4800 16.6/2800 8.4 1350 1310 $4652
7510-7608 RA24L-HXA 20R HT Auto 3FC A40 T 3.909 GT 96/4800 16.6/2800 8.4 1350 1310
LT in USA sold without LT badge as of Feb 1975.

28 Series - 1600cc/2000cc Liftback


Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg Price
7510-7604 A-TA28-KU 2T-U LB Man 4F T40 T 3.909
4.100		 LT 90/6000 13.0/3800 9.0 1335 1295
7510-7604 A-TA28-KU 2T-U LB Man 4F T40 T 3.909
4.100		 ST 90/6000 13.0/3800 9.0 1335 1295
7510-7604 A-TA28-MU 2T-U LB Man 5F T50 T 4.100 LT 90/6000 13.0/3800 9.0 1335 1295
7510-7604 A-TA28-MU 2T-U LB Man 5F T50 T 4.100 ST 90/6000 13.0/3800 9.0 1335 1295
7510-7604 A-TA28-HU 2T-U LB Auto 3FC A40 T 4.100 LT 90/6000 13.0/3800 9.0 1335 1295
7510-7604 A-TA28-HU 2T-U LB Auto 3FC A40 T 4.100 ST 90/6000 13.0/3800 9.0 1335 1295
7510-7605 A-RA28-KU 18R-U LB Man 4F W40 T 3.909 LT 100/5500 15.5/3600 8.5 1335 1295
7510-7605 A-RA28-KU 18R-U LB Man 4F W40 T 3.909 ST 100/5500 15.5/3600 8.5 1335 1295
7510-7605 A-RA28-MU 18R-U LB Man 5F W50 T 4.100 LT 100/5500 15.5/3600 8.5 1335 1295
7510-7605 A-RA28-MU 18R-U LB Man 5F W50 T 4.100 ST 100/5500 15.5/3600 8.5 1335 1295
7510-7605 A-RA28-HU 18R-U LB Auto 3FC A40 T 4.100 LT 100/5500 15.5/3600 8.5 1335 1295
7510-7605 A-RA28-HU 18R-U LB Auto 3FC A40 T 4.100 ST 100/5500 15.5/3600 8.5 1335 1295
7510-7701 A-RA28-MQGU 18R-GU LB Man 5F P51 F 3.909
3.909 LSD		 GT 130/6000 16.5/4800 8.3 1350 1310
7510-7701 A-RA28-MXGU 18R-GU LB Man 5F P51 F 3.909
3.909 LSD		 GTV 130/6000 16.5/4800 8.3 1350 1310
7611-7707 RA28-MQ 18R-C LB Man 5F W50 T 4.100 LT
7611-7707 RA28-HQ 18R-C LB Auto 3FC A40 T 4.100 LT
75xx-77xx RA28-M 18R LB Man 5F W50 T 4.100 ST
75xx-77xx RA28-MQG 18R-G LB Man 5F P51 F 3.909 LSD GT
7510-7707 TA28R-KB 2T-B LB Man 4F T40 T 3.909
4.100		 ST
7510-7707 TA28L-KB 2T-B LB Man 4F T40 T 3.909
4.100		 ST
7510-7707 TA28R-MB 2T-B LB Man 5F T50 T 4.100 ST
7510-7707 TA28L-MB 2T-B LB Man 5F T50 T 4.100 ST
7510-7707 RA28R-K 18R LB Man 4F T40 T 3.909 ST
7510-7707 RA28L-K 18R LB Man 4F T40 T 3.909 ST
7510-7707 RA28R-M 18R LB Man 5F T50 T 4.100 ST
7510-7707 RA28L-M 18R LB Man 5F T50 T 4.100 ST
7510-7707 RA28R-MQG 18R-G LB Man 5F P51 F 3.909 GT
7510-7707 RA28L-MQG 18R-G LB Man 5F P51 F 3.909 GT
France 76xx,77xx TA28 2T-B LB ST
France 76xx,77xx TA28 LB GT

29 Series - 2200cc Liftback

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
7510-7608 RA29L-MA 20R LB Man 5F W50 T 3.727 ST 96/4800 16.6/2800 8.4 1350 1310
7608-7707 RA29L-MA 20R LB Man 5F W50 T 3.583 ST 96/4800 16.6/2800 8.4 1350 1310
7510-7608 RA29L-HA 20R LB Auto 3FC A40 T 3.909 ST 96/4800 16.6/2800 8.4 1350 1310
7608-7707 RA29L-HA 20R LB Auto 3FC A40 T 3.727 ST 96/4800 16.6/2800 8.4 1350 1310
7510-7608 RA29L-MXA 20R LB Man 5F W50 T 3.727 GT 96/4800 16.6/2800 8.4 1350 1310
7608-7707 RA29L-MXA 20R LB Man 5F W50 T 3.583 GT 96/4800 16.6/2800 8.4 1350 1310
7510-7608 RA29L-HXA 20R LB Auto 3FC A40 T 3.909 GT 96/4800 16.6/2800 8.4 1350 1310
7608-7707 RA29L-HXA 20R LB Auto 3FC A40 T 3.727 GT 96/4800 16.6/2800 8.4 1350 1310

35 Series - 1600cc/2000cc JDM anti-pollution coupe/liftback

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
7605-7707 B-TA35-SK 2T-U HT Man 4F T40 3.909 ET 90/6000 13.0/3800 9.0 1335 1295 970
7605-7707 B-TA35-SK 2T-U HT Man 4F T40 3.909 LT 90/6000 13.0/3800 9.0 1335 1295 970
7605-7707 B-TA35-SK 2T-U HT Man 4F T40 3.909 ST 90/6000 13.0/3800 9.0 1335 1295 970
7605-7707 B-TA35-SM 2T-U HT Man 5F T50 4.100 ET 90/6000 13.0/3800 9.0 1335 1295 970
7605-7707 B-TA35-SM 2T-U HT Man 5F T50 4.100 LT 90/6000 13.0/3800 9.0 1335 1295 970
7605-7707 B-TA35-SM 2T-U HT Man 5F T50 4.100 ST 90/6000 13.0/3800 9.0 1335 1295 970
7606-7707 C-RA35-SK 18R-U HT Man 4F W40 3.727 LT 100/5500 15.5/3600 8.5 1335 1295 1020
7606-7707 C-RA35-SK 18R-U HT Man 4F W40 3.727 ST 100/5500 15.5/3600 8.5 1335 1295 1020
7606-7707 C-RA35-SM 18R-U HT Man 5F W50 3.909 LT 100/5500 15.5/3600 8.5 1335 1295 1020
7606-7707 C-RA35-SM 18R-U HT Man 5F W50 3.909 ST 100/5500 15.5/3600 8.5 1335 1295 1020
7606-7707 C-RA35-SH 18R-U HT Auto 3FC A40 3.909 LT 100/5500 15.5/3600 8.5 1335 1295 1020
7606-7707 C-RA35-SH 18R-U HT Auto 3FC A40 3.909 ST 100/5500 15.5/3600 8.5 1335 1295 1020
7701-7707 C-RA35-SMQG 18R-GU HT Man 5F P51 3.909 GT 130/5800 17.0/4400 8.3 1350 1310 1065
7701-7707 C-RA35-SMXG 18R-GU HT Man 5F P51 F 3.909 GTV 130/5800 17.0/4400 8.3 1350 1310 1070
7605-7707 B-TA35-LK 2T-U LB Man 4F T40 3.909 LT 90/6000 13.0/3800 9.0 1335 1295 990
7605-7707 B-TA35-LK 2T-U LB Man 4F T40 3.909 ST 90/6000 13.0/3800 9.0 1335 1295 990
7605-7707 B-TA35-LM 2T-U LB Man 5F T50 4.100 LT 90/6000 13.0/3800 9.0 1335 1295 990
7605-7707 B-TA35-LM 2T-U LB Man 5F T50 4.100 ST 90/6000 13.0/3800 9.0 1335 1295 990
7606-7707 C-RA35-LK 18R-U LB Man 4F W40 3.727 LT 100/5500 15.5/3600 8.5 1335 1295 1035
7606-7707 C-RA35-LK 18R-U LB Man 4F W40 3.727 ST 100/5500 15.5/3600 8.5 1335 1295 1035
7606-7707 C-RA35-LM 18R-U LB Man 5F W50 3.909 LT 100/5500 15.5/3600 8.5 1335 1295 1040
7606-7707 C-RA35-LM 18R-U LB Man 5F W50 3.909 ST 100/5500 15.5/3600 8.5 1335 1295 1040
7606-7707 C-RA35-LH 18R-U LB Auto 3FC A40 3.909 LT 100/5500 15.5/3600 8.5 1335 1295 1040
7606-7707 C-RA35-LH 18R-U LB Auto 3FC A40 3.909 ST 100/5500 15.5/3600 8.5 1335 1295 1040
7701-7707 C-RA35-LMQG 18R-GU LB Man 5F P51 3.909
4.100		 GT 130/5800 17.0/4400 8.3 1350 1310 1085
7701-7707 C-RA35-LMXG 18R-GU LB Man 5F P51 F 3.909
4.100		 GTV 130/5800 17.0/4400 8.3 1350 1310 1090

Celica 4# 2nd generation
Supra 4# 1st generation

The 4# was a completely new style but the engine, front chassis, front suspension
and drivetrain are the same as the previous generation.

The 1st generation Supra was based on the 2nd generation Celica.
The main differences are a 6 cylinder engine and a longer nose.
In Japan the Supra was known as the Celica XX.
The Supra is often considered the successor to the 2000GT coupe from the 1960s.

In 1980 the Celica and Supra had a minor facelift.
A squarer nose was used for square headlights.
The new and old noses cannot be easily swapped with each other.

40 Series - 1600cc/2000cc coupe/liftback

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
7708-7805 B-TA40-BCMQF 2T-GEU CP Man 5F T50 GT
7708-7805 B-TA40-BCMXF 2T-GEU CP Man 5F T50 GTV
7708-7808 B-RA40-BCKSS 18R-U CP Man 4F W40 ST
7708-7808 B-RA40-BCMSS 18R-U CP Man 5F W50 ST
7708-7808 B-RA40-BCHSS 18R-U CP Auto 3FC ST
7708-7808 B-RA40-BCKMS 18R-U CP Man 4F W40 XT
7708-7808 B-RA40-BCMMS 18R-U CP Man 5F W50 XT
7708-7808 B-RA40-BCHMS 18R-U CP Auto 3FC XT
7708-7808 B-RA40-BCKES 18R-U CP Man 4F W40 SE
7708-7808 B-RA40-BCMES 18R-U CP Man 5F W50 SE
7708-7808 B-RA40-BCHES 18R-U CP Auto 3FC SE
7708-7808 C-RA40-BCMQG 18R-GU CP Man 5F P51 GT
7708-7808 C-RA40-BCMXG 18R-GU CP Man 5F P51 GTV
7708-7805 B-TA40-BLMQF 2T-GEU LB Man 5F T50 GT
7708-7805 B-TA40-BLMXF 2T-GEU LB Man 5F T50 GTV
7708-7808 B-RA40-BLKSS 18R-U LB Man 4F W40 ST
7708-7808 B-RA40-BLMSS 18R-U LB Man 5F W50 ST
7708-7808 B-RA40-BLHSS 18R-U LB Auto 3FC ST
7708-7808 B-RA40-BLKMS 18R-U LB Man 4F W40 XT
7708-7808 B-RA40-BLMMS 18R-U LB Man 5F W50 XT
7708-7808 B-RA40-BLHMS 18R-U LB Auto 3FC XT
7708-7808 B-RA40-BLKES 18R-U LB Man 4F W40 SE
7708-7808 B-RA40-BLMES 18R-U LB Man 5F W50 SE
7708-7808 B-RA40-BLHES 18R-U LB Auto 3FC SE
7708-7808 C-RA40-BLMQG 18R-GU LB Man 5F P51 GT
7708-7808 C-RA40-BLMXG 18R-GU LB Man 5F P51 GTV
General 7708-8xxx TA40R-BCKDS 2T CP Man 4F T40 T 3.909
4.100		 LT
General 7708-8xxx TA40R-BCMDS 2T CP Man 5F T50 T 4.100
4.300		 LT
General 7708-8xxx TA40R-BCKDS 2T CP Auto 3FC A40 T 4.100
4.300		 LT
General 7708-8xxx TA40R-BCKSB 2T-B CP Man 4F T40 T 3.909
4.100		 ST
General 7708-8xxx TA40R-BCMSB 2T-B CP Man 5F T50 T 4.100 ST
General 7708-8xxx TA40R-BCMQG 2T-G CP Man 5F T50 T 4.100 GT
General 7708-8xxx RA40R-BCMMS 18R CP Man 5F W50 XT
General 7708-8xxx RA40R-BCHMS 18R CP Auto 3FC A40 XT
General 7708-8xxx TA40L-BCKDS 2T CP Man 4F T40 T 3.909
4.100		 LT
General 7708-8xxx TA40L-BCMDS 2T CP Man 5F T50 T 4.100
4.300		 LT
General 7708-8xxx TA40L-BCHDS 2T CP Auto 3FC A40 T 4.100
4.300		 LT
General 7708-8xxx TA40L-BCKSB 2T-B CP Man 4F T40 ST
General 7708-8xxx TA40L-BCMSB 2T-B CP Man 5F T50 ST
General 7708-8xxx TA40L-BCMQG 2T-G CP Man 5F T50 GT
General 7708-8xxx RA40L-BCMMS 18R CP Man 5F W50 XT
General 7708-8xxx RA40L-BCHMS 18R CP Auto 3FC A40 XT
General 7708-8xxx TA40R-BLKSB 2T-B LB Man 4F T40 ST
General 7708-8xxx TA40R-BLMSB 2T-B LB Man 5F T50 ST
General 7708-8xxx TA40R-BLMQG 2T-G LB Man 5F T50 GT
General 7708-8xxx RA40R-BLKSS 18R LB Man 4F W40 ST
General 7708-8xxx RA40R-BLMSS 18R LB Man 5F W50 ST
General 7708-8xxx RA40R-BLMMS 18R LB Man 5F W50 XT
General 7708-8xxx RA40R-BLHMS 18R LB Auto 3FC A40 XT
General 7708-8xxx RA40R-BLMQG 18R-G LB Man 5F W50 GT
General 7708-8xxx TA40L-BLKSB 2T-B LB Man 4F T40 ST
General 7708-8xxx TA40R-BLMSB 2T-B LB Man 5F T50 ST
General 7708-8xxx TA40R-BLMQG 2T-G LB Man 5F T50 GT
General 7708-8xxx RA40R-BLKSS 18R LB Man 4F W40 ST
General 7708-8xxx RA40R-BLMSS 18R LB Man 5F W50 ST
General 7708-8xxx RA40R-BLMMS 18R LB Man 5F W50 XT
General 7708-8xxx RA40R-BLHMS 18R LB Auto 3FC A40 XT
General 7708-8xxx RA40R-BLMQG 18R-G LB Man 5F W50 GT
7708-8xxx TA40L-BCKDSW 2T CP Man 4F T40 T 3.909
4.100		 LT
7708-8xxx TA40L-BCMDSW 2T CP Man 5F T50 T 4.100 LT
7708-8xxx TA40L-BCHDSW 2T CP Auto 3FC A40 T 4.100 LT
7708-8xxx TA40L-BCKSBW 2T-B CP Man 4F T40 ST
7708-8xxx TA40L-BCMSBW 2T-B CP Man 5F T50 ST
7708-8xxx TA40L-BCMQGW 2T-G CP Man 5F T50 GT
7708-8xxx RA40L-BLMMSW 18R CP Man 5F W50 XT
7708-8xxx RA40L-BCHMSW 18R CP Auto 3FC A40 XT
7708-8xxx TA40L-BLKSBW 2T-B LB Man 4F T40 ST
7708-8xxx TA40L-BLMSBW 2T-B LB Man 5F T50 ST
7708-8xxx TA40L-BLMQGW 2T-G LB Man 5F T50 GT
7708-8xxx RA40L-BLKSSW 18R LB Man 4F W40 ST
7708-8xxx RA40L-BLMSSW 18R LB Man 5F W50 ST
7708-8xxx RA40L-BLMMSW 18R LB Man 5F W50 XT
7708-8xxx RA40L-BLHMSW 18R LB Auto 3FC A40 XT
7708-8xxx RA40L-BLMQGW 18R-G LB Man 5F W50 GT
7708-8xxx TA40R-BCMSBW 2T-B CP Man 5F T50 ST
7708-8xxx TA40R-BCMQGW 2T-G CP Man 5F T50 GT
7708-8xxx RA40R-BCMMSW 18R CP Man 5F W50 XT
7708-8xxx RA40R-BCHMSW 18R CP Auto 3FC A40 XT
7708-8xxx RA40R-BLMSSW 18R LB Man 5F W50 ST
7708-8xxx TA40R-BLMSBW 2T-B LB Man 5F T50 ST
7708-8xxx TA40R-BLMQGW 2T-G LB Man 5F T50 GT
7708-8xxx RA40R-BLMSSW 18R LB Man 5F W50 ST
7708-8xxx RA40R-BLMMSW 18R LB Man 5F W50 XT
7708-8xxx RA40R-BLHMSW 18R LB Auto 3FC A40 XT
7708-8xxx RA40R-BLMQGW 18R-G LB Man 5F W50 GT
77xx-81xx TA40R-BCMSBW 2T-B CP Man 5F T50 4.100 ST 86/5600 12.0/4000 9.4 1350 995
77xx-81xx RA40R-BLMSSW 18R LB Man 5F W50 T 4.100 ST 89/5000 14.8/3600 8.5 1350 1045
77xx-81xx RA40R-BLMMSW 18R LB Man 5F W50 4.100 XT 89/5000 14.8/3600 8.5 1350 1060
77xx-81xx RA40R-BLHMSW 18R LB Auto 3FC A40 4.100 XT 89/5000 14.8/3600 8.5 1350 1055
77xx-81xx RA40R-BLMQGW 18R-G LB Man 5F W50 3.909 LSD GT 118/5800 15.5/5200 9.7 1350 1090
Sweden 7708-8xxx RA40L-BCMSCC 18R-C CP Man 5F W50 T 4.100 ST
Sweden 7708-8xxx RA40L-BCHSCC 18R-C CP Man 3FC A40 T 4.100 ST
Sweden 7708-8xxx RA40L-BLMSCC 18R-C LB Man 5F W50 T 4.100 ST
Sweden 7708-8xxx RA40L-BLHSCC 18R-C LB Man 3FC A40 T 4.100 ST
7708-8107 RA40R-BCMDCQ 18R-C CP Man 5F W50 T 4.100 LT
7708-8107 RA40R-BCHDCQ 18R-C CP Auto 3FC A40 T 4.100 LT
7708-8107 RA40R-BLMSCQ 18R-C LB Man 5F W50 T 4.100 ST
7708-8107 RA40R-BLHSCQ 18R-C LB Auto 3FC A40 T 4.100 ST

41 Series - 1600cc coupe/liftback with TTC-V

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
7708-8106 E-TA41-BCKBS 12T-U CP Man 4F T40 ET
7708-7908 E-TA41-BCMBS 12T-U CP Man 5F T50 ET
7708-8106 E-TA41-BCKDS 12T-U CP Man 4F T40 LT
7708-7908 E-TA41-BCMDS 12T-U CP Man 5F T50 LT
7805-7908 E-TA41-BCHDS 12T-U CP Auto 3FC LT
7708-8106 E-TA41-BCKSS 12T-U CP Man 4F T40 ST
7708-8106 E-TA41-BCMSS 12T-U CP Man 5F T50 ST
7805-8008 E-TA41-BCHSS 12T-U CP Auto 3FC ST
7708-8008 E-TA41-BCKMS 12T-U CP Man 4F T40 XT
7708-8106 E-TA41-BCMMS 12T-U CP Man 5F T50 XT
7805-7908 E-TA41-BCHMS 12T-U CP Auto 3FC XT
7708-8106 E-TA41-BLKDS 12T-U LB Man 4F T40 LT
7708-7908 E-TA41-BLMDS 12T-U LB Man 5F T50 LT
7805-7908 E-TA41-BLHDS 12T-U LB Auto 3FC LT
7708-8106 E-TA41-BLKSS 12T-U LB Man 4F T40 ST
7708-8106 E-TA41-BLMSS 12T-U LB Man 5F T50 ST
7805-8008 E-TA41-BLHSS 12T-U LB Auto 3FC ST
7708-8008 E-TA41-BLKMS 12T-U LB Man 4F T40 XT
7708-8106 E-TA41-BLMMS 12T-U LB Man 5F T50 XT
7805-7908 E-TA41-BLHMS 12T-U LB Auto 3FC XT

42 Series - 1800cc/2200cc coupe/liftback


Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
7708-7711 B-TA42-BCKDS 3T-U CP Man 4F T40 LT
7708-7711 B-TA42-BCMDS 3T-U CP Man 5F T50 LT
7708-7805 B-TA42-BCHDS 3T-U CP Auto 3FC LT
7708-7711 B-TA42-BCKSS 3T-U CP Man 4F T40 ST
7708-7711 B-TA42-BCMSS 3T-U CP Man 5F T50 ST
7708-7805 B-TA42-BCHSS 3T-U CP Auto 3FC ST
7708-7711 B-TA42-BCKMS 3T-U CP Man 4F T40 XT
7708-7711 B-TA42-BCMMS 3T-U CP Man 5F T50 XT
7708-7805 B-TA42-BCHMS 3T-U CP Auto 3FC XT
7708-7711 B-TA42-BCKES 3T-U CP Man 4F T40 SE
7708-7711 B-TA42-BCMES 3T-U CP Man 5F T50 SE
7708-7805 B-TA42-BCHES 3T-U CP Auto 3FC SE
7708-7711 B-TA42-BLKDS 3T-U LB Man 4F T40 LT
7708-7711 B-TA42-BLMDS 3T-U LB Man 5F T50 LT
7708-7805 B-TA42-BLHDS 3T-U LB Auto 3FC LT
7708-7711 B-TA42-BLKSS 3T-U LB Man 4F T40 ST
7708-7711 B-TA42-BLMSS 3T-U LB Man 5F T50 ST
7708-7805 B-TA42-BLHSS 3T-U LB Auto 3FC ST
7708-7711 B-TA42-BLKMS 3T-U LB Man 4F T40 XT
7708-7711 B-TA42-BLMMS 3T-U LB Man 5F T50 XT
7708-7805 B-TA42-BLHMS 3T-U LB Auto 3FC XT
7708-7711 B-TA42-BLKES 3T-U LB Man 4F T40 SE
7708-7711 B-TA42-BLMES 3T-U LB Man 5F T50 SE
7708-7805 B-TA42-BLHES 3T-U LB Auto 3FC SE
7708-8008 RA42L-BCKDSA 20R CP Man 4F W40 T 3.583 LT
7708-8008 RA42L-BCHDSA 20R CP Auto 3FC A40 T 3.727 LT
7708-8008 RA42L-BCKSSA 20R CP Man 4F W40 T 3.583 ST 1111
7708-8008 RA42L-BCMSSA 20R CP Man 5F W50 T 3.583 ST 1111
7708-8008 RA42L-BCHSSA 20R CP Auto 3FC A40 T 3.727 ST 1111
7708-8008 RA42L-BCMQSA 20R CP Man 5F W50 T 3.583 GT 1111
7708-8008 RA42L-BCHQSA 20R CP Auto 3FC A40 T 3.727 GT 1111
7708-8008 RA42L-BLKSSA 20R LB Man 4F W40 T 3.583 ST 1102
7708-8008 RA42L-BLMSSA 20R LB Man 5F W50 T 3.583 ST 1102
7708-8008 RA42L-BLHSSA 20R LB Auto 3FC A40 T 3.727 ST 1102
7708-8008 RA42L-BLMQSA 20R LB Man 5F W50 T 3.583 GT 1156
7708-8008 RA42L-BLHQSA 20R LB Auto 3FC A40 T 3.727 GT 1156
7908-8008 coupe GT and 7708-8008 liftback had diff with removeable carrier.
Others had the carrier integrated (unitised) with the axle housing with a rear cover.

43 Series - 2400cc coupe/liftback

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
8008-8107 RA43L-BCMSSA 22R CP Man 5F T ST
8008-8107 RA43L-BCHSSA 22R CP Auto 4FC A40D T ST
8008-8107 RA43L-BCMQSA 22R CP Man 5F T 3.308 GT
8008-8107 RA43L-BCHQSA 22R CP Auto 4FC A40D T 3.583 GT
8008-8107 RA43L-BLMQSA 22R LB Man 5F T 3.308 GT 90/4800 16.9/2400 1350 1365 1193
8008-8107 RA43L-BLHQSA 22R LB Auto 4FC A40D T 3.583 GT 90/4800 16.9/2400 1350 1365 1193
GT had removeable carrier.
Others had the carrier integrated (unitised) with the axle housing.

45 Series - 1600cc/2000cc EFI

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
7808-8106 E-RA45-BCMQF 18R-GEU CP Man 5F W50 3.909 GT 135/5800 17.5/4800 8.3 1350 1365 1090
7808-8106 E-RA45-BCMZF 18R-GEU CP Man 5F W50 GT-Rally 135/5800 17.5/4800 8.3 1350 1365 1085
7805-8106 E-TA45-BCMQF 2T-GEU CP Man 5F T50 4.100 GT 115/6000 15.0/4800 8.4 1350 1365 1030
7805-7808 E-TA45-BCMXF 2T-GEU CP Man 5F T50 GTV 115/6000 15.0/4800 8.4
7811-8106 E-TA45-BCMZF 2T-GEU CP Man 5F T50 GT-Rally 115/6000 15.0/4800 8.4 1350 1365 1025
7808-8008 E-RA45-BLMQF 18R-GEU LB Man 5F W50 3.909 GT 135/5800 17.5/4800 8.3
7808-8106 E-RA45-BLMZF 18R-GEU LB Man 5F W50 GT-Rally 135/5800 17.5/4800 8.3
7805-8008 E-TA45-BLMQF 2T-GEU LB Man 5F T50 GT 115/6000 15.0/4800 8.4
7805-7808 E-TA45-BLMXF 2T-GEU LB Man 5F T50 GTV 115/6000 15.0/4800 8.4
7811-8106 E-TA45-BLMZF 2T-GEU LB Man 5F T50 T 4.100 GT-Rally 115/6000 15.0/4800 8.4
7804-8106 E-MA45-BLMNE M-EU LB Man 5F L
7804-8008 E-MA45-BLHNE M-EU LB Auto 4FC L
7804-8008 E-MA45-BLMSE M-EU LB Man 5F S
7804-8008 E-MA45-BLHSE M-EU LB Auto 4FC S
7804-8008 E-MA45-BLMQE M-EU LB Man 5F G
7804-8008 E-MA45-BLHQE M-EU LB Auto 4FC G

46 Series - 1800cc/2000cc coupe/liftback, 2600cc Supra

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
7711-7908 E-TA46-BCKDS 13T-U CP Man 4F T40 LT
7711-7908 E-TA46-BCMDS 13T-U CP Man 5F T50 LT
7805-7908 E-TA46-BCHDS 13T-U CP Auto 3FC LT
7711-8106 E-TA46-BCKSS 13T-U CP Man 4F T40 ST
7711-8106 E-TA46-BCMSS 13T-U CP Man 5F T50 ST
7805-8106 E-TA46-BCHSS 13T-U CP Auto 3FC ST
7711-8008 E-TA46-BCKMS 13T-U CP Man 4F T40 XT
7711-8106 E-TA46-BCMMS 13T-U CP Man 5F T50 XT
7805-8106 E-TA46-BCHMS 13T-U CP Auto 3FC XT
7711-8008 E-TA46-BCKES 13T-U CP Man 4F T40 SE
7711-8106 E-TA46-BCMES 13T-U CP Man 5F T50 SE
7805-8106 E-TA46-BCHES 13T-U CP Auto 3FC SE
7808-8008 E-RA46-BCMMS 21R-U CP Man 5F W50 XT
7808-8008 E-RA46-BCHMS 21R-U CP Auto 3FC XT
7808-8106 E-RA46-BCMES 21R-U CP Man 5F W50 SE
7808-8008 E-RA46-BCHES 21R-U CP Auto 3FC SE
8008-8106 E-RA46-BCHES 21R-U CP Auto 4FC SE
7804-8008 E-MA46-BLMSE 4M-EU LB Man 5F W50 S
7804-8008 E-MA46-BLHSE 4M-EU LB Auto 4FC S
7804-8008 E-MA46-BLMQE 4M-EU LB Man 5F W50 G
7804-8008 E-MA46-BLHQE 4M-EU LB Auto 4FC G
7711-7908 E-TA46-BLKDS 13T-U LB Man 4F T40 LT
7711-7908 E-TA46-BLMDS 13T-U LB Man 5F T50 LT
7805-7908 E-TA46-BLHDS 13T-U LB Auto 3FC LT
7711-8106 E-TA46-BLKSS 13T-U LB Man 4F T40 ST
7711-8106 E-TA46-BLMSS 13T-U LB Man 5F T50 ST
7805-8106 E-TA46-BLHSS 13T-U LB Auto 3FC ST
7711-8008 E-TA46-BLKMS 13T-U LB Man 4F T40 XT
7711-8106 E-TA46-BLMMS 13T-U LB Man 5F T50 XT
7805-8106 E-TA46-BLHMS 13T-U LB Auto 3FC XT
7711-8008 E-TA46-BLKES 13T-U LB Man 4F T40 SE
7711-8106 E-TA46-BLMES 13T-U LB Man 5F T50 SE
7805-8106 E-TA46-BLHES 13T-U LB Auto 3FC SE
7808-8008 E-RA46-BLMMS 21R-U LB Man 5F T50 XT
7808-8008 E-RA46-BLHMS 21R-U LB Auto 3FC XT
7808-8106 E-RA46-BLMES 21R-U LB Man 5F W50 SE
7808-8008 E-RA46-BLHES 21R-U LB Auto 3FC SE
8008-8106 E-RA46-BLHES 21R-U LB Auto 4FC SE
7804-8008 E-MA46-BLMSE 4M-EU LB Man 5F W50 S
7804-8008 E-MA46-BLHSE 4M-EU LB Auto 4FC S
7804-8008 E-MA46-BLMQE 4M-EU LB Man 5F W50 G
7804-8008 E-MA46-BLHQE 4M-EU LB Auto 4FC G
7901-8008 MA46L-BLMQEA 4M-E LB Man 5F W50 F 3.909
3.909 LSD		 GT
7901-8008 MA46L-BLHQEA 4M-E LB Auto 4FC A40D F 3.909
3.909 LSD		 GT

47 Series - 2800cc Supra, 1600cc/2000cc coupe/liftback EFI

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
E-TA47-BCMSE 3T-EU CP Man 5F W50 ST EFI
E-TA47-BCHSE 3T-EU CP Auto 3FC ST EFI
E-TA47-BLMSE 3T-EU LB Man 5F W50 ST EFI
E-TA47-BLHSE 3T-EU LB Auto 3FC ST EFI
8008-8107 MA47L-BLMQEA 5M-E LB Man 5F F 3.727
3.727 LSD		 GT
8008-8107 MA47L-BLHQEA 5M-E LB Auto 4FC F 3.727
3.727 LSD		 GT

55 Series with IRS

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
E-TA55-B**
8008-8106 E-RA55-BLMQF 18R-GEU LB Man 5F W55 GT
8008-8106 E-MA55-BLMSE M-EU LB Man 5F W50 S
8008-8106 E-MA55-BLHSE M-EU LB Auto 4FC S
8008-8106 E-MA55-BLMQE M-EU LB Man 5F W50 G
8008-8106 E-MA55-BLHQE M-EU LB Auto 4FC G

56 Series with IRS

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
8008-8106 E-MA56-BLMQE 5M-EU LB Man 5F W50 G
8008-8106 E-MA56-BLHQE 5M-EU LB Auto 4FC A43D F 3.909 G

Specials

GTASunchaser
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg Comments
81xx-81xx RA42L-BCH*EA 20R CP Auto 4FC A40D GTA GT auto coupe with Cressida trim
81xx-81xx RA42L-BLM*EA 20R LB Man 5F W50 GT USGP GT 5 speed coupe with Cressida trim
79xx-80xx RA42L-BCKSSA 20R CP targa or convertible Man 4F T 3.583 ST Griffith Sunchaser
79xx-80xx RA42L-BCMQSA 20R CP targa or convertible Man 5F T 3.583 GT Griffith Sunchaser
80xx-81xx RA43L-BCKSSA 22R CP targa or convertible Man 4F T ST Griffith Sunchaser
80xx-81xx RA43L-BCMQSA 22R CP targa or convertible Man 5F T 3.308 GT Griffith Sunchaser
79xx-80xx RA42L-BLKSSA 20R LB targa Man 4F T 3.583 ST Griffith TX22
79xx-80xx RA42L-BLMQSA 20R LB targa Man 5F T 3.583 GT Griffith TX22
80xx-81xx RA43L-BL?SSA 22R LB targa Man 4F T ST Griffith TX22
80xx-81xx RA43L-BLMQSA 22R LB targa Man 5F T 3.308 GT Griffith TX22
79xx-80xx MA46L-BLMQEA 4M-E LB targa Man 5F T 3.909
3.909 LSD		 GT Griffith Legato
80xx-81xx MA47L-BLMQEA 5M-E LB targa Man 5F T 3.727
3.727 LSD		 GT Griffith Legato
80xx-81xx convertible Granduer
TA4*R-BC** 2T-B convertible Man 5F T50 4.100 ST 86/5600 12.0/4000 9.4 Griffith Sunchaser
RA4*R-BL** 18R LB targa Man ST 89/5000 14.8/3600 8.5 Griffith TX22 Sport
RA4*R-BL** 18R LB targa Man XT 89/5000 14.8/3600 8.5 Griffith TX22 Sport
RA4*R-BL* 18R LB targa Auto XT 89/5000 14.8/3600 8.5 Griffith TX22 Sport
RA4*R-BL** 18R-G LB targa Man GT 118/5800 15.5/5800 9.7 Griffith TX22 Sport
The GTA was a Celica with Cressida wheels, honeycomb grille, Cressida stereo, automatic, two tone paint and ivory interior.
The USGP was a Celica with alloy 8 spoke wheels, honeycomb grille, Cressida stereo, 5 speed and ivory interior.
The Griffith Sunchaser was a convertible (coupe) or targa top (liftback) that was based on 4# Celicas and Supras.
It was built by Griffith, sold by Toyota dealers and was fully warranteed.
The Grandeur was a convertible that was based on 4# Celicas coupes.

Celica 6# 3rd generation
Supra 6# 2nd generation

The 2nd generation Supra was based on the 3rd generation Celica.
The main differences were a 6 cylinder engine, a longer nose and different headlights.
In Japan the Supra was known as the Celica XX.

60 series
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
84xx E-SA60-BCMZS 1S-U CP Man 5F 3.727 SX
84xx E-SA60-BCPZS 1S-U CP Man 4FC 3.909 SX
84xx E-SA60-BCMSS 1S-U CP Man 5F 3.727 ST
84xx E-SA60-BCPSS 1S-U CP Man 4FC 3.909 ST
84xx E-SA60-BCMFS 1S-U CP Man 5F 3.727 SV
84xx E-SA60-BLMZS 1S-U LB Man 5F 3.727 SX
84xx E-SA60-BLPZS 1S-U LB Auto 4FC 3.909 SX
84xx E-SA60-BLMSS 1S-U LB Man 5F T50 T 3.727 ST
84xx E-SA60-BLPSS 1S-U LB Auto 4FC 3.909 ST
84xx E-SA60-BLMFS 1S-U LB Man 5F 3.727 SV
8108-8308 RA60-BCMSCQ 21R-C CP Man 5F ST
8108-8308 RA60-BCPSCQ 21R-C CP Auto 4FC A40D T 3.909 ST
8108-8308 RA60-BLMQCQ 21R-C LB Man 5F W57 T 3.909 GT
8108-8308 RA60-BLPQCQ 21R-C LB Auto 4FC A40D T 3.909 1380
81xx-8xxx RA60-BCMS** 21R CP Man 5F 3.909 ST
81xx-8xxx RA60-BCHS** 21R CP Auto 4FC 3.909 ST
81xx-8xxx RA60-BLMS** 21R LB Man 5F 3.909 ST
81xx-8xxx RA60-BLHS** 21R LB Auto 4FC 3.909 ST
81xx-8xxx RA6#-BCM*** CP XT
81xx-8xxx RA6#-BLM*** LB XT

61 series
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
E-TA61-B**
81xx,82xx E-GA61-BLMNE 1G-EU LB Man 5F 3.909 L 125/5400 17.5/4400 8.8
82xx E-GA61-BLMSE 1G-EU LB Man 5F 3.909 S 125/5400 17.5/4400 8.8
82xx E-GA61-BLPSE 1G-EU LB Auto 4FC 4.300 S 125/5400 17.5/4400 8.8
82xx E-GA61-BLMQE 1G-EU LB Man 5F 3.909 G 125/5400 17.5/4400 8.8
82xx,83xx E-GA61-BLPQE 1G-EU LB Auto 4FC 4.300 G 125/5400 17.5/4400 8.8
82xx,83xx E-GA61-BLMQF 1G-GEU LB Man 5F 4.300 GT 160/6400 18.5/5200 9.1
82xx E-MA61-BLMQF 5M-GEU LB Man 5F W58 F 3.727 GT 170/5600 24.0/4400 8.8
83xx E-MA61-BLMQF 5M-GEU LB Man 5F 3.727 GT 175/5600 24.5/4400 9.2
82xx E-MA61-BLPQF 5M-GEU LB Auto 4FC F 3.909 GT 170/5600 24.0/4400 8.8
83xx E-MA61-BLPQF 5M-GEU LB Auto 4FC A43DL F 3.909 GT 175/5600 24.5/4400 9.2
8108-8512 MA61L-BLMQFK 5M-GE LB Man 5F GT
8108-8512 MA61L-BLPQFK 5M-GE LB Auto 4FC A40D GT
8108-8512 MA61L-BLMQFA 5M-GE LB Man 5F W58 GT
8108-8512 MA61L-BLPQFA 5M-GE LB Auto 4FC A40D,A43DE GT
8308-86xx MA61-BLMQEQ 5M-E LB Man 5F SPR
8308-86xx MA61-BLPQEQ 5M-E LB Man 4FC SPR
81xx-8xxx RA6#-BL**** LB

63 series IRS
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
E-RA63-**
84xx E-TA63-BCMQZ 3T-GTEU CP Man 5F 4.100 GT-TR 160/6000 21.0/4800 1410 1400
84xx E-TA63-BCPQZ 3T-GTEU CP Auto 4FC 4.100 GT-TR 160/6000 21.0/4800 1410 1400
84xx E-TA63-BCMQZ 3T-GTEU CP Man 5F 4.100 GT-T 160/6000 21.0/4800 1410
1395		 1400
1385
84xx E-TA63-BCPQZ 3T-GTEU CP Auto 4FC 4.100 GT-T 160/6000 21.0/4800 1410
1395		 1400
1385
84xx E-AA63-BCMQF 4A-GEU CP Man 5F 4.556 GT-R 130/6600 15.2/5200 1410 1400
84xx E-AA63-BCMQF 4A-GEU CP Man 5F 4.556 GT 130/6600 15.2/5200 1410
1395		 1400
1385
84xx E-TA63-BLMQZ 3T-GTEU LB Man 5F 4.100 GT-TR 160/6000 21.0/4800 1410 1400
84xx E-TA63-BLPQZ 3T-GTEU LB Auto 4FC 4.100 GT-TR 160/6000 21.0/4800 1410 1400
84xx E-TA63-BLMQZ 3T-GTEU LB Man 5F 4.100 GT-T 160/6000 21.0/4800 1395 1385
84xx E-TA63-BLPQZ 3T-GTEU LB Auto 4FC 4.100 GT-T 160/6000 21.0/4800 1395 1385
84xx E-AA63-BLMQF 4A-GEU LB Man 5F 4.556 GT-R 130/6600 15.2/5200 1410 1400
84xx E-AA63-BLMQF 4A-GEU LB Man 5F 4.556 GT 130/6600 15.2/5200 1410
1395		 1400
1385
82xx E-MA63-BLPST M-TEU LB Auto 4FC 4.300 S-Turbo 145/5600 21.5/3000 7.6
83xx E-MA63-BLPST M-TEU LB Auto 4FC 4.300 S-Turbo 160/5400 23.5/3000 8.0
82xx E-MA63-BLPQT M-TEU LB Auto 4FC 4.300 G-Turbo 145/5600 21.5/3000 7.6
83xx E-MA63-BLPQT M-TEU LB Auto 4FC 4.300 G-Turbo 160/5400 23.5/3000 8.0
8308-8xxx SA63R-BCMSCQ 2S-C CP Man 5F W55 T 3.909 ST 1385
8308-8xxx SA63R-BSPSCQ 2S-C CP Auto 4FC ST 1385
8308-8xxx SA63R-BCMSCQ 2S-C CP Man 5F GT 1385
8308-8xxx SA63R-BLPQCQ 2S-C LB Auto 4FC A40D T 4.100 GT 1385
SA63R-BLMQCQ 2S-C LB Man 5F W55 T 3.909 GT

64 series
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
E-TA64-BCMXZ 4T-GTEU CP Man 5F W55 F 4.100 GT-TS
8108-8208 RA64L-BCMQSK 22R CP Man 5F T 3.417 GT
8108-8208 RA64L-BCPQSK 22R CP Auto 4FC A40D T 3.583 GT
8208-8507 RA64L-BCMQEK 22R-EC CP Man 5F T 3.417 GT
8208-8507 RA64L-BCPQEK 22R-EC CP Auto 4FC A40D T 3.583 GT
8108-8208 RA64L-BCMSSA 22R CP Man 5F T 3.417 ST
8108-8208 RA64L-BCPSSA 22R CP Auto 4FC A40D T 3.583 ST
8108-8208 RA64L-BCMQSA 22R CP Man 5F T 3.417 GT
8108-8208 RA64L-BCPQSA 22R CP Auto 4FC A40D T 3.583 GT
8208-85xx RA64L-BCMQEA 22R-EC CP Man 5F W58 T 3.417 GT
8208-85xx RA64L-BCPQEA 22R-EC CP Auto 4FC A40D T 3.583 GT
Only 220 cars of the TA64 were sold for road use.

65 series GT-S with IRS
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
8208-8308 RA65L-BCMQEK 22R-EC CP Man 5F F 3.909 GT
8308-8507 RA65L-BCMQEK 22R-EC CP Man 5F F 3.909 GTS
8208-8308 RA65L-BLMQEK 22R-EC LB Man 5F F 3.909 GT
8308-8507 RA65L-BLMQEK 22R-EC LB Man 5F F 3.909 GTS
8208-8308 RA65L-BCMQEA 22R-EC CP Man 5F W58 F 3.909 GT
8308-8507 RA65L-BCMQEA 22R-EC CP Man 5F W58 F 3.909 GTS
8408-8507 RA65L-BCPQEA 22R-EC CP Auto 4FC T 3.583 GTS
8208-8507 RA65L-BLMQEA 22R-EC LB Man 5F W58 F 3.417 GT
8308-8507 RA65L-BLMQEA 22R-EC LB Man 5F W58 F 3.417 GTS
8408-8507 RA65L-BLPQEA 22R-EC LB Auto 4FC F 3.417 GTS
8408-8507 RA65L-BKMQEA 22R-EC CV Man 5F F 3.909 GTS
8408-8507 RA65L-BKPQEA 22R-EC CV Auto 4FC T 3.583 GTS
84xx-8507 RA65-BC***Q 22R-E CP
RA65-BCPSEQ 22R-EC CP Auto 4FC A40D F 3.727
84xx-85xx RA65-BL***Q 22R-E LB

Plant Tahara
A51-A54		 Tsutsumi
A41,A42
RA64 0000001- 6000001-
RA65 0000001- 4000001-
MA64 0000001-

Celica 16#, 17#

All Celicas (but not the Supra) are now was based on the front wheel drive Corona floorplan.
They shared the Corona T codes and mechanicals.
The GT4 was a special 4WD version but still based on the FWD platform.

160 Series - 1800cc

Country Dates Code Engine Body Gearbox Diff Grade Price PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
8508-8708 E-AT160-**
8508-8805 E-ST160-**
8708-8805 E-ST160-BLMSL 1S-iLU LB Man 5F ST
8708-8805 E-ST160-BLPSL 1S-iLU LB Auto 4FC ST
8708-8805 E-ST160-BLMEL 1S-iLU LB Man 5F SX
8708-8805 E-ST160-BLPEL 1S-iLU LB Auto 4FC SX

162 Series - 2000cc

Country Dates Code Engine Body Gearbox Diff Grade Price PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
8508-8908 E-ST162-**
8708-8908 E-ST162-BLMGK 3S-FE LB Man 5F ZR
8708-8908 E-ST162-BLPGK 3S-FE LB Auto 4FC ZR
8708-8908 E-ST162-BLMVF 3S-GELU LB Man 5F GT
8708-8908 E-ST162-BLMVF 3S-GELU LB Man 5F GT-R
8708-8908 E-ST162-BLPVF 3S-GELU LB Auto 4FC GT
8708-8908 E-ST162-BLPVF 3S-GELU LB Auto 4FC GT-R
8710-8908 E-ST162C-BKMGK 3S-FE Conv Man 5F CV
8710-8908 E-ST162C-BKPGK 3S-FE Conv Auto 4FC CV

163 Series - 1800cc

Country Dates Code Engine Body Gearbox Diff Grade Price PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
8805-8908 E-ST163-**
8708-8805 E-ST163-BLMSL 4S-Fi LB Man 5F ST
8708-8805 E-ST163-BLPSL 4S-Fi LB Auto 4FC ST
8708-8805 E-ST163-BLMEL 4S-Fi LB Man 5F SX
8708-8805 E-ST163-BLPEL 4S-Fi LB Auto 4FC SX

165 Series - 2000cc 4WD Turbo

Country Dates Code Engine Body Gearbox Diff Grade Price PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
8610-8908 E-ST165-**
8708-8908 E-ST165-BLMVZ 3S-GTE LB Man 5F GT4

Supra 7# 3rd generation

The 3rd generation Supra was an entirely new model not based on any Celica.
It remained a 6 cylinder rear wheel drive car even though the Celica had become a 4 cylinder FWD car.
The Japanese Celica XX was renamed to Supra (like it always was in the rest of the world).
The Supra continued on with the old Celica A platform code.

The "wide body" was the same as the standard body except that the wheel arches were flared out.
Cars with the 7M and 1JZ engines also had the wide body as standard.

70 Series - Supra

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track 		Rear
track 		kg
E-GA70-BLMGK 1G-FE LB Man 5F 3.909 G 135/5600 18.0/4400 9.5 1460 1465 1370
E-GA70-BLPGK 1G-FE LB Auto 4FC 4.300 G 135/5600 18.0/4400 9.5 1460 1465 1390
E-GA70-BLMVF 1G-GEU LB Man 5F 4.556
4.556 LSD		 GT 150/6200 18.6/5600 9.5 1460 1465 1400
E-GA70-BLPVF 1G-GEU LB Auto 4FC 4.556
4.556 LSD		 GT 150/6200 18.6/5600 9.5 1460 1465 1420
E-GA70-BLMVZ 1G-GTE LB Man 5F 4.556
4.556 LSD		 GT twin turbo 210/6200 28.0/3800 8.5 1460 (1) 1465 (1) 1460
E-GA70-BLPVZ 1G-GTE LB Auto 4.556
4.556 LSD		 GT twin turbo 210/6200 28.0/3800 8.5 1460 (1) 1465 (1) 1480
E-GA70H-BLMVZ 1G-GTE LB Man 5F 4.556
4.556 LSD		 GT twin turbo wide body 210/6200 28.0/3800 8.5 1490 1495 1490
E-GA70H-BLPVZ 1G-GTE LB Auto 4.556
4.556 LSD		 GT twin turbo wide body 210/6200 28.0/3800 8.5 1490 1495 1510
E-GA70H-BLMVZ 1G-GTE LB Man 5F 4.556
4.556 LSD		 GT twin turbo wide body type E 210/6200 28.0/3800 8.5 1490 1495 1490
E-GA70H-BLPVZ 1G-GTE LB Auto 4.556
4.556 LSD		 GT twin turbo wide body type E 210/6200 28.0/3800 8.5 1490 1495 1510
JZA70-BLMVZ 1JZ-GTE LB Man 5F GT twin turbo
JZA70-BLPVZ 1JZ-GTE LB Auto GT twin turbo
JZA70-BLMQZ 1JZ-GTE LB Man 5F GT twin turbo R
JZA70-BLPQZ 1JZ-GTE LB Auto GT twin turbo R
JZA70-BLMZZ 1JZ-GTE LB Man 5F GT twin turbo limited
JZA70-BLPZZ 1JZ-GTE LB Auto GT twin turbo limited
E-MA70-BLMVZ 7M-GTEU LB Man 5F 3.727
3.727 LSD		 GT turbo 240/5600 35.0/3200 8.4 1470 1475 1560
E-MA70-BLPVZ 7M-GTEU LB Auto 4FC 3.727
3.727 LSD		 GT turbo 240/5600 35.0/3200 8.4 1470 1475 1560
E-MA70-BLMZZ 7M-GTEU LB Man 5F 3.727 LSD GT turbo limited 240/5600 35.0/3200 8.4 1470 1475 1570
E-MA70-BLPZZ 7M-GTEU LB Auto 4FC 3.727 LSD GT turbo limited 240/5600 35.0/3200 8.4 1470 1475 1570
E-GA70-BJMVF 1G-GEU LB aero top Man 5F 4.556
4.556 LSD		 GT 150/6200 18.6/5600 9.5 1460 1465 1400
E-GA70-BJPVF 1G-GEU LB aero top Auto 4FC 4.556
4.556 LSD		 GT 150/6200 18.6/5600 9.5 1460 1465 1420
E-GA70-BJMVZ 1G-GTE LB aero top Man 5F 4.556
4.556 LSD		 GT twin turbo 210/6200 28.0/3800 8.5 1460 (1) 1465 (1) 1460
E-GA70-BJPVZ 1G-GTE LB aero top Auto 4.556
4.556 LSD		 GT twin turbo 210/6200 28.0/3800 8.5 1460 (1) 1465 (1) 1480
E-GA70H-BJMVZ 1G-GTE LB aero top Man 5F 4.556
4.556 LSD		 GT twin turbo wide body 210/6200 28.0/3800 8.5 1490 1495 1490
E-GA70H-BJPVZ 1G-GTE LB aero top Auto 4.556
4.556 LSD		 GT twin turbo wide body 210/6200 28.0/3800 8.5 1490 1495 1510
E-GA70H-BJMVZ 1G-GTE LB aero top Man 5F 4.556
4.556 LSD		 GT twin turbo wide body type E 210/6200 28.0/3800 8.5 1490 1495 1490
E-GA70H-BJPVZ 1G-GTE LB aero top Auto 4.556
4.556 LSD		 GT twin turbo wide body type E 210/6200 28.0/3800 8.5 1490 1495 1510
JZA70-BJMVZ 1JZ-GTE LB aero top Man 5F GT twin turbo
JZA70-BJPVZ 1JZ-GTE LB aero top Auto GT twin turbo
JZA70-BJMZZ 1JZ-GTE LB aero top Man 5F GT twin turbo limited
JZA70-BJPZZ 1JZ-GTE LB aero top Auto GT twin turbo limited
E-MA70-BLMVZ 7M-GTEU LB aero top Man 5F 3.727
3.727 LSD		 GT turbo 240/5600 35.0/3200 8.4 1470 1475 1560
E-MA70-BLPVZ 7M-GTEU LB aero top Auto 4FC 3.727
3.727 LSD		 GT turbo 240/5600 35.0/3200 8.4 1470 1475 1560
E-MA70-BJMZZ 7M-GTEU LB aero top Man 5F 3.727 LSD GT turbo limited 240/5600 35.0/3200 8.4 1470 1475 1570
E-MA70-BJPZZ 7M-GTEU LB aero top Auto 4FC 3.727 LSD GT turbo limited 240/5600 35.0/3200 8.4 1470 1475 1570
8808-9008 MA70L-BLMVFK 7M-GE LB Man 5F GT
8808-9008 MA70L-BLPVFK 7M-GE LB Auto 4FC A40D GT
8808-8908
8908-9305		 MA70L-BLMVZK 7M-GTE LB Man 5F GT
9008-9305 MA70L-BLPVZK 7M-GTE LB Auto 4FC A40D GT
8808-9008 MA70L-BJMVFK 7M-GE LB sports roof Man 5F GT
8808-9305 MA70L-BJMVZK 7M-GTE LB sports roof Man 5F GT
8808-9305 MA70L-BJPVZK 7M-GTE LB sports roof Auto 4FC A40D GT
8808-9305 MA70L-BLMVFA 7M-GE LB Man 5F GT
8808-9305 MA70L-BLPVFA 7M-GE LB Auto 4FC A40D GT
8808-9305 MA70L-BLMVZA 7M-GTE LB Man 5F GT
8808-9305 MA70L-BLPVZA 7M-GTE LB Auto 4FC A40D GT
8808-9008 MA70L-BJMVFA 7M-GE LB sports roof Man 5F GT
8808-9008 MA70L-BJPVFA 7M-GE LB sports roof Auto 4FC A40D GT
8808-9305 MA70L-BJMVZA 7M-GTE LB sports roof Man 5F GT
8808-9305 MA70L-BJPVZA 7M-GTE LB sports roof Auto 4FC A40D GT
86xx- MA70R-BLMVFQ 7M-GE LB Man 5F W58 8" 4.3 GT 190/5800 25.0/4800 9.2 1485 1480
86xx-88xx MA70R-BLPVFQ 7M-GE LB Auto 4FC A340E 8" 4.3 GT 190/5800 25.0/4800 9.2 1485 1480
86xx-88xx MA70R-BJMVFQ 7M-GE LB sports roof Man 5F W58 8" 4.3 GT 190/5800 25.0/4800 9.2 1485 1480 1550-1580
86xx-88xx MA70R-BJPVFQ 7M-GE LB sports roof Auto 4FC A430E 8" 4.3 GT 190/5800 25.0/4800 9.2 1485 1480 1575-1605
88xx- MA70R-BLMVZQ 7M-GTE LB Man 5F R154 8" 3.727 GT 235/5600 35.1/3200 8.4 1485 1480
88xx- MA70R-BLPVZQ 7M-GTE LB Auto 4FC A340E 8" 3.727 GT 235/5600 35.1/3200 8.4 1485 1480 1565-1600
88xx- MA70R-BJPVZQ 7M-GTE LB sports roof Auto 4FC A340E 8" 3.727 GT 235/5600 35.1/3200 8.4 1485 1480 1605-1640

Plant Tahara
A51-A54
MA70 0104941-

Supra 8# 4th generation

The 4th generation Supra takes over the -A body code.

80 Series - Supra

Country Dates Code Engine Body Gearbox Grade
GF-JZA80-ALFQZ 2JZ-GTE LB Man 6F RZ
GF-JZA80-ALFVZ 2JZ-GTE LB Man 6F RZ-S
GF-JZA80-ALPVZ 2JZ-GTE LB Auto 4FC A340E RZ-S
GF-JZA80-ALFSF 2JZ-GE LB Man 6F SZ-R
GF-JZA80-ALMVF 2JZ-GE LB Man 5F W58 SZ
GF-JZA80-ALPVF 2JZ-GE LB Auto 4FC A340E SZ
JZA80-A**ZZ 2JZ-GTE RZ-R (?)
JZA80-AJ*** 2JZ-GE LB aero top
9305-9601 JZA80L-AJFVZK 2JZ-GTE LB sport roof Man 6F
9601-xxxx JZA80L-AJFVZK 2JZ-GTE LB sport roof Man 6F
9305-9607 JZA80L-AJPVZK 2JZ-GTE LB sport roof Auto 4FC
9305-xxxx JZA80L-ALMVFA 2JZ-GE LB Man 5F
9305-xxxx JZA80L-ALPVFA 2JZ-GE LB Auto 4FC
9305-9601 JZA80L-ALFVZA 2JZ-GTE LB Man 6F
9601-xxxx JZA80L-ALFVZA 2JZ-GTE LB Man 6F
9305-9607 JZA80L-ALPVZA 2JZ-GTE LB Auto 4FC
9305-xxxx JZA80L-AJMVFA 2JZ-GE LB sport roof Man 5F
9305-xxxx JZA80L-AJPVFA 2JZ-GE LB sport roof Auto 4FC
9305-9601 JZA80L-AJFVZA 2JZ-GTE LB sport roof Man 6F
9601-xxxx JZA80L-AJFVZA 2JZ-GTE LB sport roof Man 6F
9305-9607 JZA80L-AJPVZA 2JZ-GTE LB sport roof Auto 4FC

Sources

www.free-counters.net @ free hit counters

Last updated 28 Jun 2020
