Cressida production data

This car has been known as the Corona Mark II, Mark II, Cressida, Chaser and Cresta.
It was replaced by the Avalon in the late 1990's.

In the tables below ** means that more codes may possibly exist.
E.g. MX32L-H**A** means the MX32L was available in the USA as a 3 speed floor shift auto but my information doesn't tell me which other options were available.
A single # stands for any single digit - Eg KE1#.
A single * stands for any single letter or digit - eg *E1#.

Jump down to Corona Mark II 1964-1970 production data
Mark II 60 61 62 63 66 67 68 69 70 71 72 73 76 77 78 79
Jump down to Mark II 1972-1976 production data
Mark II 10 11 12 13 16 17 20 21 22 23 28 29
Jump down to Cressida 1977-1980 production data
Mark II 30 31 32 33 35 36 37 40 41 43 45 47
Chaser 30 31 40 41
Jump down to Cressida 1980-1984 production data
Cressida 51 60 61 62 63
Chaser 61
Jump down to Cressida 1984-1988 production data
Cressida 70 71 72 73 76 78
Cresta 70 71
Chaser 70 71
Jump down to Cressida 1988-1992 production data
Cressida 80 81 83
Chaser 80 81
Jump down to Mark X 2005-2009 production data
Mark X / Reiz 120 121 122 125
Mark X +M Super Charger 121
Jump down to Mark X 2009 onwards production data
Mark X 130 133 135
Mark X Vertiga 130 133 135
Mark X +M Super Charger 133

Corona Mark II 6#, 7# 1964-1971

Originally intended as an upmarket Corona, the design became a much larger car by the time it was actually produced.
The Corona Mark II was sold at the same time as the 1964-70 Corona.
Both cars shared the T platform code.
The Corona was the 4#, 5# series and the Corona Mark II was the 6#, 7# series.

1600cc 7R models were replace in Feb 1970 with 1700cc 6R models.
1500cc 2R models were replace in Feb 1971 with 1600cc 12R models.

T60 series 1600cc Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
68xx-7001 RT60 7R 4DS Man 3H 4.111 Std 85/5500 12.5/3800 8.5 1325 1320 950
68xx- RT60-C 7R 4DS Auto 2HC 4.111 Std 85/5500 12.5/3800 8.5 1325 1320 950
68xx-7001 RT60-D 7R 4DS Man 3H 4.111 DLX 85/5500 12.5/3800 8.5 1325 1320 970
68xx-7001 RT60-DC 7R 4DS Auto 2HC 4.111 DLX 85/5500 12.5/3800 8.5 1325 1320 970
68xx-7001 RT60-DK 7R 4DS Man 4F 4.111 DLX 85/5500 12.5/3800 8.5 1325 1320 985
68xx-7001 RT60-S 7R-B 4DS Man 3H 3.900 SL 100/6200 13.6/4200 9.5 1325 1320 990
6809-7001 RT60 7R 4DS Man 3H 4.111 Std
6809-7001 RT60-C 7R 4DS Auto 2HC 4.111 Std
6809-7001 RT60-K 7R 4DS Man 4F 4.111 Std
6809-7001 RT60-D 7R 4DS Man 3H 4.111 DLX
6809-7001 RT60-DC 7R 4DS Auto 2HC 4.111 DLX
6809-7001 RT60-DK 7R 4DS Man 4F 4.111 DLX
6809-7001 RT60-S 7R-B 4DS Man 4F 3.900 SL
6809-7001 RT60L 7R 4DS Man 3H 4.111 Std
6809-7001 RT60L-C 7R 4DS Auto 2HC 4.111 Std
6809-7001 RT60L-K 7R 4DS Man 4F 4.111 Std
6809-7001 RT60L-D 7R 4DS Man 3H 4.111 DLX
6809-7001 RT60L-DC 7R 4DS Auto 2HC 4.111 DLX
6809-7001 RT60L-DK 7R 4DS Man 4F 4.111 DLX
6809-7001 RT60L-S 7R-B 4DS Man 4F 4.111 SL

T61 series 1700cc Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7002- RT61 6R 4DS Man 3H 4.111 Std 95/5500 14.0/3800 8.5
RT61-T 6R 4DS Man 3H 4.111 Std Taxi 95/5500 14.0/3800 8.5
RT61-TP 6R 4DS Man 3H 4.111 Std Taxi LPG
7002- RT61-D 6R 4DS Man 3H 4.111 DLX 95/5500 14.0/3800 8.5
7002- RT61-DK 6R 4DS Man 4F 4.111 DLX 95/5500 14.0/3800 8.5
7002- RT61-DC 6R 4DS Auto 2HC DLX 95/5500 14.0/3800 8.5
7002- RT61-S 6R-B 4DS Man 4F SL
7002-7112 RT61 6R 4DS Man 3H Std
7002-7112 RT61-C 6R 4DS Auto 2HC Std
7002-7112 RT61-K 6R 4DS Man 4F Std
7002-7112 RT61-D 6R 4DS Man 3H DLX
7002-7112 RT61-DC 6R 4DS Auto 2HC DLX
7002-7112 RT61-DK 6R 4DS Man 4F DLX
7002-7112 RT61-S 6R-B 4DS Man 4F SL
7002-7112 RT61L 6R 4DS Man 3H Std
7002-7112 RT61L-C 6R 4DS Auto 2HC Std
7002-7112 RT61L-K 6R 4DS Man 4F Std
7002-7112 RT61L-D 6R 4DS Man 3H DLX
7002-7112 RT61L-DC 6R 4DS Auto 2HC DLX
7002-7112 RT61L-DK 6R 4DS Man 4F DLX
7002-7112 RT61L-S 6R-B 4DS Man 4F SL

T62 series 1900cc Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RT62 8R 4DS Man 3H 3.700 GL
68xx- RT62-K 8R 4DS Man 4F 3.700 GL 100/5500 15.0/3600 9.0 1325 1320 1000
68xx- RT62-H 8R 4DS Auto 3FC 3.700 GL 100/5500 15.0/3600 9.0 1325 1320 1010
RT62-N 8R 4DS Auto 3HC 3.700 GL
RT62-S 8R-B 4DS Man 4F GSL
RT62-SH 8R-B 4DS Auto 3FC GSL
RT62-D 8R-D 4DS Man 3H 3.700 DLX
RT62-DK 8R-D 4DS Man 4F 3.700 DLX
RT62-DH 8R-D 4DS Auto 3FC 3.700 DLX
RT62-DN 8R-D 4DS Auto 3HC 3.700 DLX
RT62-DSZ 8R-B 4DS Man 4F SL
7002-7112 RT62-BK 8R 4DS Man 4F 3.700 Std
6904-7112 RT62-DH 8R 4DS Auto 3FC 3.700 DLX
6904-7112 RT62-DK 8R 4DS Man 4F 3.700 DLX
7002-7112 RT62L-BK 8R 4DS Man 4F 3.700 Std
6904-7112 RT62L-H (1) 8R 4DS Auto 3FC 3.700 DLX
6904-7112 RT62L-K (1) 8R 4DS Man 4F 3.700 DLX
6902-7101 RT62L-KA 8R 4DS Man 4F 3.700 108/5500 117/3600 9.0 1325 1320 2305 lb
7102-7108 RT62L-KA 8R-C 4DS Man 4F 3.700 108/5500 117/3600 9.0 1325 1320 2305 lb
6902-7101 RT62L-HA 8R 4DS Auto 3FC 3.900 108/5500 117/3600 9.0 1325 1320 2335 lb
7102-7108 RT62L-HA 8R-C 4DS Auto 3FC 3.900 108/5500 117/3600 9.0 1325 1320 2335 lb
6902-7108 RT62L-KA 8R-C 4DS Man 4F 3.700 108/5500 117/3600 9.0 1325 1320 2305 lb
6902-7108 RT62L-HA 8R-C 4DS Auto 3FC 3.900 108/5500 117/3600 9.0 1325 1320 2335 lb
Note 1: These probably should have the D code (eg RT62L-DK).
Japanese models without dates were probably introduced in Feb 1970.

T63 series 2000cc Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7109-7112 RT63L-KA 18R-C 4DS Man 4F 3.700 97/5500 106/3600 8.5 1325 1320 2305 lb
7109-7112 RT63L-HA 18R-C 4DS Auto 3FC 3.700 97/5500 106/3600 8.5 1325 1320 2335 lb
7109-7112 RT63L-KA 18R-C 4DS Man 4F 3.700 97/5500 106/3600 8.5 1325 1320 2305 lb
7109-7112 RT63L-HA 18R-C 4DS Auto 3FC 3.700 97/5500 106/3600 8.5 1325 1320 2335 lb

T66 series 1500cc Commercials
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
68xx-71xx RT66 2R TR Man 3H 4.375 77/5200 11.7/2800 8.3 1325 1320 935
68xx-71xx RT66P 2R WP Man 3H 4.375 77/5200 11.7/2800 8.3 1325 1320 965
68xx-71xx RT66V-F 2R 4DV Man 3H 4.375 77/5200 11.7/2800 8.3 1325 1320 1000
6809-7101 RT66-K 2R TR Man 4F 4.375
6809-7101 RT66L-K 2R TR Man 4F 4.375

T67 series 1600cc Commercials
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
68xx-7001 RT67V-FD 7R 4DV Man 3H 4.375
3.900		 DLX 85/5500 12.5/3800 8.5 1325 1320 1035

T68 series 1700cc Commercials
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7002- RT68V-FD 6R 4DV Man 3H DLX 95/5500 14.0/3800 8.5 1325 1320 1045
RT68V-FDK 6R 4DV Man 4F DLX 95/5500 14.0/3800 8.5 1325 1320 1060

T69 series 1600cc Commercials
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7102- RT69 12R TR Man 3H
7102- RT69P 12R WP Man 3H
7102- RT69V-F 12R 4DW Man 3H
7102-7112 RT69-K 12R TR Man 4F
7102-7112 RT69L-K 12R TR Man 4F

T70 series 1600cc Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
6809-7001 RT70-C 7R HT Auto 2FC 3.700 85/5500 12.5/3800 8.5 1325 1320 1015
6809-7001 RT70-K 7R HT Man 4F 3.700 85/5500 12.5/3800 8.5 1325 1320 990
6809-7001 RT70-K 7R HT Man 4F 3.700
6809-7001 RT70L-C 7R HT Auto 2FC 3.700
6809-7001 RT70L-K 7R HT Man 4F 3.700
Note: I suspect these are all std.

T71 series 1700cc Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RT71 6R HT Man 3H
7002- RT71-K 6R HT Man 4F
7002- RT71-C 6R HT Auto 2FC
RT71-S 6R-B HT Man 4F SL
7002-7101 RT71-C 6R HT Auto 2FC
7002-7112 RT71-K 6R HT Man 4F
7002-7101 RT71L-C 6R HT Auto 2FC
7002-7112 RT71L-K 6R HT Man 4F

T72 series 1900cc Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RT72 8R HT Man 3H T 3.700 GL
RT72-K 8R HT Man 4F T 3.700 GL 100/5500 15.0/3600 9.0 1325 1320 1005
RT72-H 8R HT Auto 3FC T 3.700 GL 100/5500 15.0/3600 9.0 1325 1320 1015
RT72-D 8R-D HT Man 3H T 3.900
RT72-DK 8R-D HT Man 4F T 3.900
RT72-DH 8R-D HT Auto 3FC T 3.900
RT72-DSZ 8R-B HT Man 4F T 3.700 SL
RT72-S 8R-B HT Man 4F T 3.700 GSL 110/6000 15.5/4000 10.0 1325 1320 1020
RT72-SH 8R-B HT Auto 3FC T 3.700 GSL
7102- RT72-MQ 8R-G HT Man 5F F 4.875 GSS
6904-7112 RT72-DH 8R HT Auto 3FC 3.700
6904-7112 RT72-DK 8R HT Man 4F 3.700
6904-7112 RT72-DS 8R-B HT Man 4F SL
6904-7112 RT72L-H 8R HT Auto 3FC 3.700
6904-7112 RT72L-K 8R HT Man 4F 3.700
6904-7112 RT72L-S 8R-B HT Man 4F SL
6902-7101 RT72L-KA 8R HT Man 4F 3.700 108/5500 117/3600 9.0 1325 1320 2305 lb
7102-7108 RT72L-KA 8R-C HT Man 4F 3.700 108/5500 117/3600 9.0 1325 1320 2305 lb
6902-7101 RT72L-HA 8R HT Auto 3FC 3.900 108/5500 117/3600 9.0 1325 1320 2335 lb
7102-7108 RT72L-HA 8R-C HT Auto 3FC 3.900 108/5500 117/3600 9.0 1325 1320 2335 lb
6902-7108 RT72L-KA 8R-C HT Man 4F 3.700 108/5500 117/3600 9.0 1325 1320 2305 lb
6902-7108 RT72L-HA 8R-C HT Auto 3FC 3.900 108/5500 117/3600 9.0 1325 1320 2335 lb
In Feb 1971 the twincam 10R was renamed the 8R-G, so the RT75 GSS was renamed as the RT72-MQ GSS. The Mark II GSS was the only car to have the 8R-G.

T73 series 2000cc Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7109-7112 RT73L-KA 18R-C HT Man 4F 3.700 97/5500 106/3600 8.5 1325 1320 2305 lb
7109-7112 RT73L-HA 18R-C HT Auto 3FC 3.700 97/5500 106/3600 8.5 1325 1320 2335 lb
7109-7112 RT73L-KA 18R-C HT Man 4F 3.700 97/5500 106/3600 8.5 1325 1320 2305 lb
7109-7112 RT73L-HA 18R-C HT Auto 3FC 3.700 97/5500 106/3600 8.5 1325 1320 2335 lb

T75 series 1900cc Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
6907-7101 RT75-M 10R HT Man 5F GSS 140/6400 17.0/5200 9.7 1340 1325 1050
7002-7101 RT75-M 10R HT Man 5F GSS 140/6400 17.0/5200 9.7 1340 1325 1050
The Mark II GSS was the only car to have the twincam 10R.
In Feb 1971 the 10R was renamed the 8R-G, so the RT75-M GSS was renamed as the RT72-MQ GSS.

T76 series 1600cc Station Wagon
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
6809-7001 RT76-D 7R 4DW Man 3H 4.375 DLX 85/5500 12.5/3800 8.5 1325 1320 1030
6809-7001 RT76-DC 7R 4DW Man 2HC 4.375 DLX 85/5500 12.5/3800 8.5 1325 1320 1030
6809-7001 RT76-K 7R 4DW Man 4F 4.375 Std
6809-7001 RT76-DK 7R 4DW Man 4F 4.375 DLX
6809-7001 RT76L-K 7R 4DW Man 4F 4.375 Std
6809-7001 RT76L-DK 7R 4DW Man 4F 4.375 DLX

T77 series 1700cc Station Wagon
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7002- RT77-D 6R 4DW Man 3H DLX
RT77-DK 6R 4DW Man 4F DLX
7002- RT77-DC 6R 4DW Auto 2HC DLX
7002-7112 RT77-K 6R 4DW Man 4F Std
7002-7112 RT77-DK 6R 4DW Man 4F DLX
7002-7112 RT77L-K 6R 4DW Man 4F Std
7002-7112 RT77L-DK 6R 4DW Man 4F DLX

T78 series 1900cc Station Wagon
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RT78-D 8R-D 4DW Man 3H 3.900 DLX
RT78-DK 8R-D 4DW Man 4F 3.900 DLX
RT78-DN 8R-D 4DW Auto 3HC 3.900 DLX
6902-7101 RT78L-KA 8R 4DW Man 4F W40 3.900 108/5500 117/3600 9.0 1325 1320 2430 lb
7102-7108 RT78L-KA 8R-C 4DW Man 4F W40 3.900 108/5500 117/3600 9.0 1325 1320 2430 lb
6902-7101 RT78L-HA 8R 4DW Auto 3FC 3.900 108/5500 117/3600 9.0 1325 1320 2455 lb
7102-7108 RT78L-HA 8R-C 4DW Auto 3FC 3.900 108/5500 117/3600 9.0 1325 1320 2455 lb
6902-7108 RT78L-KA 8R-C 4DW Man 4F W40 3.900 108/5500 117/3600 9.0 1325 1320 2430 lb
6902-7108 RT78L-HA 8R-C 4DW Auto 3FC 3.900 108/5500 117/3600 9.0 1325 1320 2455 lb

T79 series 2000cc Station Wagon
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7109-7112 RT79L-KA 18R-C 4DW Man 4F W40 3.900 97/5500 106/3600 8.5 1325 1320 2430 lb
7109-7112 RT79L-HA 18R-C 4DW Auto 3FC 3.900 97/5500 106/3600 8.5 1325 1320 2455 lb
7109-7112 RT79L-KA 18R-C 4DW Man 4F W40 3.900 97/5500 106/3600 8.5 1325 1320 2430 lb
7109-7112 RT79L-HA 18R-C 4DW Auto 3FC 3.900 97/5500 106/3600 8.5 1325 1320 2455 lb

Cressida 1#, 2# 1972-1976

After the RT6# ended, the Mark II was given the X platform code.

X10 series 1700cc 4 cyl, 2000cc 6cyl Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RX10-YD 6R 4DS Man 3H DLX
RX10-KD 6R 4DS Man 4F DLX
RX10-ND 6R 4DS Auto 3HC DLX
MX10-KF M 4DS Man 4F LA 110
MX10-KN M 4DS Man 4F L 110
MX10-HN M 4DS Auto 3FC L 110
MX10-KNB M-B 4DS Man 4F L 125
MX10-MNB M-B 4DS Man 5F L 125
MX10-HNB M-B 4DS Auto 3FC L 110
MX10-KNBR M-BR 4DS Man 4F L
MX10-MNBR M-BR 4DS Man 5F L
MX10-HNBR M-BR 4DS Auto 3FC L
MX10-KGE M-E 4DS Man 4F LG 125
MX10-MGE M-E 4DS Man 5F LG 125
MX10-HGE M-E 4DS Auto 3FC LG 125
7201-7408 MX10-KDQ M 4DS Man 4F DLX
7201-7408 MX10-HDQ M 4DS Auto 3FC DLX

X11 series 1800cc Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RX11-YD 16R 4DS Man 3H DLX
RX11-KD 16R 4DS Man 4F DLX
RX11-ND 16R 4DS Auto 3HC DLX

X12 series 2000cc 4 cyl, 2300cc 6cyl Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RX12-YD 18R 4DS Man 3H DLX
RX12-KD 18R 4DS Man 4F DLX
RX12-ND 18R 4DS Auto 3HC DLX
RX12-HD 18R 4DS Auto 3FC DLX
RX12-KN 18R 4DS Man 4F GL
RX12-HN 18R 4DS Auto 3FC GL
RX12-KNB 18R-B 4DS Man 4F GSL
RX12-MNB 18R-B 4DS Man 5F GSL
RX12-MNBR 18R-BR 4DS Man 5F GSL
RX12-HNB 18R-B 4DS Auto 3FC GSL
RX12-HNBR 18R-BR 4DS Auto 3FC GSL
RX12-KNE 18R-E 4DS Man 4F GSL
RX12-MNE 18R-E 4DS Man 5F GSL
RX12-HNE 18R-E 4DS Auto 3FC GSL
A-RX12-** 18R-** 4DS
7201-7611 RX12-YR 18R 4DS Man 3H Std
7201-7611 RX12-KR 18R 4DS Man 4F Std
7201-7611 RX12-NR 18R 4DS Auto 3HC Std
7201-7611 RX12-YD 18R 4DS Man 3H DLX
7201-7611 RX12-KD 18R 4DS Man 4F DLX
7201-7611 RX12-ND 18R 4DS Auto 3HC DLX
7201-7611 RX12-HD 18R 4DS Auto 3FC DLX
7201-7408 MX12-KD 2M 4DS Man 4F DLX
7201-7408 MX12-HD 2M 4DS Auto 3FC DLX
7201-7611 RX12L-YR 18R 4DS Man 3H Std
7201-7611 RX12L-KR 18R 4DS Man 4F Std
7201-7611 RX12L-NR 18R 4DS Auto 3HC Std
7201-7611 RX12L-YD 18R 4DS Man 3H DLX
7201-7611 RX12L-KD 18R 4DS Man 4F DLX
7201-7611 RX12L-ND 18R 4DS Auto 3HC DLX
7201-7611 RX12L-HD 18R 4DS Auto 3FC DLX
7201-7408 MX12L-KD 2M 4DS Man 4F DLX
7201-7408 MX12L-HD 2M 4DS Auto 3FC DLX
7201-7208 MX12L-KDA 2M 4DS Man 4F 3.900 109/5200 120/3600 8.8 1360 1345 2670 lb
7201-7208 MX12L-HDA 2M 4DS Auto 3FC 3.900 109/5200 120/3600 8.8 1360 1345 2700 lb
7201-7208 MX12L-KDA 2M 4DS Man 4F 3.900 109/5200 120/3600 8.8 1360 1345 2670 lb
7201-7208 MX12L-HDA 2M 4DS Auto 3FC 3.900 109/5200 120/3600 8.8 1360 1345 2700 lb

X13 series 2600cc 6cyl Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7408-7611 MX13-KD 4M 4DS Man 4F DLX
7408-7611 MX13-HD 4M 4DS Auto 3FC DLX
7408-7604 MX13L-KD 4M 4DS Man 4F DLX
7408-7604 MX13L-HD 4M 4DS Auto 3FC DLX
MX13-KD 4M 4DS Man 4F 3.900 DLX 119/5600 17.3/3600 8.5 1360 1345 1140
MX13-HD 4M 4DS Auto 3FC 3.900 DLX 119/5600 17.3/3600 8.5 1360 1345
7208-7611 MX13L-KDA 4M 4DS Man 4F 3.900 122/5200 141/3600 8.5 1360 1345 2730 lb
7208-7611 MX13L-HDA 4M 4DS Auto 3FC 3.900 122/5200 141/3600 8.5 1360 1345 2750 lb
7208-7611 MX13L-KDA 4M 4DS Man 4F 3.900 122/5200 141/3600 8.5 1360 1345 2730 lb
7208-7611 MX13L-HDA 4M 4DS Auto 3FC 3.900 122/5200 141/3600 8.5 1360 1345 2750 lb

X15 series
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
C-RX15-**

X16 series 1700cc Van
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RX16V-YR 6R Van Man 3H Std
RX16V-YD 6R Van Man 3H DLX
RX16V-KD 6R Van Man 4F DLX
Superceded by the RX17.

X17 series 1800cc Van
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RX16V-YR 16R Van Man 3H Std
RX16V-YD 16R Van Man 3H DLX
RX16V-KD 16R Van Man 4F DLX
H-RX17-**

X20 series 1700cc 4 cyl, 2000cc 6 cyl Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RX20-KD 6R HT Man 4F DX
RX20-HD 6R HT Auto 3FC DX
MX20-KF M HT Man 4F LA 110
MX20-KN M HT Man 4F L 110
MX20-HN M HT Auto 3FC L 110
MX20-KNB M-B HT Man 4F LX 125
MX20-KNBR M-BR HT Man 4F LX
MX20-MNB M-B HT Man 5F LX 125
MX20-MNBR M-BR HT Man 5F LX
MX20-HNB M-B HT Auto 3FC LX 125
MX20-HNBR M-BR HT Auto 3FC LX
MX20-KGE M-E HT Man 4F LG 125
MX20-MGE M-E HT Man 5F LG 125
MX20-HGE M-E HT Auto 3FC LG 125
A-RX20-**
A-MX20-**

X21 series 1800cc Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RX21-KD 16R HT Man 4F
RX21-HD 16R HT Auto 3FC

X22 series 2000cc 4 cyl, 2300cc 6 cyl Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RX22-KD 18R HT Man 4F DX
RX22-HD 18R HT Auto 3FC DX
RX22-KDB 18R-B HT Man 4F SL
RX22-HDB 18R-B HT Auto 3FC SL
RX22-KDBR 18R-BR HT Man 4F SL
RX22-HDBR 18R-BR HT Auto 3FC SL
RX22-KN 18R HT Man 4F GL
RX22-HN 18R HT Auto 3FC GL
RX22-KNB 18R-B HT Man 4F GSL
RX22-MNB 18R-B HT Man 5F GSL
RX22-HNB 18R-B HT Auto 3FC GSL
RX22-HNBR 18R-BR HT Auto 3FC GSL
RX22-MNBR 18R-BR HT Man 5F GSL
RX22-KNBR 18R-BR HT Man 4F GSL
RX22-KNE 18R-E HT Man 4F GSL
RX22-MNE 18R-E HT Man 5F GSL
RX22-HNE 18R-E HT Auto 3FC GSL
RX22-MQG 18R-G HT Man 5F GSS
RX22-MQGR 18R-GR HT Man 5F GSS
A-RX22-**
7201-7601 RX22-KD 18R HT Man 4F DLX
7201-7601 RX22-HD 18R HT Auto 3FC DLX
7201-7408 MX22-KD 2M HT Man 4F DLX
7201-7408 MX22-HD 2M HT Auto 3FC A30 E 3.727 DLX
7201-7601 RX22L-KD 18R HT Man 4F DLX
7201-7601 RX22L-HD 18R HT Auto 3FC DLX
7201-7408 MX22L-KD 2M HT Man 4F DLX
7201-7408 MX22L-HD 2M HT Auto 3FC DLX
7201-7208 MX22L-KDA 2M HT Man 4F 3.900 109/5200 120/3600 8.8 1360 1345 2670 lb
7201-7208 MX22L-HDA 2M HT Auto 3FC 3.900 109/5200 120/3600 8.8 1360 1345 2700 lb
7201-7208 MX22L-KDA 2M HT Man 4F 3.900 109/5200 120/3600 8.8 1360 1345 2670 lb
7201-7208 MX22L-HDA 2M HT Auto 3FC 3.900 109/5200 120/3600 8.8 1360 1345 2700 lb

X23 series 2600cc 6 cyl Hardtop
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7408-7611 MX23-KD 4M HT Man 4F DLX
7408-7611 MX23-HD 4M HT Auto 3FC DLX
7408-7604 MX23L-KD 4M HT Man 4F DLX
7408-7604 MX23L-HD 4M HT Auto 3FC DLX
MX23-KD 4M HT Man 4F W40 F 3.909 DLX 124/5600 18.4/3600 8.5 1360 1345 1140
MX23-HD 4M HT Auto 3FC 3.909 DLX 124/5600 18.4/3600 8.5 1360 1345
7209-7611 MX23L-KDA 4M HT Man 4F 3.900 122/5200 141/3600 8.5 1360 1345 2730 lb
7209-7611 MX23L-HDA 4M HT Auto 3FC E 3.900 122/5200 141/3600 8.5 1360 1345 2750 lb
7209-7611 MX23L-KDA 4M HT Man 4F 3.900 122/5200 141/3600 8.5 1360 1345 2730 lb
7209-7611 MX23L-HDA 4M HT Auto 3FC E 3.900 122/5200 141/3600 8.5 1360 1345 2750 lb

X26 series 1700cc Wagon
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RX26-YD 6R 4DW Man 3H DX
RX26-KD 6R 4DW Man 4F DX
RX26-ND 6R 4DW Auto 3HC DX

X27 series 1800cc Wagon
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RX27-YD 16R 4DW Man 3H DX
RX27-KD 16R 4DW Man 4F DX
RX27-ND 16R 4DW Auto 3HC DX
MX27-MN M 4DW Man 5F L
A-RX27-**

X28 series 2000cc 4 cyl, 2300cc 6 cyl Station Wagon
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RX28-YD 18R 4DW Man 3H DX
RX28-KD 18R 4DW Man 4F DX
RX28-ND 18R 4DW Auto 3HC DX
RX28-HD 18R 4DW Auto 3FC DX
A-RX28-**
7201-7611 RX28-YR 18R 4DW Man 3H Std
7201-7611 RX28-KR 18R 4DW Man 4F Std
7201-7611 RX28-NR 18R 4DW Man 3HC Std
7308-7408 MX28-KD 2M 4DW Man 4F DLX
7201-7611 RX28L-YR 18R 4DW Man 3H Std
7201-7611 RX28L-KR 18R 4DW Man 4F Std
7201-7611 RX28L-NR 18R 4DW Man 3HC Std
7201-7208 MX28L-KDA 2M 4DW Man 4F 3.900 109/5200 120/3600 8.8 1360 1345 2745 lb
7201-7208 MX28L-HDA 2M 4DW Auto 3FC 3.900 109/5200 120/3600 8.8 1360 1345 2780 lb
7201-7208 MX28L-KDA 2M 4DW Man 4F 3.900 109/5200 120/3600 8.8 1360 1345 2745 lb
7201-7208 MX28L-HDA 2M 4DW Auto 3FC 3.900 109/5200 120/3600 8.8 1360 1345 2780 lb

X29 series 2600cc 6 cyl Station Wagon
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7209-7611 MX29L-KDA 4M 4DW Man 4F 4.100 122/5200 141/3600 8.5 1360 1345 2795 lb
7209-7611 MX29L-HDA 4M 4DW Auto 3FC 4.100 122/5200 141/3600 8.5 1360 1345 2815 lb
7209-7611 MX29L-KDA 4M 4DW Man 4F 4.100 122/5200 141/3600 8.5 1360 1345 2795 lb
7209-7611 MX29L-HDA 4M 4DW Auto 3FC 4.100 122/5200 141/3600 8.5 1360 1345 2815 lb

Cressida 3#, 4# 1977-1980

A totally new body shape was introduced using the old mechanicals.
The Chaser was introduced as a new model to be sold through Toyota Auto dealerships in Japan.
They used the Mark II body but had different front sheet metal, indicators, grill and trim.
It was identified by a "D" inserted just after the second "-".

The Japanese market continued to use the Mark II name but most international markets changed to the Cressida name instead.
Many international owners mistakenly call this the first generation Cressida.

X30 series
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7704-7711 C-TX30-EKD 3T-U 4DS Man 4F E DLX
7704-7903 C-TX30-EHD 3T-U 4DS Auto 3FC E DLX
7704-7711 C-TX30-EKN 3T-U 4DS Man 4F E GL
7704-7903 C-TX30-EHN 3T-U 4DS Auto 3FC E GL
7612-7808 C-RX30-EBR 18R-U 4DS Man 4H Std
7612-7808 C-RX30-EBD 18R-U 4DS Man 4H DLX
7612-7808 C-RX30-EKD 18R-U 4DS Man 4F DLX
7612-7808 C-RX30-EMD 18R-U 4DS Man 5F DLX
7612-7808 C-RX30-EHD 18R-U 4DS Auto 4FC DLX
7612-7808 C-RX30-EBN 18R-U 4DS Man 4H GL
7612-7808 C-RX30-EKN 18R-U 4DS Man 4F GL
7612-7808 C-RX30-EMN 18R-U 4DS Man 5F GL
7612-7808 C-RX30-EHN 18R-U 4DS Auto 4FC GL
7612-7903 C-MX30-EKN M-U 4DS Man 4F E L
7612-7903 C-MX30-EMN M-U 4DS Man 4F E L
7612-7903 C-MX30-ENN M-U 4DS Auto 3HC E L
7612-7903 C-MX30-EHN M-U 4DS Auto 3FC E L
7612-7903 C-MX30-EKG M-U 4DS Man 4F E LG
7612-7903 C-MX30-EMG M-U 4DS Man 4F E LG
7612-7903 C-MX30-EHG M-U 4DS Auto 3FC E LG
7803-7903 C-MX30-EKDP M-U LPG 4DS Man 4F E DLX LPG
7707-7711 C-TX30-SKD 3T-U HT Man 4F E DLX
7707-7903 C-TX30-SHD 3T-U HT Auto 3FC E DLX
7707-7711 C-TX30-SKN 3T-U HT Man 4F E GL
7707-7903 C-TX30-SHN 3T-U HT Auto 3FC E GL
7612-7808 C-RX30-SKD 18R-U HT Man 4F DLX
7612-7808 C-RX30-SMD 18R-U HT Man 5F DLX
7612-7808 C-RX30-SHD 18R-U HT Auto 4FC DLX
7612-7808 C-RX30-SKN 18R-U HT Man 4F GL
7612-7808 C-RX30-SMN 18R-U HT Man 5F GL
7612-7808 C-RX30-SHN 18R-U HT Auto 4FC GL
7612-7903 C-MX30-SKN M-U HT Man 4F E L
7612-7903 C-MX30-SMN M-U HT Man 4F E L
7612-7903 C-MX30-SHN M-U HT Auto 3FC E L
7612-7903 C-MX30-SKG M-U HT Man 4F E LG
7612-7903 C-MX30-SMG M-U HT Man 4F E LG
7612-7903 C-MX30-SHG M-U HT Auto 3FC E LG
7612-8008 RX30-EYR 18R 4DS Man 3H Std
7612-8008 RX30R-EKR 18R 4DS Man 4F Std
7612-8008 RX30R-EYD 18R 4DS Man 3H DLX
7612-8008 RX30R-EKD 18R 4DS Man 4F DLX
7808-8008 RX30R-EMD 18R 4DS Man 5F DLX
7612-8008 RX30R-EHD 18R 4DS Auto 3FC DLX
7808-8008 RX30R-EKN 18R 4DS Man 4F GL
7808-8008 RX30R-EHN 18R 4DS Auto 3FC GL
7612-8008 RX30L-EYR 18R 4DS Man 3H Std
7612-8008 RX30L-EKR 18R 4DS Man 4F Std
7612-8008 RX30L-EYD 18R 4DS Man 3H DLX
7612-8008 RX30L-EKD 18R 4DS Man 4F DLX
7612-8008 RX30L-EHD 18R 4DS Auto 3FC DLX
7808-8008 RX30L-EKN 18R 4DS Man 4F GL
7808-8008 RX30L-EHN 18R 4DS Auto 3FC GL
7612-8008 RX30R-SKD 18R HT Man 4F DLX
7612-8008 RX30R-SHD 18R HT Auto 3FC DLX
7612-8008 RX30L-SKD 18R HT Man 4F DLX
7612-8008 RX30L-SHD 18R HT Auto 3FC DLX
7808-8008 RX30L-SKN 18R HT Man 4F GL
7808-8008 RX30L-SHN 18R HT Auto 3FC GL
7612-7808 RX30R-EKRW 18R 4DS Man 4F Std
7612-8008 RX30R-EKDW 18R 4DS Man 4F DLX
7612-8008 RX30R-EHDW 18R 4DS Auto 3FC DLX
7612-8008 RX30L-EKRW 18R 4DS Man 4F Std
7612-8008 RX30L-EKDW 18R 4DS Man 4F DLX
7612-8008 RX30L-EMDW 18R 4DS Man 5F DLX
7612-8008 RX30L-EHDW 18R 4DS Auto 3FC DLX
7612-8008 RX30L-EKNW 18R 4DS Man 4F GL
7612-8008 RX30L-EMNW 18R 4DS Man 5F GL
7612-8008 RX30L-EHNW 18R 4DS Auto 3FC GL
7612-7808 RX30R-SKDW 18R HT Man 4F DLX
7612-7808 RX30R-SHDW 18R HT Auto 3FC DLX
7612-8008 RX30L-SKDW 18R HT Man 4F DLX
7612-8008 RX30L-SMDW 18R HT Man 5F DLX
7612-8008 RX30L-SHDW 18R HT Auto 3FC DLX
7808-8008 RX30L-SKNW 18R HT Man 4F GL
7808-8008 RX30L-SMNW 18R HT Man 5F GL
7808-8008 RX30L-SHNW 18R HT Auto 3FC GL
8001-8008 TX30R-EKRN 3T 4DS Man 4F Std
8001-8008 TX30R-EHRN 3T 4DS Auto 3FC Std
7707-8008 RX30L-EKDC 18R-C 4DS Man 4F DLX
7707-8008 RX30L-EHDC 18R-C 4DS Auto 3FC DLX
7707-8001 RX30R-EKRN 18R 4DS Man 4F Std
7707-8001 RX30R-EHRN 18R 4DS Auto 3FC Std
7704-7808 RX30R-EKDN 18R 4DS Man 4F DLX
7808-8008 RX30R-EMDN 18R 4DS Man 5F DLX
7707-8008 RX30R-EHDN 18R 4DS Auto 3FC DLX
8001-8008 RX30R-EMNN 18R 4DS Man 5F GL
8001-8008 RX30R-EHNN 18R 4DS Auto 3FC GL

X30D series Chaser
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7707-7711 C-TX30-DEKDS 3T-U 4DS Man 4F DLX
7707-7903 C-TX30-DEHDS 3T-U 4DS Auto 3FC DLX
7707-7711 C-TX30-DEKNS 3T-U 4DS Man 4F XL
7707-7903 C-TX30-DEHNS 3T-U 4DS Auto 3FC XL
7707-7808 C-RX30-DEKDS 18R-U 4DS Man 4F DLX
7707-7808 C-RX30-DEMDS 18R-U 4DS Man 5F DLX
7707-7808 C-RX30-DEHDS 18R-U 4DS Auto 3FC DLX
7707-7808 C-RX30-DEKNS 18R-U 4DS Man 4F XL
7707-7808 C-RX30-DEMNS 18R-U 4DS Man 5F XL
7707-7808 C-RX30-DEHNS 18R-U 4DS Auto 3FC XL
7707-7903 C-MX30-DEKNS M-U 4DS Man 4F SXL
7707-7903 C-MX30-DEMNS M-U 4DS Man 5F SXL
7707-7903 C-MX30-DEHNS M-U 4DS Auto 3FC SXL
7707-7711 C-TX30-DSKDS 3T-U HT Man 4F DLX
7707-7903 C-TX30-DSHDS 3T-U HT Auto 3FC DLX
7707-7711 C-TX30-DSKNS 3T-U HT Man 4F XL
7707-7903 C-TX30-DSHNS 3T-U HT Auto 3FC XL
7707-7808 C-RX30-DSKDS 18R-U HT Man 4F DLX
7707-7808 C-RX30-DSMDS 18R-U HT Man 5F DLX
7707-7808 C-RX30-DSHDS 18R-U HT Auto 3FC DLX
7707-7808 C-RX30-DSKNS 18R-U HT Man 4F XL
7707-7808 C-RX30-DSMNS 18R-U HT Man 5F XL
7707-7808 C-RX30-DSHNS 18R-U HT Auto 3FC XL
7707-7903 C-MX30-DSKNS M-U HT Man 4F SXL
7707-7903 C-MX30-DSMNS M-U HT Man 5F SXL
7707-7903 C-MX30-DSHNS M-U HT Auto 3FC SXL

X31 series 2000cc
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7612-7808 C-RX31-EMZ 18R-U 4DS Man 5F GSL
7612-7707 C-MX31-EMGE M-EU 4DS Man 5F E LG Touring EFI
7612-7707 C-MX31-EHGE M-EU 4DS Auto 3FC E LG Touring EFI
7612-7707 C-MX31-EMQE M-EU 4DS Man 5F E Grande
7612-7707 C-MX31-ENQE M-EU 4DS Auto 3HC E Grande
7612-7707 C-MX31-EHQE M-EU 4DS Auto 3FC E Grande
7612-7808 C-RX31-SMZ 18R-U HT Man 5F GSL
7612-7707 C-MX31-SMGE M-EU HT Man 5F E LG Touring EFI
7612-7707 C-MX31-SHGE M-EU HT Auto 3FC E LG Touring EFI
7612-7707 C-MX31-SMQE M-EU HT Man 5F E Grande
7612-7707 C-MX31-SHQE M-EU HT Auto 3FC E Grande

X31D series Chaser
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7707-7808 C-RX31-DEMZS 18R-U 4DS Man 5F GS
7707-7808 C-RX31-DSMZS 18R-U HT Man 5F GS 100/5500 15.5/3600 8.5 1375 1380 1135

X32 series 2600cc Sedan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7612-8008 MX32R-EKDQ 4M 4DS Man 4F E 3.909 DLX 105/4800 18.4/2400 8.5 1375 1350 1175
7612-8008 MX32R-EHDQ 4M 4DS Man 4F E 3.909 DLX 105/4800 18.4/2400 8.5 1375 1350 1175
7708-7908 MX32L-EHNA 4M 4DS Auto 4FC E 3.99 L
7808-7908 MX32L-EHGA 4M 4DS Auto 4FC E 3.99 LG
7908-8008 MX32L-EHNEA 4M-E 4DS Auto 4FC E 3.99 L
7908-8008 MX32L-EHGEA 4M-E 4DS Auto 4FC E 3.99 LG
7707-8001 MX32R-EHNN 4M 4DS Auto 3FC E SDX

X33 series 2600cc
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7612-7803 C-MX33-EHQ 4M-U 4DS Auto 3FC E Grande
7612-7803 C-MX33-SHQ 4M-U HT Auto 3FC E Grande

X35 series 2000cc Wagon
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7612-7903 C-MX35-WMN M-U 4DW Man 5F E L
7612-7903 C-MX35-WNN M-U 4DW Auto 3HC E L
7812-7903 C-MX35-WHN M-U 4DW Auto 3FC E L
7612-8008 RX35R-WYR 18R 4DW Man 3H Std
7612-8008 RX35R-WKR 18R 4DW Man 4F Std
7612-8008 RX35R-WKD 18R 4DW Man 4F DLX
7612-8008 RX35R-WHD 18R 4DW Auto 3FC DLX
7612-8008 RX35L-WYR 18R 4DW Man 3H Std
7612-8008 RX35L-WKR 18R 4DW Man 4F Std
7612-8008 RX35L-WKD 18R 4DW Man 4F DLX
7612-8008 RX35L-WHD 18R 4DW Auto 3FC DLX
7612-7808 RX35R-WKRW 18R 4DW Man 4F Std
7612-8008 RX35R-WKDW 18R 4DW Man 4F DLX
7612-8008 RX35R-WHDW 18R 4DW Auto 3FC DLX
7704-7808 RX35L-WYRW 18R 4DW Man 3H Std
7612-8008 RX35L-WKRW 18R 4DW Man 4F Std
7612-8008 RX35L-WKDW 18R 4DW Man 4F DLX
7612-8008 RX35L-WMDW 18R 4DW Man 5F DLX
7612-8008 RX35L-WHDW 18R 4DW Auto 3FC DLX
7707-7908 RX35L-WKDC 18R-C 4DW Man 4F DLX
7707-7908 RX35L-WHDC 18R-C 4DW Auto 3FC DLX
7707-8001 RX35R-WKDN 18R 4DW Man 4F DLX
8001-8008 RX35R-WKDN 18R 4DW Man 4F DLX
7707-8008 RX35R-WHDN 18R 4DW Auto 3FC DLX

X36 series 2600cc Wagon
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7612-8008 MX36R-WKDQ 4M 4DW Man 4F 3.909 DLX 105/4800 18.4/2400 8.5 1375 1350 1210
7612-8008 MX36R-WHDQ 4M 4DW Auto 3FC 3.909 DLX 105/4800 18.4/2400 8.5 1375 1350 1210
7708-7908 MX36L-WHNA 4M 4DW Auto 4FC 3.99 L
7908-8008 MX36L-WHNEA 4M-E 4DW Auto 4FC 3.99 L

X37 series 1800cc Van
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7612-7912 H-RX37V-XYR 16R-J 4DV Man 3H Std
7612-7912 H-RX37V-XYD 16R-J 4DV Man 3H DLX
7612-7912 H-RX37V-XKD 16R-J 4DV Man 4F DLX
7612-7912 H-RX37V-XKN 16R-J 4DV Man 4F GL
7612-7912 H-RX37V-XHN 16R-J 4DV Auto 3FC GL

X40 series Cressida
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7808-8008 E-TX40-XEKRS 13T-U 4DS Man 4F E Std
7711-8008 E-TX40-XEKDS 13T-U 4DS Man 4F E DLX
7711-7808 E-TX40-XEMDS 13T-U 4DS Man 5F E DLX
7908-8008 E-TX40-XEHDS 13T-U 4DS Auto 3FC E DLX
7711-8008 E-TX40-XEKNS 13T-U 4DS Man 4F E GL
7711-8008 E-TX40-XEMNS 13T-U 4DS Man 5F E GL
7908-8008 E-TX40-XEHNS 13T-U 4DS Auto 3FC E GL
7808-8008 E-RX40-XEBDS 21R-U 4DS Man 4H E DLX
7808-8008 E-RX40-XEHDS 21R-U 4DS Auto 3FC E DLX
7808-8008 E-RX40-XEKDS 21R-U 4DS Man 4F E DLX
7808-8008 E-RX40-XEBNS 21R-U 4DS Man 4H E GL
7808-8008 E-RX40-XEHNS 21R-U 4DS Auto 3FC E GL
7808-8008 E-RX40-XEKNS 21R-U 4DS Man 4F E GL
7808-8008 E-RX40-XEMNS 21R-U 4DS Man 5F E GL
7903-8008 E-MX40-XEKNS M-U 4DS Man 4F E L
7903-8008 E-MX40-XEMNS M-U 4DS Man 5F E L
7903-8008 E-MX40-XENNS M-U 4DS Auto 3HC E L
7903-8008 E-MX40-XEHNS M-U 4DS Auto 3FC E L
7903-8008 E-MX40-XEKGS M-U 4DS Man 4F E LG
7903-8008 E-MX40-XEMGS M-U 4DS Man 5F E LG
7903-8008 E-MX40-XEHGS M-U 4DS Auto 3FC E LG
7707-7808 E-MX40-XEMNE M-EU 4DS Man 5F E L
7707-7808 E-MX40-XEHNE M-EU 4DS Auto 3FC E L
7707-8008 E-MX40-XEMGE M-EU 4DS Man 5F E LG
7707-7808 E-MX40-XEHGE M-EU 4DS Auto 3FC E LG
7808-8008 E-MX40-XEHGE M-EU 4DS Auto 4FC E LG
7909-8008 E-LX40-XEMDSY L 4DS Man 5F DLX
7909-8008 E-LX40-XEHDSY L 4DS Man 4FC DLX
7909-8008 E-LX40-XEMNSY L 4DS Man 5F GL
7909-8008 E-LX40-XEHNSY L 4DS Man 4FC GL
7711-8008 E-TX40-XSKDS 13T-U HT Man 4F E DLX
7711-7808 E-TX40-XSMDS 13T-U HT Man 5F E DLX
7908-8008 E-TX40-XSHDS 13T-U HT Auto 3FC E DLX
7711-8008 E-TX40-XSKNS 13T-U HT Man 4F E GL
7711-8008 E-TX40-XSMNS 13T-U HT Man 5F E GL
7908-8008 E-TX40-XSHNS 13T-U HT Auto 3FC E GL
7808-8008 E-RX40-XSKDS 21R-U HT Man 4F E DLX
7808-8008 E-RX40-XSHDS 21R-U HT Auto 3FC E DLX
7808-8008 E-RX40-XSKNS 21R-U HT Man 4F E GL
7808-8008 E-RX40-XSMNS 21R-U HT Man 5F E GL
7808-8008 E-RX40-XSHNS 21R-U HT Auto 3FC E GL
7903-8008 E-MX40-XSKNS M-U HT Man 4F E L
7903-8008 E-MX40-XSMNS M-U HT Man 5F E L
7903-8008 E-MX40-XSHNS M-U HT Auto 3FC E L
7903-8008 E-MX40-XSKGS M-U HT Man 4F E LG
7903-8008 E-MX40-XSMGS M-U HT Man 5F E LG
7903-8008 E-MX40-XSHGS M-U HT Auto 3FC E LG
7707-7808 E-MX40-XSMNE M-EU HT Man 5F E L
7707-7808 E-MX40-XSHNE M-EU HT Auto 3FC E L
7707-8008 E-MX40-XSMGE M-EU HT Man 5F E LG
7707-7808 E-MX40-XSHGE M-EU HT Auto 3FC E LG
7808-8008 E-MX40-XSHGE M-EU HT Auto 4FC E LG

X40D series Chaser
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7711-8008 E-TX40-DEKDS 13T-U 4DS Man 4F E DLX
7711-7808 E-TX40-DEMDS 13T-U 4DS Man 5F E DLX
7908-8008 E-TX40-DEHDS 13T-U 4DS Auto 3FC E DLX
7711-8008 E-TX40-DEKNS 13T-U 4DS Man 4F E XL
7711-8008 E-TX40-DEMNS 13T-U 4DS Man 5F E XL
7908-8008 E-TX40-DEHNS 13T-U 4DS Auto 3FC E XL
7808-8008 E-RX40-DEKDS 21R-U 4DS Man 4F E DLX
7808-8008 E-RX40-DEHDS 21R-U 4DS Auto 3FC E DLX
7808-8008 E-RX40-DEKNS 21R-U 4DS Man 4F E XL
7808-8008 E-RX40-DEMNS 21R-U 4DS Man 5F E XL
7808-8008 E-RX40-DEHNS 21R-U 4DS Auto 3FC E XL
7903-8008 E-MX40-DEMNS M-U 4DS Man 5F E SXL
7903-8008 E-MX40-DEKNS M-U 4DS Man 4F E SXL
7903-8008 E-MX40-DEHNS M-U 4DS Auto 3FC E SXL
7707-8008 E-MX40-DEKNE M-U 4DS Man 4F E SXL
7707-7808 E-MX40-DEHNE M-U 4DS Auto 3FC E SXL
7808-8008 E-MX40-DEHNE M-U 4DS Auto 4FC E SXL
7711-8008 E-TX40-DSKDS 13T-U HT Man 4F E DLX
7711-7808 E-TX40-DSMDS 13T-U HT Man 5F E DLX
7908-8008 E-TX40-DSHDS 13T-U HT Auto 3FC E DLX
7711-8008 E-TX40-DSKNS 13T-U HT Man 4F E XL
7711-8008 E-TX40-DSMNS 13T-U HT Man 5F E XL
7908-8008 E-TX40-DSHNS 13T-U HT Auto 3FC E XL
7808-8008 E-RX40-DSKDS 21R-U HT Man 4F E DLX
7808-8008 E-RX40-DSHDS 21R-U HT Auto 3FC E DLX
7808-8008 E-RX40-DSKNS 21R-U HT Man 4F E XL
7808-8008 E-RX40-DSMNS 21R-U HT Man 5F E XL
7808-8008 E-RX40-DSHNS 21R-U HT Auto 3FC E XL
7903-8008 E-MX40-DEMNS M-U HT Man 5F E SXL
7903-8008 E-MX40-DEKNS M-U HT Man 4F E SXL
7903-8008 E-MX40-DEHNS M-U HT Auto 3FC E SXL
7707-8008 E-MX40-DEKNE M-U HT Man 4F E SXL
7707-7808 E-MX40-DEHNE M-U HT Auto 3FC E SXL
7808-8008 E-MX40-DEHNE M-U HT Auto 4FC E SXL

X41 series 2000cc
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7808-8008 E-RX41-XEMZS 21R-U 4DS Man 5F F GSL
7808-8008 E-RX41-XEHZS 21R-U 4DS Auto 3FC F GSL
7707-8008 E-MX41-XEMGE M-EU 4DS Man 5F F LG Touring
7707-7808 E-MX41-XEHGE M-EU 4DS Auto 3FC F LG Touring
7802-8008 E-MX41-XEHGE M-EU 4DS Auto 4FC F LG Touring
7707-8008 E-MX41-XEMQE M-EU 4DS Man 5F F Grande
7707-7808 E-MX41-XEHQE M-EU 4DS Auto 3FC F Grande
7802-8008 E-MX41-XEHQE M-EU 4DS Auto 4FC F Grande
7707-7808 E-MX41-XENQE M-EU 4DS Auto 3HC F Grande
7802-8008 E-MX41-XENQE M-EU 4DS Auto 4HC F Grande
7808-8008 E-RX41-XSMZS 21R-U HT Man 5F F GSL
7808-8008 E-RX41-XSHZS 21R-U HT Auto 3FC F GSL
7707-8008 E-MX41-XSMGE M-EU HT Man 5F F LG Touring
7707-7808 E-MX41-XSHGE M-EU HT Auto 3FC F LG Touring
7802-8008 E-MX41-XSHGE M-EU HT Auto 4FC F LG Touring
7707-8008 E-MX41-XSMQE M-EU HT Man 5F F Grande
7707-7808 E-MX41-XSHQE M-EU HT Auto 3FC F Grande
7802-8008 E-MX41-XSHQE M-EU HT Auto 4FC F Grande

X41D series Chaser 2000cc
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7808-8008 E-RX41-DEMZS 21R-U 4DS Man 5F GS
7808-8008 E-RX41-DEHZS 21R-U 4DS Auto 3FC GS
7707-8008 E-MX41-DEMNE M-EU 4DS Man 5F SGS
7707-7808 E-MX41-DEHNE M-EU 4DS Auto 3FC SGS
7802-8008 E-MX41-DEHNE M-EU 4DS Auto 4FC SGS
7707-8008 E-MX41-DEMGE M-EU 4DS Man 5F SG Touring
7707-7808 E-MX41-DEHGE M-EU 4DS Auto 3FC SG Touring 125/6000 17.0/4000 8.6 1390 1395 1165
7802-8008 E-MX41-DEHGE M-EU 4DS Auto 4FC SG Touring
7808-8008 E-RX41-DSMZS 21R-U HT Man 5F GS
7808-8008 E-RX41-DSHZS 21R-U HT Auto 3FC GS
7707-8008 E-MX41-DSMNE M-EU HT Man 5F SGS
7707-7808 E-MX41-DSHNE M-EU HT Auto 3FC SGS
7802-8008 E-MX41-DSHNE M-EU HT Auto 4FC SGS
7707-8008 E-MX41-DSMGE M-EU HT Man 5F SG Touring
7707-7808 E-MX41-DSHGE M-EU HT Auto 3FC SG Touring
7802-8008 E-MX41-DSHGE M-EU HT Auto 4FC SG Touring

X43 series 2600cc
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7803-8008 E-MX43-XEHQE 4M-EU 4DS Auto 4FC E Grande
7803-8008 E-MX43-XSHQE 4M-EU HT Auto 4FC E Grande

X45 series 2000cc Wagon
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7903-8008 E-MX45-WMN M-U 4DW Man 5F L
7903-8008 E-MX45-WNN M-U 4DW Auto 3HC L
7903-8008 E-MX45-WHN M-U 4DW Auto 3FC L

X47 series 1800cc Van
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7912-8008 J-TX47V-XXKRSW 13T-J 4DV Man 4F Std
7912-8008 J-TX47V-XXKDSW 13T-J 4DV Man 4F DLX
7912-8008 J-TX47V-XXKNSW 13T-J 4DV Man 4F GL
7912-8008 J-TX47V-XXHNSW 13T-J 4DV Auto 3FC GL

Cressida 5#, 6# 1980-1984

A totally new body shape was introduced using the old mechanicals.
The Cresta was introduced as a new model to be sold through Toyota Vista dealerships in Japan.
It used the new Mark II/Chaser body but had different front sheet metal, indicators, grill and trim.
It was identified by a "Y" inserted just after the second "-".

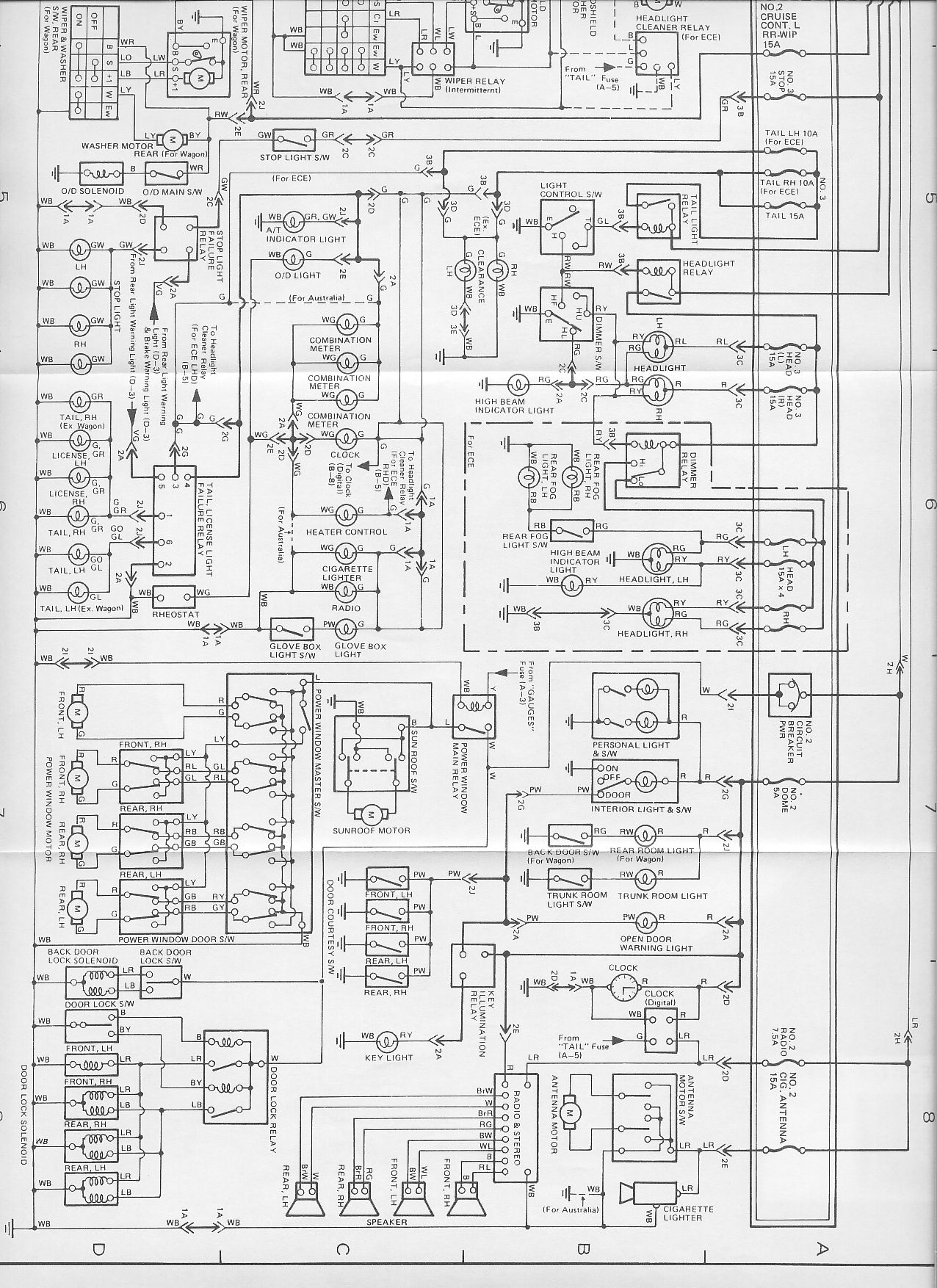

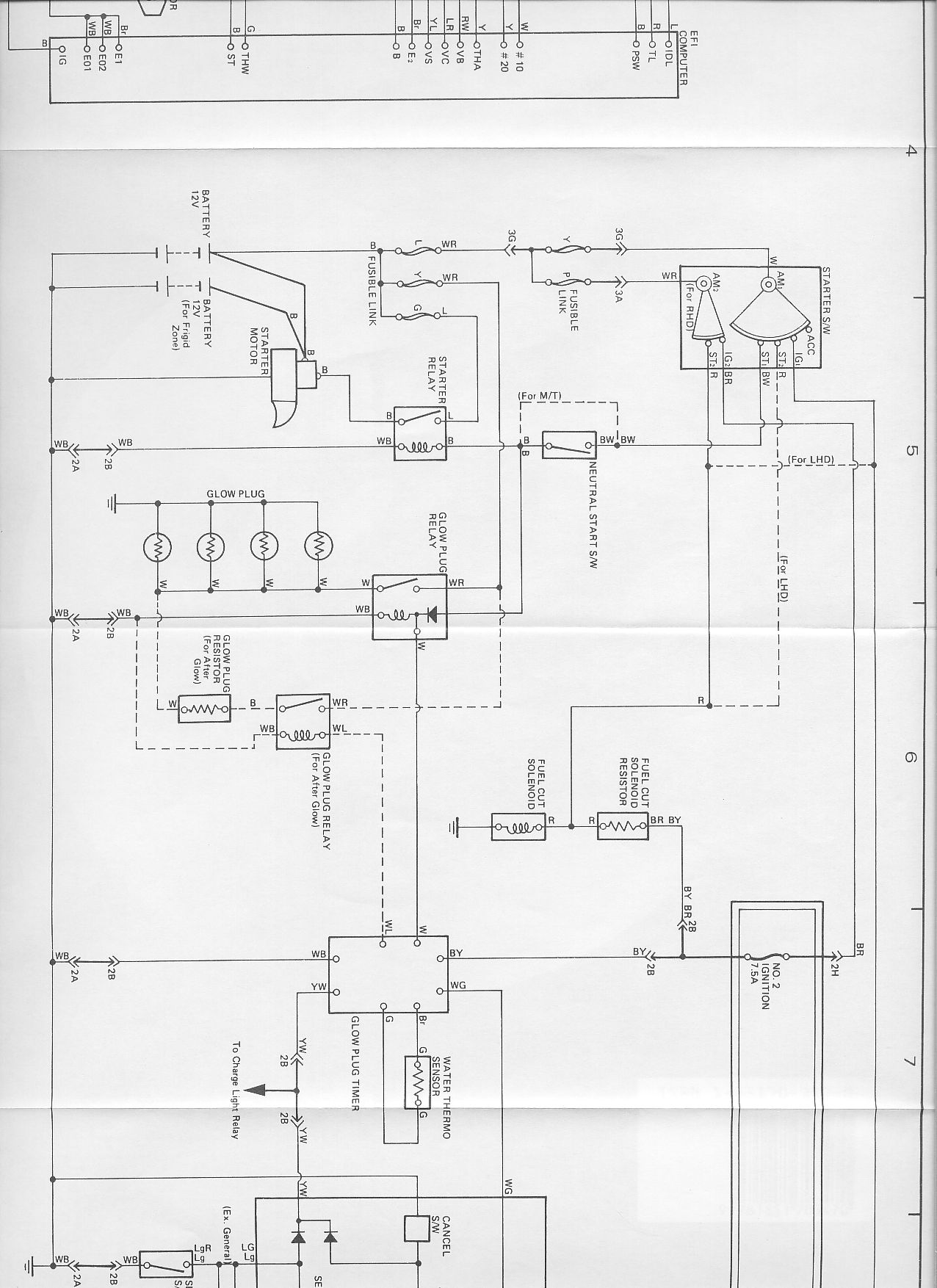

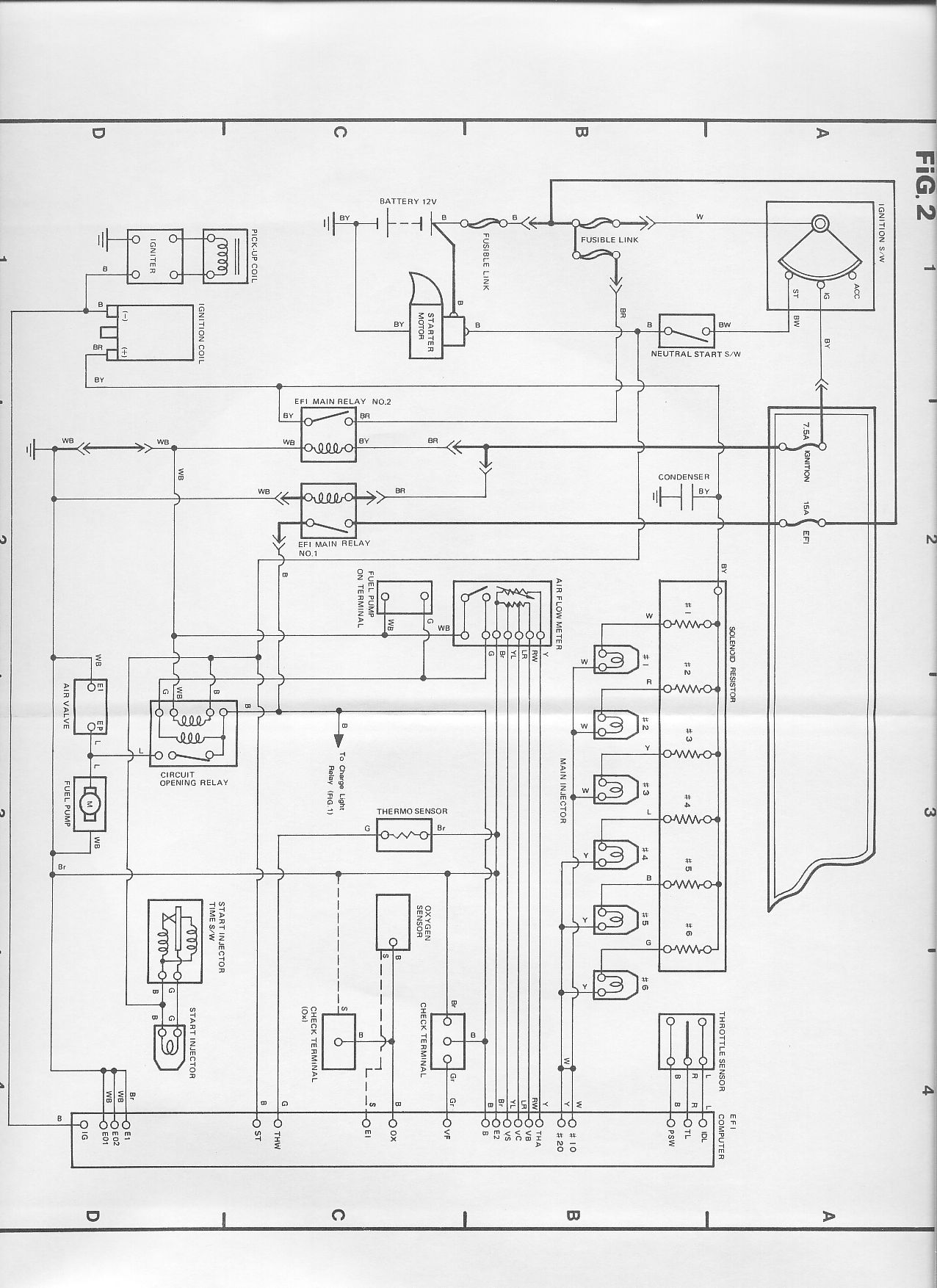

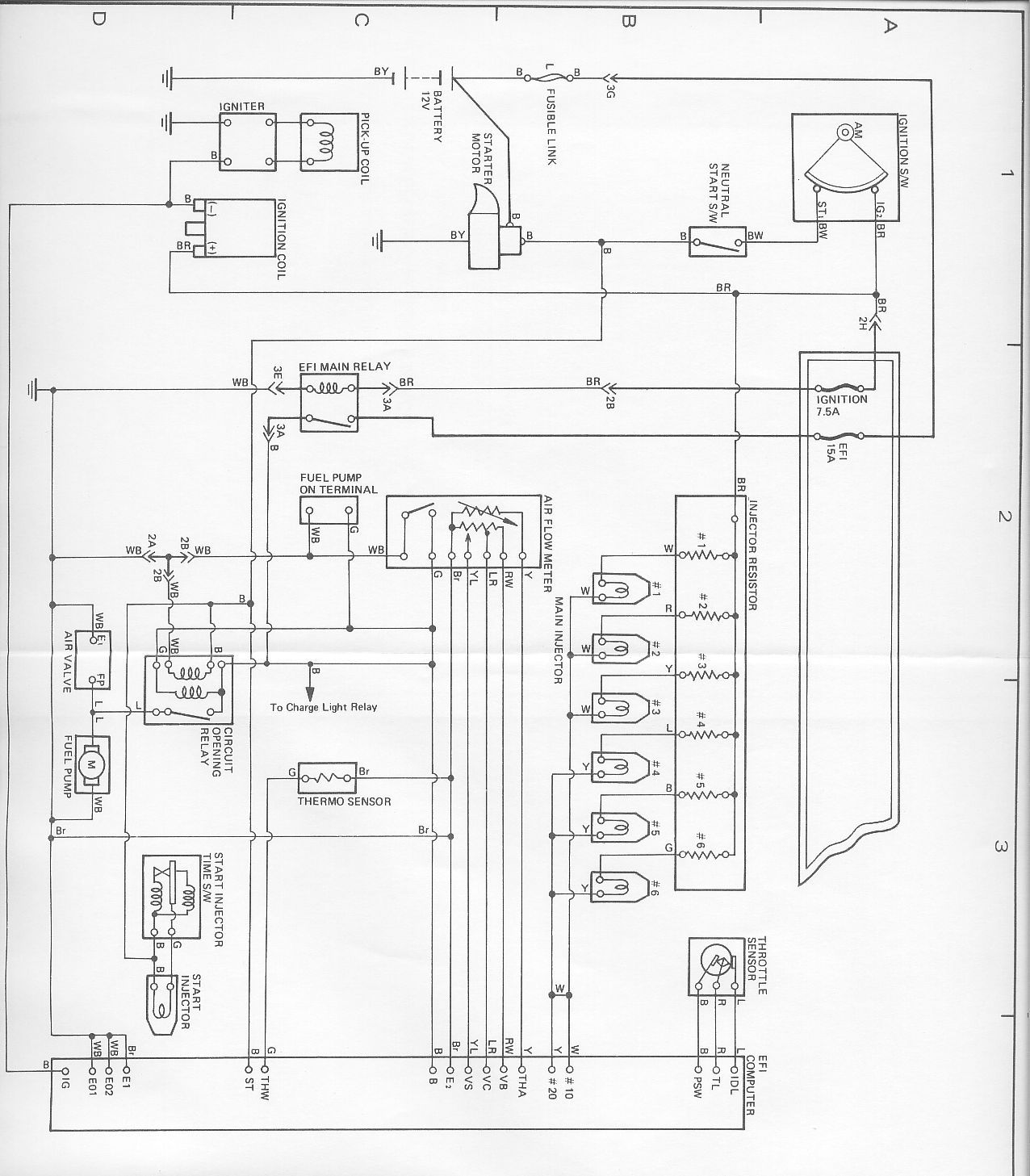

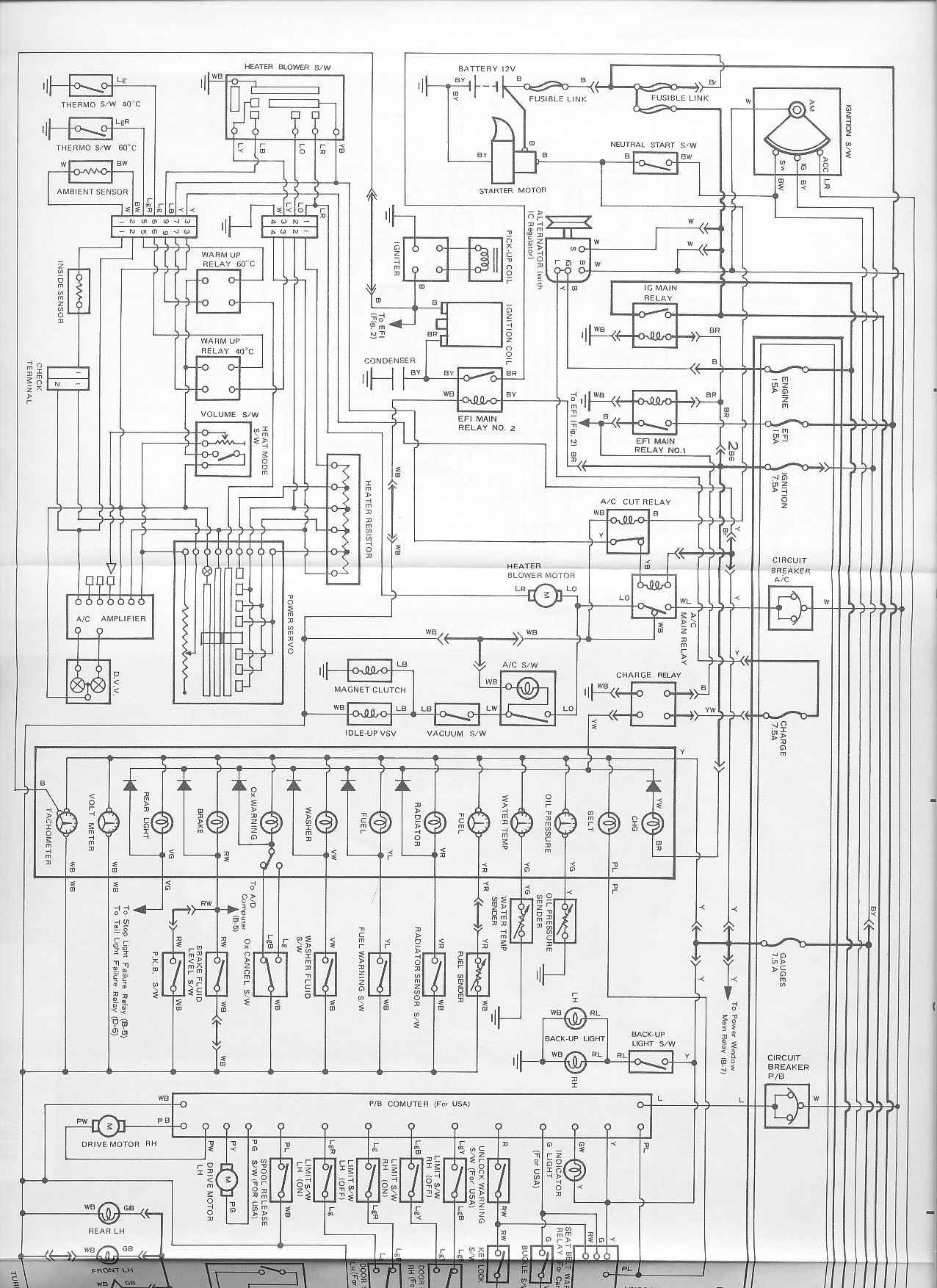

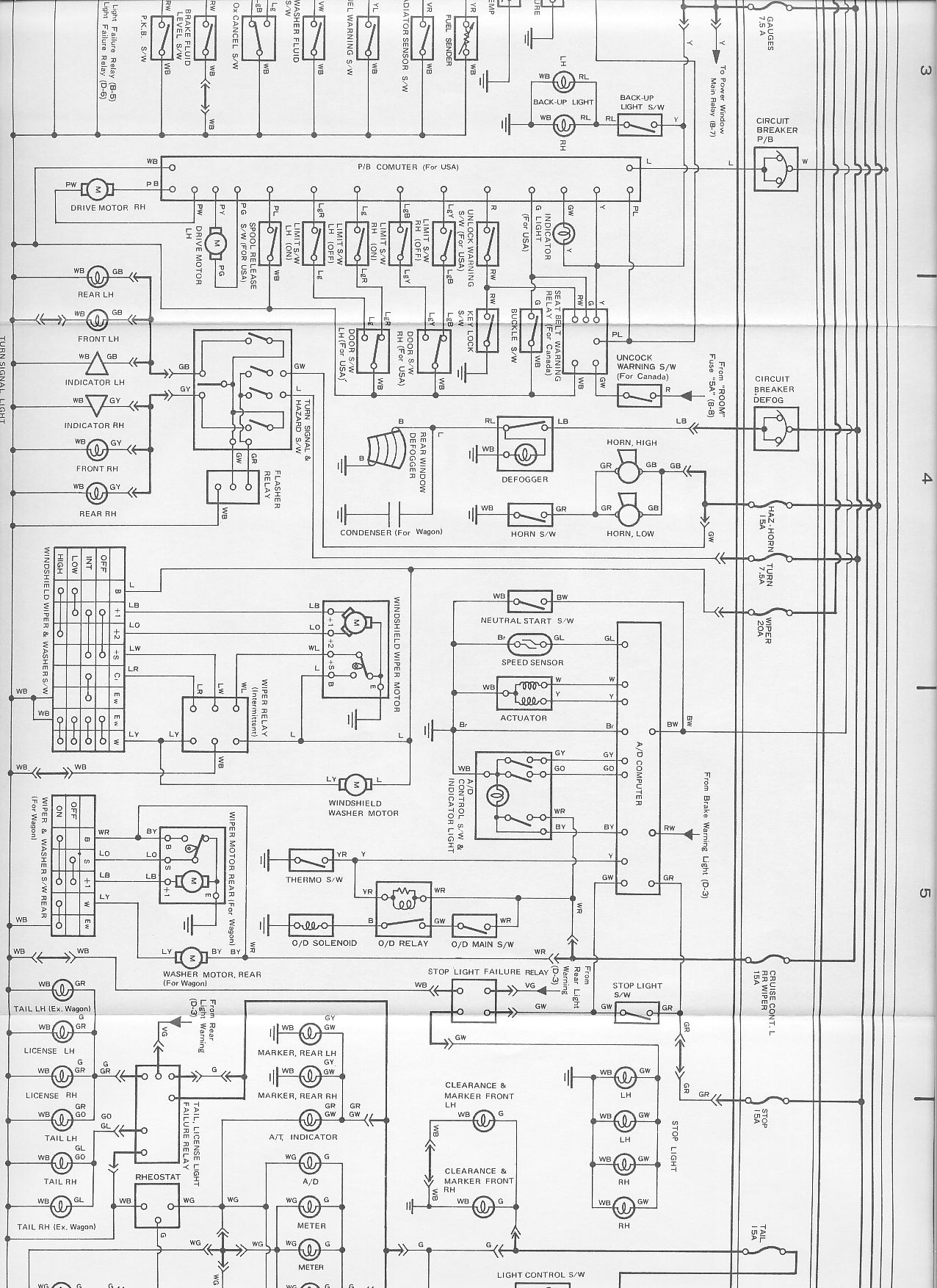

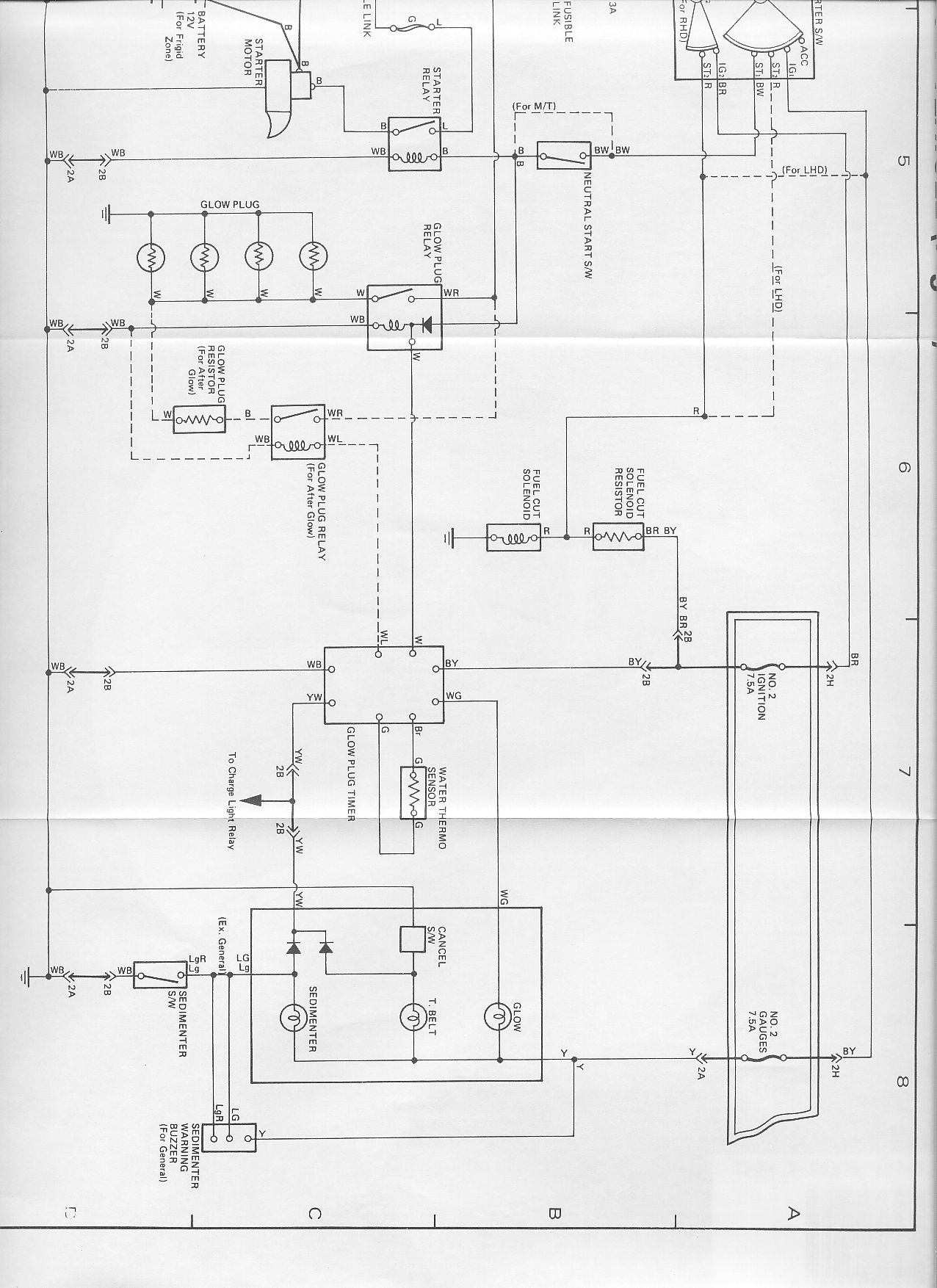

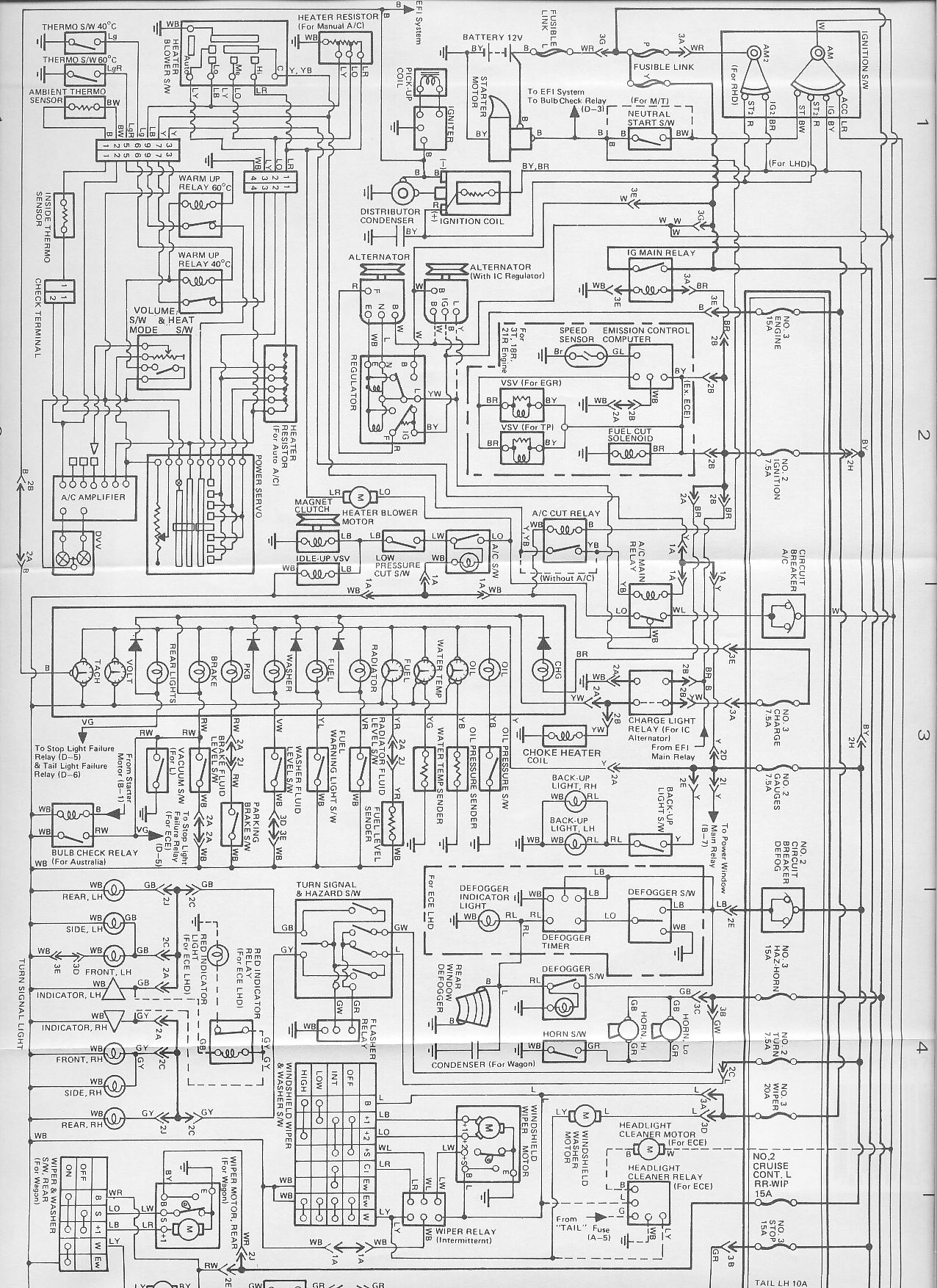

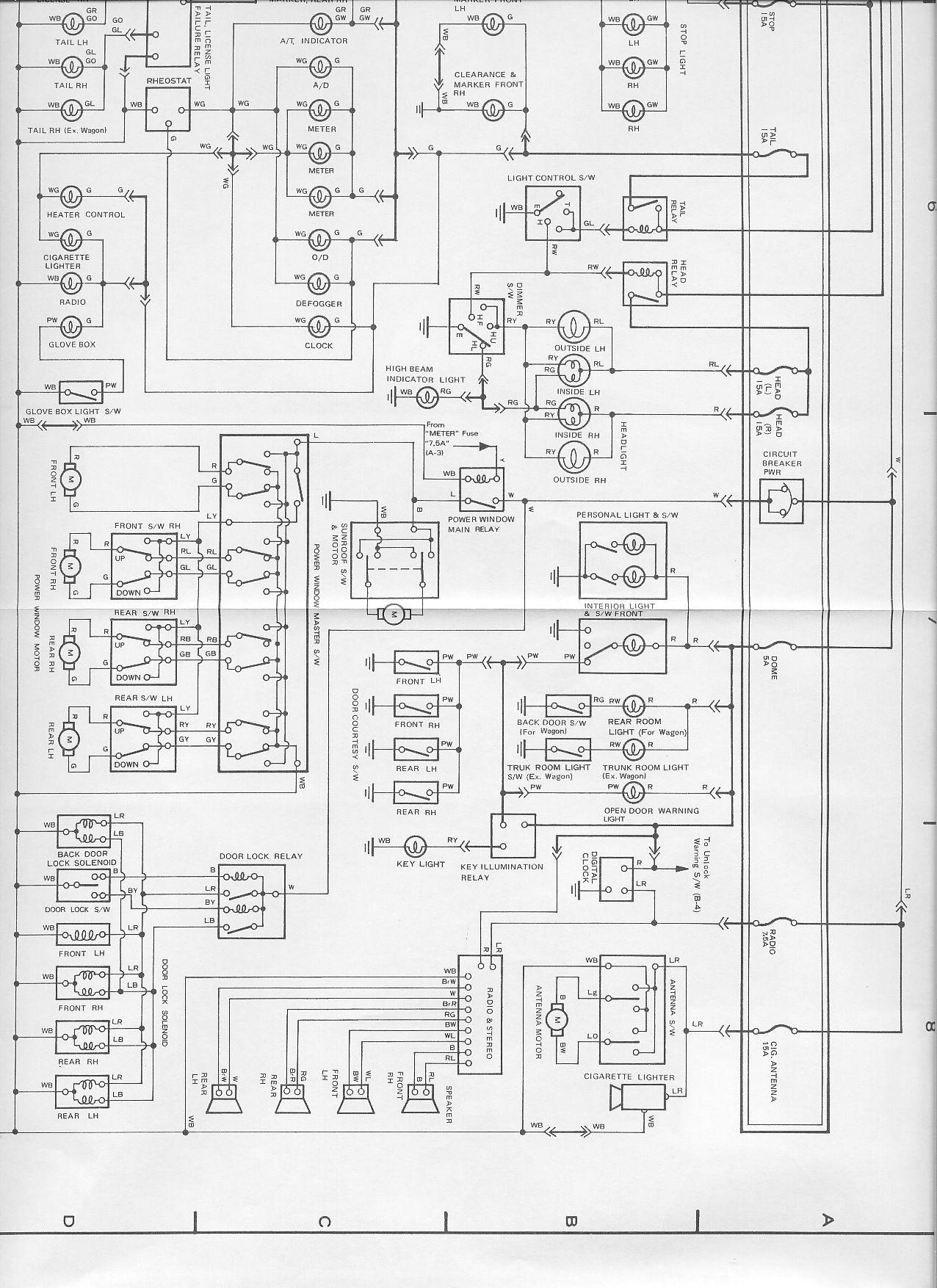

Wiring Diagrams:
Canada, US Spec Part 1-A, Part 1-B, Part 1-C, EFI
International Spec Part 3-A, Part 3-B, EFI, Diesel-A, Diesel-B

X51 series Cresta
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
E-GX51-YTMGE 1G-EU 4DH Man 5F W50 F 3.909

X60 series Cressida IRS
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
E-TX60-XEKNS 13T-U 4DS Man 4F W45 E 3.909 GL
E-SX60-XEPNS 1S-U 4DS Auto 4FC A40D E 4.100 GL
8009-8208 RX60R-XEYDS 21R 4DS Man 3H DLX
8009-8xxx RX60R-XEKDS 21R 4DS Man 4F DLX
8009-8208 RX60R-XEMDS 21R 4DS Man 5F DLX
8009-8208 RX60R-XEHDS 21R 4DS Auto 3FC DLX
8009-8xxx RX60R-XEPDS 21R 4DS Auto 4FC DLX
8009-8xxx RX60R-XEMNS 21R 4DS Man 5F GL
8009-8208 RX60R-XEHNS 21R 4DS Auto 3FC GL
8009-8xxx RX60R-XEPNS 21R 4DS Auto 4FC GL
8009-8208 RX60RG-XWYDS 21R 4DW Man 3H DLX
8009-8xxx RX60RG-XWKDS 21R 4DW Man 4F DLX
8009-8208 RX60RG-XWHDS 21R 4DW Auto 3FC DLX
8009-8208 LX60RG-XWMDS L 4DW Man 5F DLX
8009-8208 LX60RG-XWPDS L 4DW Auto 4FC DLX
8208-8xxx GX60R-XEMNE 1G-E 4DS Man 5F GL
8208-8xxx GX60R-XEPNE 1G-E 4DS Auto 4FC GL
8009-8208 LX60R-XEMRS L 4DS Man 5F Std
8009-8208 LX60R-XEMDS L 4DS Man 5F DLX
8009-8208 LX60R-XEPDS L 4DS Auto 4FC DLX
8009-8108 RX60L-XEYDS 21R 4DS Man 3H DLX
8108-8xxx RX60L-XEJDS 21R 4DS Man 4H DLX
8009-8xxx RX60L-XEKDS 21R 4DS Man 4F DLX
8009-8208 RX60L-XEMDS 21R 4DS Man 5F DLX
8009-8208 RX60L-XEHDS 21R 4DS Auto 3FC DLX
8009-8xxx RX60L-XEPDS 21R 4DS Auto 4FC DLX
8009-8xxx RX60L-XEMNS 21R 4DS Man 5F GL
8009-8208 RX60L-XEHNS 21R 4DS Auto 3FC GL
8009-8xxx RX60L-XEPNS 21R 4DS Auto 4FC GL
8208-8xxx GX60L-XEMNE 1G-E 4DS Man 5F GL
8208-8xxx GX60L-XEPNE 1G-E 4DS Auto 4FC GL
8009-8208 LX60L-XEMRS L 4DS Man 5F Std
8009-8208 LX60L-XEMDS L 4DS Man 5F DLX
8009-8208 LX60L-XEPDS L 4DS Auto 4FC DLX
8009-8108 RX60LG-XWYDS 21R 4DW Man 3H DLX
8108-8xxx RX60LG-XWJDS 21R 4DW Man 4H DLX
8009-8xxx RX60LG-XWKDS 21R 4DW Man 4F DLX
8009-8208 RX60LG-XWHDS 21R 4DW Auto 3FC DLX
8009-8208 LX60LG-XWMRS L 4DW Man 5F Std
8009-8208 LX60LG-XWMDS L 4DW Man 5F DLX
8009-8208 LX60LG-XWPDS L 4DW Auto 4FC DLX
8107-8208 RX60R-XEMDSN 21R 4DS Man 5F XL
8209-8xxx RX60R-XEMDSN 21R 4DS Man 5F DLX
8107-8208 RX60R-XEPDSN 21R 4DS Auto 4FC XL
8209-8xxx RX60R-XEPDSN 21R 4DS Auto 4FC DLX
8107-8208 RX60R-XEMNSN 21R 4DS Man 5F SLX
8107-8208 RX60R-XEPNSN 21R 4DS Auto 4FC SLX
8209-8xxx GX60R-XEMNEN 1G-E 4DS Man 5F GL
8209-8xxx GX60R-XEPNEN 1G-E 4DS Auto 4FC GL
8209-8xxx RX60RG-XWMDSN 21R 4DW Man 5F DLX
8209-8xxx RX60RG-XWPDSN 21R 4DW Auto 4FC DLX
8009-8108 RX60L-XEYDSV 21R 4DS Man 3H DLX
8108-8xxx RX60L-XEJDSV 21R 4DS Man 4H DLX
8009-8xxx RX60L-XEKDSV 21R 4DS Man 4F DLX
8009-8xxx RX60L-XEHDSV 21R 4DS Auto 3FC DLX
8208-8xxx RX60L-XEPDSV 21R 4DS Auto 4FC DLX
8009-8xxx RX60L-XEMNSV 21R 4DS Man 5F GL
8009-8xxx RX60L-XEHNSV 21R 4DS Auto 3FC GL
8208-8xxx RX60L-XEPNSV 21R 4DS Auto 4FC GL
8208-8xxx GX60L-XEMNEV 1G-E 4DS Man 5F GL
8208-8xxx GX60L-XEPNEV 1G-E 4DS Auto 4FC GL
8009-8xxx RX60LG-XWKDSV 21R 4DW Man 4F DLX
8009-8xxx RX60LG-XWHDSV 21R 4DW Auto 3FC DLX
8208-8xxx RX60LG-XWPDSV 21R 4DW Auto 4FC DLX
8009-8208 RX60R-XEMDSW 21R 4DS Man 5F DLX
8009-8208 RX60R-XEHDSW 21R 4DS Auto 3FC DLX
8009-8208 RX60R-XEMNSW 21R 4DS Man 5F GL
8009-8208 RX60R-XEHNSW 21R 4DS Auto 3FC GL
8009-8xxx LX60R-XEMDSE L 4DS Man 5F DLX
8009-8208 RX60RG-XWMDSW 21R 4DW Man 5F DLX
8009-8208 RX60RG-XWHDSW 21R 4DW Auto 3FC DLX
8009-8xxx RX60L-XEMDSW 21R 4DS Man 5F DLX
8009-8208 RX60L-XEHDSW 21R 4DS Auto 3FC DLX
8009-8208 RX60L-XEMNSW 21R 4DS Man 5F GL
8009-8208 RX60L-XEHNSW 21R 4DS Auto 3FC GL
8009-8208 LX60L-XEMRSW L 4DS Man 5F Std
8009-8xxx LX60L-XEMDSW L 4DS Man 5F DLX
8009-8xxx LX60L-XEPDSW L 4DS Auto 4FC DLX
8009-8xxx RX60LG-XWMDSW 21R 4DW Man 5F DLX
8009-8208 RX60LG-XWHDSW 21R 4DW Auto 3FC DLX
8009-8208 LX60LG-XWMRSW L 4DW Man 5F Std
8009-8208 LX60LG-XWMDSW L 4DW Man 5F DLX
8009-8xxx LX60LG-XWPDSW L 4DW Auto 4FC DLX
8009-8308 RX60L-XEMDCC 21R 4DS Man 5F DLX
8009-8208 RX60L-XEHDCC 21R 4DS Auto 3FC DLX
8009-8308 RX60L-XEMNCC 21R 4DS Man 5F GL
8208-8xxx RX60LG-XWMDCC 21R 4DW Man 5F DLX
8208-8308 RX60L-XEMDCC 21R 4DS Man 5F DLX
8208-8308 RX60L-XEMNCC 21R 4DS Man 5F GL
8208-8xxx RX60LG-XWMDCC 21R 4DW Man 5F DLX
RX60R-XEKDS 21R 4DW Man DX

X61 series Cressida IRS
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
E-GX61-XTPQE 1G-EU 4DH Auto 4FC A42DL F 3.909 Mark II Grande 1400
8208-8xxx GX61R-XEMNEW 1G-E 4DS Man 5F GL
8208-8xxx GX61R-XEPNEW 1G-E 4DS Auto 4FC GL
8208-8xxx GX61L-XEMNEW 1G-E 4DS Man 5F GL
8208-8xxx GX61L-XEPNEW 1G-E 4DS Auto 4FC GL

X61D series Chaser IRS
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
E-GX61-DTPGE 1G-EU 4DH Auto 4FC A42DL F 3.909 Chaser
E-GX61-DEPGE 1G-GE 4DS Auto 4FC A42DL T 3.909 Chaser Avante 160/6400 18.5/5200 9.1 1390 1395

X62 series Cressida Solid axle
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
82xx MA62R-XEPNEQ 5M-E 4DS Auto 4FC A43D E 3.727 GL 133.5/4800 22.4/3600 8.0 1390 1385 1690
8009-84xx MX62R-XEPNEQ 5M-E 4DS Auto 4FC A43D E 3.727 GL 133.5/4800 22.4/3600 8.0 1390 1385 1690
8009-8208 MX62RG-XWPDEQ 5M-E 4DW Auto 4FC 3.727 DLX 133.5/4800 22.4/3600 8.0 1390 1385 1700
8208-84xx MX62RG-XWPNEQ 5M-E 4DW Auto 4FC 3.727 GL 133.5/4800 22.4/3600 8.0 1390 1385 1700
8009-8208 MX62L-XEPDEK 5M-E 4DS Auto 4FC ECT A43D E 3.727
8108-8208 MX62LG-XWPMEK 5M-E 4DW Auto 4FC ECT A43D
8208-8407 MX62LG-XWPMFK 5M-GE 4DW Auto 4FC ECT 143/5200 21.3/4400 1390 1385 1364
8009-8208 MX62L-XEPMEA 5M-E 4DS Auto 4FC ECT A43D E 3.727
8009-8208 MX62LG-XWPMEA 5M-E 4DW Auto 4FC ECT A43D
8208-8407 MX62LG-XWPMFA 5M-GE 4DW Auto 4FC ECT 143/5200 21.3/4400 1390 1385 1364
8107-8208 TX62R-XEKRSN 3T 4DS Man 4F Std
8208-8xxx TX62R-XEMRSN 3T 4DS Man 5F Std
8107-8xxx TX62R-XEHRSN 3T 4DS Auto 3FC Std
8107-8208 RX62RG-XWMDSN 18R 4DW Man 5F DLX
8107-8208 RX62RG-XWHDSN 18R 4DW Auto 3FC DLX

X63 series Cressida IRS
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
8208-8407 MX63L-XEPMFK 5M-GE 4DS Auto 4FC ECT 143/5200 21.3/4400 1390 1395 1370
8208-8407 MX63L-XEMMFA 5M-GE 4DS Man 5F LSD 143/5200 21.3/4400 1390 1395 1370
8208-8407 MX63L-XEPMFA 5M-GE 4DS Auto 4FC ECT A43DE F 4.100 143/5200 21.3/4400 1390 1395 1370
8312-8xxx MX63L-XEPNEN 5M-E 4DS Auto 4FC GL 1390 1395 1370

Cressida 7# 1985-1988

X70 series Cressida
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
LX70*-** L
RX70*-**
GX70*-**
SX70*-**
YX70*-**

X70D series Chaser - Solid axle
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
E-SX70-DTMNS 1S-U 4HT Man 5F XL 100/5400 15.5/3400 9.0 1425 1385 1090
E-SX70-DTPNS 1S-U 4HT Auto 4FC XL 100/5400 15.5/3400 9.0 1425 1385 1100
E-SX70-DTMES 1S-U 4HT Man 5F XG 100/5400 15.5/3400 9.0 1425 1385 1120
E-SX70-DTMES 1S-U 4HT Man 5F XG Extra 100/5400 15.5/3400 9.0 1425 1385 1120
E-SX70-DTPES 1S-U 4HT Auto 4FC XG 100/5400 15.5/3400 9.0 1425 1385 1130
E-SX70-DTPES 1S-U 4HT Auto 4FC XG Extra 100/5400 15.5/3400 9.0 1425 1385 1130
N-LX70-DTMNS 2L 4HT Man 5F XL 83/4000 17.0/2400 22.3 1425 1385 1200
N-LX70-DTPNS 2L 4HT Auto 4FC XL 83/4000 17.0/2400 22.3 1425 1385
N-LX70-DTMNX 2L-T 4HT Man 5F XL Turbo 96/4000 19.5/2400 22.3 1425 1385 1210
N-LX70-DTPNX 2L-T 4HT Auto 4FC XL Turbo 96/4000 19.5/2400 22.3 1425 1385
N-LX70-DTMEX 2L-T 4HT Man 5F XG Turbo 96/4000 19.5/2400 22.3 1425 1385 1240
N-LX70-DTPEX 2L-T 4HT Auto 4FC XG Turbo 96/4000 19.5/2400 22.3 1425 1385 1240

X70Y series Cresta IRS
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
E-SX70-YEMES 1S-U 4DS Man 5F Super Custom Extra 100/5400 15.5/3400 1425 1385 1120
E-SX70-YEPES 1S-U 4DS Auto 4FC Super Custom Extra 100/5400 15.5/3400 1425 1385 1130
N-LX70-YEMEX 2L-T 4DS Man 5F Super Custom Extra 96/4000 19.5/2400 1425 1385 1240
N-LX70-YEMEX 2L-T 4DS Auto 4FC Super Custom Extra 96/4000 19.5/2400 1425 1385 1240

X71X series Cressida
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
LX71*-** 2L
LX71*-** 2L-T
GX71*-** 1G-E
GX71*-** 1G-GE
GX71*-** 1G-GEU
MX71*-** M-TEU

X71D series Chaser - IRS
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
E-GX71-DTMME 1G-EU 4HT Man 5F SXL 130/5400 17.5/4400 9.2 1425 1440 1200
E-GX71-DTPME 1G-EU 4HT Auto 4FC SXL 130/5400 17.5/4400 9.2 1425 1440 1210
E-GX71-DTMGE 1G-EU 4HT Man 5F Avante 130/5400 17.5/4400 9.2 1425 1440 1240
E-GX71-DTMGE 1G-EU 4HT Man 5F Avante Lordly 130/5400 17.5/4400 9.2 1425 1440 1260
E-GX71-DTPGE 1G-EU 4HT Auto 4FC Avante 130/5400 17.5/4400 9.2 1425 1440 1250
E-GX71-DTPGE 1G-EU 4HT Auto 4FC Avante Lordly 130/5400 17.5/4400 9.2 1425 1440 1270
E-GX71-DTMGF 1G-GEU 4HT Man 5F Avante Twincam 24 160/6400 18.5/5200 9.1 1425 1440 1280
E-GX71-DTPGF 1G-GEU 4HT Auto 4FC ECT-S Avante Twincam 24 160/6400 18.5/5200 9.1 1425 1440 1300
E-MX71-DTPGT M-TEU 4HT Auto ECT-S 4FC Avante Turbo 145/5600 21.5/3000 8.0 1425 1440 1330

X71Y series Cresta
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
E-GX71-YEMGE 1G-EU 4DS Man 5F Exceed 130/5400 17.5/4400 1425 1440 1240
E-GX71-YEPGE 1G-EU 4DS Auto 4FC Exceed 130/5400 17.5/4400 1425 1440 1250

X72X series Cressida Solid axle
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
8411-8608 MX72LG-XWPGFKA 5M-GE 4DS Auto 4FC 4.100 GLX-i 156/5200 22.8/4500 9.2 1425 1385
8411-8708 MX72LG-XWPGFA 5M-GE 4DW Auto 4FC A43DE E 4.100 GLX-i 156/5200 22.8/4500 9.2
RX72LG-XWMESV 22R 4DW Man 5F W55 GL
RX72LG-XWPESV 22R 4DW Auto 4FC A43D GL
RX72LG-XWMNSV 22R 4DW Man 5F W55 XL
RX72LG-XWMNS 22R 4DW Man 5F W55 XL
RX72LG-XWMNS 22R 4DW Man 5F W55 XL
The RX72 wagon was sold with the X80 generation sedans in some countries.

X73X series Cressida IRS
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
MX73R-XEPEFQ 5M-GE 4DS Auto 4FC A43DE F 4.100 GL-i
MX73R-XEPGFQ 5M-GE 4DS Auto 4FC A43DE F 4.100 GLX-i
8408-8808 MX73L-XEPGFA 5M-GE 4DS Auto 4FC 4.10 LSD GLX-i 156/5200 22.8/4500 9.2 1440 1455 1420
8408-8808 MX73L-XEPGFA 5M-GE 4DS Auto 4FC GLX-i 156/5200 22.8/4500 9.2
8408-8708 MX73L-XEMGFA 5M-GE 4DS Man 5F W58 F 3.727 LSD GLX-i 156/5200 22.8/4500 9.2
8408-8708 MX73L-XEPEEC 5M-E 4DS Auto 4FC A43DL F 3.909 GL-i
MX73L-XTMGEV 5M-E 4HT Man 5F W57 F 3.727

X76 series
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
YX76V-**

X78 series
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
YX78V-**

Cressida 8# 1988-1992

X80A series Cressida
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
RX80L-AEMESV 22R 4DS Man 5F W55 GL
RX80L-AEPESV 22R 4DS Auto 4FC A43D GL
RX80L-AEMNSV 22R 4DS Man 5F W55 XL
RX80L-AEPNSV 22R 4DS Auto 4FC A43D XL
RX80R-AEMES 22R 4DS Man 5F W55 GL
RX80L-AEMES 22R 4DS Man 5F W55 GL
RX80R-AEPES 22R 4DS Auto 4FC A43D GL
RX80L-AEPES 22R 4DS Auto 4FC A43D GL
RX80R-AEMNS 22R 4DS Man 5F W55 XL
RX80L-AEMNS 22R 4DS Man 5F W55 XL
RX80R-AEPNS 22R 4DS Auto 4FC A43D XL
RX80L-AEPNS 22R 4DS Auto 4FC A43D XL
LX80L-AEMES 2L 4DS Man 5F W55 GL
LX80L-AEPES 2L 4DS Auto 4FC A42D GL

X80B series Chaser
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
E-SX80-BTMEM 4S-Fi 4DH Man 5F 3.727 Raffine 105/5600 15.2/2500 9.3 1455 1400 1220
E-SX80-BTPEM 4S-Fi 4DH Auto 4FC 4.100 Raffine 105/5600 15.2/2500 9.3 1455 1400 1230
E-SX80-BTMEM 4S-Fi 4DH Man 5F 3.727 XG 105/5600 15.2/2500 9.3 1455 1400 1220
E-SX80-BTPEM 4S-Fi 4DH Auto 4FC 4.100 XG 105/5600 15.2/2500 9.3 1455 1400 1230
E-SX80-BTMNM 4S-Fi 4DH Man 5F 3.727 XL 105/5600 15.2/2500 9.3 1455 1400 1190
E-SX80-BTPNM 4S-Fi 4DH Auto 4FC 4.100 XL 105/5600 15.2/2500 9.3 1455 1400 1200
Q-LX80-BTMEX 2L-T 4DH Man 5F 3.583 XG 94/4000 22.0/2400 21.0 1455 1400 1350
Q-LX80-BTPEX 2L-T 4DH Auto 4FC 3.727 XG 94/4000 22.0/2400 21.0 1455 1400 1350
Q-LX80-BTMNX 2L-T 4DH Man 5F 3.583 XL 94/4000 22.0/2400 21.0 1455 1400 1310
Q-LX80-BTPNX 2L-T 4DH Auto 4FC 3.727 XL 94/4000 22.0/2400 21.0 1455 1400 1310
Q-LX80-BTMNS 2L 4DH Man 5F 3.909 XL 85/4200 16.8/2400 22.2 1455 1400 1300
GX80
JZX80

X81A series Cressida IRS
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
MX81L-AEMQEV 5M-E 4DS Man 5F W57 Grande
MX81L-AEPQEV 5M-E 4DS Auto 4FC A43DL Grande
MX81L-AEMEEV 5M-E 4DS Man 5F W57 GLX
MX81L-AEPEEV 5M-E 4DS Auto 4FC A43DL GLX
MX81L-AEMNEV 5M-E 4DS Man 5F W57 XL
GX81R-AEMQK 1G-FE 4DS Man 5F W57 GLX
GX81L-AEMQK 1G-FE 4DS Man 5F W57 GLX
GX81R-AEPQK 1G-FE 4DS Auto 4FC A42DL GLX
MX81L-AEPQE 5M-E 4DS Auto 4FC A43DL GLX
RX81L-AEMES 22R 4DS Man 5F W55 GL

X81B series Chaser IRS
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
E-GX81-BTPZR 1G-GZE 4DH Auto 4FC ECT-S 4.300 Avante G 170/6000 23.0/3600 8.0 1455 1455 1480
E-GX81-BTMVZ 1G-GTE 4DH Man 5F 4.300 GT twin turbo 210/6200 28.0/3800 8.5 1455 1455 1420
E-GX81-BTPVZ 1G-GTE 4DH Auto 4FC ECT-S 4.556 GT twin turbo 210/6200 28.0/3800 8.5 1455 1455 1440
E-GX81-BTMQF 1G-GE 4DH Man 5F 4.300 Avante 150/6200 18.6/5600 9.5 1455 1455 1360
E-GX81-BTPQF 1G-GE 4DH Auto 4FC ECT-S 4.556 Avante 150/6200 18.6/5600 9.5 1455 1455 1380
E-GX81-BTMQK 1G-FE 4DH Man 5F 3.909 Avante 135/5600 18.0/4400 9.6 1455 1455 1350
E-GX81-BTPQK 1G-FE 4DH Auto 4FC 4.100 Avante 135/5600 18.0/4400 9.6 1455 1455 1360
E-GX81-BTMGK 1G-FE 4DH Man 5F 3.909 SXL 135/5600 18.0/4400 9.6 1455 1455 1290
E-GX81-BTPGK 1G-FE 4DH Auto 4FC 4.100 SXL 135/5600 18.0/4400 9.6 1455 1455 1300
9008- JZX81

X83A series Cressida IRS
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
8808-9207 MX83L-AEPQFK 7M-GE 4DS Auto 4FC GLX 190/5600 25.6/4400 9.2 1455 1455 1550
8808-9207 MX83L-AEPQFA 7M-GE 4DS Auto 4FC GLX 190/5600 25.6/4400 9.2
MX83R-AEPEFQ 7M-GE 4DS Auto 4FC A340E G 3.909 GL 9.6
MX83R-AEPQFQ 7M-GE 4DS Auto 4FC A340E G 3.909 GLX 9.6

The Cressida (X platform code) was gradually replaced in non Japanese markets by the Avalon (XX platform code) in the late 90's.

Mark X 12# 2005-2009

X120 series Mark X 250 RWD
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
0502-0910 DBA-GRX120-AETZH(S) 4GR-FSE 4DS 250G S 215/6400 26.5/4800 12.0 1525 1525 1510
0502-0910 DBA-GRX120-AETZH(L) 4GR-FSE 4DS 250G L 215/6400 26.5/4800 12.0 1525 1525 1510
0502-0910 DBA-GRX120-AETZH 4GR-FSE 4DS 250G 215/6400 26.5/4800 12.0 1525 1525 1510

X121 series Mark X 300 RWD
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
0502-0910 DBA-GRX121-AETUH(S) 3GR-FSE 4DS 300G Premium S 256/6200 32.0/3600 12.0 1525 1525 1530
0502-0910 DBA-GRX121-AETUH 3GR-FSE 4DS 300G Premium 256/6200 32.0/3600 12.0 1525 1525 1530
0502-0910 DBA-GRX121-AETZH 3GR-FSE 4DS 300G 256/6200 32.0/3600 12.0 1525 1525 1520
GRX121L-AETUKC 3GR-FSE 4DS Reiz 3.0V 228/6200 30.6/4400 12.0 1525 1525 1615

X121 series Mark X 300 Super Charger RWD
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
0610-0910 DBA-GRX121-VWMHTU 3GR-FSE 4DS 300G Premium 320/6200 42.0/3600 12.0 1525 1525 1550
0610-0910 DBA-GRX121-VWMHTZS 3GR-FSE 4DS 300G S 320/6200 42.0/3600 12.0 1525 1525 1540

X121 series Mark X 300 RWD
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
0502-0910 DBA-GRX121-AETUH(S) 3GR-FSE 4DS 300G Premium S 256/6200 32.0/3600 12.0 1525 1525 1530
0502-0910 DBA-GRX121-AETUH 3GR-FSE 4DS 300G Premium 256/6200 32.0/3600 12.0 1525 1525 1530
0502-0910 DBA-GRX121-AETZH 3GR-FSE 4DS 300G 256/6200 32.0/3600 12.0 1525 1525 1520
GRX121L-AETUKC 3GR 4DS Reiz 3.0V 228/6200 30.6/4400 12.0 1525 1525 1615

X122 series Reiz 2.5 RWD
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
GRX122L-AETQKC 5GR 4DS Reiz 2.5S 145/6200 24.7/4400 10.0 1525 1525 1535
GRX122L-AETQKC 5GR 4DS Reiz 2.5S Comfort 145/6200 24.7/4400 10.0 1525 1525 1560
GRX122L-AETQKC 5GR 4DS Reiz 2.5S leather sunroof 145/6200 24.7/4400 10.0 1525 1525 1560
GRX122L-AETQKC 5GR 4DS Reiz 2.5S Special 145/6200 24.7/4400 10.0 1525 1525 1560
GRX122L-AETZKC 5GR 4DS Reiz 2.5V 145/6200 24.7/4400 10.0 1525 1525 1565
GRX122L-AETZKC 5GR 4DS Reiz 2.5V Super Sport 145/6200 24.7/4400 10.0 1525 1525 1590

X125 series Mark X 250 4WD
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
0502-0910 DBA-GRX125-AEAZH(L) 4GR-FSE 4DS 250G Four L 215/6400 26.5/4800 12.0 1525 1520 1570
0502-0910 DBA-GRX125-AEAZH 4GR-FSE 4DS 250G Four 215/6400 26.5/4800 12.0 1525 1520 1570
0502-0910 DBA-GRX125-AEAZH(F) 4GR-FSE 4DS 250G Four F 215/6400 26.5/4800 12.0 1525 1520 1570

Mark X 13# 2009 onwards

X130 series Mark X 250 RWD
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
0910- DBA-GRX130-AETZH(Z) 4GR-FSE 4DS 250G S Relax 203/6400 24.8/4800 12.0 1520
0910- DBA-GRX130-AETZH(S) 4GR-FSE 4DS 250G S 203/6400 24.8/4800 12.0 1510
0910- DBA-GRX130-AETZH(Y) 4GR-FSE 4DS 250G Relax 203/6400 24.8/4800 12.0 1520
0910- DBA-GRX130-AETZH 4GR-FSE 4DS 250G 203/6400 24.8/4800 12.0 1510
0910- DBA-GRX130-AETZH(F) 4GR-FSE 4DS 250G F 203/6400 24.8/4800 12.0 1510

X130 series Mark X Vertiga 250 RWD
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
0910- DBA-GRX130-VWMBTZZ 4GR-FSE 4DS 250G S Relax 203/6400 24.8/4800 12.0 1520
0910- DBA-GRX130-VWMBTZS 4GR-FSE 4DS 250G S 203/6400 24.8/4800 12.0 1510
0910- DBA-GRX130-VWMBTZY 4GR-FSE 4DS 250G Relax 203/6400 24.8/4800 12.0 1520
0910- DBA-GRX130-VWMBTZ 4GR-FSE 4DS 250G 203/6400 24.8/4800 12.0 1510
0910- DBA-GRX130-VWMBTZF 4GR-FSE 4DS 250G F 203/6400 24.8/4800 12.0 1510

X133 series Mark X 350 RWD
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
0910- DBA-GRX133-AETLH(L) 2GR-FSE 4DS Premium L 318/6400 38.7/4800 11.8
0910- DBA-GRX133-AETLH 2GR-FSE 4DS Premium 318/6400 38.7/4800 11.8
0910- DBA-GRX133-AETSH 2GR-FSE 4DS 350S 318/6400 38.7/4800 11.8

X133 series Mark X Vertiga 350 RWD
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
0910- DBA-GRX133-VWMBTU 2GR-FSE 4DS Premium 318/6400 38.7/4800 11.8 1550
0910- DBA-GRX133-VWMBTS 2GR-FSE 4DS 350S 318/6400 38.7/4800 11.8 1550

X133 series Mark X +M Super Charger 350 RWD
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
0910- DBA-GRX133-VWMBTU 2GR-FSE 4DS Premium L 360/6400 50.8/4800 11.8 1580
0910- DBA-GRX133-VWMBTU 2GR-FSE 4DS Premium 360/6400 50.8/4800 11.8 1580
0910- DBA-GRX133-VWMBTS 2GR-FSE 4DS 350S 360/6400 50.8/4800 11.8 1580

X135 series Mark X 250G 4WD
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
0910- DBA-GRX135-AETZH 4GR-FSE 4DS 250G Four 318/6400 203/6400 12.0
0910- DBA-GRX135-AETZH(F) 4GR-FSE 4DS 250G Four F 318/6400 203/6400 12.0

X135 series Mark X Vertiga 250 4WD
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
0910- DBA-GRX135-VWMBTZ 4GR-FSE 4DS 250G Four 318/6400 203/6400 12.0 1560
0910- DBA-GRX135-VWMBTZF 4GR-FSE 4DS 250G Four F 318/6400 203/6400 12.0 1560

Last updated 27 May 2020
