Corolla production data

A Corolla is the crown of a flower.
Japanese say Ka-Ro-Ra (rhymes with aurora according to Eiji Toyoda).
Australians say Co-Roll-La.

In the tables below ** means that more codes may possibly exist.
E.g. KE11L-CA** might mean the KE11L-CAS was available in the USA or a KE11L-CAB or possibly both but my information doesn't tell me which.
A single # stands for any single digit - Eg KE1#.
A single * stands for any single letter or digit - eg *E1#.

These tables look best if the browser is made as wide as possible.
Jump down to Corolla 1st generation production data
10 11 15 16 17 18
Jump down to Corolla 2nd generation production data
20 21 25 26 27 28
Jump down to Corolla 3rd generation production data
30 31 35 36 37 38 47 50 51 52 55 60 61 65 66
Jump down to Corolla 4th generation production data
70 71 72 T-18
Jump down to Corolla 5th generation production data
80 81 82 85 86

Corolla 1# 1st generation

Japan's growing middle class thought the Publica (Toyota's entry level car in the early 1960's) was too boring while the Crown and Corona were too expensive for them.
At this time, a Toyota engineer called Tatsuo Hasegawa had noticed that the Opel Kadett was doing very well in Germany.
The Kadett was a very light car that looked good, was fun to drive and was replacing the VW beetle as the car to have in Germany.
Hasegawa designed the Corolla around the same ideas as the Kadett.
It was sized between the Publica (700cc) and Corona (1500cc), looked classy, had modest power, yet was economical and inexpensive.

Management originally wanted to use an existing 1000cc engine but it was heavy and low powered.
Management only let them design a new engine as long as they could find a use for the old engine in another product
- so they put it in a truck.
The Nissan Sunny (also called the Datsun 1000) was to be released a few months earlier than the Corolla with a new1000cc
A10 engine, so Toyota ordered the engineers to increase the engine by 100cc.
This was hard to do so late in the design scedule but it was done.
It also raised the Corolla into the next tax class but this gave it more prestige with Japan's growing middle class.
It was advertised as "the 100cc advantage" and "the extra 100cc gives extra comfort".

At the time, Japanese owners prefered a 3 speed column shift - more gears meant more gear changing
(a sign of a weak engine) and floor shifts were for trucks.
But America was going to 4 speed floor shifts, so Toyota decided to go with the new trend before other Japanese companies did.

The new factory was built with the latest automated and computerised facilities.
Lower production costs reduced its selling price to Y432,000 - 5% lower than the Sunny (Datsun 1000).
Combined with disc brakes, 4 speed floor shift and MacPherson suspension, it outsold the Sunny by 35%.

The Corolla was sold under 2 names - "Corolla" and "Sprinter".
The Corolla was offered as a 4 door sedan, a 2 door sedan and a 2 door van but not as a fastback coupe.
The Sprinter (never called a Corolla but sharing most parts) was offered only as a fastback coupe.

Corolla's first export destination was Australia in November 1966.
By March 1968 more than 3000 cars were being exported to many countries every month.
In April 1968 the Corolla was introduced to America.
Its selling price of US$1800 catapulted total US sales to 71,000 that year, 130,000 in 1969 and 208,000 in 1970.

Kazuo Morohoshi was one of the industrial designers in the team.
He later became the head of the design department.

10 Series - 1100cc Sedan

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
6611-6908 KE10 K 2DS Man 4F Std 60/6000 8.5/3800 9.0 1230 1220 690
6705-6908 KE10-C K 2DS Auto 2HC Std 60/6000 8.5/3800 9.0 1230 1220 705
6804-6908 KE10-H K 2DS Man 4H Std
6705-6908 KE10-F K 4DS Man 4F Std 60/6000 8.5/3800 9.0 1230 1220 710
6705-6908 KE10-CF K 4DS Auto 2HC Std 60/6000 8.5/3800 9.0 1230 1220 725
6804-6908 KE10-HF K 4DS Man 4H Std
6611-6908 KE10-B K 2DS Man 4F BTP 60/6000 8.5/3800 9.0 1230 1220 700
6705-6908 KE10-CB K 2DS Auto 2HC BTP 60/6000 8.5/3800 9.0 1230 1220 715
6804-6908 KE10-HB K 2DS Man 4H BTP
6705-6908 KE10-FB K 4DS Man 4F BTP 60/6000 8.5/3800 9.0 1230 1220 720
6705-6908 KE10-CFB K 4DS Auto 2HC BTP 60/6000 8.5/3800 9.0 1230 1220 735
6804-6908 KE10-HFB K 4DS Man 4H BTP
6611-6908 KE10-D K 2DS Man 4F DX 60/6000 8.5/3800 9.0 1230 1220 710
6705-6908 KE10-CD K 2DS Auto 2HC DX 60/6000 8.5/3800 9.0 1230 1220 725
6804-6908 KE10-HD K 2DS Man 4H DX
6705-6908 KE10-FD K 4DS Man 4F DX 60/6000 8.5/3800 9.0 1230 1220 730
6705-6908 KE10-CFD K 4DS Auto 2HC DX 60/6000 8.5/3800 9.0 1230 1220 745
6804-6908 KE10-HFD K 4DS Man 4H DX
6903-6908 KE10-N K-D 2DS Man 4F HDX
6903-6908 KE10-CN K-D 2DS Auto 2HC HDX
6903-6908 KE10-FN K-D 4DS Man 4F HDX
6903-6908 KE10-CFN K-D 4DS Auto 2HC HDX
6804-6908 KE10-S K-B 2DS Man 4F SL
6804-6908 KE10-SF K-B 4DS Man 4F SL
6611-6908 KE10-B K 2DS Man 4F K40 SPL
6705-6908 KE10-CB K 2DS Auto 2FC A20 SPL
6611-6908 KE10L-B K 2DS Man 4F K40 SPL
6705-6908 KE10L-CB K 2DS Auto 2FC A20 SPL
6611-6908 KE10-FB K 4DS Man 4F K40 SPL
6705-6908 KE10-CFB K 4DS Auto 2FC A20 SPL
6611-6908 KE10L-FB K 4DS Man 4F K40 SPL
6705-6908 KE10L-CFB K 4DS Auto 2FC A20 SPL
6803-6908 KE10L-AB K-C 2DS Man 4F K40 4.222
6803-6908 KE10L-CAB K-C 2DS Auto 2FC A20 4.222
6803-6908 KE10L-FAB K-C 4DS Man 4F K40 4.222
6803-6908 KE10L-CFAB K-C 4DS Auto 2FC A20 4.222

11 Series - 1200cc Sedan

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
6909-7004 KE11 3K 2DS Man 4F Std
6909-7004 KE11-C 3K 2DS Auto 2HC Std
6909-7004 KE11-H 3K 2DS Man 4H Std
6909-7004 KE11-F 3K 4DS Man 4F Std
6909-7004 KE11-CF 3K 4DS Auto 2HC Std
6909-7004 KE11-HF 3K 4DS Man 4H Std
6909-7004 KE11-B 3K 2DS Man 4F BTP
6909-7004 KE11-CB 3K 2DS Auto 2HC BTP
6909-7004 KE11-HB 3K 2DS Man 4H BTP
6909-7004 KE11-FB 3K 4DS Man 4F BTP
6909-7004 KE11-CFB 3K 4DS Auto 2HC BTP
6909-7004 KE11-HFB 3K 4DS Man 4H BTP
6909-7004 KE11-D 3K 2DS Man 4F DX
6909-7004 KE11-CD 3K 2DS Auto 2HC DX
6909-7004 KE11-HD 3K 2DS Man 4H DX
6909-7004 KE11-FD 3K 4DS Man 4F DX
6909-7004 KE11-CFD 3K 4DS Auto 2HC DX
6909-7004 KE11-HFD 3K 4DS Man 4H DX
6909-7004 KE11-N 3K-D 2DS Man 4F HDX
6909-7004 KE11-CN 3K-D 2DS Auto 2HC HDX
6909-7004 KE11-FN 3K-D 4DS Man 4F HDX
6909-7004 KE11-CFN 3K-D 4DS Auto 2HC HDX
6909-7004 KE11-S 3K-B 2DS Man 4F SL
6909-7004 KE11-SF 3K-B 4DS Man 4F SL
6909-7004 KE11-B 3K 2DS Man 4F K40 SPL
6909-7004 KE11-CB 3K 2DS Auto 2FC A20 SPL
6909-7004 KE11-S 3K-B 2DS Man 4F K40 SL
6909-7004 KE11L-B 3K 2DS Man 4F K40 SPL
6909-7004 KE11L-CB 3K 2DS Auto 2FC A20 SPL
6909-7004 KE11-FB 3K 4DS Man 4F K40 SPL
6909-7004 KE11-CFB 3K 4DS Auto 2FC A20 SPL
6909-7004 KE11L-FB 3K 4DS Man 4F K40 SPL
6909-7004 KE11L-CFB 3K 4DS Auto 2FC A20 SPL
6909-7004 KE11L-AB 3K-C 2DS Man 4F K40 4.222 65/6000 9.3/3800 9.0 1245 1220
6909-7004 KE11L-CAB 3K-C 2DS Auto 2FC A20 4.444 65/6000 9.3/3800 9.0 1245 1220
6909-7004 KE11L-FAB 3K-C 4DS Man 4F K40 4.222 65/6000 9.3/3800 9.0 1245 1220
6909-7004 KE11L-CFAB 3K-C 4DS Auto 2FC A20 4.444 65/6000 9.3/3800 9.0 1245 1220

15 Series - 1100cc Sprinter coupe

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
6804-6908 KE15 K CP Man 4F 4.222 Std 60/6000 8.5/3800 9.0 1245 1220 720
6804-6908 KE15-C K CP Auto 2HC 4.222 Std 60/6000 8.5/3800 9.0 1245 1220 720
6804-6908 KE15-H K CP Man 4H 4.222 Std 60/6000 8.5/3800 9.0 1245 1220 710
6804-6908 KE15-D K CP Man 4F 4.222 DX 60/6000 8.5/3800 9.0 1245 1220 715
6804-6908 KE15-CD K CP Auto 2HC 4.222 DX 60/6000 8.5/3800 9.0 1245 1220 730
6804-6908 KE15-HD K CP Man 4H 4.222 DX 60/6000 8.5/3800 9.0 1245 1220 720
6804-6908 KE15-S K-B CP Man 4F 4.222 SL 73/6600 9.0/4600 10.0 1245 1220 730
6804-6908 KE15 K CP Man 4F K40 Std
6804-6908 KE15-C K CP Auto 2FC A20 Std
6903-6908 KE15-N K-D CP Man 4F K40 HDX
6804-6908 KE15-S K-B CP Man 4F K40 SL
6804-6908 KE15L K CP Man 4F K40 Std
6804-6908 KE15L-C K CP Auto 2FC A20 Std
6903-6908 KE15L-N K-D CP Man 4F K40 HDX
6803-6908 KE15L-A K-C CP Man 4F K40 4.222 65/6000 9.3/3800 9.0 1245 1220
6803-6908 KE15L-CA K-C CP Auto 2FC 65/6000 9.3/3800 9.0 1245 1220

16 Series - 1100cc Wagon, Delivery Van

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
6705-6908 KE16V K 2DW Man 4F K40 Std
6804-6908 KE16V-H K 2DW Man 4H K40 Std
6705-6908 KE16V-D K 2DW Man 4F K40 DX
6804-6908 KE16V-HD K 2DW Man 4H K40 DX
6705-6908 KE16V K 2DW Man 4F K40 Std
6705-6908 KE16V-C K 2DW Auto 2FC A20 Std
6705-6908 KE16LV K 2DW Man 4F K40 Std
6705-6908 KE16LV-C K 2DW Auto 2FC A20 Std
6803-6908 KE16LV-A K-C 2DW Man 4F K40 4.222 65/6000 9.3/3800 9.0 1245 1220
6803-6908 KE16LV-CA K-C 2DW Auto 2FC A20 4.444 65/6000 9.3/3800 9.0 1245 1220

17 Series - 1200cc Sprinter Coupe

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
6909-7004 KE17 3K CP Man 4F Std
6909-7004 KE17-C 3K CP Auto 2HC Std
6909-7004 KE17-H 3K CP Man 4H Std
6909-7004 KE17-D 3K CP Man 4F DX
6909-7004 KE17-CD 3K CP Auto 2HC DX
6909-7004 KE17-HD 3K CP Man 4H DX
6909-7004 KE17-S 3K-B CP Man 4F SL
6909-7004 KE17 3K CP Man 4F K40 Std
6909-7004 KE17-C 3K CP Auto 2FC A20 Std
6909-7004 KE17-N 3K-D CP Man 4F K40 HDX
6909-7004 KE17-S 3K-B CP Man 4F K40 SL
6909-7004 KE17L 3K CP Man 4F K40 Std
6909-7004 KE17L-C 3K CP Auto 2FC A20 Std
6909-7004 KE17L-N 3K-D CP Man 4F K40 HDX
6909-7004 KE17L-A 3K-C CP Man 4F K40 4.222 65/6000 9.3/3800 9.0 1245 1220
6909-7004 KE17L-CA 3K-C CP Auto 2FC 65/6000 9.3/3800 9.0 1245 1220

18 Series - 1200cc Wagon, Delivery Van

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
6909-7004 KE18V 3K 2DW Man 4F K40 Std
6909-7004 KE18V-H 3K 2DW Man 4H K40 Std
6909-7004 KE18V-D 3K 2DW Man 4F K40 DX
6909-7004 KE18V-HD 3K 2DW Man 4H K40 DX
6909-7004 KE18V 3K 2DW Man 4F K40 Std
6909-7004 KE18V-C 3K 2DW Auto 2FC A20 Std
6909-7004 KE18LV 3K 2DW Man 4F K40 Std
6909-7004 KE18LV-C 3K 2DW Auto 2FC A20 Std
6909-7004 KE18LV-B 3K 2DV Man 4F K40 Std
6909-7004 KE18LV-B 3K 2DV Man 4F K40 Std
6909-7004 KE18LV-A 3K-C 2DW Man 4F K40 4.222 65/6000 9.3/3800 9.0 1245 1220
6909-7004 KE18LV-CA 3K-C 2DW Auto 2FC A20 4.444 65/6000 9.3/3800 9.0 1245 1220

Corolla 2# 2nd generation

Mechanically very similar to the previous model, the body received a substantial facelift.
The coupe was added to the Corolla range (no longer just as the Sprinter).
Likewise, the Sprinter gained 2 and 4 door sedan versions.
The differences between the Corolla and the Sprinter were mostly cosmetic.
The Corolla and Sprinter both came in multiple grades (eg Standard, Deluxe, Hi-Deluxe, SL, SR).

The wagon was now made in both 2 door and 4 door models.

The 1400cc T and 1600cc 2T engines were added to the Corolla and Sprinter.
The bodies were the same as the 3K engined models but the mechanicals were upgraded with stronger parts.

The 2T-G engine was offered only on the Corolla Levin coupe and the Sprinter Trueno coupe.
This engine was not offered on any other Corolla or Sprinter for these years.
Effectively, the Levin was the GT grade for the Corolla and the Trueno was the GT grade for the Sprinter.
The Levin and Trueno also had minor trim differences.
The Levin was never sold as a Sprinter and the Trueno was never sold as a Corolla.

A minor face lift occured in September 1971.

The 2# Corolla and Sprinter were managed by Shiro Sasaki (who also managed the next model).
Ryuzo Hoshino was one of the industrial designers - he later worked on the Soarer.

20 Series - 1200cc Sedan

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7005- KE20 3K 2DS Man 4F Std
7005- KE20-D 3K-D 2DS Man 4F DX
7005- KE20-N 3K 2DS Man 4F HDX
7109- KE20-NR 3K 2DS Man 4F HDX
7005- KE20-S 3K-B 2DS Man 4F SL
7109- KE20-SR 3K-BR 2DS Man 4F SL
7005- KE20-H 3K 2DS Man 4H Std
7005- KE20-HD 3K 2DS Man 4H DX
7005-7108 KE20-C 3K 2DS Auto 2FC Std
7005- KE20-CD 3K 2DS Auto 2FC DX
7005- KE20-CN 3K-D 2DS Auto 2FC HDX
7109- KE20-CNR 3K 2DS Auto 2FC HDX
7005- KE20-F 3K 2DS Man 4F Std
7005- KE20-FD 3K-D 2DS Man 4F DX
7005- KE20-FN 3K 2DS Man 4F HDX
7109- KE20-FNR 3K 2DS Man 4F HDX
7005- KE20-FS 3K-B 2DS Man 4F SL
7109- KE20-FSR 3K-BR 2DS Man 4F SL
7005- KE20-HF 3K 2DS Man 4H Std
7005- KE20-HFD 3K 2DS Man 4H DX
7005-7108 KE20-CF 3K 2DS Auto 2FC Std
7005- KE20-CFD 3K 2DS Auto 2FC DX
7005- KE20-CFN 3K-D 2DS Auto 2FC HDX
7109- KE20-CFNR 3K 2DS Auto 2FC HDX
7109- KE20-BFD 3K 4DS Man 4F 4.222 Sprinter DX 68/6000 9.5/3800 9.0 1255 1245 780
7109- KE20-CBFD 3K 4DS Auto 2FC 4.222 Sprinter DX 68/6000 9.5/3800 9.0 1255 1245 795
7109-73xx KE20-CBFN 3K-D 4DS Auto 2FC Sprinter HDX
7109- KE20-CBFNR 3K 4DS Auto 2FC 4.222 Sprinter HDX 68/6000 9.5/3800 9.0 1255 1245 800
7109-73xx KE20-BFN 3K-D 4DS Man 4F Sprinter HDX
7109- KE20-BFNR 3K 4DS Man 4F 4.222 Sprinter HDX 68/6000 9.5/3800 9.0 1255 1245 790
7109- KE20-BFS 3K-B 4DS Man 4F 4.222 Sprinter SL 77/6600 9.6/4600 10.0 1255 1245 795
7109- KE20-BFSR 3K-BR 4DS Man 4F 4.222 Sprinter SL 74/6600 9.5/4600 9.0 1255 1245 795
73xx- KE20-MBFS 3K-B 4DS Man 5F 4.444 Sprinter SL 77/6600 9.6/4600 10.0 1255 1245 805
73xx- KE20-MBFSR 3K-BR 4DS Man 5F 4.444 Sprinter SL 74/6600 9.5/4600 9.0 1255 1245 805
7109- TE20-D T 2DS Man 4F DX
7109- TE20-CD T 2DS Auto 2 DX
7009-7108 TE20-N T 2DS Man 4F HDX
7109- TE20-N T-D 2DS Man 4F HDX
7109- TE20-NR T 2DS Man 4F HDX
7009-7108 TE20-CN T 2DS Auto 2 HDX
7109- TE20-CN T-D 2DS Auto 2 HDX
7109- TE20-CNR T 2DS Auto 2 HDX
7009-7108 TE20-S T-D 2DS Man 4F SL
7109- TE20-FD T 4DS Man 4F DX
7109- TE20-CFD T 4DS Auto 2 DX
7009-7108 TE20-FN T 4DS Man 4F HDX
7109- TE20-FN T-D 4DS Man 4F HDX
7109- TE20-FNR T 4DS Man 4F HDX
7009-7108 TE20-CFN T 4DS Auto 2 HDX
7109- TE20-CFN T-D 4DS Auto 2 HDX
7109- TE20-CFNR T 4DS Auto 2 HDX
7009-7108 TE20-FS T-D 4DS Man 4F SL
7104- TE20-SZ T-B 2DS Man 4F SL
7104- TE20-SZR T-BR 2DS Man 4F SL
7104- TE20-MSZ T-B 2DS Man 5F SL
7104- TE20-MSZR T-BR 2DS Man 5F SL
7104- TE20-FSZ T-B 4DS Man 4F SL
7104- TE20-FSZR T-BR 4DS Man 4F SL
7104- TE20-FMSZ T-B 4DS Man 5F SL
7104- TE20-FMSZR T-BR 4DS Man 5F SL
7109- TE20-BFD T 4DS Man 4F Sprinter DX 86/6000 12.0/3800 8.5 1260 1245 860
7109- TE20-CBFD T 4DS Auto 2 Sprinter DX 86/6000 12.0/3800 8.5 1260 1245 860
7109-73xx TE20-BFN T-D 4DS Man 4F Sprinter HDX
7109- TE20-BFNR T 4DS Man 4F 4.100 Sprinter HDX 86/6000 12.0/3800 8.5 1260 1245 865
7109-73xx TE20-CBFN T-D 4DS Auto 2 Sprinter HDX
7109- TE20-CBFNR T 4DS Auto 2 4.100 Sprinter HDX 86/6000 12.0/3800 8.5 1260 1245 865
7109- TE20-BFSZ T-B 4DS Man 4F 4.100 Sprinter SL 95/6000 12.3/4000 9.6 1260 1245 870
7109- TE20-BFSZR T-BR 4DS Man 4F 4.100 Sprinter SL 91/6000 12.0/4000 8.5 1260 1245 870
7109- TE20-MBFSZ T-B 4DS Man 5F 4.300 Sprinter SL 95/6000 12.3/4000 9.6 1260 1245 875
7109- TE20-MBFSZR T-BR 4DS Man 5F 4.300 Sprinter SL 91/6000 12.0/4000 8.5 1260 1245 875
7005-7805 KE20 3K 1 2DS Man 4F K40 Std
7005-7407 KE20-C 3K 1 2DS Auto 2FC A20 Std
7005-7805 KE20-D 3K 1 2DS Man 4F K40 DLX
7005-7407 KE20-DC 3K 1 2DS Auto 2FC A20 DLX
7005-7108 KE20-S 3K-B 2DS Man 4F K40 SL
7005-7805 KE20-F 3K 1 4DS Man 4F K40 Std
7005-7407 KE20-CF 3K 1 4DS Auto 2FC A20 Std
7005-7805 KE20-FD 3K 1 4DS Man 4F K40 DLX
7005-7407 KE20-CFD 3K 1 4DS Auto 2FC A20 DLX
7005-7805 KE20L 3K 1 2DS Man 4F K40 Std
7005-7407 KE20L-C 3K 1 2DS Auto 2FC A20 Std
7005-7805 KE20L-D 3K 1 2DS Man 4F K40 DLX
7005-7407 KE20L-CD 3K 1 2DS Auto 2FC A20 DLX
7005-7108 KE20L-S 3K-B 2DS Man 4F K40 SL
7005-7805 KE20L-F 3K 1 4DS Man 4F K40 Std
7005-7407 KE20L-CF 3K 1 4DS Auto 2FC A20 Std
7005-7805 KE20L-FD 3K 1 4DS Man 4F K40 DLX
7005-7407 KE20L-CFD 3K 1 4DS Auto 2FC A20 DLX
7508-7805 KE20L-D 3K-C 2DS Man 4F K40 DLX
7005-7407 KE20L-AD 3K-C 2DS Man 4F K40 4.222 DLX 65/6000 9.3/3800 9.0 1255 1245 758
7005-70xx KE20L-CAD 3K-C 2DS Auto 2FC A20 4.444 DLX 65/6000 9.3/3800 9.0 1255 1245
Note 1. 3K-H after 7404

21 Series - 1600cc Sedan

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
73xx- TE21-BFSZ 2T-B 4DS Man F 4.300 Sprinter SL 9.4 105/6000 14.0/4200 1260 1245 880
73xx- TE21-BFSZR 2T-BR 4DS Man 4F 4.300 Sprinter SL 8.5 100/6000 13.9/4200 1260 1245 880
73xx- TE21-MBFSZ 2T-B 4DS Man 5F 4.300 Sprinter SL 9.4 105/6000 14.0/4200 1260 1245 885
73xx- TE21-MBFSZR 2T-BR 4DS Man 5F 4.300 Sprinter SL 8.5 100/6000 13.9/4200 1260 1245 885
7009-7407 TE21L-AD 2T-C 2DS Man 4F T40 3.900 DLX 88/6000 12.6/3800 8.5 1260 1245 842
7009-72xx TE21L-CAD 2T-C 2DS Auto 2FC A20 4.11 DLX 88/6000 12.6/3800 8.5 1260 1245
7009-73xx TE21L-CAD 2T-C 2DS Auto 2FC A20 4.10 DLX 88/6000 12.6/3800 8.5 1260 1245
73xx-7407 TE21L-JAD 2T-C 2DS Auto 3FC A30 4.10 DLX 88/6000 12.6/3800 8.5 1260 1245
7009-7407 TE21L-AFD 2T-C 4DS Man 4F T40 3.90 DLX 88/6000 12.6/3800 8.5 1260 1245 859
7009-73xx TE21L-CAFD 2T-C 4DS Auto 2FC A20 4.11 DLX 88/6000 12.6/3800 8.5 1260 1245
7009-73xx TE21L-CAFD 2T-C 4DS Auto 2FC A20 4.10 DLX 88/6000 12.6/3800 8.5 1260 1245
73xx-7407 TE21L-JAFD 2T-C 4DS Auto 3FC A30 4.10 DLX 88/6000 12.6/3800 8.5 1260 1245

25 Series - 1200cc, 1400cc Coupe

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7005-7xxx KE25-D 3K CP Man 4F DX
7005-7xxx KE25-CD 3K CP Auto 2FC DX
7005-7xxx KE25-S 3K-B CP Man 4F SL
7109-7xxx KE25-SR 3K-BR CP Man 4F SL
7109-7xxx KE25-N 3K-D CP Man 4F HDX
7109-7xxx KE25-NR 3K CP Man 4F HDX
7109-7xxx KE25-CN 3K-D CP Auto 2FC HDX
7109-7xxx KE25-CNR 3K CP Auto 2FC HDX
7109-7xxx TE25-D T CP Man 4F DX
7109-7xxx TE25-CD T CP Auto 2FC DX
7009-7108 TE25-N T CP Man 4F HDX
7109-7xxx TE25-N T-D CP Man 4F HDX
7009-7108 TE25-NR T CP Man 4F HDX
7009-7108 TE25-CN T CP Auto 2FC HDX
7109-7xxx TE25-CN T-D CP Auto 2FC HDX
7109-7xxx TE25-CNR T CP Auto 2FC HDX
7009-7108 TE25-S T-D CP Man 4F SL
7104-7xxx TE25-SZ T-B CP Man 4F SL
7104-7xxx TE25-SZR T-BR CP Man 4F SL
7104-7xxx TE25-MSZ T-B CP Man 5F SL
7104-7xxx TE25-MSZR T-BR CP Man 5F SL
7104-7xxx TE25-X T-B CP Man 5F SR
7104-7xxx TE25-XR T-BR CP Man 5F SR
7005-7108 KE25-BD 3K-D CP Man 4F 4.222 Sprinter DX 73/6600 9.6/4200 10.0 1255 1245 755
7109-7xxx KE25-BD 3K CP Man 4F 4.222 Sprinter DX 68/6000 9.5/3800 9.0 1255 1245 755
7005-7108 KE25-CBD 3K-D CP Auto 2FC 4.222 Sprinter DX 73/6600 9.6/4200 10.0 1255 1245 770
7109-7xxx KE25-CBD 3K CP Auto 2FC 4.222 Sprinter DX 68/6000 9.5/3800 9.0 1255 1245 770
7005-7xxx KE25-BS 3K-B CP Man 4F 4.222 Sprinter SL 77/6600 9.6/4600 10.0 1255 1245 770
7109-7xxx KE25-BSR 3K-BR CP Man 4F 4.222 Sprinter SL 74/6600 9.5/4600 9.0 1255 1245 770
7005-7xxx KE25-MBS 3K-B CP Man 5F 4.444 Sprinter SL 77/6600 9.6/4600 10.0 1255 1245 780
7109-7xxx KE25-MBSR 3K-BR CP Man 5F 4.444 Sprinter SL 74/6600 9.5/4600 9.0 1255 1245 780
73xx-7xxx KE25-BX 3K-B CP Man 5F 4.444 Sprinter SR 77/6600 9.6/4600 10.0 1255 1245 780
73xx-7xxx KE25-BXR 3K-BR CP Man 5F 4.444 Sprinter SR 74/6600 9.5/4600 9.0 1255 1245 780
7109-73xx KE25-BN 3K-D CP Man 4F Sprinter HDX
7109-7xxx KE25-BNR 3K CP Man 4F 4.222 Sprinter HDX 68/6000 9.5/3800 9.0 1255 1245 765
7109-73xx KE25-CBN 3K-D CP Auto 2FC Sprinter HDX
7109-7xxx KE25-CBNR 3K CP Auto 2FC 4.222 Sprinter HDX 68/6000 9.5/3800 9.0 1255 1245 780
7109-7xxx TE25-BD T CP Man 4F 4.100 Sprinter DX 86/6000 12.0/3800 8.5 1260 1245 835
7109-7xxx TE25-CBD T CP Auto 2FC 4.100 Sprinter DX 86/6000 12.0/3800 8.5 1260 1245 835
7009-7108 TE25-BN T CP Man 4F 4.111 Sprinter HDX 86/6000 11.7/3800 8.5 1260 1245 825
7109-7xxx TE25-BN T-D CP Man 4F Sprinter HDX
7109-7xxx TE25-BNR T CP Man 4F 4.100 Sprinter HDX 86/6000 12.0/3800 8.5 1260 1245 840
7009-7108 TE25-CBN T CP Auto 2FC 4.111 Sprinter HDX 86/6000 11.7/3800 8.5 1260 1245 825
7109-7xxx TE25-CBN T-D CP Auto 2FC Sprinter HDX
7109-7xxx TE25-CBNR T CP Auto 2FC 4.100 Sprinter HDX 86/6000 12.0/3800 8.5 1260 1245 840
7009-7108 TE25-BS T-D CP Man 4F 4.111 Sprinter SL 90/6000 12.0/3800 9.6 1260 1245 830
7104-7xxx TE25-BSZ T-B CP Man 4F 4.100 Sprinter SL 95/6000 12.3/4000 9.6 1260 1245 845
7104-7xxx TE25-BSZR T-BR CP Man 4F 4.100 Sprinter SL 91/6000 12.0/4000 8.5 1260 1245 845
7104-7xxx TE25-MBSZ T-B CP Man 5F 4.300 Sprinter SL 95/6000 12.3/4000 9.6 1260 1245 850
7104-7xxx TE25-MBSZR T-BR CP Man 5F 4.300 Sprinter SL 91/6000 12.0/4000 8.5 1260 1245 850
7104-7xxx TE25-BX T-B CP Man 5F 4.300 Sprinter SR 95/6000 12.3/4000 9.6 1260 1245 845
7104-7xxx TE25-BXR T-BR CP Man 5F 4.300 Sprinter SR 91/6000 12.0/4000 8.5 1260 1245 845
7005-7407 KE25-D 3K 1 CP Man 4F K40 DLX
7005-7407 KE25-CD 3K 1 CP Auto 2FC A20 DLX
7005-7308 KE25-S 3K-B CP Man 4F K40 SL
7308-7407 KE25-S 3K-B CP Man 4F K40 SR
7009-7407 TE25-D T CP Man 4F K40 DLX
7009-7407 TE25-CD T CP Auto 2FC A20 DLX
7009-7108 TE25-S T-D CP Man 4F K40 SL
7109-7207 TE25-SZ T-B CP Man 4F K40 SL
7005-7407 KE25L-D 3K 1 CP Man 4F K40 DLX
7005-7407 KE25L-CD 3K 1 CP Auto 2FC A20 DLX
7005-7308 KE25L-S 3K-B CP Man 4F K40 SL
7308-7407 KE25L-S 3K-B CP Man 4F K40 SR
7009-7407 TE25L-D T CP Man 4F K40 DLX
7009-7407 TE25L-CD T CP Auto 2FC A20 DLX
7009-7108 TE25L-S T-D CP Man 4F K40 SL
7109-7207 TE25-SZ T-B CP Man 4F K40 SL
7005-7407 KE25L-A** 3K-C CP Man 4F K40 4.222 65/6000 9.3/3800 9.0 1255 1245 758
Note 1. 3K-H after 7404

26 Series - 1200cc Wagon, Delivery Van

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7005- KE26V 3K 2DV Man 4F K40 Std
7005- KE26V-D 3K 2DV Man 4F K40 DX
7005- KE26V-H 3K 2DV Man 4H Std
7005- KE26V-HD 3K 2DV Man 4H DX
7007- KE26V-F 3K 4DV Man 4F K40 Std
7007- KE26V-FD 3K 4DV Man 4F K40 DX
7007- KE26V-HF 3K 4DV Man 4H Std
7007- KE26V-HFD 3K 4DV Man 4H DX
7005-7407 KE26V 3K 1 2DW Man 4F K40 Std
7005-7108 KE26V-C 3K 2DW Auto 2FC A20 Std
7007-7407 KE26V-F 3K 1 4DW Man 4F K40 Std
7007-7108 KE26V-CF 3K 4DW Auto 2FC A20 Std
7005-7407 KE26LV 3K 1 2DW Man 4F K40 Std
7005-7108 KE26LV-C 3K 2DW Auto 2FC A20 Std
7007-7407 KE26LV-F 3K 1 4DW Man 4F K40 Std
7007-7108 KE26LV-CF 3K 4DW Auto 2FC A20 Std
7007-7407 KE26V-B 3K 1 2DV Man 4F K40 Std
7007-7407 KE26LV-B 3K 1 2DV Man 4F K40 Std
7005-7108 KE26LV-A** 3K-C 2DW Man 4F K40 4.22 65/6000 9.3/3800 9.0 1255 1245
7005-7108 KE26LV-CA** 3K-C 2DW Auto 2FC A20 4.44 65/6000 9.3/3800 9.0 1255 1245
Note 1. 3K-H after 7404

27 Series - 1600cc Coupe

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7203-7xxx TE27-MQ 2T-G CP Man 5F Levin 115/6400 14.5/5200 9.8 1270 1295 855
7203-7xxx TE27-MQR 2T-GR CP Man 5F Levin 110 1270 1295 855
7203-7xxx TE27-MQZR 2T-GR CP Man 5F Levin 105 1270 1295 855
73xx- TE27-BSZ 2T-B CP Man 4F 4.100 Sprinter SL 105/6000 14.0/4200 9.4 1260 1245 855
73xx- TE27-BSZR 2T-BR CP Man 4F 4.100 Sprinter SL 100/6000 13.9/4200 8.5 1260 1245 855
73xx- TE27-MBSZ 2T-B CP Man 5F 4.300 Sprinter SL 105/6000 14.0/4200 9.4 1260 1245 860
73xx- TE27-MBSZR 2T-BR CP Man 5F 4.300 Sprinter SL 100/6000 13.9/4200 8.5 1260 1245 860
73xx- TE27-BX 2T-B CP Man 5F 4.300 Sprinter SR 105/6000 14.0/4200 9.4 1260 1245 855
73xx- TE27-BXR 2T-BR CP Man 5F 4.300 Sprinter SR 100/6000 13.9/4200 8.5 1260 1245 855
73xx- TE27-MBQE 2T-B CP Man 5F 4.300 Sprinter Trueno J 105/6000 14.0/4200 9.4 1270 1295 855
73xx- TE27-MBQER 2T-BR CP Man 5F 4.300 Sprinter Trueno J 100/6000 13.9/4200 8.5 1270 1295 855
7203-7xxx TE27-MBQ 2T-G CP Man 5F 4.300 Sprinter Trueno 115/6400 14.5/5200 9.8 1270 1295 865
7203-7xxx TE27-MBQR 2T-GR CP Man 5F 4.300 Sprinter Trueno 110/6000 14.5/4800 8.8 1270 1295 865
7009-7407 TE27L-A** 2T-C CP Man 4F T40 3.900 88/6000 12.6/3800 8.5 1260 1245 842
7009-72xx TE27L-CA** 2T-C CP Auto 2FC A20 4.111 88/6000 12.6/3800 8.5 1260 1245
72xx-7407 TE27L-HA** 2T-C CP Auto 3FC A30 4.100 88/6000 12.6/3800 8.5 1260 1245
72xx-7407 TE27L-MAD 2T-C CP Man 5F T50 4.100 S-5 88/6000 12.6/3800 8.5 1260 1245 842
72xx-7407 TE27L-MAQ 2T-C CP Man 5F T50 T 4.100 SR-5 88/6000 12.6/3800 8.5 1270 1295 842

28 Series - 1600cc Wagon

Country Dates Code Engine Body Gearbox Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
7009-7407 TE28LV-A** 2T-C 2DW Man 4F T40 88/6000 12.6/3800 8.5 1260 1245 907
7009-73xx TE28LV-CA** 2T-C 2DW Auto 2FC A20 88/6000 12.6/3800 8.5 1260 1245
73xx-7407 TE28LV-HA** 2T-C 2DW Auto 3FC A30 88/6000 12.6/3800 8.5 1260 1245

Corolla 3#, 4#, 5# 3rd generation

The body received another substantial change but the mechanicals were similar to the previous models.
This time the Corolla and Sprinter were visually distinct from each other.
The Corolla had a squared off front end with a rounded grill.
The Sprinter had either a squared off front end with a square grill
or an aerodynamic front end with a horizontal grill.

The 3# and 5# were sold under the Corolla name.
The 4# and 6# were sold under the Sprinter name.
The Levin was only available as a Corolla and always had the 2T-G engine.
The Trueno was only available as a Sprinter and always had the 2T-G engine.
The 2T-G engine was only available on the Levin and Trueno.
The major difference between the Corolla and Sprinter was trim and a slightly different front end.

The 3#, 4#, 5# and 6# Corolla and Sprinter were managed by Shiro Sasaki (who also did the previous model).

30 Series - 1200cc Sedan

Country Dates Code Engine Body Gearbox Diff Grade
KE30-KR 3K-H 2DS Man 4F K40 Std
KE30-KD 3K-H 2DS Man 4F K40 DLX
KE30-CD 3K-H 2DS Auto 2FC A20 DLX
KE30-KN 3K-H 2DS Man 4F K40 High DLX
KE30-MN 3K-H 2DS Man 5F K50 High DLX
KE30-CN 3K-H 2DS Auto 2FC A20 High DLX
KE30-KSBR 3K-BR 2DS Man 4F K40 SL
KE30-KSB 3K-B 2DS Man 4F K40 SL
KE30-MSBR 3K-BR 2DS Man 5F K50 SL
KE30-MSB 3K-B 2DS Man 5F K50 SL
KE30-KRF 3K-H 4DS Man 4F K40 Std
KE30-KDF 3K-H 4DS Man 4F K40 DLX
KE30-CDF 3K-H 4DS Auto 2FC A20 DLX
KE30-KNF 3K-H 4DS Man 4F K40 High DLX
KE30-MNF 3K-H 4DS Man 5F K50 High DLX
KE30-CNF 3K-H 4DS Auto 2FC A20 High DLX
KE30-KSFBR 3K-BR 4DS Man 4F K40 SL
KE30-KSFB 3K-B 4DS Man 4F K40 SL
KE30-MSFBR 3K-BR 4DS Man 5F K50 SL
KE30-MSFB 3K-B 4DS Man 5F K50 SL
TE30-KD T 2DS Man 4F T40 DLX
TE30-CD T 2DS Auto 2FC A20 DLX
TE30-HD T 2DS Auto 3FC A30 DLX
TE30-KN T 2DS Man 4F T40 High DLX
TE30-MN T 2DS Man 5F T50 High DLX
TE30-CN T 2DS Auto 2FC A20 High DLX
TE30-HN T 2DS Auto 3FC A30 High DLX
TE30-KSBR T-BR 2DS Man 4F T40 SL
TE30-KSB T-B 2DS Man 4F T40 SL
TE30-MSBR T-BR 2DS Man 5F T50 SL
TE30-MSB T-B 2DS Man 5F T50 SL
TE30-HSBR T-BR 2DS Auto 3FC A30 SL
TE30-HSB T-B 2DS Auto 3FC A30 SL
TE30-KDF T 4DS Man 4F T40 DLX
TE30-CDF T 4DS Auto 2FC A20 DLX
TE30-HDF T 4DS Auto 3FC A30 DLX
TE30-KNF T 4DS Man 4F T40 High DLX
TE30-MNF T 4DS Man 5F T50 High DLX
TE30-CNF T 4DS Auto 2FC A20 High DLX
TE30-HNF T 4DS Auto 3FC A30 High DLX
TE30-KSFBR T-BR 4DS Man 4F T40 SL
TE30-KSFB T-B 4DS Man 4F T40 SL
TE30-MSFBR T-BR 4DS Man 5F T50 SL
TE30-MSFB T-B 4DS Man 5F T50 SL
TE30-HSFBR T-BR 4DS Auto 3FC A30 SL
TE30-HSFB T-B 4DS Auto 3FC A30 SL
7408-79xx KE30R-KR 3K-H 2DS Man 4F K40 U 4.300 Std
7408-79xx KE30R-CR 3K-H 2DS Auto 2FC A20 U 4.300 Std
7408-79xx KE30R-KD 3K-H 2DS Man 4F K40 U 4.300 DLX
7408-79xx KE30R-CD 3K-H 2DS Auto 2FC A20 U 4.300 DLX
7408-79xx KE30R-KRF 3K-H 4DS Man 4F K40 U 4.300 Std
7408-79xx KE30R-CRF 3K-H 4DS Auto 2FC A20 U 4.300 Std
7408-79xx KE30R-KDF 3K-H 4DS Man 4F K40 U 4.300 DLX
7408-79xx KE30R-MDF 3K-H 4DS Man 5F K50 U 4.300 DLX
7408-79xx KE30R-CDF 3K-H 4DS Auto 2FC A20 U 4.300 DLX
7408-79xx KE30L-KR 3K-H 2DS Man 4F K40 U 4.300 Std
7408-79xx KE30L-CR 3K-H 2DS Auto 2FC A20 U 4.300 Std
7408-79xx KE30L-KD 3K-H 2DS Man 4F K40 U 4.300 DLX
7408-79xx KE30L-CD 3K-H 2DS Auto 2FC A20 U 4.300 DLX
7408-79xx KE30L-KRF 3K-H 4DS Man 4F K40 U 4.300 Std
7408-79xx KE30L-CRF 3K-H 4DS Auto 2FC A20 U 4.300 Std
7408-79xx KE30L-KDF 3K-H 4DS Man 4F K40 U 4.300 DLX
7408-79xx KE30L-CDF 3K-H 4DS Auto 2FC A20 U 4.300 DLX
7701-79xx KE30R-KDW 3K-H 2DS Man 4F K40 U 4.300 DLX
7701-79xx KE30R-CDW 3K-H 2DS Auto 2FC A20 U 4.300 DLX
7701-79xx KE30R-KDFW 3K-H 4DS Man 4F K40 U 4.300 DLX
7701-79xx KE30R-CDFW 3K-H 4DS Auto 2FC A20 U 4.300 DLX
7701-79xx KE30L-KRW 3K-H 2DS Man 4F K40 U 4.300 Std
7701-79xx KE30L-CRW 3K-H 2DS Auto 2FC A20 U 4.300 Std
7701-79xx KE30L-KDW 3K-H 2DS Man 4F K40 U 4.300 DLX
7811-7903 KE30L-MDW 3K-H 2DS Man 5F K50 U 4.300 DLX
7701-79xx KE30L-CDW 3K-H 2DS Auto 2FC A20 U 4.300 DLX
7701-79xx KE30L-KRFW 3K-H 4DS Man 4F K40 U 4.300 Std
7701-79xx KE30L-CRFW 3K-H 4DS Auto 2FC A20 U 4.300 Std
7701-79xx KE30L-KDFW 3K-H 4DS Man 4F K40 U 4.300 DLX
7811-7903 KE30L-MDFW 3K-H 4DS Man 5F K50 U 4.300 DLX
7701-79xx KE30L-CDFW 3K-H 4DS Auto 2FC A20 U 4.300 DLX
Sweden 7508-79xx KE30L-KRC 3K-C 2DS Man 4F K40 Std
Sweden 7508-79xx KE30L-KDC 3K-C 2DS Man 4F K40 DLX
Sweden 7508-79xx KE30L-KDFC 3K-C 4DS Man 4F K40 Std
7604-7805 KE30R-KRQ 3K-C 2DS Man 4F K40 Std
7604-7805 KE30R-CRQ 3K-C 2DS Auto 2FC A20 Std
7604-7805 KE30R-KRFQ 3K-C 4DS Man 4F K40 Std
7604-7805 KE30R-CRFQ 3K-C 4DS Auto 2FC A20 Std
South Africa 7711- KE30R-KRN 3K-H 2DS Man 4F K40 Std
South Africa 7711- KE30R-KDFN 3K-H 4DS Man 4F K40 DLX
7408-7708 KE30L-KRA 3K-C 2DS Man 4F K40 Std
7408-7708 KE30L-KRFA 3K-C 4DS Man 4F K40 Std
7608-7708 KE30L-KBA 3K-C 2DS Man 4F K40 Special
7608-7708 KE30L-KBFA 3K-C 4DS Man 4F K40 Special
7608-7708 KE30L-MBA 3K-C 2DS Man 5F K50 Special
7608-7708 KE30L-MBFA 3K-C 4DS Man 5F K50 Special
7708-7908 KE30L-KBA 3K-C 2DS Man 4F K40 Special
7708-7908 KE30L-KBFA 3K-C 4DS Man 4F K40 Special
7708-7908 KE30L-MBA 3K-C 2DS Man 5F K50 Special
7708-7908 KE30L-MBFA 3K-C 4DS Man 5F K50 Special
7708-7805 KE30L-KRK 3K-C 2DS Man 4F K40 Std
7708-7905 KE30L-KBK 3K-C 2DS Man 4F K40 Special

31 Series - 1600cc Sedan

Country Dates Code Engine Body Gearbox Diff Grade
TE31-KN 2T 2DS Man 4F T40 High DLX
TE31-MN 2T 2DS Man 5F T50 High DLX
TE31-HN 2T 2DS Auto 3FC A30 High DLX
TE31-KZBR 2T-BR 2DS Man 4F T40 GSL
TE31-KZB 2T-B 2DS Man 4F T40 GSL
TE31-MZBR 2T-BR 2DS Man 5F T50 GSL
TE31-MZB 2T-B 2DS Man 5F T50 GSL
TE31-HZBR 2T-BR 2DS Auto 3FC A30 GSL
TE31-HZB 2T-B 2DS Auto 3FC A30 GSL
TE31-KNF 2T 4DS Man 4F T40 High DLX
TE31-MNF 2T 4DS Man 5F T50 High DLX
TE31-HNF 2T 4DS Auto 3FC A30 High DLX
TE31-KZFBR 2T-BR 4DS Man 4F T40 GSL
TE31-KZFB 2T-B 4DS Man 4F T40 GSL
TE31-MZFBR 2T-BR 4DS Man 5F T50 GSL
TE31-MZFB 2T-B 4DS Man 5F T50 GSL
TE31-HZFBR 2T-BR 4DS Auto 3FC A30 GSL
TE31-HZFB 2T-B 4DS Auto 3FC A30 GL
South Africa 7503-7904 TE31R-KRN 2T 2DS Man 4F T40 Std
South Africa 7706-7904 TE31R-MDN 2T 2DS Man 5F T50 DLX
South Africa 7503-79xx TE31R-KDFN 2T 4DS Man 4F T40 DLX
South Africa 7511-79xx TE31R-HDFN 2T 4DS Auto 3FC A30 S 4.100 DLX
South Africa 7706-7904 TE31R-MDFN 2T 4DS Man 5F T50 DLX
South Africa 7904-79xx TE31R-MDFBN 2T-B 4DS Man 5F T50 DLX
7608-7708 TE31L-KBA 2T-C 2DS Man 4F T40 T 4.100 Special
7608-7708 TE31L-MBA 2T-C 2DS Man 5F T50 T 4.100 Special
7608-7708 TE31L-HBA 2T-C 2DS Auto 3FC A40 T 3.727 Special
7408-7708 TE31L-KRA 2T-C 2DS Man 4F T40 T 4.100 Std
7411-7603 TE31L-MRA 2T-C 2DS Man 5F T50 T 4.100 Std E-5
7603-7608 TE31L-MRA 2T-C 2DS Man 5F T50 T 4.100 Std
7408-7708 TE31L-HRA 2T-C 2DS Auto 3FC A40 T 3.727 Std
7408-7708 TE31L-KDA 2T-C 2DS Man 4F T40 T 4.100 DLX
7411-7603 TE31L-MDA 2T-C 2DS Man 5F T50 T 4.100 DLX E-5
7603-7708 TE31L-MDA 2T-C 2DS Man 5F T50 T 4.100 DLX
7408-7708 TE31L-HDA 2T-C 2DS Auto 3FC A40 T 3.727 DLX
7408-7708 TE31L-HDFA 2T-C 4DS Auto 3FC A40 T 3.727 DLX
7608-7708 TE31L-KBFA 2T-C 4DS Man 4F T40 T 4.100 Special
7608-7708 TE31L-MBFA 2T-C 4DS Man 5F T50 T 4.100 Special
7701-7708 TE31L-HBFA 2T-C 4DS Auto 43FC A40 T 3.727 Special
7408-7708 TE31L-KDFA 2T-C 4DS Man 4F T40 T 4.100 DLX
7411-7603 TE31L-MDFA 2T-C 4DS Man 5F T50 T 4.100 DLX E-5
7603-7708 TE31L-MDFA 2T-C 4DS Man 5F T50 T 4.100 DLX
7708-7908 TE31L-KBA 2T-C 2DS Man 4F T40 T 3.909 Special
7708-7908 TE31L-MBA 2T-C 2DS Man 5F T50 T 4.100 Special
7708-7908 TE31L-HBA 2T-C 2DS Auto 3FC A40 T 3.727 Special
7708-7908 TE31L-KDA 2T-C 2DS Man 4F T40 T 3.909 DLX
7708-7908 TE31L-MDA 2T-C 2DS Man 5F T50 T 4.100 DLX
7708-7908 TE31L-HDA 2T-C 2DS Auto 3FC A40 T 3.727 DLX
7708-7908 TE31L-KBFA 2T-C 4DS Man 4F T40 T 3.909 Special
7708-7908 TE31L-MBFA 2T-C 4DS Man 5F T50 T 4.100 Special
7708-7908 TE31L-HBFA 2T-C 4DS Auto 43FC A40 T 3.727 Special
7708-7908 TE31L-KDFA 2T-C 4DS Man 4F T40 T 3.909 DLX
7708-7908 TE31L-MDFA 2T-C 4DS Man 5F T50 T 4.100 DLX
7708-7908 TE31L-HDFA 2T-C 4DS Auto 3FC A40 T 3.727 DLX
7708-7805 TE31L-KRK 2T-C 2DS Man 4F T40 T 3.909 Std
7708-7805 TE31L-HRK 2T-C 2DS Auto 3FC A40 T 3.727 Std
7805-7908 TE31L-KBK 2T-C 2DS Man 4F T40 T 3.909 Special
7805-7908 TE31L-HBK 2T-C 2DS Auto 3FC A40 T 3.727 Special
7708-7908 TE31L-KDFK 2T-C 4DS Man 4F T40 T 3.909 DLX
7708-7908 TE31L-HDFK 2T-C 4DS Auto 3FC A40 T 3.727 DLX

35 Series - 1200cc,1400cc Hardtop

Country Dates Code Engine Body Gearbox Diff Grade
KE35-KD 3K-H HT Man 4F K40 DLX
KE35-CD 3K-H HT Auto 2FC A20 DLX
KE35-KN 3K-H HT Man 4F K40 High DLX
KE35-MN 3K-H HT Man 5F K50 High DLX
KE35-CN 3K-H HT Auto 2FC A20 High DLX
KE35-KSBR 3K-BR HT Man 4F K40 SL
KE35-KSB 3K-B HT Man 4F K40 SL
KE35-MSBR 3K-BR HT Man 5F K50 SL
KE35-MSB 3K-B HT Man 5F K50 SL
KE35-MXBR 3K-BR HT Man 5F K50 SR
KE35-MXB 3K-B HT Man 5F K50 SR
TE35-KB T HT Man 4F T40 SPL
TE35-KD T HT Man 4F T40 DLX
TE35-CD T HT Auto 2FC A20 DLX
TE35-HD T HT Auto 3FC A30 DLX
TE35-KN T HT Man 4F T40 High DLX
TE35-MN T HT Man 5F T50 High DLX
TE35-CN T HT Auto 2FC A20 High DLX
TE35-HN T HT Auto 3FC A30 High DLX
TE35-KSBR T-BR HT Man 4F T40 SL
TE35-KSB T-B HT Man 4F T40 SL
TE35-MSBR T-BR HT Man 5F T50 SL
TE35-MSB T-B HT Man 5F T50 SL
TE35-HSBR T-BR HT Auto 3FC A30 SL
TE35-HSB T-B HT Auto 3FC A30 SL
7408-79xx KE35R-KD 3K-H HT Man 4F K40 U 4.300 DLX
7408-79xx KE35R-CD 3K-H HT Auto 2FC A20 U 4.300 DLX
7408-79xx KE35R-KSB 3K-B HT Man 4F K40 U 4.300 SR
7408-79xx KE35R-MSB 3K-B HT Man 5F K50 U 4.556 SR
7408-79xx KE35L-KD 3K-H HT Man 4F K40 U 4.300 DLX
7408-79xx KE35L-CD 3K-H HT Auto 2FC A20 U 4.300 DLX
7408-79xx KE35L-KSB 3K-B HT Man 4F K40 U 4.300 SR
7408-79xx KE35L-MSB 3K-B HT Man 5F K50 U 4.556 SR
7604-7808 KE35R-KDQ 3K-C HT Man 4F K40 DLX
7604-7808 KE35R-CDQ 3K-C HT Auto 2FC A20 DLX
7408-7708 KE35L-KDA 3K-C HT Man 4F K40 DLX

36 Series - 1200cc Wagon

Country Dates Code Engine Body Gearbox Diff Grade
General 7408-79xx KE36RV-KR 3K-H 2DW Man 4F K40 U 4.556 Std
General 7408-79xx KE36RV-KD 3K-H 2DW Man 4F K40 U 4.556 DLX
General 7408-79xx KE36RV-KRF 3K-H 4DW Man 4F K40 U 4.556 Std
General 7408-79xx KE36RV-KDF 3K-H 4DW Man 4F K40 U 4.556 DLX
General 7408-79xx KE36LV-KR 3K-H 2DW Man 4F K40 U 4.556 Std
General 7408-79xx KE36LV-KD 3K-H 2DW Man 4F K40 U 4.556 DLX
General 7408-79xx KE36LV-KRF 3K-H 4DW Man 4F K40 U 4.556 Std
General 7408-79xx KE36LV-KDF 3K-H 4DW Man 4F K40 U 4.556 DLX
General 7408-79xx KE36RV-KRB 3K-H 2DV Man 4F K40 U 4.556 Std
General 7408-79xx KE36LV-KRB 3K-H 2DV Man 4F K40 U 4.556 Std
7604-7805 KE36RV-KRFQ 3K-C 4DW Man 4F K40 Std
7604-7805 KE36RV-KRBQ 3K-C 2DV Man 4F K40 Std
South Africa 7408-79xx KE36RV-KRBN 3K-C 2DV Man 4F K40 Std
7701-79xx KE36RV-KDFW 3K-H 4DW Man 4F K40 U 4.556 DLX
7701-79xx KE36RV-KRBW 3K-H 2DV Man 4F K40 U 4.556 Std
7701-79xx KE36LV-KRW 3K-H 2DW Man 4F K40 U 4.556 Std
7701-79xx KE36LV-KRFW 3K-H 4DW Man 4F K40 U 4.556 Std
7701-79xx KE36LV-KRBW 3K-H 2DV Man 4F K40 U 4.556 Std
Sweden 7508-79xx KE36LV-KRC 3K-H 2DW Man 4F K40 Std
Sweden 7508-79xx KE36LV-KRFC 3K-H 4DW Man 4F K40 Std

37 Series - 1600cc Hardtop

Country Dates Code Engine Body Gearbox Diff Grade
TE37-KN 2T HT Man 4F T40 HDX
TE37-MN 2T HT Man 5F T50 HDX
TE37-HN 2T HT Auto 3FC A40 HDX
TE37-KZBR 2T-BR HT Man 4F T40 GSL
TE37-KZB 2T-B HT Man 4F T40 GSL
TE37-MZBR 2T-BR HT Man 5F T50 GSL
TE37-MZB 2T-B HT Man 5F T50 GSL
TE37-MXBR 2T-BR HT Man 5F T50 SR
TE37-MXB 2T-B HT Man 5F T50 SR
TE37-MQRGR 2T-GR HT Man 5F T50 Levin
TE37-MQRG 2T-G HT Man 5F T50 Levin
7408-76xx TE37L-KDA 2T-C HT Man 4F T40 T 4.10 DLX
76xx-7708 TE37L-KDA 2T-C HT Man 4F T40 T 3.909 DLX
7408-75xx TE37L-MDA 2T-C HT Man 5F T50 T 4.30 DLX E-5
75xx-7603 TE37L-MDA 2T-C HT Man 5F T50 T 4.10 DLX E-5
7603-7708 TE37L-MDA 2T-C HT Man 5F T50 T 4.10 DLX
7408-7708 TE37L-MQA 2T-C HT Man 5F T50 T 4.300 SR-5
7408-7708 TE37L-HDA 2T-C HT Auto 3FC A40 T 3.727 DLX
7708-7908 TE37L-MQA 2T-C HT Man 5F T50 T 4.300 SR-5
7708-7908 TE37L-MQK 2T-C HT Man 5F T50 SR-5

38 Series - 1300cc Wagon

Country Dates Code Engine Body Gearbox Diff Grade
7808-7908 KE38RV-KRFQ 4K-C 4DW Man 4F K40 Std
7808-8107 KE38RV-KRBQ 4K-C 2DV Man 4F K40 Std
7408-7608 TE38LV-KDA 2T-C 2DW Man 4F T40 4.100 DLX
7408-76xx TE38LV-KDFA 2T-C 4DW Man 4F T40 4.100 DLX
76xx-7708 TE38LV-KDFA 2T-C 4DW Man 4F T40 3.909 DLX
7411-7603 TE38LV-MDFA 2T-C 2DW Man 5F T50 4.100 DLX E-5
7603-7708 TE38LV-MDFA 2T-C 4DW Man 5F T50 4.100 DLX
7408-7608 TE38LV-HDA 2T-C 2DW Auto 3FC A40 3.727 DLX
7408-7708 TE38LV-HDFA 2T-C 4DW Auto 3FC A40 3.727 DLX
7708-7908 TE38LV-KDFA 2T-C 4DW Man 4F T40 3.909 DLX
7708-7908 TE38LV-MDFA 2T-C 4DW Man 5F T50 4.100 DLX
7708-7908 TE38LV-HDFA 2T-C 4DW Auto 3FC A40 3.727 DLX
7708-7908 TE38LV-KDFK 2T-C 4DW Man 4F T40 DLX
7708-7908 TE38LV-HDFK 2T-C 4DW Auto 3FC A40 DLX

47 Series - 1600cc Trueno Coupe

Country Dates Code Engine Body Gearbox Diff Grade
7408-7902 TE47R-KN 2T CP Man 4F T40 S 4.100(4) LT
7408-7902 TE47R-MN 2T CP Man 5F T50 S 4.300(4) LT
7408-7902 TE47R-KZB 2T-B CP Man 4F T40 S 4.100(4) ST
7408-7902 TE47R-MZB 2T-B CP Man 5F T50 S 4.300(4) ST
7408-7902 TE47R-MQZG 2T-G CP Man 5F T50 T 4.300 GT
7408-7902 TE47L-KN 2T CP Man 4F T40 S 4.100(4) LT
7408-7902 TE47L-MN 2T CP Man 5F T50 S 4.300(4) LT
7408-7902 TE47L-KZB 2T-B CP Man 4F T40 S 4.100(4) ST
7408-7902 TE47L-MZB 2T-B CP Man 5F T50 S 4.300(4) ST
7408-7902 TE47L-MQZG 2T-G CP Man 5F T50 T 4.300 GT
7701-7902 TE47L-KNW 2T CP Man 4F T40 S 4.100(4) LT
7701-7902 TE47L-MZBW 2T-B CP Man 5F T50 S 4.300(4) ST
7701-7902 TE47L-MQZGW 2T-G CP Man 5F T50 T 4.300 GT
The Trueno is the same as the Corolla except for different sheet metal on the front.

50 Series - 1200cc Liftback

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
B-KE50-CMX 3K-U CP Man 5F 4.300 SR 64/5800 9.2/3600 9.0 1295 1285 855
B-KE50-CKS 3K-U CP Man 4F 4.300 SL 64/5800 9.2/3600 9.0 1295 1285 845
B-KE50-CMS 3K-U CP Man 5F 4.300 SL 64/5800 9.2/3600 9.0 1295 1285 850
B-KE50-CKN(L) 3K-U CP Man 4F 4.100 Hi-Deluxe Extra 64/5800 9.2/3600 9.0 1295 1285 835
B-KE50-CMN(L) 3K-U CP Man 5F 4.300 Hi-Deluxe Extra 64/5800 9.2/3600 9.0 1295 1285 840
B-KE50-CKN 3K-U CP Man 4F 4.100 Hi-Deluxe 64/5800 9.2/3600 9.0 1295 1285 835
B-KE50-CMN 3K-U CP Man 5F 4.300 Hi-Deluxe 64/5800 9.2/3600 9.0 1295 1285 840
B-KE50-CKD 3K-U CP Man 4F 4.100 Deluxe 64/5800 9.2/3600 9.0 1295 1285 825
B-KE50-CMD 3K-U CP Man 5F 4.300 Deluxe 64/5800 9.2/3600 9.0 1295 1285 830
B-TE50-CKS T-U CP Man 4F 3.909 SL 82/5800 11.6/3400 9.0 1300 1285 905
B-TE50-CMS T-U CP Man 5F 4.100 SL 82/5800 11.6/3400 9.0 1300 1285 905
B-TE50-CKN(L) T-U CP Man 4F 3.727 Hi-Deluxe Extra 82/5800 11.6/3400 9.0 1300 1285 905
B-TE50-CMN(L) T-U CP Man 5F 3.909 Hi-Deluxe Extra 82/5800 11.6/3400 9.0 1300 1285 905
B-TE50-CKN T-U CP Man 4F 3.727 Hi-Deluxe 82/5800 11.6/3400 9.0 1300 1285 905
B-TE50-CMN T-U CP Man 5F 3.909 Hi-Deluxe 82/5800 11.6/3400 9.0 1300 1285 905
B-TE50-CKD T-U CP Man 4F 3.727 Deluxe 82/5800 11.6/3400 9.0 1300 1285 905
B-TE50-CMD T-U CP Man 5F 3.909 Deluxe 82/5800 11.6/3400 9.0 1300 1285 905
General 7603-79xx KE50R-LKD 3K-H LB Man 4F K40 DLX
General 7603-79xx KE50L-LKD 3K-H LB Man 4F K40 DLX
7701-7805 KE50R-LMDQ 3K-C LB Man 5F K50 DLX
7701-79xx KE50R-LKDW 3K-H LB Man 4F K40 DLX
7701-79xx KE50L-LKDW 3K-H LB Man 4F K40 DLX
Sweden 7701-79xx KE50L-LMDC 3K-H LB Man 5F K50 DLX
7701-7708 KE50L-LKDA 3K-C LB Man 4F K40 DLX
7708-7908 KE50L-LKDK 3K-C LB Man 4F K40 DLX

51 Series - 1600cc Coupe/Liftback

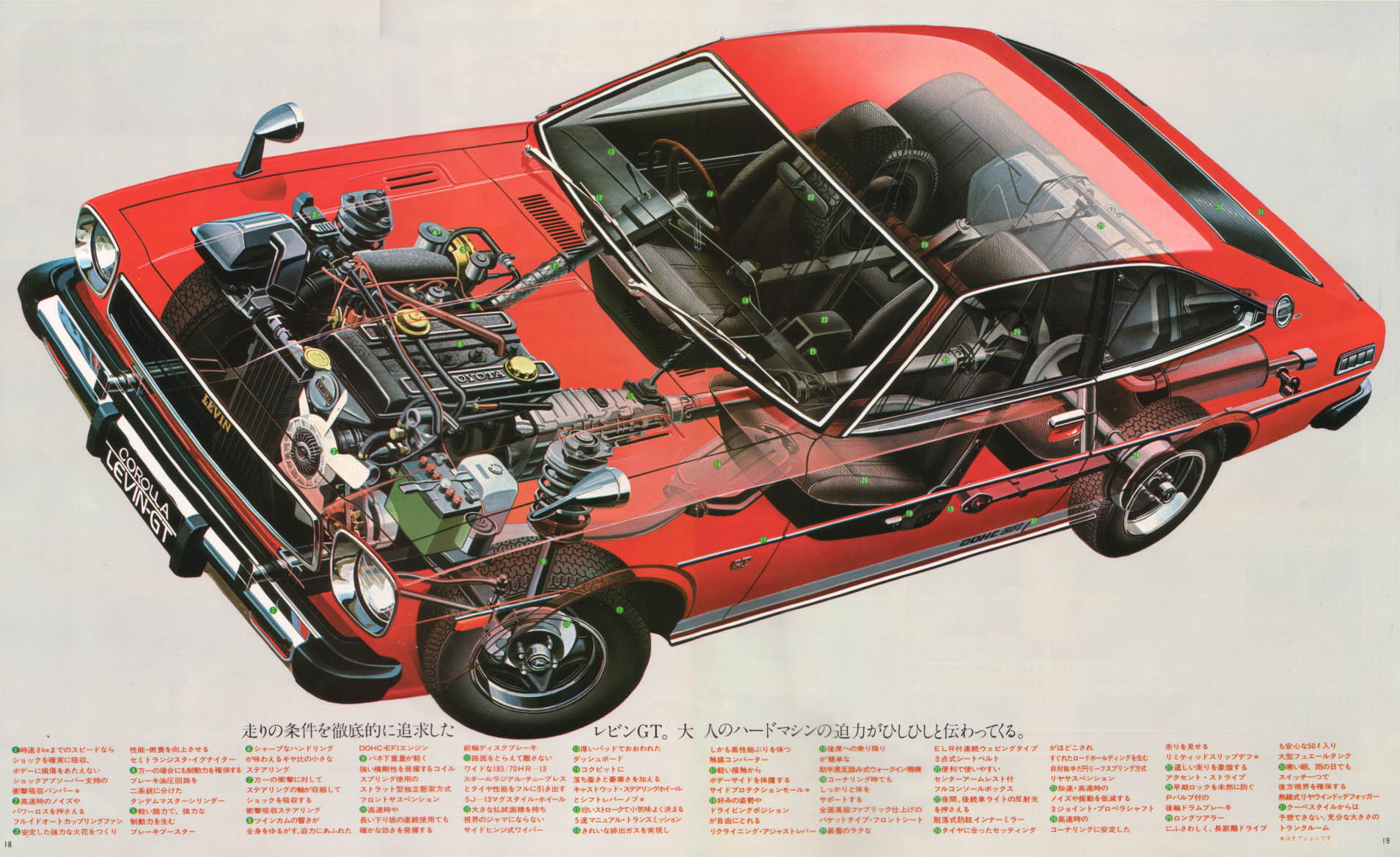

TE51 Levin GT Japan
Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
B-TE51-CMQZGE 2T-GEU CP Man 5F 4.300 Levin GT 110/6000 14.5/4800 8.4 1320 1335 955
B-TE51-CMQRGE 2T-GEU CP Man 5F 4.300 Levin 110/6000 14.5/4800 8.4 1320 1335 950
B-TE51-CMX 2T-U CP Man 5F 4.100 SR 90/6000 13.0/3800 8.4 1320 1300 915
B-TE51-CKZ(L) 2T-U CP Man 4F 3.909 GSL Extra 90/6000 13.0/3800 8.4 1300 1285 915
B-TE51-CMZ(L) 2T-U CP Man 5F 4.100 GSL Extra 90/6000 13.0/3800 8.4 1300 1285 915
B-TE51-CHZ(L) 2T-U CP Auto 3FC 3.909 GSL Extra 90/6000 13.0/3800 8.4 1300 1285 935
B-TE51-CKZ 2T-U CP Man 4F 3.909 GSL 90/6000 13.0/3800 8.4 1300 1285 915
B-TE51-CMZ 2T-U CP Man 5F 4.100 GSL 90/6000 13.0/3800 8.4 1300 1285 915
B-TE51-CHZ 2T-U CP Auto 3FC 3.909 GSL 90/6000 13.0/3800 8.4 1300 1285 935
B-TE51-CKN(L) 2T-U CP Man 4F 3.909 Hi-Deluxe Extra 90/6000 13.0/3800 8.4 1300 1285 900
B-TE51-CMN(L) 2T-U CP Man 5F 3.909 Hi-Deluxe Extra 90/6000 13.0/3800 8.4 1300 1285 905
B-TE51-CHN(L) 2T-U CP Auto 3FC 3.909 Hi-Deluxe Extra 90/6000 13.0/3800 8.4 1300 1285 920
B-TE51-CKN 2T-U CP Man 4F 3.909 Hi-Deluxe 90/6000 13.0/3800 8.4 1300 1285 900
B-TE51-CMN 2T-U CP Man 5F 3.909 Hi-Deluxe 90/6000 13.0/3800 8.4 1300 1285 905
B-TE51-CHN 2T-U CP Auto 3FC 3.909 Hi-Deluxe 90/6000 13.0/3800 8.4 1300 1285 920
General 7603-79xx TE51R-LKD 2T LB Man 4F T40 DLX
General 7603-79xx TE51R-LHD 2T LB Auto 3FC A40 DLX
General 7603-79xx TE51R-LMQB 2T-B LB Man 5F T50 GSL
General 7603-79xx TE51L-LKD 2T LB Man 4F T40 DLX
General 7603-79xx TE51L-LHD 2T LB Auto 3FC A40 DLX
General 7603-79xx TE51L-LMQB 2T-B LB Man 5F T50 GSL
7701-79xx TE51R-LKDW 2T LB Man 4F T40 DLX
7701-79xx TE51R-LHDW 2T LB Auto 3FC A40 DLX
7701-79xx TE51R-LMQBW 2T-B LB Man 5F T50 GSL
7701-79xx TE51L-LKDW 2T LB Man 4F T40 DLX
7701-79xx TE51L-LHDW 2T LB Auto 3FC A40 DLX
7701-79xx TE51L-LMQBW 2T-B LB Man 5F T50 GSL
7603-7708 TE51L-CKDA 2T-C CP Man 4F T40 T 3.909 DLX 51.2" 50.6" 2232lbs
2251lbs Calif
7603-7708 TE51L-CHDA 2T-C CP Auto 3FC A40 T 3.727 DLX 51.2" 50.6"
7603-7708 TE51L-CMDA 2T-C CP Man 5F T50 T 3.909 DLX 52.0" 52.6" 2270lbs
2289lbs Calif
7603-7708 TE51L-CMQA 2T-C CP Man 5F T50 3.909 SR-5 52.0" 52.6" 2270lbs
2289lbs Calif
7708-7908 TE51L-CKDA 2T-C CP Man 4F T40 T 3.909 DLX 51.2" 50.6" 2232lbs
2251lbs Calif
7708-7908 TE51L-CHDA 2T-C CP Auto 3FC A40 T 3.727 DLX 51.2" 50.6"
7708-7908 TE51L-CMDA 2T-C CP Man 5F T50 T 3.909 DLX 52.0" 52.6" 2270lbs
2289lbs Calif
7708-7908 TE51L-CMQA 2T-C CP Man 5F T50 3.909 SR-5 52.0" 52.6" 2270lbs
2289lbs Calif
7708-7908 TE51L-CKDK 2T-C CP Man 4F T40 T 3.909 DLX 51.2" 50.6" 2232lbs
7708-7908 TE51L-CHDK 2T-C CP Auto 3FC A40 T 3.727 DLX 51.2" 50.6"
7708-7908 TE51L-CMQK 2T-C CP Man 5F T50 3.909 SR-5 52.0" 52.6" 2270lbs
7603-7708 TE51L-LKDA 2T-C LB Man 4F T40 T 3.909 DLX 51.2" 50.6" 2232lbs
2251lbs Calif
7603-7708 TE51L-LHDA 2T-C LB Auto 3FC A40 T 3.727 DLX 51.2" 50.6"
7603-7708 TE51L-LMDA 2T-C LB Man 5F T50 T 3.909 DLX 52.0" 52.6" 2270lbs
2289lbs Calif
7603-7708 TE51L-LMQA 2T-C LB Man 5F T50 3.909 SR-5 52.0" 52.6" 2270lbs
2289lbs Calif
7708-7908 TE51L-LKDA 2T-C LB Man 4F T40 T 3.909 DLX 51.2" 50.6" 2232lbs
2251lbs Calif
7708-7908 TE51L-LHDA 2T-C LB Auto 3FC A40 T 3.727 DLX 51.2" 50.6"
7708-7908 TE51L-LMDA 2T-C LB Man 5F T50 T 3.909 DLX 52.0" 52.6" 2270lbs
2289lbs Calif
7708-7908 TE51L-LMQA 2T-C LB Man 5F T50 3.909 SR-5 52.0" 52.6" 2270lbs
2289lbs Calif
7708-7908 TE51L-LKDK 2T-C LB Man 4F T40 T 3.909 DLX 51.2" 50.6" 2232lbs
7708-7908 TE51L-LHDK 2T-C LB Auto 3FC A40 T 3.727 DLX 51.2" 50.6"
7708-7908 TE51L-LMQK 2T-C LB Man 5F T50 3.909 SR-5 52.0" 52.6" 2270lbs

52 Series - 1600cc Coupe

Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
B-TE52-CMX 12T CP Man 5F 4.100 SR 85/5400 12.5/3400 8.5 1320 1300 910
B-TE52-CKZ(L) 12T CP Man 4F 4.100 GSL Extra 85/5400 12.5/3400 8.5 1300 1285 910
B-TE52-CMZ(L) 12T CP Man 5F 4.100 GSL Extra 85/5400 12.5/3400 8.5 1300 1285 910
B-TE52-CKZ 12T CP Man 4F 4.100 GSL 85/5400 12.5/3400 8.5 1300 1285 910
B-TE52-CMZ 12T CP Man 5F 4.100 GSL 85/5400 12.5/3400 8.5 1300 1285 910
B-TE52-CKN(L) 12T CP Man 4F 3.909 Hi-Deluxe Extra 85/5400 12.5/3400 8.5 1300 1285 895
B-TE52-CMN(L) 12T CP Man 5F 4.100 Hi-Deluxe Extra 85/5400 12.5/3400 8.5 1300 1285 900
B-TE52-CKN 12T CP Man 4F 3.909 Hi-Deluxe 85/5400 12.5/3400 8.5 1300 1285 895
B-TE52-CMN 12T CP Man 5F 4.100 Hi-Deluxe 85/5400 12.5/3400 8.5 1300 1285 900
B-TE52-CKD 12T CP Man 4F 3.909 Deluxe 85/5400 12.5/3400 8.5 1300 1285 895
B-TE52-CMD 12T CP Man 5F 4.100 Deluxe 85/5400 12.5/3400 8.5 1300 1285 900

55 Series - 1300cc

Country Dates Code Engine Body Gearbox Grade
7805-8107 KE55R-EKRQ 4K-C 4DS Man 4F T40 Std
7910-8107 KE55R-EMRQ 4K-C 4DS Man 5F T50 Std
7805-8107 KE55R-EHRQ 4K-C 4DS Auto 3FC A30 Std
7808-8107 KE55R-SKDQ 4K-C HT Man 4F T40 DLX
7910-8107 KE55R-SMDQ 4K-C HT Man 5F T50 DLX
7808-8107 KE55R-SHDQ 4K-C HT Auto 3FC A30 DLX
7805-7908 KE55R-LMDQ 4K-C LB Man 5F T50 DLX

60 Series - 1400cc Sprinter Sedan/Liftback

Country Dates Code Engine Body Gearbox Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
77xx B-TE60-EKS T-U 4DS Man 4F ST 82/5800 11.6/3400 9.0
77xx B-TE60-EMS T-U 4DS Man 5F ST 82/5800 11.6/3400 9.0
77xx B-TE60-EKN T-U 4DS Man 4F XL 82/5800 11.6/3400 9.0 1300 1285 905
77xx B-TE60-EMN T-U 4DS Man 5F XL 82/5800 11.6/3400 9.0 1300 1285
77xx B-TE60-EKN T-U 4DS Man 4F XL Extra 82/5800 11.6/3400 9.0 1300 1285 905
77xx B-TE60-EMN T-U 4DS Man 5F XL Extra 82/5800 11.6/3400 9.0 1300 1285
77xx B-TE60-EKD T-U 4DS Man 4F DX 82/5800 11.6/3400 9.0
77xx B-TE60-LKD T-U LB Man 4F DX 82/5800 11.6/3400 9.0 1300 1285 930

61 Series - 1600cc Sprinter Sedan/Coupe

Country Dates Code Engine Body Gearbox Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
77xx B-TE61-EHZ 2T-U 4DS Auto 3FC GS 90/6000 13.0/3800 9.0 1300 1285 945
77xx B-TE61-CMQGZGE 2T-GEU CP Man 5F GT 110/6000 14.5/4800 8.4 1335 1320 955
77xx B-TE61-LMQGZGE 2T-GEU CP Man 5F GT 110/6000 14.5/4800 8.4 1335 1320 975

65 Series - 1300cc Sprinter Hardtop/Coupe

Country Dates Code Engine Body Gearbox Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
77xx B-KE65-SKN 4K-U HT Man 4F XL 72/5600 10.5/3600 9.0 1295 1285 830
77xx B-KE65-CMS 4K-U CP Man 5F ST 72/5600 10.5/3600 9.0 1295 1285 845

66 Series - 1600cc Sprinter Hardtop

Country Dates Code Engine Body Gearbox Grade PS/rpm kgm/rpm CR Front
track		 Rear
track		 kg
77xx B-TE66-SKN 12T-U HT Man 4F XL 88/5600 13.3/3400 9.0 1300 1285 895

Corolla 7# 4th generation

The 7# range has a completely new sharp edged look.
Several new features such as rack and pinion steering are added along with new engine choices (1800cc 3T, 1500cc 3A).

The Corolla and Sprinter names were carried over from the previous model.
The Levin name was now reserved for the coupe with 2T-G engine but the 2T-G engine was also available in the GT version of the sedan, hardtop and liftback.

Design work was started in 1974 by Fumio Agetsuma. The goals he told his team were:

  • Quiet cars will have a definite edge. Conservation of both resources and fuel will be very important. Economy and value will also carry considerable weight.
  • Our new Corolla must be as aerodynamically perfect as the parameters allow. It must be comfortable, with enough interior room to move about in. It will need all the modern features that future customers will want as well.
  • Corolla must change. But we should never destroy the popular base upon which Corolla sales are built. Our new car must reflect the wishes of the consumer, the ordinary people who drive Corollas.
  • There should be no generation gap with Corolla. It should appeal to young and old alike. Corolla must also transcend national boundaries. It muts perform as well in sub-zero temperatures as it does in the tropics or in the heat of the deserts of the world. Above all, Corolla must be a car that pleases.
  • Corolla has an illustrious tradition. Now, let us build our new Corolla on that tradition, the kind of new Corolla we know the drivers of the world will expect.

    70 Series - 1300cc/1500cc/1600cc

    Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
    track    		 Rear
    track    		 kg
    82xx E-KE70-ECKXS 4K-U(II) CP Man 4F 3.727 SR 74/5600 10.7/3600 9.5 1320 1335 885
    82xx E-KE70-ECMXS 4K-U(II) CP Man 5F 3.727 SR 74/5600 10.7/3600 9.5 1320 1335 885
    82xx E-KE70-ECHXS 4K-U(II) CP Auto 3FC 3.909 SR 74/5600 10.7/3600 9.5 1320 1335 905
    82xx E-AE70-ECMXS 3A-U(II) CP Man 5F 3.727 SR 80/5600 11.8/3600 9.0 1320 1335 900
    82xx E-AE70-ECHXS 3A-U(II) CP Auto 3FC 3.727 SR 80/5600 11.8/3600 9.0 1320 1335 920
    82xx E-KE70-ESKNS 4K-U(II) HT Man 4F 3.727 GL 74/5600 10.7/3600 9.5 1320 1335 845
    82xx E-KE70-ESHNS 4K-U(II) HT Auto 3FC 3.909 GL 74/5600 10.7/3600 9.5 1320 1335 865
    82xx E-KE70-ESKENS 4K-U(II) HT Man 4F 3.727 SE 74/5600 10.7/3600 9.5 1320 1335 870
    82xx E-KE70-ESMES 4K-U(II) HT Man 5F 3.727 SE 74/5600 10.7/3600 9.5 1320 1335 870
    82xx E-KE70-ESHES 4K-U(II) HT Auto 3FC 3.909 SE 74/5600 10.7/3600 9.5 1320 1335 890
    82xx E-AE70-ESKNS 3A-U(II) HT Man 4F 3.727 GL 80/5600 11.8/3600 9.0 1320 1335 855
    82xx E-AE70-ESHNS 3A-U(II) HT Auto 3FC 3.909 GL 80/5600 11.8/3600 9.0 1320 1335 875
    82xx E-AE70-ESMSS 3A-U(II) HT Man 5F 3.727 SX 80/5600 11.8/3600 9.0 1320 1335 865
    82xx E-AE70-ESKES 3A-U(II) HT Man 4F 3.727 SE 80/5600 11.8/3600 9.0 1320 1335 880
    82xx E-AE70-ESMES 3A-U(II) HT Man 5F 3.727 SE 80/5600 11.8/3600 9.0 1320 1335 880
    82xx E-AE70-ESHES 3A-U(II) HT Auto 3FC 3.727 SE 80/5600 11.8/3600 9.0 1320 1335 900
    82xx E-KE70-ELKDS 4K-U(II) LB Man 4F 3.727 DX 74/5600 10.7/3600 9.5 1320 1335 845
    82xx E-KE70-ELKNS 4K-U(II) LB Man 4F 3.727 GL 74/5600 10.7/3600 9.5 1320 1335 865
    82xx E-KE70-ELHNS 4K-U(II) LB Auto 3FC 3.909 GL 74/5600 10.7/3600 9.5 1320 1335 885
    82xx E-KE70-ELKENS 4K-U(II) LB Man 4F 3.727 SE 74/5600 10.7/3600 9.5 1320 1335 885
    82xx E-KE70-ELMES 4K-U(II) LB Man 5F 3.727 SE 74/5600 10.7/3600 9.5 1320 1335 885
    82xx E-KE70-ELHES 4K-U(II) LB Auto 3FC 3.909 SE 74/5600 10.7/3600 9.5 1320 1335 905
    82xx E-AE70-ELKNS 3A-U(II) LB Man 4F 3.727 GL 80/5600 11.8/3600 9.0 1320 1335 870
    82xx E-AE70-ELHNS 3A-U(II) LB Auto 3FC 3.909 GL 80/5600 11.8/3600 9.0 1320 1335 890
    82xx E-AE70-ELMSS 3A-U(II) LB Man 5F 3.727 SX 80/5600 11.8/3600 9.0 1320 1335 880
    82xx E-AE70-ELKENS 3A-U(II) LB Man 4F 3.727 SE 80/5600 11.8/3600 9.0 1320 1335 895
    82xx E-AE70-ELMES 3A-U(II) LB Man 5F 3.727 SE 80/5600 11.8/3600 9.0 1320 1335 895
    82xx E-AE70-ELHES 3A-U(II) LB Auto 3FC 3.727 SE 80/5600 11.8/3600 9.0 1320 1335 915
    General 7908-8305 KE70R-EDKRS 4K 2DS Man 4F Std
    General 7908-8008 KE70R-EDKDS 4K 2DS Man 4F DX
    General 7908-8305 KE70R-EEKRS 4K 4DS Man 4F Std
    General 7908-8406 KE70R-EEKDS 4K 4DS Man 4F DX
    General 7908-8208 KE70R-EEMDS 4K 4DS Man 5F DX
    General 7908-8108 KE70R-EECDS 4K 4DS Auto 2FC DX
    General 8108-8305 KE70R-EEHDS 4K 4DS Auto 3FC DX
    General 8108-8406 KE70R-EEMNS 4K 4DS Man 5F GL
    General 8108-8406 KE70R-EEHNS 4K 4DS Auto 3FC GL
    General 7908-8008 KE70L-EDKRSW 4K 2DS Man 4F Std
    General 7908-8305 KE70L-EDKDSW 4K 2DS Man 4F DX
    General 7908-8305 KE70L-EEKRSW 4K 4DS Man 4F Std
    General 7908-8305 KE70L-EEKDSW 4K 4DS Man 4F DX
    General 7908-8305 KE70L-EEMDSW 4K 4DS Man 5F DX
    General 7908-8108 KE70L-EECDSW 4K 4DS Auto 2FC DX
    General 8108-8305 KE70L-EEHDSW 4K 4DS Auto 3FC DX
    General 8108-8305 KE70L-EEMNSW 4K 4DS Man 5F GL
    General 8108-8305 KE70L-EEHNSW 4K 4DS Auto 3FC GL
    7908-8008 KE70R-EDKDSW 4K 2DS Man 4F DX
    8008-8108 KE70R-EDMDSW 4K 2DS Man 5F DX
    7908-8108 KE70R-EDCDSW 4K 2DS Auto 2FC DX
    8108-8208 KE70R-EDMNSW 4K 2DS Man 4F GL
    7908-8008 KE70R-EEKDSW 4K 4DS Man 4F DX
    8008-8305 KE70R-EEMDSW 4K 4DS Man 5F DX
    7908-8108 KE70R-EECDSW 4K 4DS Auto 2FC DX
    8108-8305 KE70R-EEHDSW 4K 4DS Auto 3FC DX
    8108-8305 KE70R-EEMNSW 4K 4DS Man 5F GL
    8108-8305 KE70R-EEHNSW 4K 4DS Auto 3FC GL
    7908-8305 KE70L-EDKRSW 4K 2DS Man 4F Std
    7908-8305 KE70L-EDKDSW 4K 2DS Man 4F DX
    7908-8305 KE70L-EDMDSW 4K 2DS Man 5F DX
    7908-8108 KE70L-EDCDSW 4K 2DS Auto 2FC DX
    8108-8305 KE70L-EDHDSW 4K 2DS Auto 3FC DX
    8108-8208 KE70L-EDMNSW 4K 2DS Man 5F GL
    7908-8305 KE70L-EEKRSW 4K 4DS Man 4F Std
    7908-8305 KE70L-EEKDSW 4K 4DS Man 4F DX
    7908-8305 KE70L-EEMDSW 4K 4DS Man 5F DX
    7908-8108 KE70L-EECDSW 4K 4DS Auto 2FC DX
    8108-8305 KE70L-EEHDSW 4K 4DS Auto 3FC DX
    8108-8305 KE70L-EEMNSW 4K 4DS Man 5F GL
    8108-8305 KE70L-EEHNSW 4K 4DS Auto 3FC GL
    Sweden 7908-8208 KE70L-EDKDCC 4K-C 2DS Man 4F DX
    Sweden 7908-8208 KE70L-EEKDCC 4K-C 4DS Man 4F DX
    SwedenSwiss 8208-8305 KE70L-EEMDCC 4K-C 4DS Man 4F DX
    79xx-8xxx KE70R-EEKRCQ 4K-C 4DS Man 4F K40 Std
    79xx-8xxx KE70R-EEHRCQ 4K-C 4DS Auto 3FC Std
    KE70L-EDKDSV 4K 2DS Man 4F K40 U 3.909 DX 65 10.0
    CE70L-** 1C 63 8.9

    71 Series - 1600cc Liftback

    Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
    track    		 Rear
    track    		 kg
    79xx E-TE71-EEMQF 2T-GEU 4DS Man 5F T50 4.100 GT 115/6000 15.0/4800 8.4 1340 1345 955
    82xx E-TE71-ECMZF 2T-GEU CP Man 5F T50 4.100 Levin-S 115/6000 15.0/4800 8.4 1340 1345 955
    79xx,82xx E-TE71-ECMQF 2T-GEU CP Man 5F T50 4.100 Levin 115/6000 15.0/4800 8.4 1340 1345 8.4
    82xx E-TE71-ECMQF 2T-GEU CP Man 5F T50 4.100 Levin-Apex 115/6000 15.0/4800 8.4 1340 1345 8.4
    79xx,82xx E-TE71-ESMQF 2T-GEU HT Man 5F T50 4.100 GT 115/6000 15.0/4800 8.4 1340 1345 975
    79xx,82xx E-TE71-ELMQF 2T-GEU LB Man 5F T50 4.100 GT 115/6000 15.0/4800 8.4 1340 1345 975
    General 7908-8108 TE71R-EEKRS 2T 4DS Man 4F Std
    General 7908-8305 TE71R-EEKDS 2T 4DS Man 4F DX
    General 7908-8305 TE71R-EEHDS 2T 4DS Auto 3FC DX
    General 8208-8308 TE71R-EEMNS 2T 4DS Man 5F GL
    General 8208-8308 TE71R-EEHNS 2T 4DS Auto 3FC GL
    General 7908-8008 TE71L-EEKRS 2T 4DS Man 4F Std
    General 7908-8305 TE71L-EEKDS 2T 4DS Man 4F DX
    General 7908-8305 TE71L-EEHDS 2T 4DS Auto 3FC DX
    79xx,82xx TE71L-ECMQGW 2T-G CP Man 5F T50 T 4.100
    TE71L-** 2T 75 12.0
    Compression ratio for 2T-GEU engine claimed as 8.4 in 1979 and 9.0 in 1982.
    Power and torque figures were the same.
    American Corollas with TE71 in the VIN actually have TE72 in the model code.

    72 Series - 1800cc

    Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
    track    		 Rear
    track    		 kg
    7908-8305 TE72R-ELMEGQ 3T-C LB Man 5F T50 3.727 SE A$7974 73/5000 12.4/2600 9.0 1325 1335 985
    South Africa 8204-8401 TE72R-ELMESN 3T-C LB Man 5F T50 3.727 SE
    7908-8xxx TE72L-** 3T-C Sdn
    7908-8xxx TE72L-** 3T-C LB
    7908-8xxx TE72L-** 3T-C CP
    7908-8xxx TE72L-** 3T-C convertible Sunrunner
    The TE72 liftback was known as the T-18 in Australia.
    It was the only Toyota sold in Australia with the 3T engine.
    The American TE72 coupe had TE72 in the model code but TE71 in the VIN.
    The Sunrunner was a coupe modified into a convertible by Griffith (USA).
    The Sunrunner was blessed by Toyota and sold through Toyota dealers with a full warrantee.
    Griffith also made the Celica Sunchaser convertible.

    Corolla 8# 5th generation

    The Corolla changed to front wheel drive except for the AE85, AE86, wagons and vans.

    An advantage of FWD is better use of space (no driveshaft or axle to intrude into the passenger space).
    If an inexperienced the driver judges a corner wrongly then his natural reactions tend to be safer with FWD (turn the wheel more in the desired direction).
    For RWD turning the wheel too far by an inexperienced driver may cause the car to spin but allows an experienced driver much greater control.

    Even today the AE86 is a popular car because the 4A-GEU is easily replaced by the supercharged 4A-GZE (or converted to turbocharging) and the rear wheel drive allows better control in controlled drifts (spinning the wheels in corners so that the rear of the car goes sideways without losing control).
    FWD cars can not be used for drifting because when the front wheels spin they also lose steering capability.

    As well as remaining rear wheel drive, the Levins and Sprinters had different front styling and a longer rear end after the wheels.

    Previously the Levin was only for the twincam models in the Corolla range and the Trueno was the twincam model in the Sprinter range.
    Now the Levin name is used for fixed headlight RWD models, the Sprinter name is used for the popup headlight RWD models and the Trueno is the twincam version of the Sprinter.
    However, the Sprinter name was also used in Australia for the fixed headlight RWD model (Australia didn't have the popup headlight RWD models).

    I am not interested in FWD, so I have listed only a couple of the FWD models to show the difference from the RWD models.

    81 Series - 1500cc FWD

    Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
    track    		 Rear
    track    		 kg
    83xx E-AE81-EEKDS 3A-LU 4DS Man 4F DX 83/5600 12.0/3600 9.3 1425 1405 825
    83xx E-AE81-EEKNS 3A-LU 4DS Man 4F GL 83/5600 12.0/3600 9.3 1425 1405 850
    83xx E-AE81-EEHNS 3A-LU 4DS Auto 3FC GL 83/5600 12.0/3600 9.3 1425 1405 870
    83xx E-AE81-EEMES 3A-LU 4DS Man 5F SE 83/5600 12.0/3600 9.3 1425 1405 870
    83xx E-AE81-EEHES 3A-LU 4DS Auto 3FC SE 83/5600 12.0/3600 9.3 1425 1405 890
    83xx E-AE81-ELMSS 3A-LU 5DS Man 5F SX 83/5600 12.0/3600 9.3 1425 1405 875
    83xx E-AE81-ELHSS 3A-LU 5DS Auto 3FC SX 83/5600 12.0/3600 9.3 1425 1405 895
    83xx E-AE81-ELMGS 3A-LU 5DS Man 5F SX 83/5600 12.0/3600 9.3 1425 1405 895
    83xx E-AE81-ELHGS 3A-LU 5DS Auto 3FC SX 83/5600 12.0/3600 9.3 1425 1405 915

    82 Series - FWD 1600cc

    Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
    track    		 Rear
    track    		 kg
    AE82-MMSFC 4A-C
    AE82-EMSFE 4A-C

    85 Series - 1500cc RWD

    Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
    track    		 Rear
    track    		 kg
    86xx E-AE85-ESMES 3A-U HT Man 5F 3.727 Levin SE 85/5600 12.0/3600 9.3 1355 1350 860
    86xx E-AE85-ESPES 3A-U HT Auto 4FC 3.909 Levin SE 85/5600 12.0/3600 9.3 1355 1350 890
    86xx E-AE85-ESMNS 3A-U HT Man 5F 3.727 Levin GL 85/5600 12.0/3600 9.3 1355 1350 860
    86xx E-AE85-ESPNS 3A-U HT Auto 4FC 3.909 Levin GL 85/5600 12.0/3600 9.3 1355 1350 890
    86xx E-AE85-ECMXS 3A-U LB Man 5F 3.727 Levin SR 85/5600 12.0/3600 9.3 1355 1350 880
    86xx E-AE85-ECPXS 3A-U LB Auto 4FC 3.909 Levin SR 85/5600 12.0/3600 9.3 1355 1350 910
    84xx E-AE85-FCMXS 3A-U LB Man 5F 3.727 Sprinter SR 83/5600 12.0/3600 9.0 1355 1350 885
    84xx E-AE85-FCMXS 3A-U LB Auto 4FC 3.909 Sprinter SR 83/5600 12.0/3600 9.0 1355 1350 915
    84xx E-AE85-FSMES 3A-U HT Man 5F 3.727 Sprinter SE 83/5600 12.0/3600 9.0 1355 1350 870
    84xx E-AE85-FSMES 3A-U HT Auto 4FC 3.909 Sprinter SE 83/5600 12.0/3600 9.0 1355 1350 900
    84xx E-AE85-FSMNS 3A-U HT Man 5F 3.727 Sprinter XL,
    Sprinter XL Lisse    		 83/5600 12.0/3600 9.0 1355 1350 860
    84xx E-AE85-FSMNS 3A-U HT Auto 4FC 3.909 Sprinter XL,
    Sprinter XL Lisse    		 83/5600 12.0/3600 9.0 1355 1350 890
    84xx E-AE85-FCPXS 3A-U LB Auto 4FC A42DL S 3.900 Sprinter Trueno
    4 speed auto has 2 overdrive.

    86 Series - 1600cc RWD Sprinter, Trueno

    Country Dates Code Engine Body Gearbox Diff Grade PS/rpm kgm/rpm CR Front
    track    		 Rear
    track    		 kg
    86xx E-AE86-ESMQF 4A-GEU HT Man 5F 4.300 Levin GT 130/6600 15.2/5200 9.4 1355 1345 910
    86xx E-AE86-ESPQF 4A-GEU HT Auto 4FC 4.300 Levin GT 130/6600 15.2/5200 9.4 1355 1345 930
    86xx E-AE86-ESMVF 4A-GEU HT Man 5F 4.300 Levin GT-APEX 130/6600 15.2/5200 9.4 1355 1345 940
    86xx E-AE86-ESPVF 4A-GEU HT Auto 4FC 4.300 Levin GT-APEX 130/6600 15.2/5200 9.4 1355 1345 960
    86xx E-AE86-ECMQF 4A-GEU LB Man 5F 4.300 Levin GT 130/6600 15.2/5200 9.4 1355 1345 940
    86xx E-AE86-ECMVF 4A-GEU LB Man 5F 4.300 Levin GT-APEX 130/6600 15.2/5200 9.4 1355 1345 960
    86xx E-AE86-ECPVF 4A-GEU LB Auto 4FC 4.300 Levin GT-APEX 130/6600 15.2/5200 9.4 1355 1345 980
    84xx E-AE86-FSMQF 4A-GEU HT Man 5F 4.300 Trueno GT 130/6600 15.2/5200 9.4 1355 1345 905
    87xx E-AE86-MSMQF 4A-GEU HT Man 5F Trueno GT
    84xx E-AE86-FSMVF 4A-GEU HT Man 5F 4.300 Trueno GT APEX 130/6600 15.2/5200 9.4 1355 1345 925
    84xx E-AE86-FCMQF 4A-GEU LB Man 5F 4.300 Trueno GTV 130/6600 15.2/5200 9.4 1355 1345 940
    84xx E-AE86-FCMVF 4A-GEU LB Man 5F 4.300 Trueno GT APEX 130/6600 15.2/5200 9.4 1355 1345 940
    AE86R-ECMXQ 4A-C HT Man 5F T50 S 3.900 Sprinter
    Optional wider 6" rims add 10mm to track on GT-APEX and GTV models.
    GT-APEX and GTV models have rear disk brakes.
    4 speed auto is ECT-S with 1 overdrive.

    www.free-counters.net @ free hit counters

    Last updated 14 May 2011
