Remembering Japanese cars from the past

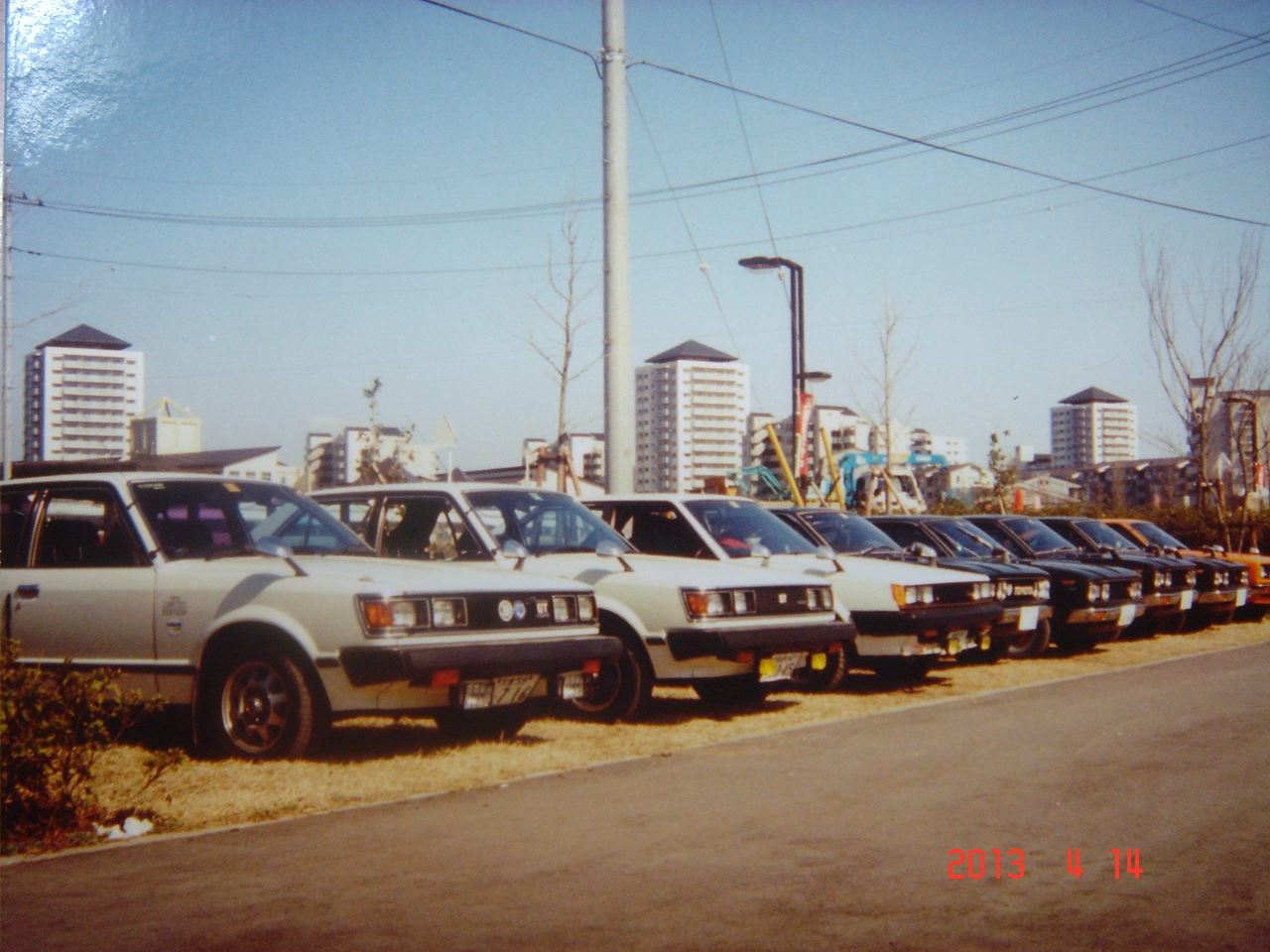

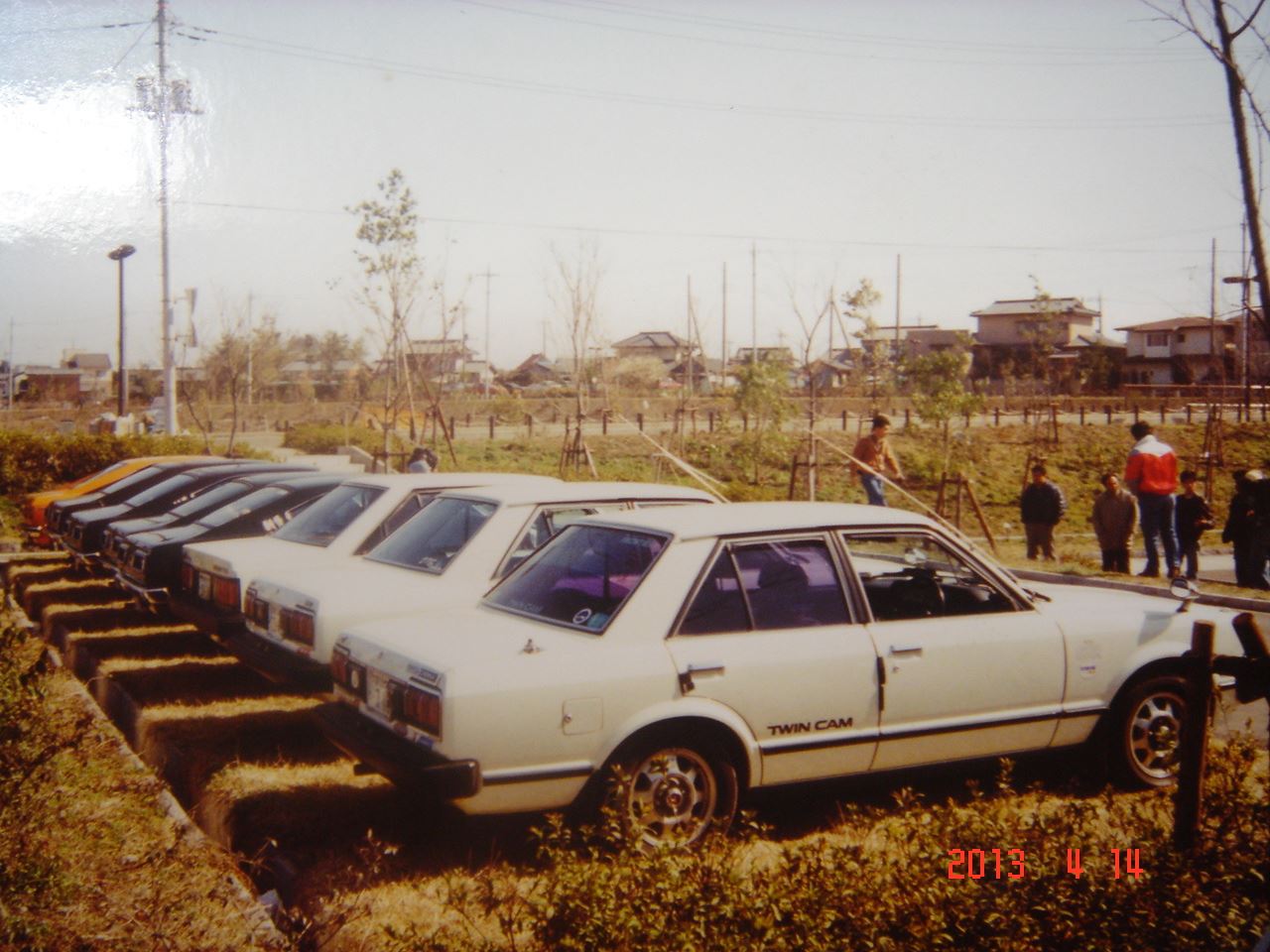

What would a Toyota Carina GT meeting look like in 1994? Well these photos were taken in 1994 at a Carina meeting somewhere in the Saitama Prefecture:
All Carinas are GT models and all except one (RA45 18R-G) are 2T-G powered. How bizarre is that? I would say that’s pretty epic as the 2T-G versions of the third generation are now close to extinct!
The big lineup really looks great: Continue reading

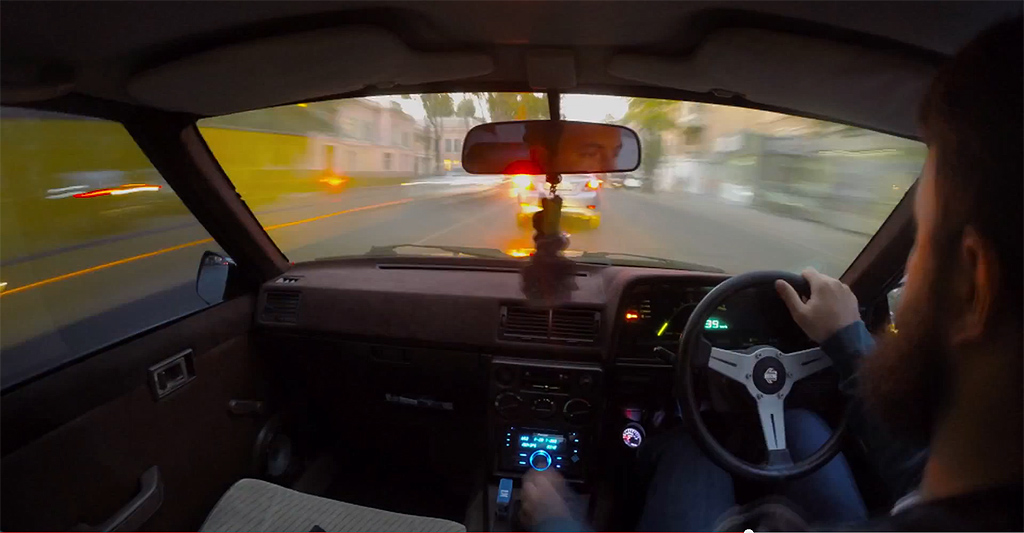

I found this awesome Toyota Carina AA60 coupe timelapse video by accident on Youtube. The creator is called Ruslan and judging from the numberplates (correct me if I’m wrong here!) he is from the Ukraine.
The timelapse video shows you how to plough through Ukrainian traffic in a Toyota Carina AA60 coupe. What especially is nice about the video is that his coupe has the optional digital dashboard and you can see it function very nicely. It looks just as awesome (and 80s) as the digital dashboard on the AE86 and Celica XX/Celica Supra.
Occasionally I browse Goo-Net to see if there are any interesting Toyota Carinas for sale, like a Carina Jeune or a 20v Carina. So when I spotted Yokosuka’s deep blue Toyota Carina AA63 for sale earlier today I really felt a strong pain in my heart:
Why? It is one of the nicest Carinas around and he put so much time and effort in the car!
Yes it really is the same…
On the positive side, this allows us to have a peek on all the internals of this beauty: Continue reading

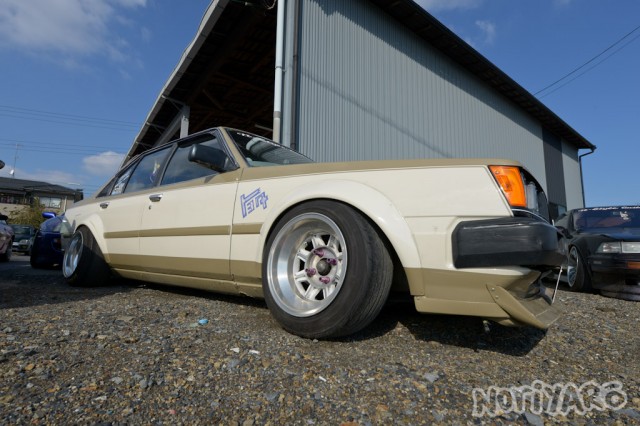

I know I have been slacking again on the blog lately… My job was killing me and last Tuesday I gave a presentation at a MySQL oriented conference in London so hardly any time left for anything else. So I promise to make it up to you with this beautiful photo of the N-Style Toyota Carina AA63 taken by Nori Yaro:
Alexi Smith (aka Nori Yaro) visited the N-Style garage and took a couple of beautiful photographs of their car lineup, including three of the N-Style Toyota Carina AA63.
So head over to Nori Yaro’s visit to N-Style to see all the other photos!
As I described a few weeks ago: I bought a CD-ROM with all Toyota Carina FR workshop books (scanned) on it and it is a treasure of information. From now and then there are a few hidden gems in there, like the initial design sketches for the four door sedan of the Toyota Carina A60:
The front is a bit more slanted than the production version and if you squint your eyes you can see the Toyota Corona A140 in it that shared the same platform. Wheel arches are more squared off than the Carina and this is quite similar to the Corona as well.
However the sketch from the rear is unmistakeably the four door Toyota Carina A60 sedan:
The tail lights are clearly the same design as the tail lights of the zenki sedan. Even the rear door has the blacked out triangular part that finishes of the lines of the rear door.
Perhaps Toyota made a study to see if they could fully merge the Corona and Carina with the A60/T140 generation? Eventually they managed to do it in the next T150 generation.
Some time ago I bought a CD-ROM from Japan with the Japanese Toyota handbooks hoping it would contain the wiring diagrams of the Japanese Carina A60 or at least the body repair manual for this to help me out with the wiring of the JDM gauge cluster. Unfortunately I haven’t found any pin out for the gauge cluster, except the one used for the digital cluster. What I did found was an awful lot of trivia like the Toyota Carina A60 transmission overview. The ones listed here are taken from the updated handbook of May 1985 (so released during the facelift) and the two tables reveals quite some surprises. There is an additional one covering the transmissions for the vans, but that reveals hardly anything surprising.
First of all here is the transmission per capacity per body type listed:
I tried to copy the kanji and decypher the meaning of them, so don’t pin me down on any translations here:
○ means these were the choices/options
◎ means it was an extra option/special case (e.g. overdrive)
☓ means it was abolished (not available anymore)
Top section is the four door, middle section the three door coupe and the bottom section the five door wagon (Surf).
This table reveals to me:
1. The Toyota Carina GT (and GT-R) only came with a manual transmission (T50).
2. Only the Toyota Carina GT-T (and GT-TR) came with either the W55 manual or the A43D automatic transmission
3. The 1C diesel engine featured the W51 and A42D automatic
The other table contains the transmission per model code per body type:
Legend is basically almost the same as the table above.
This table reveals to me:
There was something like the SG-JUNE (misspelled Jeune?), SE-EXTRA, GT-R and GT-TR. All of them were options. I can’t tell what exactly in this list is the option over the existing transmission.
I did find additional information regarding the differences from the GT/GT-T and GT-R/GT-TR models and most of it is trim based. Will definitely post this in a later posting.
For completeness, here is the A67 wagon overview:
Nothing surprising here: T40, T50, A41 and W51 all present like in the previous overviews.
Some trivia regarding the bellhousings:
The 1C diesel engine has the same bellhousing as the Toyota S engine and a popular fit for the 3S-G(T)E with the W series transmission. Also the 1S engine features a bellhousing that fits the T50 transmission, so for cars with a T50 transmission this is a popular bellhousing to mount a 3S-G(T)E to the existing box.
I have created a template to put this overview in a nicely formatted html table here: Toyota Carina A60 transmissions and I will fill the blanks in the upcoming day(s).
